Help with Stereo Wiring

Discussion in 'Stereo & Entertainment Systems' started by LACROMER, Feb 21, 2016.

  1. LACROMER

    LACROMER Junior Member

    Age:
    24
    Posts:
    14
    Likes Received:
    10
    Joined:
    Jan 12, 2016
    Location:
    New Bern, NC
    First Name:
    Lacy
    Truck Year:
    1983
    Truck Model:
    K10
    Engine Size:
    5.7L 350

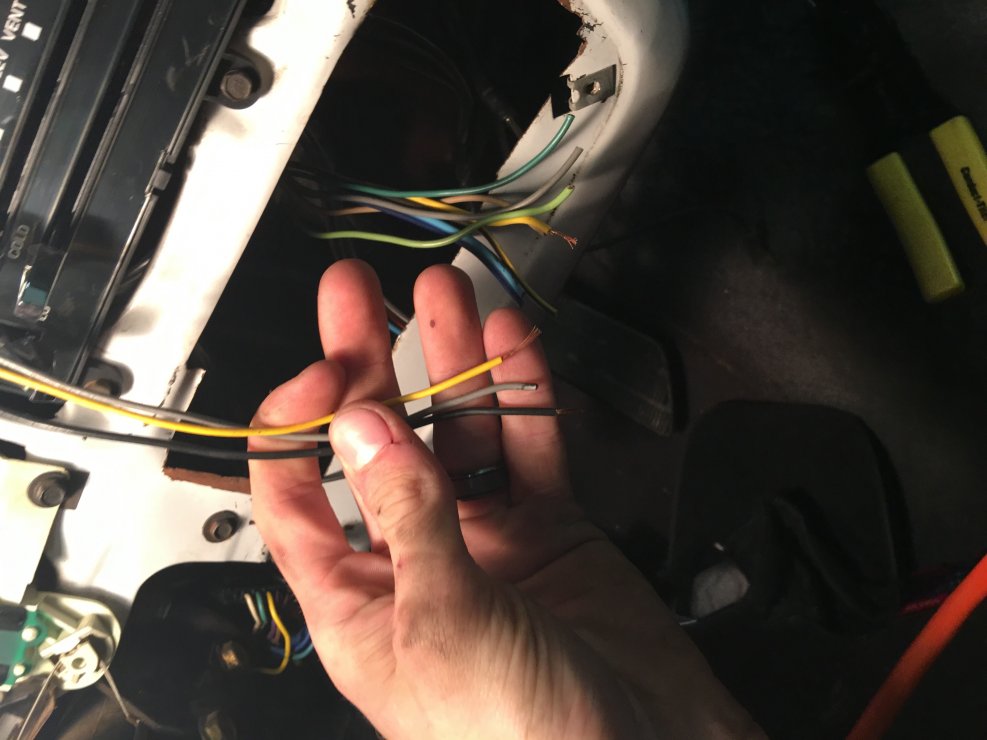

    So I have a 83 K10 that the po cut out some of the wiring for the stereo, I'm trying to install a new radio and I can't seem to get power to the radio any help with what to connect to where would be greatly appreciated. Thanks in advance.


    Attached Files:

  2. 87ChevyR10

    87ChevyR10 Full Access Member

    Posts:
    1,124
    Likes Received:
    57
    Joined:
    Sep 2, 2013
    Location:
    Nope
    First Name:
    Nope
    Truck Year:
    Nope
    Truck Model:
    Nope
    Engine Size:
    Nope
    I recently did a stereo install. It seems you are missing some wires from the dash. If I remember correctly, the factory radio had 2 plugs: 1 for power and ground; and another for the speakers. I do not see the red power wire in your picture. Also, I used the wire from the cig lighter as the 12V hot source.

    If the power lead is gone, you will need to run a lead from a switched power source or from the battery with an inline fuse.

    Hope this helps.

  3. chengny

    chengny Full Access Member

    Posts:
    4,086
    Likes Received:
    922
    Joined:
    Feb 22, 2012
    Location:
    NH
    First Name:
    Jerry
    Truck Year:
    1986
    Truck Model:
    K3500
    Engine Size:
    350/5.7
    As 87ChevyR10 says, the radio wiring consisted of two harness connectors. One was the power, backlighting & ground plug. The leads were assigned as:

    1. Yellow - ignition switched power (only hot when key is in RUN or ACC) via 15 amp fuse
    labeled RDO.

    2. Gray - power for radio back lighting. On the same circuit as the dimmable dash
    lighting.

    3. Black - ground wire.

    The number of leads to the other harness plug(s) - for the speakers - varied with which stereo RPO package was supplied.

    Looks like you have a 4 speaker system. The 8 speaker wires are pinched between your finger tips. The other wire - if it is black - is the ground wire.

    [​IMG]


    You need to find the hot (yellow) lead for the switched power supply. This will be connected to the red wire at your new HU's harness plug.


    Additionally, you will need to run a new power supply from a battery (always on) circuit and connect it to the yellow lead in the HU's plug. Without the constant hot power supply, your new HU will not retain your settings and the clock will reset to 12:00 each time you restart the truck.


    If you should come across the gray wire, disregard it. Just tape it off and stuff it somewhere. Modern head units do not accommodate dimmable back lighting.

    Below is a chart showing the standardized colors for HU wiring. Note that the ignition switched power supply comes in on the red wire. That is why (if you find it) your factory yellow must be connected there.

    [​IMG]

    Last edited: Feb 21, 2016
  4. LACROMER

    LACROMER Junior Member

    Age:
    24
    Posts:
    14
    Likes Received:
    10
    Joined:
    Jan 12, 2016
    Location:
    New Bern, NC
    First Name:
    Lacy
    Truck Year:
    1983
    Truck Model:
    K10
    Engine Size:
    5.7L 350


    Okay so I found these wires and connected the yellow to the red wire on the radio harness and also connected the grounds and I still got no power. 15 amp RDO fuse is good.


    Attached Files:

  5. chengny

    chengny Full Access Member

    Posts:
    4,086
    Likes Received:
    922
    Joined:
    Feb 22, 2012
    Location:
    NH
    First Name:
    Jerry
    Truck Year:
    1986
    Truck Model:
    K3500
    Engine Size:
    350/5.7
    Is there power at the factory yellow - when the ignition is in the RUN/ACC positions?


    Also, I don't know if you noticed this:

    Additionally, you will need to run a new power supply from a battery (always on) circuit and connect it to the yellow lead in the HU's plug. Without the constant hot power supply, your new HU will not retain your settings and the clock will reset to 12:00 each time you restart the truck.


    In addition to the settings/clock not working, I should have also mentioned that the HU won't even power up without that uninterrupted battery power supply.

    Last edited: Feb 21, 2016
  6. LACROMER

    LACROMER Junior Member

    Age:
    24
    Posts:
    14
    Likes Received:
    10
    Joined:
    Jan 12, 2016
    Location:
    New Bern, NC
    First Name:
    Lacy
    Truck Year:
    1983
    Truck Model:
    K10
    Engine Size:
    5.7L 350
    I dont know if there is power at the factory yellow im going to go buy a test light tomorrow and give it a shot. Thanks for the help. Also is there another wire or fuse i could hook the (always on) circuit to. Im trying to minimize the wires running through the dash and under the hood so i want to avoid hooking it up directly to the battery if at all possible. Thanks again for all the help. Im new to wiring so its a learning experience.

  7. 87ChevyR10

    87ChevyR10 Full Access Member

    Posts:
    1,124
    Likes Received:
    57
    Joined:
    Sep 2, 2013
    Location:
    Nope
    First Name:
    Nope
    Truck Year:
    Nope
    Truck Model:
    Nope
    Engine Size:
    Nope
    Use the orange/black wire running to the cig lighter. It's always on. That's what I used.

  8. chengny

    chengny Full Access Member

    Posts:
    4,086
    Likes Received:
    922
    Joined:
    Feb 22, 2012
    Location:
    NH
    First Name:
    Jerry
    Truck Year:
    1986
    Truck Model:
    K3500
    Engine Size:
    350/5.7
    Use the orange/black wire running to the cig lighter. It's always on. That's what I used.


    2 X what John says - but I think the lighter feed is a plain orange wire in an 83.


    BTW - Just going by the picture of the wires in your hand, I am fairly certain this is the correct wiring diagram for your speakers. I am extremely color deficient (can only really see blue and yellow) so don't take my word for it:

    [​IMG]

    Last edited: Feb 22, 2016
  9. Reckless_ridin

    Reckless_ridin Member

    Posts:
    33
    Likes Received:
    0
    Joined:
    Jan 15, 2015
    Location:
    maryland
    First Name:
    Ricky
    Truck Year:
    87
    Truck Model:
    r10
    Engine Size:
    305
    I am also having problems just got my new retro sounds stereo and they don't sale harness anyone have full wiring label diagram? Or know what's what. I also have a 87 r10 so this has helped a lot already don't want to have to trace speakers though

    Sent from my SM-N920T using Tapatalk

  10. TRAZOII

    TRAZOII Member

    Posts:
    31
    Likes Received:
    2
    Joined:
    Jan 6, 2017
    Location:
    Phoenix
    First Name:
    Anthony
    Truck Year:
    85
    Truck Model:
    K10 Sub
    Engine Size:
    350
    [​IMG]

    Sent from my VS990 using Tapatalk

  11. Camar068

    Camar068 Supporting Member Supporting Member

    Posts:
    2,438
    Likes Received:
    730
    Joined:
    Feb 5, 2014
    Location:
    Kentucky
    First Name:
    David
    Truck Year:
    1986
    Truck Model:
    K10/LM7 5.3/4L60e/np208/3.73/32"
    Engine Size:
    10 yrs Air Force
    Since your diggin into wiring, You might think about installing a relay and terminal block in the glovebox for 12V cont. and 12V IGN. That way in the future if you ever need 12V, you have one place to go with no splicing. Someone here did it but I can't find the post. Had a nice pic of it 2.
