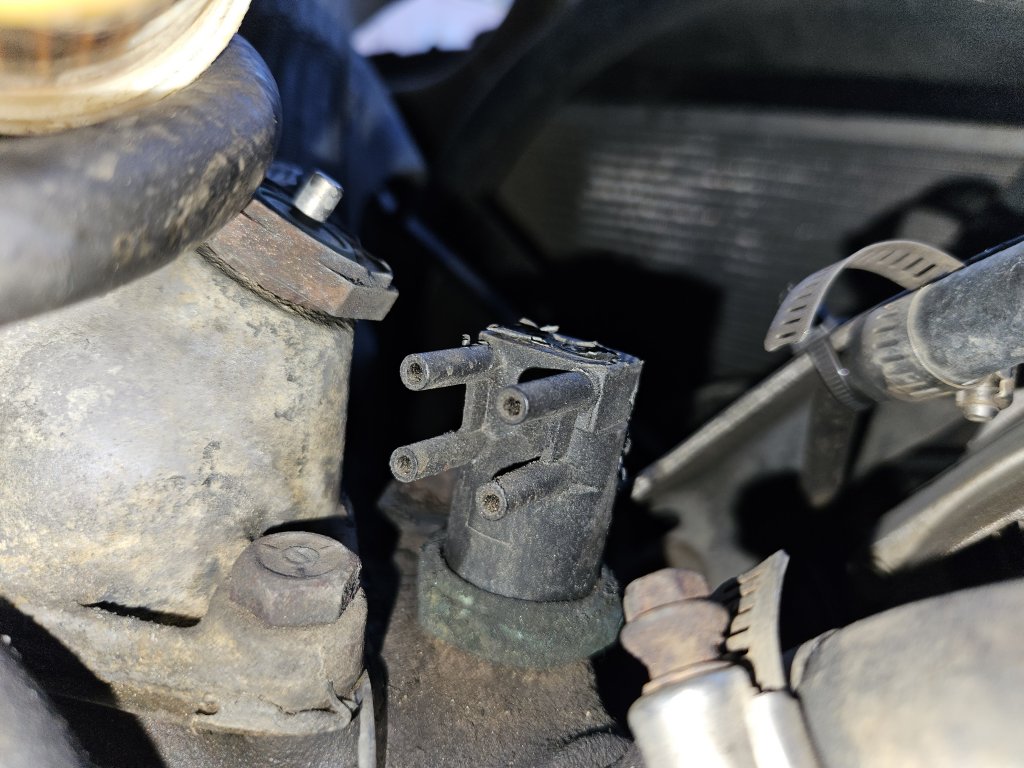

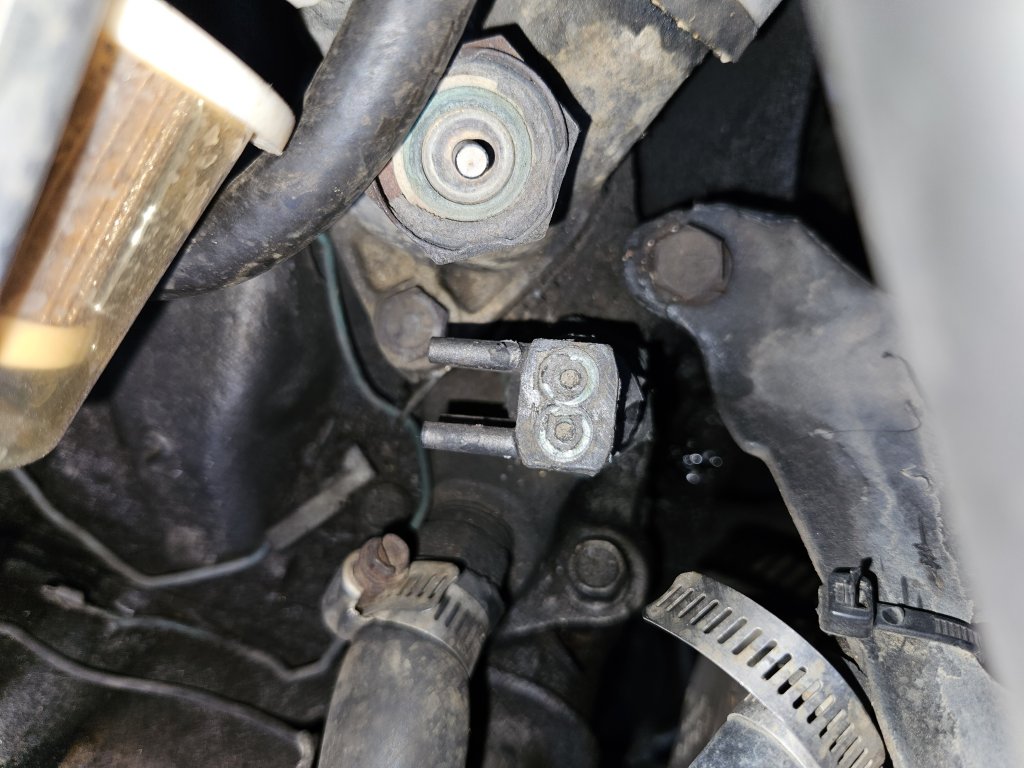

Weird intake vacuum looking thingy maybe
- Thread starter 2manyburbans
- Start date
Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.
Radiohead
That guy on the Columbia
- Joined
- Mar 17, 2022
- Posts
- 1,858
- Reaction score
- 6,061
- Location
- Low Earth Orbit where it's safer
- First Name
- Eric
- Truck Year
- MCMLXXIX
- Truck Model
- C-20 Silverado Camper Special
- Engine Size
- 454 crazy cubes, or 7.4 luscious litres
That's an emissions system thermal vacuum valve. A set of vacuum lines are attached that will switch duties depending on the temperature of the coolant.
Ricko1966
Full Access Member
- Joined
- Apr 11, 2017
- Posts
- 4,105
- Reaction score
- 5,963
- Location
- kansas
- First Name
- Rick
- Truck Year
- 1975
- Truck Model
- c20
- Engine Size
- 350
Don't throw it away or break it. It is a thermo vacuum switch, don't remember the function for sure,but can check tomorrow. I think that one is EFE and Vacuum Advance which are both good to have. That 4 port switch isn't cheap,if you ever need it in the future,you don't want to have to buy it.
Craig 85
Full Access Member
- Joined
- Jan 25, 2017
- Posts
- 3,897
- Reaction score
- 4,042
- Location
- Nashville, TN
- First Name
- Craig
- Truck Year
- 1985
- Truck Model
- K30 SRW
- Engine Size
- 454/TH-400/NP205
I have several different types of those on my '85 K30. Here's the vacuum map for my truck. It's a mess, but it all works.
You must be registered for see images attach
You must be registered for see images attach
