While on the subject of Th400, if anyone has or trips accross Ron Sessions book,

How to Work With and Modify the Turbo Hydra-Matic 400 transmission

like at a garage sale, book swap event, estate sale or whereever that you can pick up cheap, like $10-$20 or even less, pick that sucker up. It's a great book and is out of print. About the only place I know to find it now is on eBay and it's usually $100 or more used. I was lucky enough to score one a few years ago for like $10 that someone didn't know what they had. Even if you know Turbo 400's, I like it for the Identification Charts. There's great info in it about year model changes, which parts are best and which parts interchange, what year models have the more rare better parts like the dog bone sprag drums. Just get it if you happen to come across one cheap.

I literally just picked this one up. I was going to ask if it was worth having after I read through the thread. Then I saw your your and Nick's posts, awesome.


Attachments

  • 17056863708066731114987373116383.jpg
    170.4 KB · Views: 18

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,014
Reaction score
9,008
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
I literally just picked this one up. I was going to ask if it was worth having after I read through the thread. Then I saw your your and Nick's posts, awesome.
Awesome. Great Book !!! Was you able to get a good deal on it?


Rumbledawg

Full Access Member
Joined
Jul 15, 2021
Posts
224
Reaction score
820
Location
the back 40
First Name
Dan
Truck Year
1985
Truck Model
K30 crewcab
Engine Size
454
wow...
pricey indeed.
i bought my copy back in '88 or '89 and paid $20 for it. back then it was the GO-TO as there really was no interweb to speak of then.
almost tempted to sell mine, but nah...flipping pages is better than navigating some bs stuff online
You must be registered for see images attach

just can't belive the prices for a twenty dollar book..


NickTransmissions

Supporting Member
Supporting Member
Joined
Aug 3, 2023
Posts
261
Reaction score
543
Location
Las Vegas
First Name
Nick
Truck Year
1987
Truck Model
R10
Engine Size
350
I literally just picked this one up. I was going to ask if it was worth having after I read through the thread. Then I saw your your and Nick's posts, awesome.
wow...
pricey indeed.
i bought my copy back in '88 or '89 and paid $20 for it. back then it was the GO-TO as there really was no interweb to speak of then.
almost tempted to sell mine, but nah...flipping pages is better than navigating some bs stuff online

just can't belive the prices for a twenty dollar book..
The BIBLE for servicing, rebuilding and modifying the TH400!

Also, BOLO for his TH350 book as well, if you work on those.
You must be registered for see images attach


Sgt Gus

Full Access Member
Joined
Aug 2, 2023
Posts
169
Reaction score
271
Location
Texas
First Name
Mark
Truck Year
87
Truck Model
R20 3/4 ton
Engine Size
454ci/7.4L
So question, our 3/4 ton with th400 seemed to go into gear kinda hard if that makes sense. Park to drive or reverse, like a race horse wanting to get outta gate. Drives fine, shifts fine. Just seeing if that seems...normal?


NickTransmissions

Supporting Member
Supporting Member
Joined
Aug 3, 2023
Posts
261
Reaction score
543
Location
Las Vegas
First Name
Nick
Truck Year
1987
Truck Model
R10
Engine Size
350
So question, our 3/4 ton with th400 seemed to go into gear kinda hard if that makes sense. Park to drive or reverse, like a race horse wanting to get outta gate. Drives fine, shifts fine. Just seeing if that seems...normal?
The engagement into Rev or Drive is harsh or it's physically more difficult to move the shifter itself into gear?


Sgt Gus

Full Access Member
Joined
Aug 2, 2023
Posts
169
Reaction score
271
Location
Texas
First Name
Mark
Truck Year
87
Truck Model
R20 3/4 ton
Engine Size
454ci/7.4L
The engagement into Rev or Drive is harsh or it's physically more difficult to move the shifter itself into gear?
Not physically hard to move at all, the engagement.


NickTransmissions

Supporting Member
Supporting Member
Joined
Aug 3, 2023
Posts
261
Reaction score
543
Location
Las Vegas
First Name
Nick
Truck Year
1987
Truck Model
R10
Engine Size
350
Not physically hard to move at all, the engagement.
Relatively normal for TH400s - some are more abrupt than others...My guess is that both forward and direct drums in yours have no cushion plates installed (the direct clutch is also used in reverse) and the center lip seal in the forward drum has either been omitted during a prev rebuild or left off at the factory, if your has never been gone through (would be interesting to learn it's all original). That drum lip seal helps soften engagement.


Sgt Gus

Full Access Member
Joined
Aug 2, 2023
Posts
169
Reaction score
271
Location
Texas
First Name
Mark
Truck Year
87
Truck Model
R20 3/4 ton
Engine Size
454ci/7.4L
Relatively normal for TH400s - some are more abrupt than others...My guess is that both forward and direct drums in yours have no cushion plates installed (the direct clutch is also used in reverse) and the center lip seal in the forward drum has either been omitted during a prev rebuild or left off at the factory, if your has never been gone through (would be interesting to learn it's all original). That drum lip seal helps soften engagement.

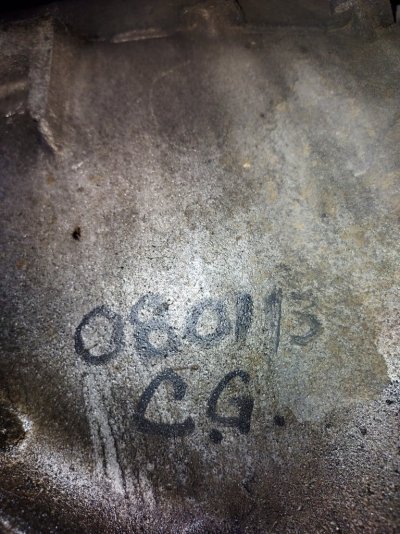

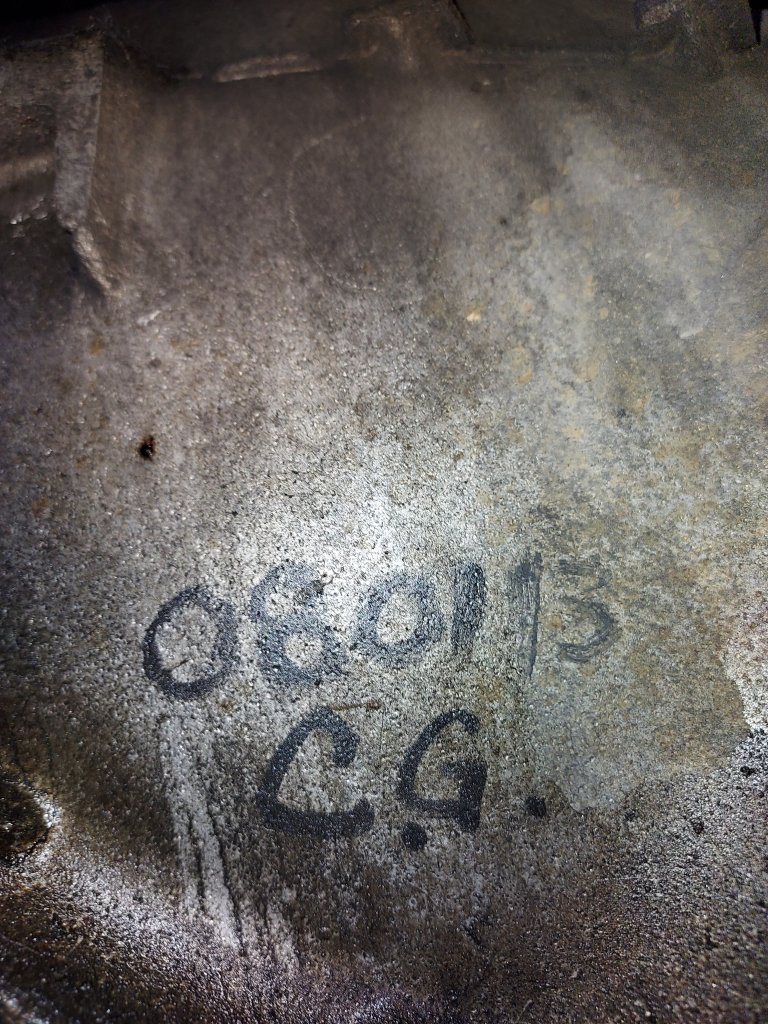

Ah, yeah it has a hand written date and initials on it from 08/13
