Dash Pad Dye/Paint

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

cedens

Full Access Member
Joined
Jun 9, 2013
Posts
188
Reaction score
0
Location
Oklahoma
First Name
Cliff
Truck Year
1982
Truck Model
K10
Engine Size
305 4bbl
Okay i found what i think may be a good dash pad for like $80 except its blue, who has experience with they painting or dying methods to change color... i need dark brown.


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
29,130
Reaction score
24,041
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
I like using SEM products. With proper prep, it looks like a factory finish. Several years ago now I picked up a blue dash pad for my '77 and I painted it red with SEM paint, you would never know it unless I told you, and even then you would have to take my word for it.


cedens

Full Access Member
Joined
Jun 9, 2013
Posts
188
Reaction score
0
Location
Oklahoma
First Name
Cliff
Truck Year
1982
Truck Model
K10
Engine Size
305 4bbl
I may just head back into the salvage and take it, they quoted $125 on a RH door and $300 or $350 for an entire bed the


Senck243

Member
Joined
Nov 22, 2012
Posts
47
Reaction score
3
Location
Upstate New York
First Name
Steve
Truck Year
1984
Truck Model
K-10
Engine Size
305
I also had good luck/results with sem products. Be sure to get the sem wash and vinyl prep first and some scotchbrite pads.


Sent from hell


chengny

Full Access Member
Joined
Feb 22, 2012
Posts
4,086
Reaction score
1,008
Location
NH
First Name
Jerry
Truck Year
1986
Truck Model
K3500
Engine Size
350/5.7

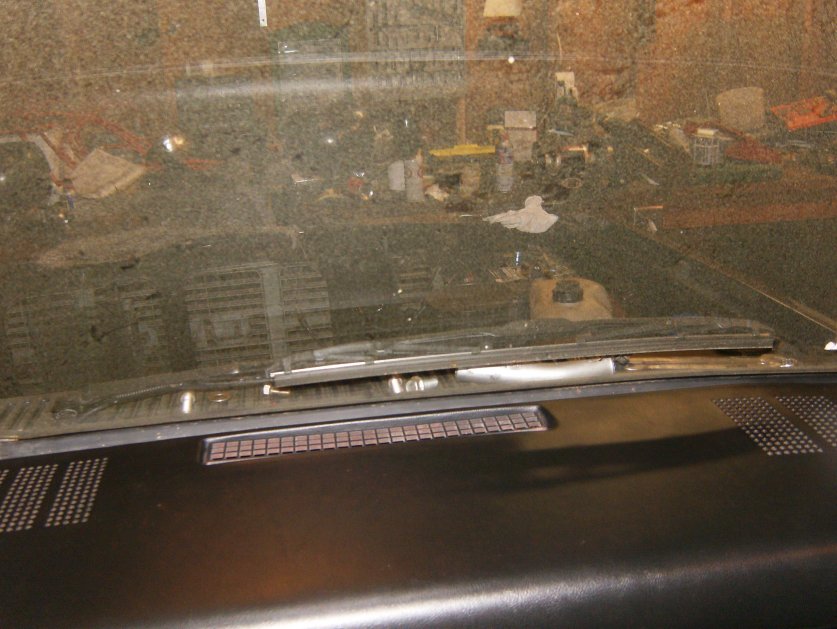

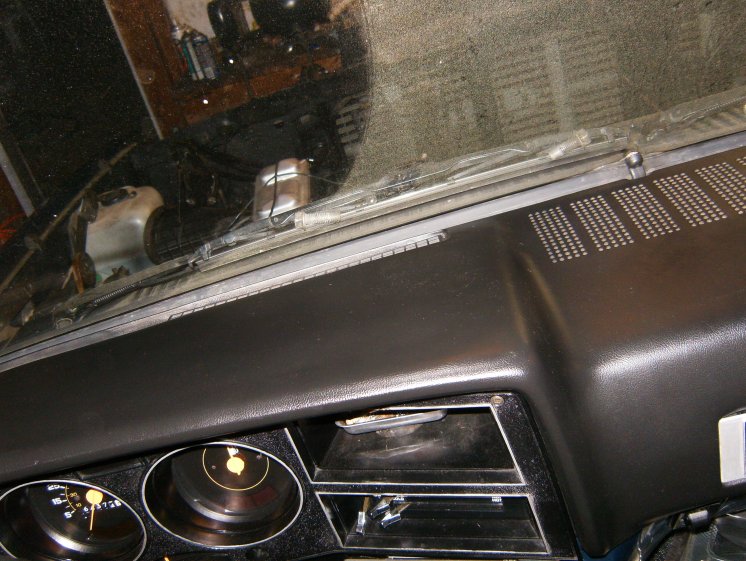

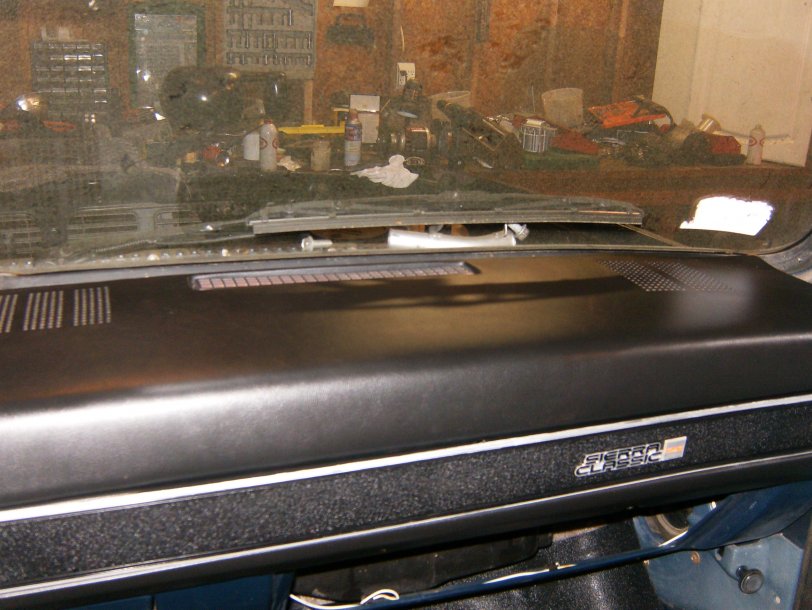

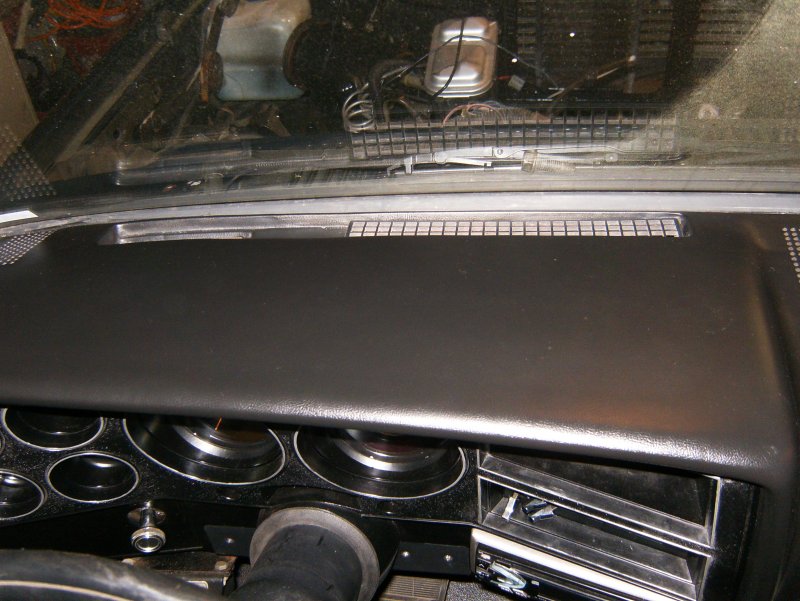

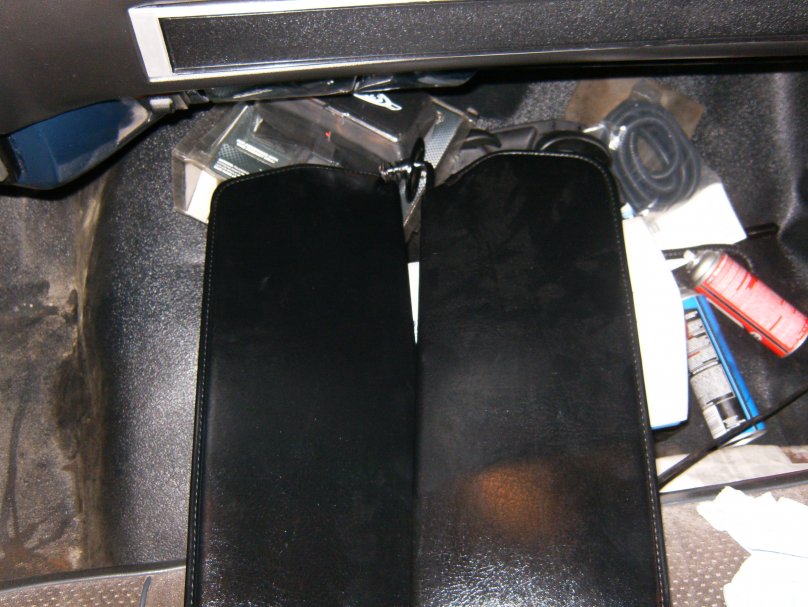

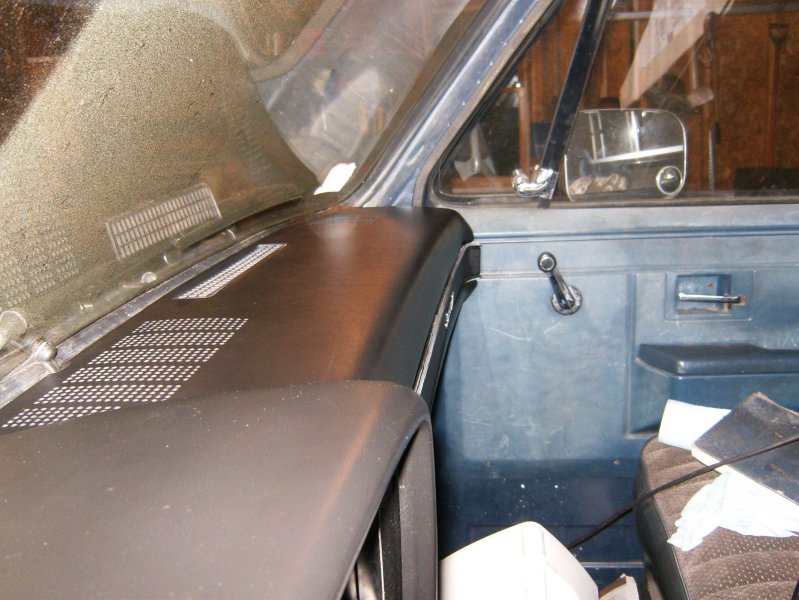

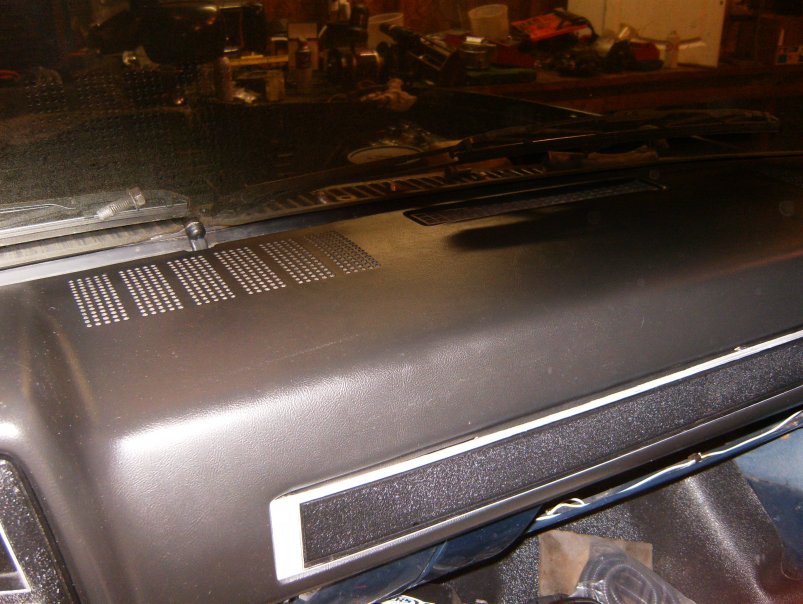

I just re-did a dash that I found for $40. It was frkin mint - but it was blue and I'm changing the truck over to black.

Used my normal method and it looks like factory black. My point is - if you find a good one of a different color, it can be painted:

Clean the surfaces meticulously with acetone or MEK (scrub the grain with a stiff nylon brush). Wash again with warm soap and water and rinse well.

The following all has to be done within an hour so have everything ready:

Two coats of SEM (or Duplicolor) plastic adhesion promoter. One light and the next wet - let it flash off between coats.

I used SEM to top coat but Duplicolor works as well (satin is better than trim black for the dash). Warm the can(s) in a sink of hot water before spraying. This produces a much nicer layer and also helps propel the paint.

The top coat must be applied within a half hour of the Adhesion Promoter or the paint will not bond and the dash will look like crap within two summers.


Attachments

  • HPIM1246.jpg
    95 KB · Views: 301
  • HPIM1247.jpg
    94.7 KB · Views: 291
  • HPIM1250.jpg
    95.2 KB · Views: 283
  • HPIM1241.jpg
    95 KB · Views: 296
  • HPIM1242.jpg
    95.7 KB · Views: 265

Jake_S

Full Access Member
Joined
Mar 28, 2013
Posts
112
Reaction score
7
Location
Charlotte, NC
First Name
Jacob
Truck Year
1984
Truck Model
K20
Engine Size
350/SM465/NP208
Nice.

Jake
