Clutch Z-bar

Discussion in 'Manual Transmission & Clutch' started by 87 chevy, Dec 12, 2012.

  1. Swims350

    Swims350 Full Access Member

    Posts:
    4,192
    Likes Received:
    412
    Joined:
    Jul 30, 2010
    Location:
    Logan WV
    First Name:
    Chris
    Truck Year:
    1983
    Truck Model:
    K10
    Engine Size:
    none
    curt's lower arm is bent over too as I mentioned above.

  2. 87 chevy

    87 chevy Junior Member

    Posts:
    9
    Likes Received:
    0
    Joined:
    Dec 11, 2012
    Location:
    wv
    First Name:
    Daniel
    Truck Year:
    87
    Truck Model:
    1500
    Engine Size:
    350
    It is a 83 1500 350 4wd 4spd. not sure what the tranny part # is but it has the "granny gear" with high low range transfer case it is a NP case but not sure what model (204 maybe). I am thinking its the wrong fork. the cab is a 87 and was a 2wd automatic and i put it on a 84 long bed 4wd frame all the pedals and linkage are off the 83 but someone could have put a hydrolic fork in it. im going to try getting one of the manual forks and change it. I sure would like to see them side by side to see the difference.

  3. Stroked

    Stroked Full Access Member

    Posts:
    2,248
    Likes Received:
    54
    Joined:
    Dec 26, 2011
    Location:
    Beloit, Kansas
    First Name:
    Jared
    Truck Year:
    1984
    Truck Model:
    K10
    Engine Size:
    305
    Dang man, if my squares weren't an hour away I could run out and snap a couple pics for you. I won't be up there till Saturday though.

    As it is, I think you have the wrong z bar. Mine is a manual clutch and I don't recall it being bent over like C4's

  4. HotRodPC

    HotRodPC Administrator Staff Member

    Posts:
    46,020
    Likes Received:
    6,501
    Joined:
    Aug 29, 2010
    Location:
    OKC, OK
    First Name:
    HotRod
    Truck Year:
    85 K20 LWB / 86 K5
    Truck Model:
    Silverado / Silverado
    Engine Size:
    454 - Turbo 400 - 3.73 350 - 700R4 - 4.10
    I don't recall it's supposed to be bent either. I'd imagine C4's is bent due to some twisting and rough wheeling. He may have bent it on purpose to compensate for articulation. Which, you may wish to consider swapping to Hydraulic too someday Danial. Many advantages to Hyrdo with a 4x4. I am a Z bar manual linkage Muncie 4 speed guy forever, but after hearing from other wheelers and seeing things myself, I'm convinced Hydro for sure is the way to go for a 4x4. You can bet your ass though. I go 2wd or drag race manual, it's going to be Z bar or nothing.

  5. Travis Graham

    Travis Graham Junior Member

    Posts:
    1
    Likes Received:
    0
    Joined:
    Oct 26, 2019
    Location:
    Ohio
    First Name:
    Travis
    Truck Year:
    1980
    Truck Model:
    C3500
    Engine Size:
    5.7
    Did this issue ever get resolved? I have a very similar situation I need help with.

  6. HotRodPC

    HotRodPC Administrator Staff Member

    Posts:
    46,020
    Likes Received:
    6,501
    Joined:
    Aug 29, 2010
    Location:
    OKC, OK
    First Name:
    HotRod
    Truck Year:
    85 K20 LWB / 86 K5
    Truck Model:
    Silverado / Silverado
    Engine Size:
    454 - Turbo 400 - 3.73 350 - 700R4 - 4.10
    It doesn't appear the OP came back with any resolution Travis. Do you have a bit more detail on your situation? Was it an auto converted to manual? Any parts appear to be aftermarket or off different body style trucks etc?

  7. Snoots

    Snoots Supporting Member Supporting Member

    Posts:
    5,496
    Likes Received:
    7,997
    Joined:
    Jan 23, 2013
    Location:
    Georgia
    First Name:
    Roger
    Truck Year:
    1973
    Truck Model:
    Jimmy Sierra
    Engine Size:
    350
    Z bar should NOT be bent. How the heck did that happen?

    AuroraGirl likes this.
  8. HotRodPC

    HotRodPC Administrator Staff Member

    Posts:
    46,020
    Likes Received:
    6,501
    Joined:
    Aug 29, 2010
    Location:
    OKC, OK
    First Name:
    HotRod
    Truck Year:
    85 K20 LWB / 86 K5
    Truck Model:
    Silverado / Silverado
    Engine Size:
    454 - Turbo 400 - 3.73 350 - 700R4 - 4.10
    If I had to guess, broken motor mount. Engine jumped around and bent it.

    AuroraGirl likes this.
  9. Snoots

    Snoots Supporting Member Supporting Member

    Posts:
    5,496
    Likes Received:
    7,997
    Joined:
    Jan 23, 2013
    Location:
    Georgia
    First Name:
    Roger
    Truck Year:
    1973
    Truck Model:
    Jimmy Sierra
    Engine Size:
    350
    Sounds about right.

  10. Madhorn

    Madhorn Full Access Member

    Posts:
    485
    Likes Received:
    658
    Joined:
    Jan 16, 2017
    Location:
    AR-Arkansas
    First Name:
    Ken
    Truck Year:
    1977
    Truck Model:
    K10
    Engine Size:
    5.3/NV4500/NP205/4:56 gear/35in tires

    Here is pic of the Z bar in my 77 after a NV4500 install. From looking at your pic, it does look like the clutch fork is the issue. I did need to fab a push rod to make it work. Notice that the clutch fork Advance Adapters sent for this install has two positions, one for a hydraulic slave cylinder (inner) and the other for the manual linkage (outer). Also needed to modify the Z bar frame bracket in order to move Z bar mounting point forward about a 1/2 inch to keep everything in line.

    HotRodPC likes this.
  11. fast68chevy

    fast68chevy I am the original fast68chevy

    Posts:
    154
    Likes Received:
    70
    Joined:
    Oct 17, 2020
    Location:
    LINCOLN IL
    First Name:
    RANDY
    Truck Year:
    1975
    Truck Model:
    C20
    Engine Size:
    350
    https://www.gmsquarebody.com/threads/clutch-types-z-bar-manual-and-hydraulic.3424/ scroll down in the thread theres a good pic of same angle of a factory stock mech clutch lik and frame bracket.. and the ball stud is supposed to be in bellhousing 73-up. in 72 older the ball stud was a bracket with two bolts into motor block just above the filter. and the z bar may be shorter and from a 250 motor. and fork probly is wrong one.
    and the fork in the above pic looks alot like a 72 older cast one. i have a factory one of those around here somewhere and the iron bellhousing is sitting right here by me now.,

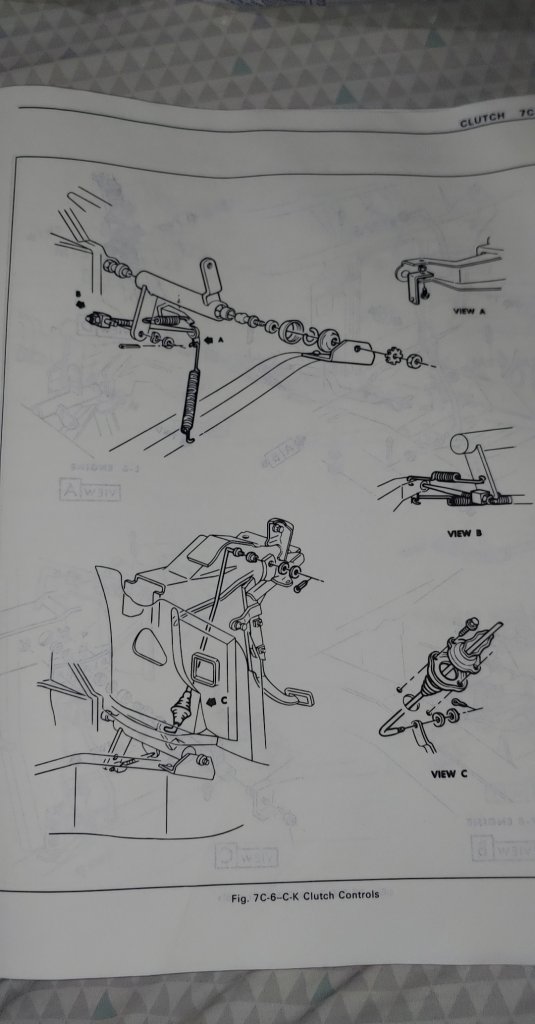

    https://www.gmsquarebody.com/attachments/snapchat-1905171867-jpg.156181/

    Last edited: Oct 18, 2020
  12. AuroraGirl

    AuroraGirl Supporting Member Supporting Member

    Age:
    22
    Posts:
    3,706
    Likes Received:
    2,119
    Joined:
    Sep 8, 2019
    Location:
    Northern Wisconsin
    First Name:
    Taylor
    Truck Year:
    1978, 1980
    Truck Model:
    K10, K25
    Engine Size:
    400(?), 350
    Earlier in this post you said something about a shorter fork for the manual

    How much yo uwanna bet because my gpa went from 85 or so and moved it to his 80 he never changed the fork? I Have my original bellhousing and fork, i bet this one is for hydro which explains the clip he added.

  13. wanderinthru

    wanderinthru Full Access Member

    Posts:
    504
    Likes Received:
    568
    Joined:
    Jul 23, 2020
    Location:
    Mid Point Route 66
    First Name:
    Shakey
    Truck Year:
    81, 70, 75, 84, 89
    Truck Model:
    K 10, C 30, K 20
    Engine Size:
    350
    Isn't the slave for a hydro on the passenger side? or did ole Gpa rig up a slave to mash on the existing fork??
    Something I'm thinking about trying on this Blazer my daughter is putting together?????

  14. idahovette

    idahovette Full Access Member

    Age:
    72
    Posts:
    2,803
    Likes Received:
    3,908
    Joined:
    Aug 7, 2016
    Location:
    Weiser Idaho
    First Name:
    Perry
    Truck Year:
    1975-1979
    Truck Model:
    K20-K10
    Engine Size:
    350
    Yeah Shakey, having the same thoughts on the 327,Muncie 4 speed I'm putting in my Grandson's S10. Looking at a mechanical linkage, but also thinking about rigging up a bracket for the hydraulic to work. Trial and error!!!!

    AuroraGirl likes this.
  15. AuroraGirl

    AuroraGirl Supporting Member Supporting Member

    Age:
    22
    Posts:
    3,706
    Likes Received:
    2,119
    Joined:
    Sep 8, 2019
    Location:
    Northern Wisconsin
    First Name:
    Taylor
    Truck Year:
    1978, 1980
    Truck Model:
    K10, K25
    Engine Size:
    400(?), 350
    Oh im not sure, i just assumed driver side
