Clutch Types, Z bar manual and Hydraulic

Discussion in 'Manual Transmission & Clutch' started by HotRodPC, Jul 9, 2012.

  1. HotRodPC

    HotRodPC Administrator Staff Member

    Posts:
    46,020
    Likes Received:
    6,501
    Joined:
    Aug 29, 2010
    Location:
    OKC, OK
    First Name:
    HotRod
    Truck Year:
    85 K20 LWB / 86 K5
    Truck Model:
    Silverado / Silverado
    Engine Size:
    454 - Turbo 400 - 3.73 350 - 700R4 - 4.10
    Anyone have pictures of their clutch linkages and components? Pedals too? It would be great info for those who are doing manual trans conversions. :wave:

  2. crazy4offroad

    crazy4offroad Service Bullshit Filter Soon

    Age:
    49
    Posts:
    8,408
    Likes Received:
    787
    Joined:
    Jul 30, 2010
    Location:
    West BY-GOD Virginia
    First Name:
    Curt
    Truck Year:
    1977
    Truck Model:
    One-Ton K-10
    Engine Size:
    350/TH350/NP205
    I'll get some of my z-bar setup tomorrow

  3. HotRodPC

    HotRodPC Administrator Staff Member

    Posts:
    46,020
    Likes Received:
    6,501
    Joined:
    Aug 29, 2010
    Location:
    OKC, OK
    First Name:
    HotRod
    Truck Year:
    85 K20 LWB / 86 K5
    Truck Model:
    Silverado / Silverado
    Engine Size:
    454 - Turbo 400 - 3.73 350 - 700R4 - 4.10
    Cool, Thanks :waytogo:


    Here are some stock photos of parts I 'm looking at on RockAuto.com
    I'm using 85 K10 w/ 350 motor to get these part #'s since I know 85 used a Hydro Clutch. I'd still like to see pics of them installed so I get an idea of where they go on the firewall and what they look like in the bell housing. And obviously I'll need to acquire a fluid resevoir too.

    Slave Cylinder
    [​IMG]

    Master Cylinder
    [​IMG]

    Last edited: Jul 9, 2012
  4. HotRodPC

    HotRodPC Administrator Staff Member

    Posts:
    46,020
    Likes Received:
    6,501
    Joined:
    Aug 29, 2010
    Location:
    OKC, OK
    First Name:
    HotRod
    Truck Year:
    85 K20 LWB / 86 K5
    Truck Model:
    Silverado / Silverado
    Engine Size:
    454 - Turbo 400 - 3.73 350 - 700R4 - 4.10

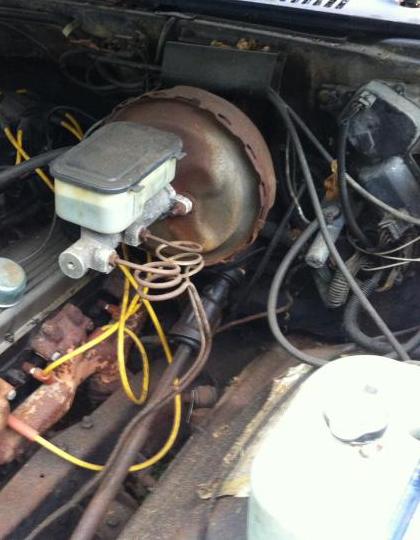

    Pic of Clutch master location on the firewall for hydraulic clutch.

    [​IMG]


    Attached Files:

  5. GreaseDog

    GreaseDog Full Access Member

    Age:
    40
    Posts:
    1,190
    Likes Received:
    21
    Joined:
    Aug 8, 2010
    Location:
    Elkhart, IN
    First Name:
    Jeremy
    Truck Year:
    1977 K20
    Truck Model:
    1980 K2500
    Engine Size:
    350
    Ill have to see if I can remember to take my gm parts catalog to my parents and scan the exploded view of the z bar setup.

  6. HotRodPC

    HotRodPC Administrator Staff Member

    Posts:
    46,020
    Likes Received:
    6,501
    Joined:
    Aug 29, 2010
    Location:
    OKC, OK
    First Name:
    HotRod
    Truck Year:
    85 K20 LWB / 86 K5
    Truck Model:
    Silverado / Silverado
    Engine Size:
    454 - Turbo 400 - 3.73 350 - 700R4 - 4.10
    That would be awesome. :waytogo:

  7. crazy4offroad

    crazy4offroad Service Bullshit Filter Soon

    Age:
    49
    Posts:
    8,408
    Likes Received:
    787
    Joined:
    Jul 30, 2010
    Location:
    West BY-GOD Virginia
    First Name:
    Curt
    Truck Year:
    1977
    Truck Model:
    One-Ton K-10
    Engine Size:
    350/TH350/NP205

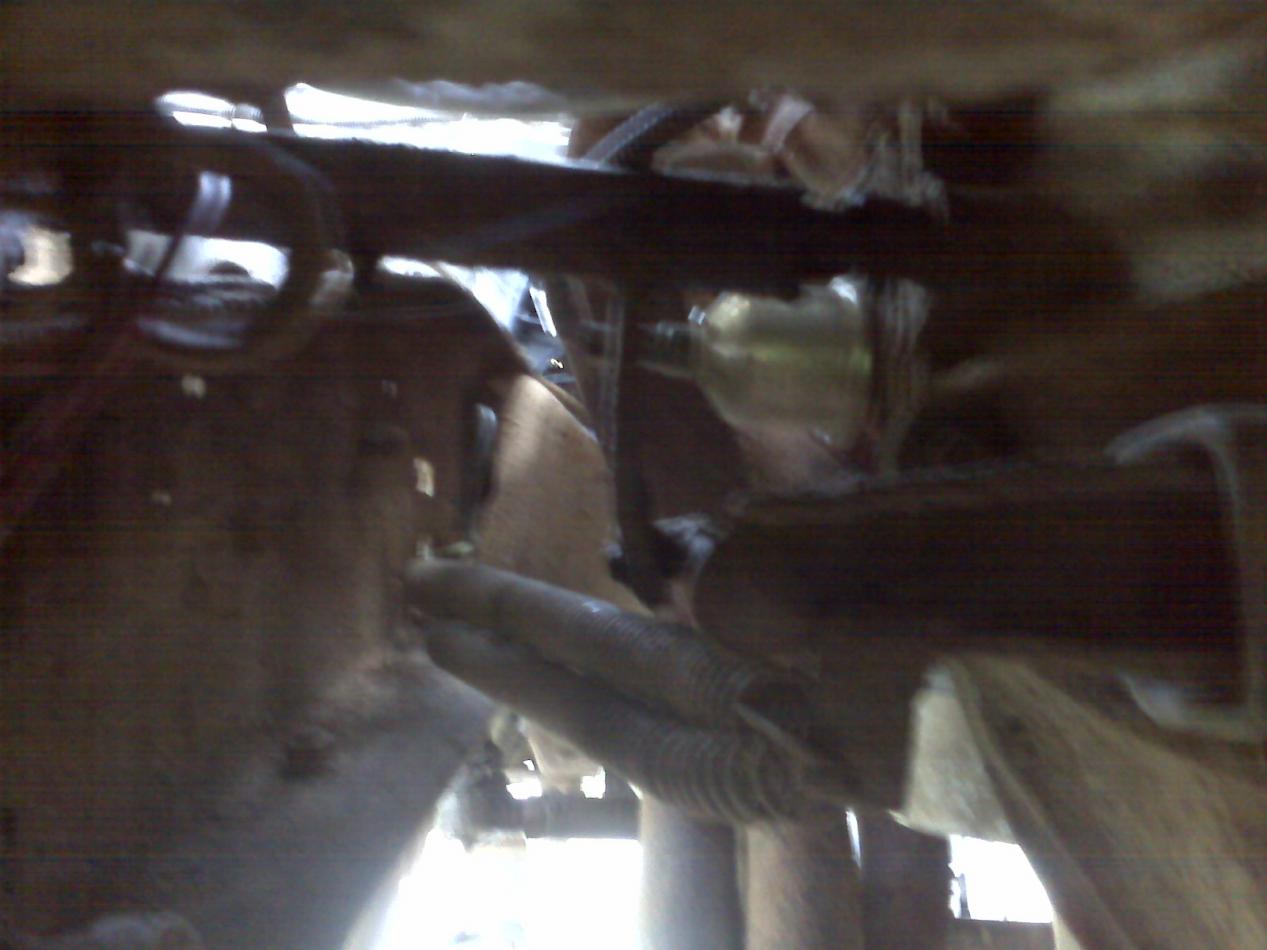

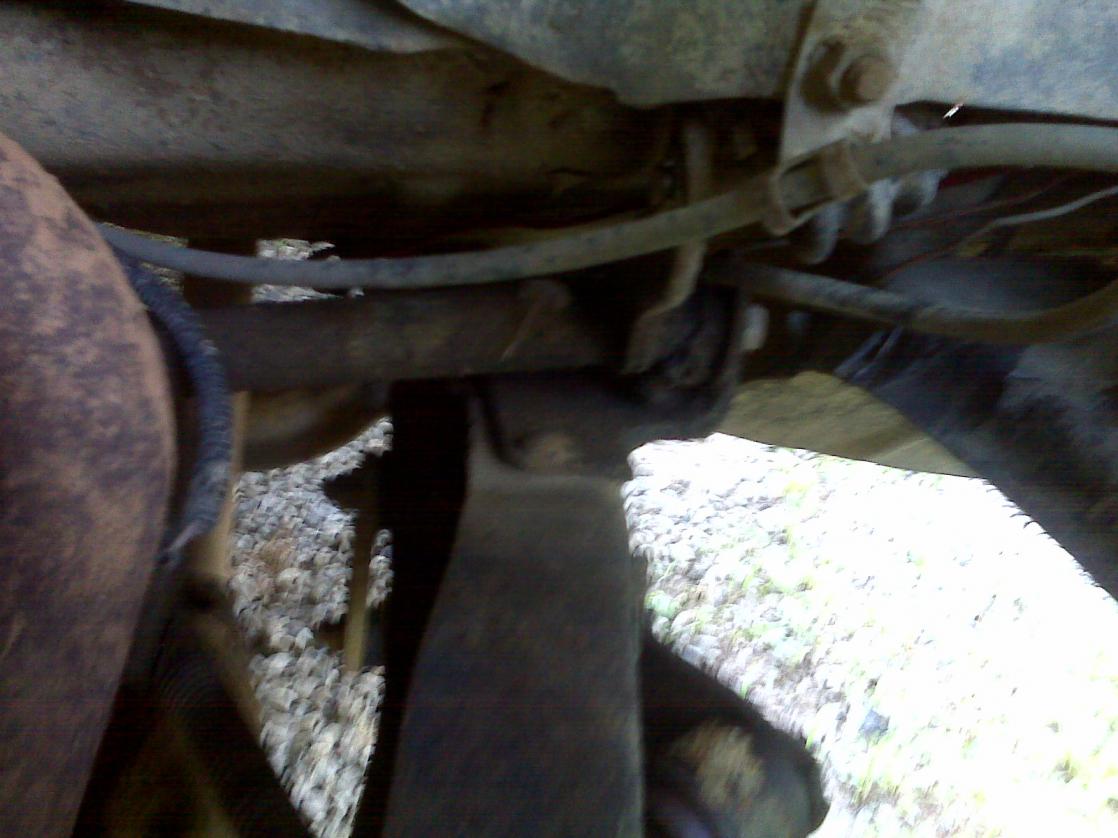

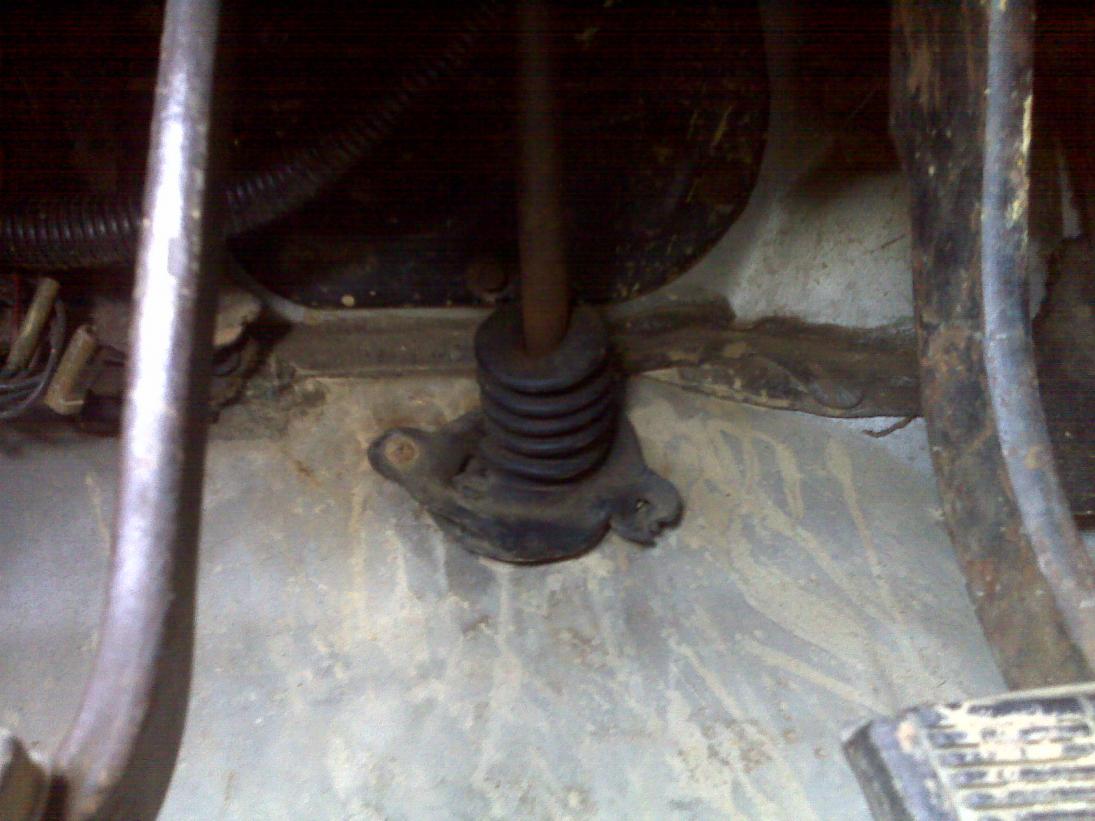

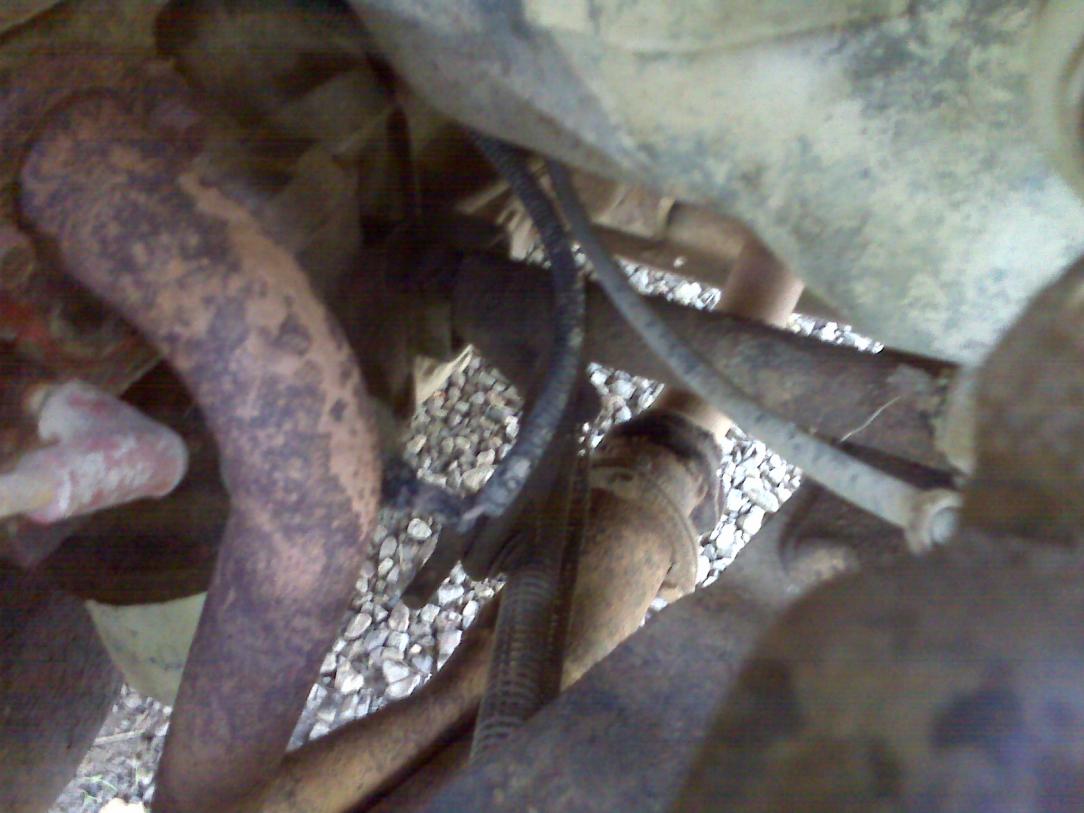

    Some pics of my z-bar linkage, and header clearance...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Attached Files:

  8. HotRodPC

    HotRodPC Administrator Staff Member

    Posts:
    46,020
    Likes Received:
    6,501
    Joined:
    Aug 29, 2010
    Location:
    OKC, OK
    First Name:
    HotRod
    Truck Year:
    85 K20 LWB / 86 K5
    Truck Model:
    Silverado / Silverado
    Engine Size:
    454 - Turbo 400 - 3.73 350 - 700R4 - 4.10
    Ahh OK. There is an assload of room with the Z bar that far back. I'm thinking of my 64 GMC. The Z bar pivot ball actually is threaded into the block. If you've ever wondered what those 2 holes are on the driver side of a Chevy block, it's 2 different holes for the Z bar pivot ball. In this case, the pivot ball is actually behind the block on the edge of the bell housing. I thought I seen that on a manual bell housing pic.

  9. bucket

    bucket Super Moderator Staff Member

    Age:
    39
    Posts:
    23,109
    Likes Received:
    9,527
    Joined:
    Aug 3, 2010
    Location:
    Usually not in Ohio
    First Name:
    Andy
    Truck Year:
    '77, '78, '79, '84, '88
    Truck Model:
    K5 thru K30
    Engine Size:
    350-454
    Great pics!

  10. bluex

    bluex Full Access Member

    Posts:
    1,407
    Likes Received:
    1,042
    Joined:
    May 9, 2013
    Location:
    Spartanburg SC
    First Name:
    Paul
    Truck Year:
    1978
    Truck Model:
    C15
    Engine Size:
    350
    Does anyone have a picture of a hydraulic pedal assembly outside of the truck?

    I have some of the mechanical pedal setup somewhere, I'll try to locate an post them....

  11. RetroC10Sport

    RetroC10Sport Super Moderator Staff Member

    Posts:
    16,761
    Likes Received:
    959
    Joined:
    Sep 29, 2010
    Location:
    Austin, Tx/FEMA Region 6
    First Name:
    Jay
    Truck Year:
    1989; 2001
    Truck Model:
    GMC Sierra C1500 SportSide, Aztek GT
    Engine Size:
    5.7, 3.4;
    1985-91 Hydraulic clutch pedal assembly.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    bluex likes this.
  12. bluex

    bluex Full Access Member

    Posts:
    1,407
    Likes Received:
    1,042
    Joined:
    May 9, 2013
    Location:
    Spartanburg SC
    First Name:
    Paul
    Truck Year:
    1978
    Truck Model:
    C15
    Engine Size:
    350
    Here are the two mechanical pedal pictures I had.



    Last edited: Jul 4, 2017
  13. friscobob

    friscobob Full Access Member

    Posts:
    167
    Likes Received:
    15
    Joined:
    Feb 21, 2014
    Location:
    Sutherlin Oregon
    First Name:
    Bob
    Truck Year:
    1981
    Truck Model:
    C 10
    Engine Size:
    250
    Anyone got a pic of a z-bar out of the truck, 81 short wide C10 in this case? I have something out of whack on mine. The short rod to the clutch arm runs off at a funny angle, inward and down, just doesn't look right. Clutch arm too short or arm on z-bar too far from bell housing. everything new except the z-bar itself. Wondering if the z-bar I have is from another Chevy altogather.
    Thanks, Bob

  14. Heavychevy79

    Heavychevy79 Junior Member

    Age:
    29
    Posts:
    3
    Likes Received:
    0
    Joined:
    Aug 12, 2012
    Location:
    North carolina
    First Name:
    Elliott
    Truck Year:
    1979
    Truck Model:
    K10
    Engine Size:
    350 5.7
    I got a couple questions about this setup.
    Is there a difference between the pedal assembly for a hydraulic and a z bar?
    And is there any way of telling exactly where the clutch master cylinder is supposed to be located?

    I converted my truck to a 4 spd with hydraulic clutch, and I've had no luck at all with it since I did the swap, I've gone through a couple clutch master cylinders because the rod from the clutch pedal to master keeps bending right in the middle. I'm not sure if there's supposed to be a certain angle it's supposed to be at, or there's something else completely out of whack. I NEED HELP!

  15. HotRodPC

    HotRodPC Administrator Staff Member

    Posts:
    46,020
    Likes Received:
    6,501
    Joined:
    Aug 29, 2010
    Location:
    OKC, OK
    First Name:
    HotRod
    Truck Year:
    85 K20 LWB / 86 K5
    Truck Model:
    Silverado / Silverado
    Engine Size:
    454 - Turbo 400 - 3.73 350 - 700R4 - 4.10
    I am almost certain the pedal assemblies are in fact different between z bar linkage and the hydro clutches.

    It does sound as if you might have the hole for the clutch master misaligned. I was hoping someone could make us a template or give us measurements to make our own so we can drill the hole in the correct spot.
