350 Spark Plug issues

SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
2,141
Reaction score
2,891
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
Let me guess; You used the Edelbrock intake gaskets? I had the same exact issue on a new Goodwrench crate motor after swapping to an Edelbrock manifold. Intake manifold gaskets are leaking on those ports and sucking oil in. Stay away from laminated type gaskets. Use the fel-pro O-ring style gaskets. I have a thread on here somewhere about it complete with pics.


Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
1,802
Reaction score
2,418
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds
What kind of valve covers are you using? Do they have baffles around the PCV valve? If not, the PCV valve is probably sucking oil right out of the valve cover.

I built a 455 for my brother in laws 87 cutlass, it’s a pretty rowdy street car. He bought aftermarket cast aluminum valve covers to put on it, while the looked good, the quality left much to be desired. For some reason, the Chinese decided to cast and machine the PCV bore directly over one of the pushrods. Basically, whenever the engine is running, oil is sprayed directly into the valve. Ever seen a runaway diesel engine? It smoked almost that bad. He was ready to pull the engine back out thinking I broke a piston ring or screwed something up during assembly. We went thru the same tests, excellent compression, excellent leakdown, just couldn’t run the engine vin an enclosed space for more than a few seconds before you couldn’t see anything.

Make a long story short, stock valve covers and double gaskets solved his problem, once all the oil burned off.


Snoots

Supporting Member
Supporting Member
Joined
Jan 23, 2013
Posts
7,013
Reaction score
12,433
Location
Georgia
First Name
Roger
Truck Year
1973
Truck Model
Jimmy Sierra
Engine Size
350

MelbGMC

Member
Joined
Sep 14, 2021
Posts
47
Reaction score
40
Location
Melbourne
First Name
Marcus
Truck Year
1982
Truck Model
1500 Stepside
Engine Size
350
Let me guess; You used the Edelbrock intake gaskets? I had the same exact issue on a new Goodwrench crate motor after swapping to an Edelbrock manifold. Intake manifold gaskets are leaking on those ports and sucking oil in. Stay away from laminated type gaskets. Use the fel-pro O-ring style gaskets. I have a thread on here somewhere about it complete with pics.
Felpro gaskets were used on the inlet manifold


MelbGMC

Member
Joined
Sep 14, 2021
Posts
47
Reaction score
40
Location
Melbourne
First Name
Marcus
Truck Year
1982
Truck Model
1500 Stepside
Engine Size
350
What kind of valve covers are you using? Do they have baffles around the PCV valve? If not, the PCV valve is probably sucking oil right out of the valve cover.

I built a 455 for my brother in laws 87 cutlass, it’s a pretty rowdy street car. He bought aftermarket cast aluminum valve covers to put on it, while the looked good, the quality left much to be desired. For some reason, the Chinese decided to cast and machine the PCV bore directly over one of the pushrods. Basically, whenever the engine is running, oil is sprayed directly into the valve. Ever seen a runaway diesel engine? It smoked almost that bad. He was ready to pull the engine back out thinking I broke a piston ring or screwed something up during assembly. We went thru the same tests, excellent compression, excellent leakdown, just couldn’t run the engine vin an enclosed space for more than a few seconds before you couldn’t see anything.

Make a long story short, stock valve covers and double gaskets solved his problem, once all the oil burned off.
I'm using Edelbrock Elite valve covers on the motor


MelbGMC

Member
Joined
Sep 14, 2021
Posts
47
Reaction score
40
Location
Melbourne
First Name
Marcus
Truck Year
1982
Truck Model
1500 Stepside
Engine Size
350

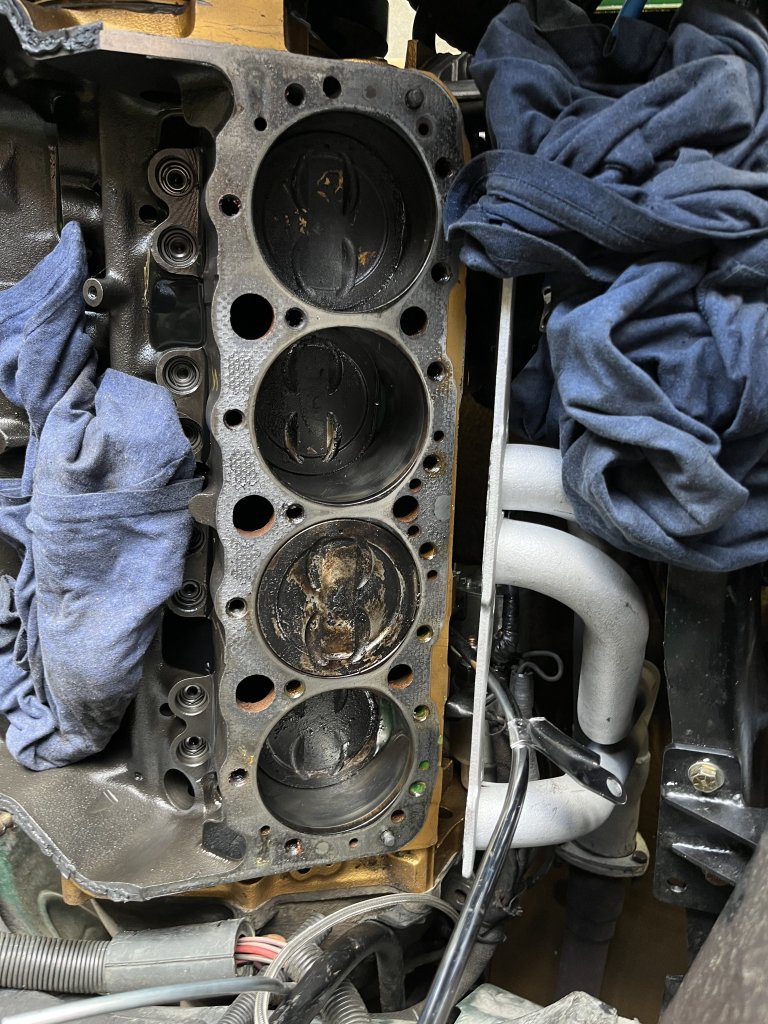

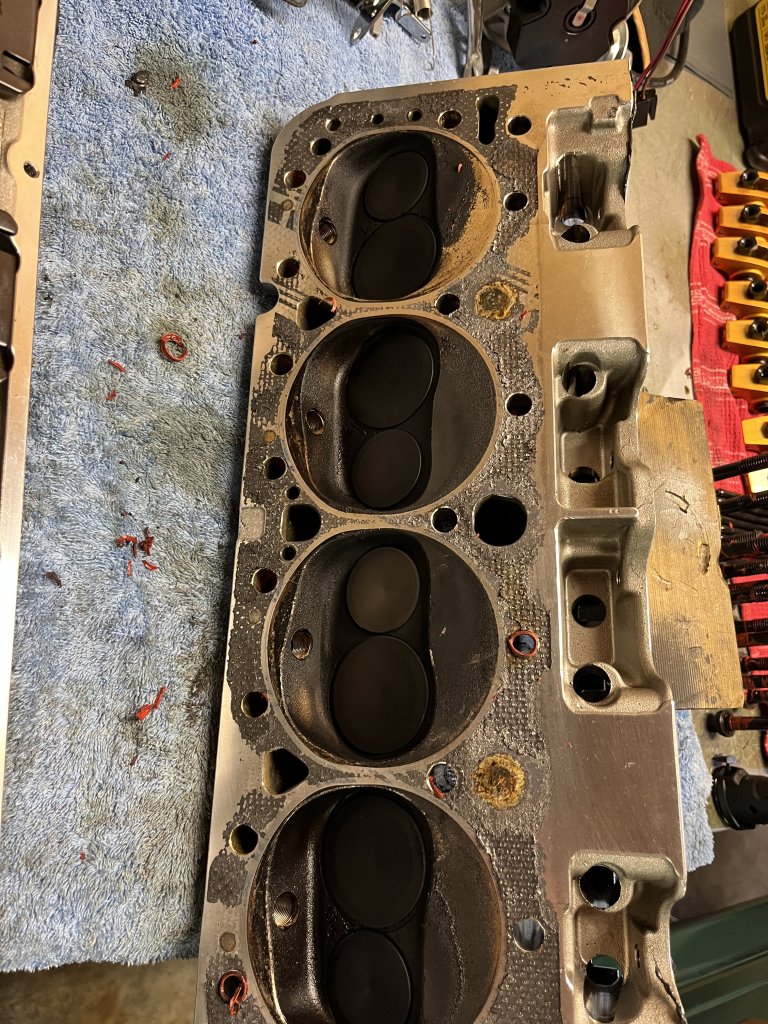

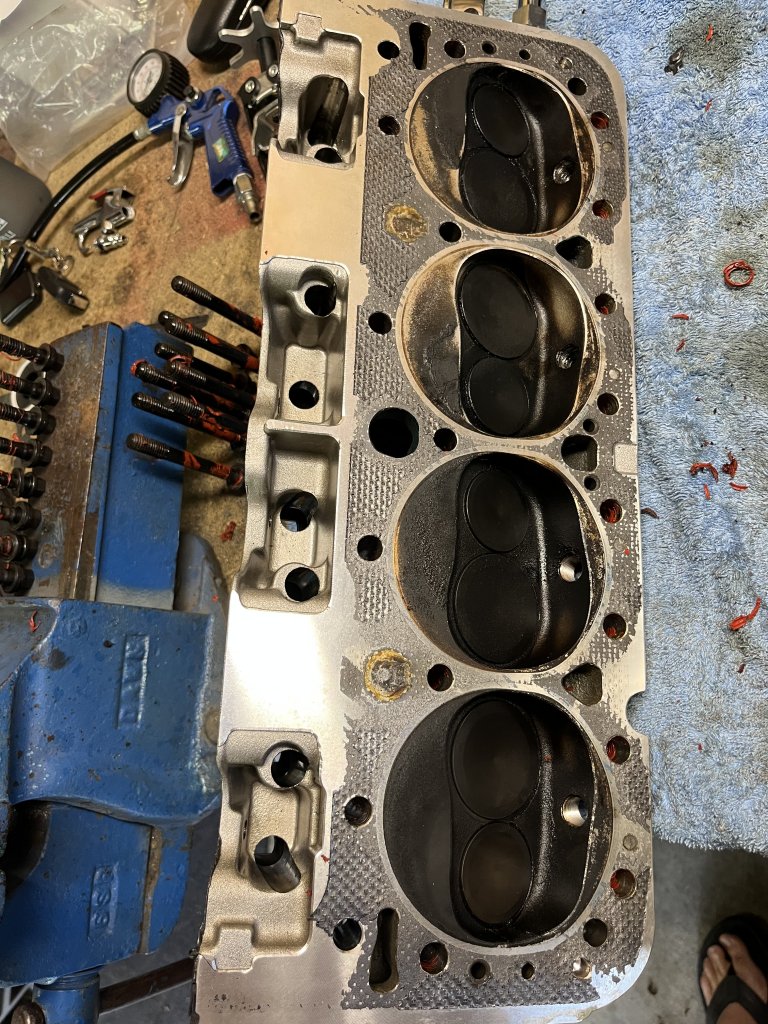

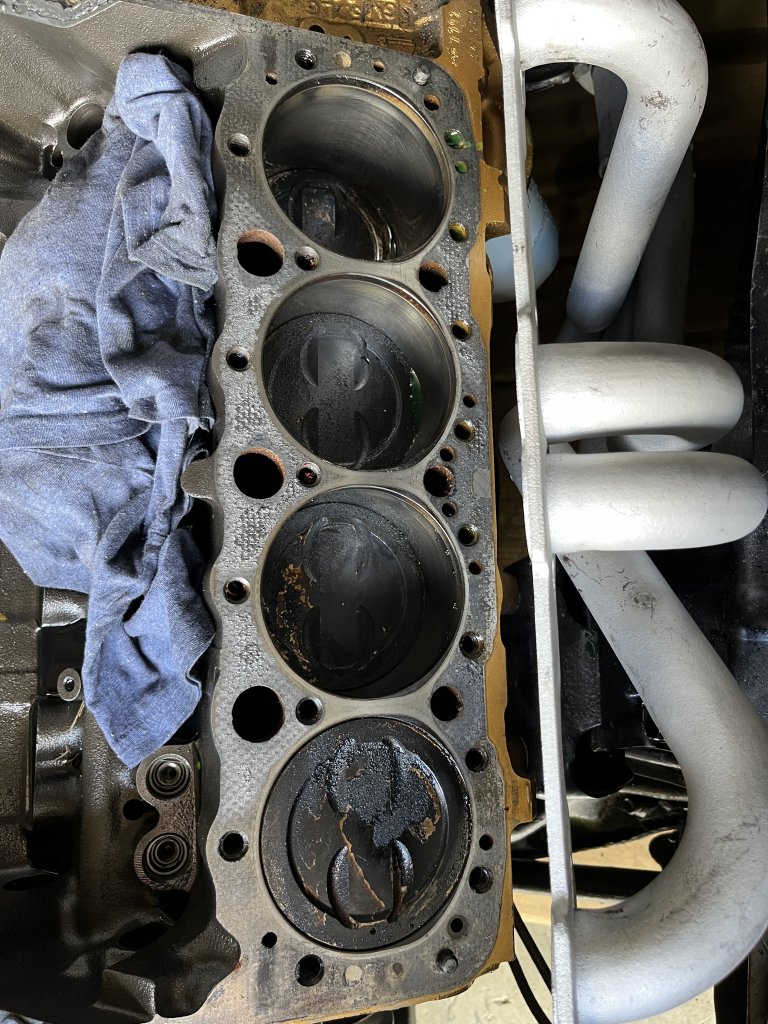

Well It looks like it is valve guides, the leak down test didn't show up any issues, which was good.
I'lll be taking the heads to a machine shop come Monday and get the expert opinion from them.


Attachments

  • IMG_8499[1].JPG
    219.8 KB · Views: 27
  • IMG_8498[1].JPG
    206.5 KB · Views: 25
  • IMG_8497[1].JPG
    249.7 KB · Views: 25
  • IMG_8496[1].JPG
    268.6 KB · Views: 25

MelbGMC

Member
Joined
Sep 14, 2021
Posts
47
Reaction score
40
Location
Melbourne
First Name
Marcus
Truck Year
1982
Truck Model
1500 Stepside
Engine Size
350
I've had the heads off to the specialists to get assessed and they have come back with an "all clear" The oil may have been coming from the intake manifold gasket not being thick enough, or a warped intake manifold. I'm going to measure up the inlet manifold and replace the PCV valve, valve covers and install thicker intake manifold gaskets over the next few days. Fingers crossed this solves the issue for me.....
