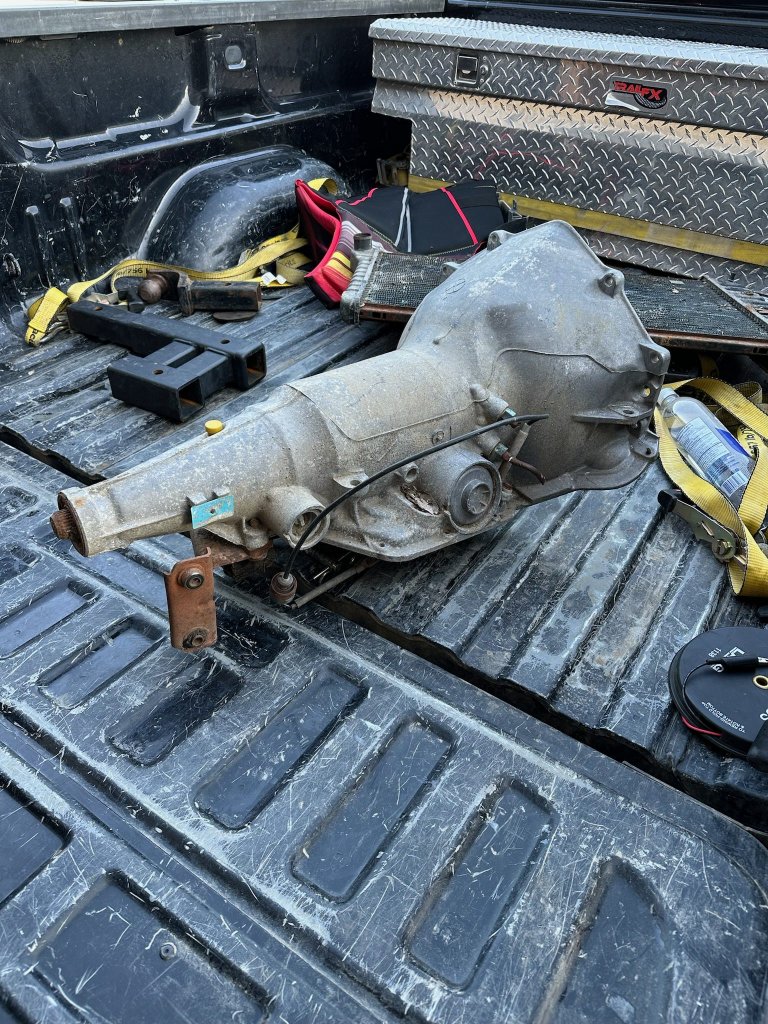

I picked up a scrap truck for a few parts and this transmission was in the back. Can someone help me by telling me what it is? I'm thinking a th350 but I'm not positive.


Attachments

  • IMG_0306.jpg
    282.1 KB · Views: 40

PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
3,619
Reaction score
4,984
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,70,48
Truck Model
Suburban k10, bonanza k10, c30 C&C, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350
That may not be a Chevy. Let's see the pan.


85K304SPD

Full Access Member
Joined
Mar 29, 2022
Posts
440
Reaction score
651
Location
Las Cruces, NM
First Name
Richard
Truck Year
1985
Truck Model
K30
Engine Size
383
Looks like a TH350. We need to see the pan shape.


legopnuematic

Licensed Junk Dealer
Supporting Member
Joined
Oct 27, 2016
Posts
1,977
Reaction score
4,448
Location
MO
First Name
Spencer
Truck Year
1971, 1̶9̶7̶4, 1976, 1979,1̶9̶8̶5, 2002
Truck Model
Dart Swinger, Sierra 10, C10 Cheyenne, C10 Big Ten, Silverado 10, Ram 2500
Engine Size
225/6, 350 c.i., 350 c.i., 5.9l Cummins
Turbo 200?


Rickf

Full Access Member
Joined
Jul 29, 2017
Posts
526
Reaction score
656
Location
Grafton NH
First Name
Rick
Truck Year
1974, 1954 & a 1937
Truck Model
K20
Engine Size
350
It's not a BOP. I thought someplace on this website or GMT400's there is a guide for GM transmissions based on pan gasket shape.


75gmck25

Full Access Member
Joined
Oct 13, 2016
Posts
2,117
Reaction score
1,959
Location
Northern Virginia
First Name
Bruce
Truck Year
1975
Truck Model
K25 Camper Special TH350 NP203
Engine Size
5.7
The TH-200 is a 4 speed overdrive automatic, and it works well to replace the TH350 if you don’t go too crazy on the horsepower . It can be built for high HP, but won’t handle it stock.


legopnuematic

Licensed Junk Dealer
Supporting Member
Joined
Oct 27, 2016
Posts
1,977
Reaction score
4,448
Location
MO
First Name
Spencer
Truck Year
1971, 1̶9̶7̶4, 1976, 1979,1̶9̶8̶5, 2002
Truck Model
Dart Swinger, Sierra 10, C10 Cheyenne, C10 Big Ten, Silverado 10, Ram 2500
Engine Size
225/6, 350 c.i., 350 c.i., 5.9l Cummins
The TH-200 is a 4 speed overdrive automatic, and it works well to replace the TH350 if you don’t go too crazy on the horsepower . It can be built for high HP, but won’t handle it stock.
That's the 200-4R that's a 4speed overdrive, the 200 is a light duty 3 speed unit.


ButchM

Junior Member
Joined
Oct 19, 2023
Posts
15
Reaction score
19
Location
Idaho
First Name
Butch
Truck Year
1986
Truck Model
K30
Engine Size
454

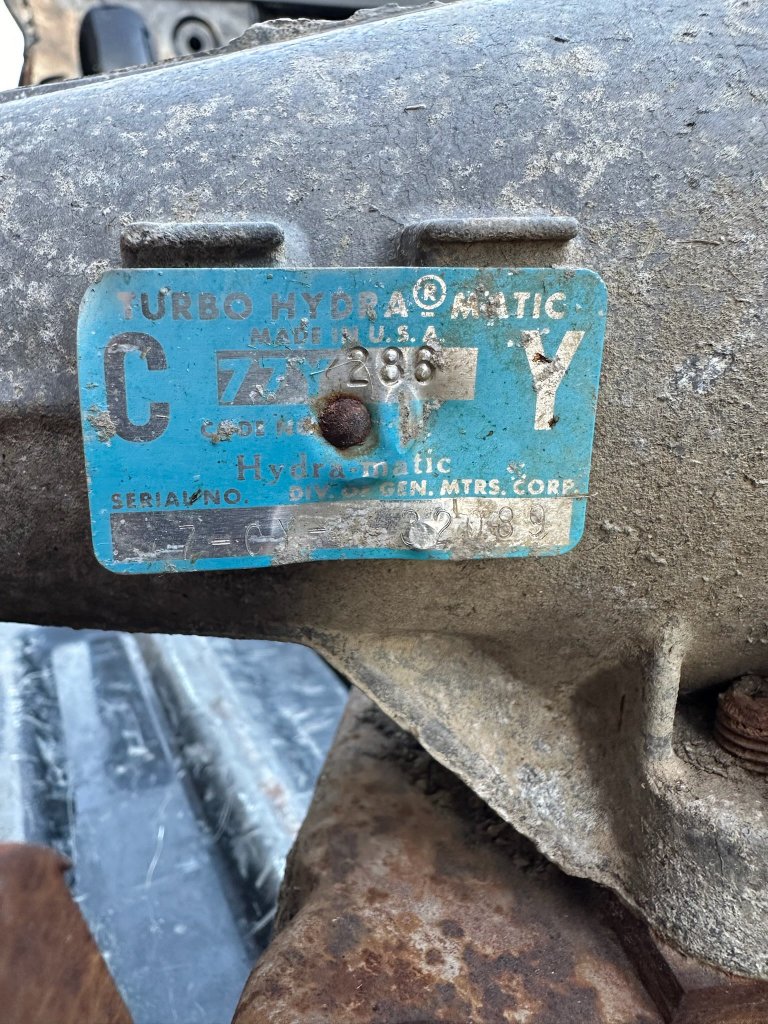

Its a TH200. The CY code puts it between about 1976 and 1981. Def a Chev bell housing.
Not a boat anchor necessarily. The best bet for this, IMHO, is to look for it a home with a circle track or drag racing group. These are popular with some of them due to the light rotating mass... like a Powerglide with an extra gear and they've been outta production for 35 yrs or so.


racprops

Junior Member
Joined
Dec 22, 2023
Posts
11
Reaction score
15
Location
Phoenix AZ
First Name
Richard
Truck Year
1993
Truck Model
G20 Van
Engine Size
383
I loved a 200R4, the have a lower first gear than a 700R4 and a taller Overdrive ratio:

200R4 ;

  • 1st gear: 2.74
  • 2nd gear: 1.57
  • 3rd gear: 1
  • 4th gear: .67
Gear Ratios:

  • First:3.059:1
  • Second:1.625:1
  • Third:1.00:1
  • Fourth:0.069:1
And in many cases it can directly swap in place of a TH350 like I did in a 79 Camaro.

Rich


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
4,595
Reaction score
6,941
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
I loved a 200R4, the have a lower first gear than a 700R4 and a taller Overdrive ratio:

200R4 ;

  • 1st gear: 2.74
  • 2nd gear: 1.57
  • 3rd gear: 1
  • 4th gear: .67
Gear Ratios:

  • First:3.059:1
  • Second:1.625:1
  • Third:1.00:1
  • Fourth:0.069:1
And in many cases it can directly swap in place of a TH350 like I did in a 79 Camaro.

Rich
We aren't talking about a 200r4 we're talking about the old light duty turbo 200s that were used for a few years. Light duty 3 speed auto. And in gear ratio terminology 3.07 [700r4 1st gear) is lower than 200r4 2.74 1st gear) a 4.10 rear gear is lower than a 3.08 rear gear, a higher numbered gear is a lower gear, it is confusing but that's how it's been termed for 100 years,maybe longer
