Looking for any place that has a gauge cluster that will wire right into the existing wiring harness. Also, if it can bold directly in without cutting anything like the old gauge back panel, the better. I'm not caring if they are analog or digital. I understand that digital will require some work since it would require wiring a speed sensor etc. Looking for the option that will required the least modification, but maybe provide some better performance than the stock. Otherwise, might just go to LMC and replace the existing gauges with stock.


75gmck25

Full Access Member
Joined
Oct 13, 2016
Posts
2,034
Reaction score
1,828
Location
Northern Virginia
First Name
Bruce
Truck Year
1975
Truck Model
K25 Camper Special TH350 NP203
Engine Size
5.7
Like every mod to your truck - what is your budget?

For example, Dakota Digital some nice replacement clusters that drop right in, but they are not cheap.


Randy and Easton

Full Access Member
Joined
Feb 6, 2021
Posts
884
Reaction score
1,245
Location
North Richland Hills, Texas
First Name
Randy
Truck Year
1976
Truck Model
C-10 LWB
Engine Size
350

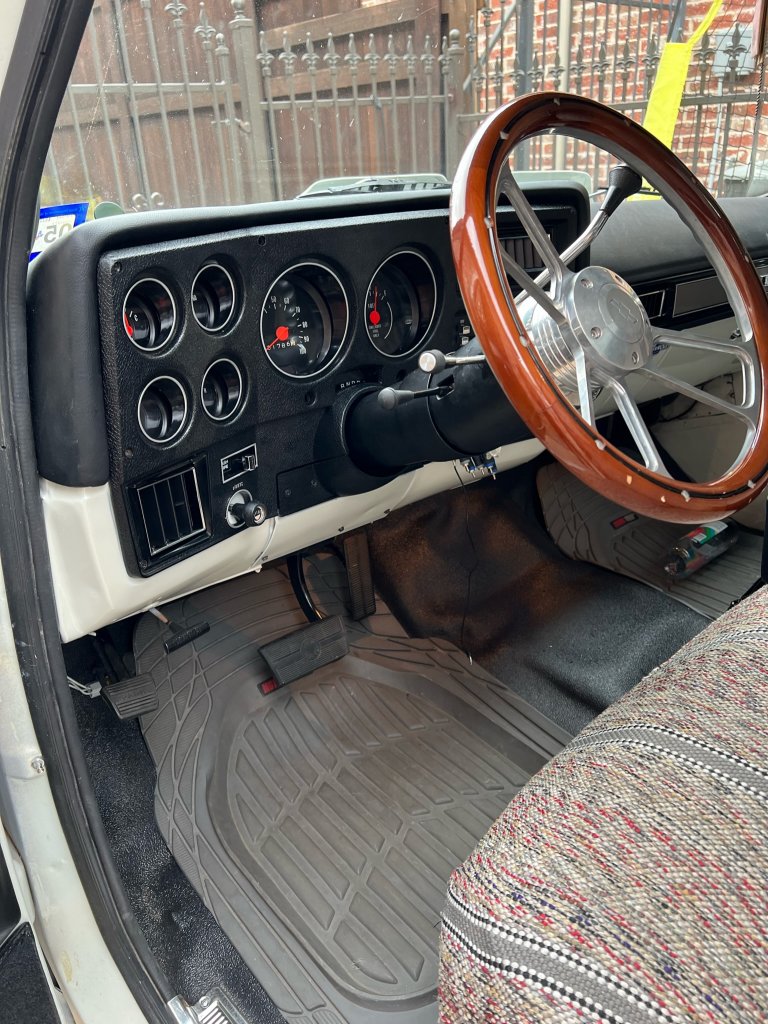

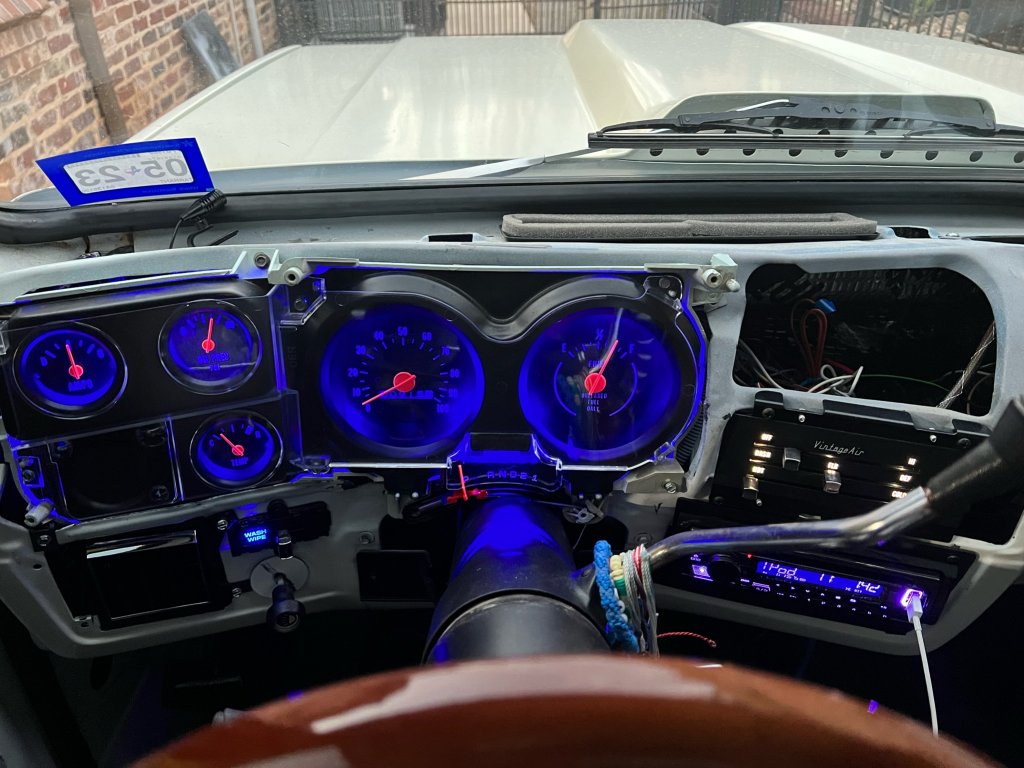

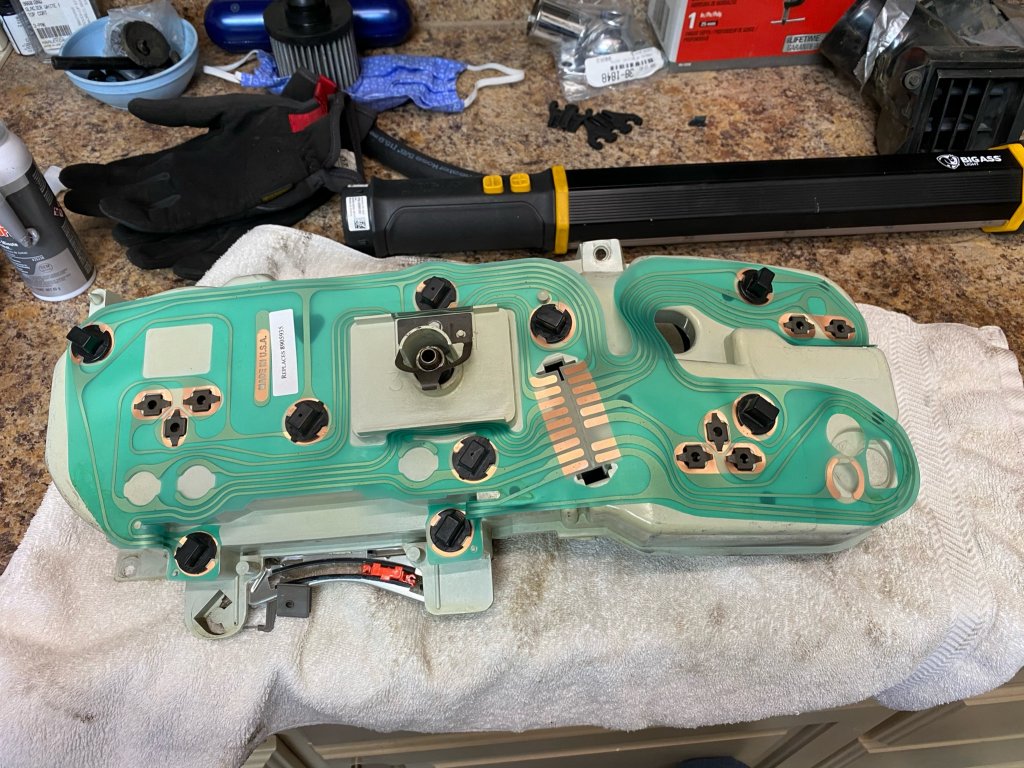

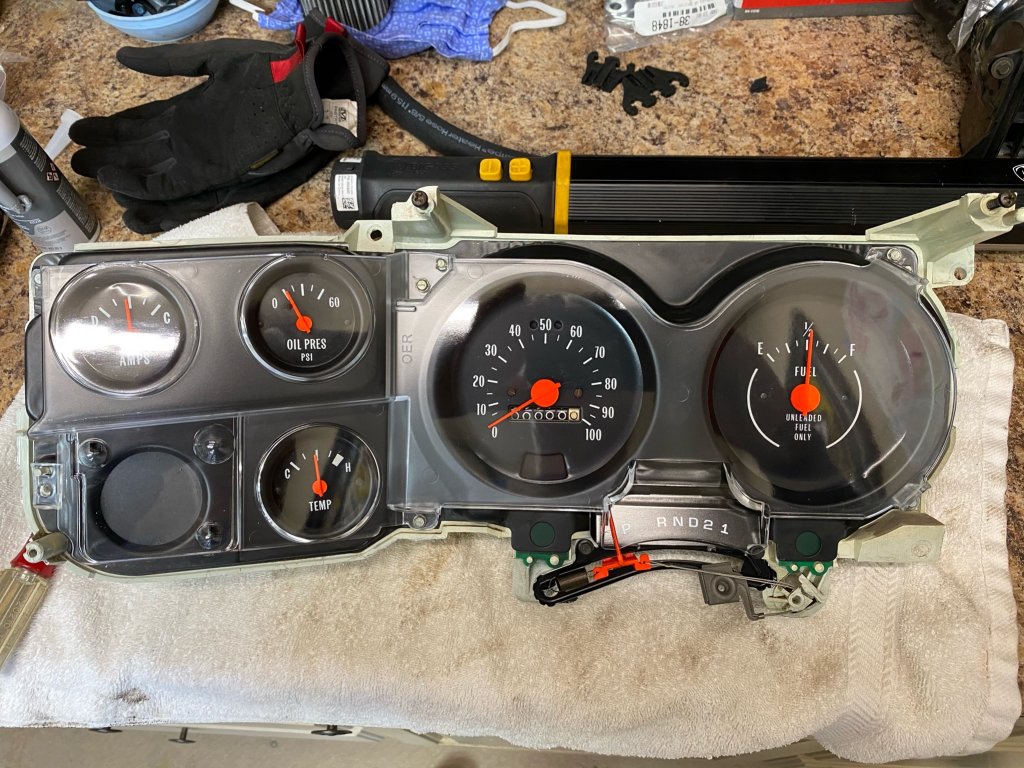

Lots of guys went Dakota Digital and they all seem to like them. We were going to do the same but 16 year olds budget did not allow the extra cash at the time. We refurbished the stock cluster, new CB, contacts lights (LED) replaced a few gauges and cleaned up the others. Took out the clock and blocked that off. Did it all for under $300 and he is happy so far.

Randy and Easton


Attachments

  • 242345FE-4BF6-4E34-8B63-C29BEA1F9CE9.jpeg
    203.9 KB · Views: 106
  • 4073E829-45DA-4774-A29C-BBD035329E41.jpeg
    203.4 KB · Views: 98
  • FC8B5BC7-9F20-4FDC-9591-6D419290F7BB.jpeg
    209.7 KB · Views: 103
  • FCBBA077-C54B-417B-BC85-BE2CD0A4A44A.jpeg
    142 KB · Views: 110

Soundmound

Supporting Member
Supporting Member
Joined
Feb 15, 2022
Posts
1,766
Reaction score
5,302
Location
North Central Washington
First Name
Dave
Truck Year
1984
Truck Model
Scottsdale
Engine Size
305
I just replaced mine with the LMC tac kit and all new gauges, sockets, bulbs, circuit board, etc. Do yourself a favor if you go with stock, skip the OG bulbs altogether. I did mine with new incandescent and immediately redid it with the 194 style LEDs before I even reinstalled it. I actually could have gone one level up in intensity to be honest. They're not as bright as I want, but are 500% better than the original style bulbs.


Bennyt

Full Access Member
Joined
May 17, 2019
Posts
1,035
Reaction score
1,446
Location
Surprise
First Name
Ben
Truck Year
1977
Truck Model
C10
Engine Size
350

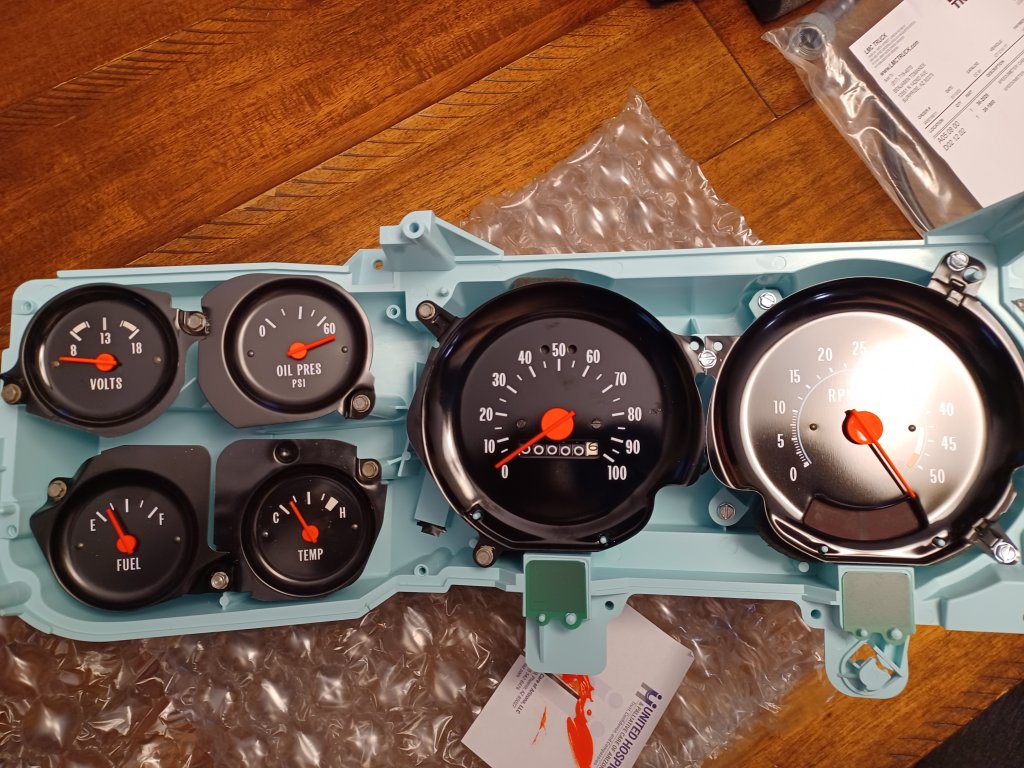

I liked the Dakota but wanted the simplicity for my son's truck. I bought the tachometer conversion kit from LMC on sale for $280, and bought a new speedo, electric oil pressure gauge, and a used voltmeter for another $120 total.

Then I ordered gauge faces color matched to the truck for $75.
You must be registered for see images attach


Attachments

  • 20230114_170209.jpg
    176.6 KB · Views: 106
Last edited:

Cragmor

Junior Member
Joined
Oct 5, 2020
Posts
16
Reaction score
0
Location
Iowa
First Name
Jerry
Truck Year
1976
Truck Model
C10
Engine Size
350
Pretty open. Not opposed to up to $1500. Been looking at Dakota. I am just really surprised at the lack of direct plugin options. I just really am not a fan of the idea of hacking up the dashboard wiring.


Scott91370

Full Access Member
Joined
Apr 2, 2018
Posts
926
Reaction score
902
Location
Burleson, Tx
First Name
Scott
Truck Year
1985
Truck Model
Sierra1500
Engine Size
350
The only thing I do not like about the Dakota Digital is the 160mph speedo. If it went to 100 it would be easier to read.


CalSgt

Full Access Member
Joined
Oct 3, 2021
Posts
1,503
Reaction score
3,164
Location
CA
First Name
Casey
Truck Year
1980
Truck Model
Chevy K-10 Custom Deluxe
Engine Size
350
The only thing I do not lioke about the Dakota Digital is the 160mph speedo. If it went to 100 it would be easier to read.

My Dakota goes to 120.

I looked at lots of aftermarket options, 160 mph speedos and 12K rpm tachs seem to be most everything available.

The Dakota’s 120 & 8K tach were the most appropriate I could find
You must be registered for see images attach


Scott91370

Full Access Member
Joined
Apr 2, 2018
Posts
926
Reaction score
902
Location
Burleson, Tx
First Name
Scott
Truck Year
1985
Truck Model
Sierra1500
Engine Size
350
You must have the RTX. I have the VHX. Don't kow the diffference but man that would have been nice.


TotalyHucked

Full Access Member
Joined
Feb 24, 2020
Posts
2,667
Reaction score
8,714
Location
Auburn, Georgia
First Name
Zach
Truck Year
1985
Truck Model
Sierra 1500
Engine Size
5.3
Pretty open. Not opposed to up to $1500. Been looking at Dakota. I am just really surprised at the lack of direct plugin options. I just really am not a fan of the idea of hacking up the dashboard wiring.
Unfortunately there's no aftermarket gauges that will use the factory style plug. That style plug doesn't really work well for modern electronics. I've got the Dakotas in mine and they're great, super easy to wire up. But you do need to cut some wires out of the factory plug and then run some others into the engine bay for their sensors. Here's a good cheat sheet I found for the factory plug:

You must be registered for see images attach

You must be registered for see images attach

You must be registered for see images attach




I have the Squarebody Syndicate versions that look OE

You must be registered for see images attach

You must be registered for see images attach


Zelph

Full Access Member
Joined
Dec 10, 2022
Posts
51
Reaction score
103
Location
Nevada
First Name
David
Truck Year
1989
Truck Model
K5
Engine Size
350 TBI
Those syndicate gauges would be absolutely perfect without the logo in middle of the speedometer.


85K304SPD

Full Access Member
Joined
Mar 29, 2022
Posts
392
Reaction score
585
Location
Las Cruces, NM
First Name
Richard
Truck Year
1985
Truck Model
K30
Engine Size
383
Wow, imaging getting that, or any, Square up to 160 mph, or even 140.


Scott91370

Full Access Member
Joined
Apr 2, 2018
Posts
926
Reaction score
902
Location
Burleson, Tx
First Name
Scott
Truck Year
1985
Truck Model
Sierra1500
Engine Size
350
I didn't cut any of my wires from the plug. I used, no flames, vampire taps. I know....I'm not a bog fan of them either but couldn't bring myself to put the plug off.


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,694
Reaction score
6,674
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
Pretty open. Not opposed to up to $1500. Been looking at Dakota. I am just really surprised at the lack of direct plugin options. I just really am not a fan of the idea of hacking up the dashboard wiring.
It's only hacking if the installer doesn't know or care enough to do it right.
