Carburetor rebuild help!

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

bwolff0820

Junior Member
Joined
Mar 12, 2023
Posts
23
Reaction score
14
Location
texas
First Name
Bryan
Truck Year
1982
Truck Model
c10
Engine Size
305 V8

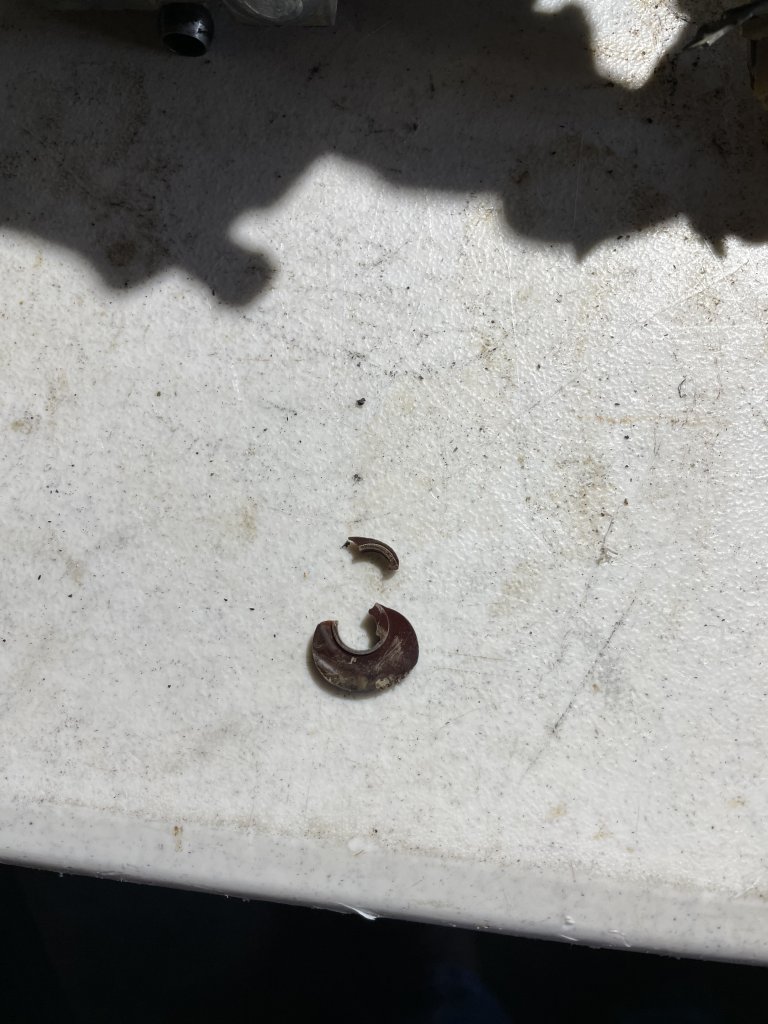

I did my first carb rebuild on the Rochester quadrajet and after installing back on the truck I realized it was flooding instantly. I pulled the carb back off and adjusted the float to the correct setting which I was misinformed on the original. After pulling the air horn off I noticed a plastic piece in the bottom of the carb. After searching the internet I believe this part is a cam on the metering rods. I’m not completely sure and wanted to make sure that I am correct and if anyone can point me to how/where is goes. I have attached a picture of the broken cam for reference. Any help is appreciated as this is the first carb I’ve ever worked on.


Attachments

  • AE3A2CA5-B536-42B3-85CF-DF0A2DDA21CE.jpeg
    127.4 KB · Views: 50

PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
3,509
Reaction score
4,723
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,70,48
Truck Model
Suburban k10, bonanza k10, c30 C&C, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350
Look at your secondary air blades. In the middle of them there should be a little plastic cam that actuates the secondary metering rods. But I don't think that would end up in the carb. Although it does kind of look like it.


Octane

Full Access Member
Joined
Dec 31, 2019
Posts
2,033
Reaction score
3,607
Location
Atlanta
First Name
Eddie
Truck Year
1977
Truck Model
K10
Engine Size
350
Looks like the retainer for the accelerator pump spring.


C10MixMaster

Full Access Member
Joined
Dec 6, 2016
Posts
756
Reaction score
1,421
Location
Kingman AZ
First Name
Ben
Truck Year
1977
Truck Model
C10 BIG10
Engine Size
ZZ4 350
I did my first carb rebuild on the Rochester quadrajet and after installing back on the truck I realized it was flooding instantly. I pulled the carb back off and adjusted the float to the correct setting which I was misinformed on the original. After pulling the air horn off I noticed a plastic piece in the bottom of the carb. After searching the internet I believe this part is a cam on the metering rods. I’m not completely sure and wanted to make sure that I am correct and if anyone can point me to how/where is goes. I have attached a picture of the broken cam for reference. Any help is appreciated as this is the first carb I’ve ever worked on.
Yes it's your secondary metering rod cam. It mounts on the shaft between the secondary air valve plates/valves


bwolff0820

Junior Member
Joined
Mar 12, 2023
Posts
23
Reaction score
14
Location
texas
First Name
Bryan
Truck Year
1982
Truck Model
c10
Engine Size
305 V8
Look at your secondary air blades. In the middle of them there should be a little plastic cam that actuates the secondary metering rods. But I don't think that would end up in the carb. Although it does kind of look like it.
Found out where it goes. Order a new assembly from cliffs. Thanks for the help


Octane

Full Access Member
Joined
Dec 31, 2019
Posts
2,033
Reaction score
3,607
Location
Atlanta
First Name
Eddie
Truck Year
1977
Truck Model
K10
Engine Size
350
hmmm...
