what do these hook up to?

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

SC-Chevy

Junior Member
Joined
Nov 26, 2013
Posts
6
Reaction score
0
Location
Beaufort
First Name
Dan
Truck Year
1985
Truck Model
1500
Engine Size
350
Was looking around the engine bay and found some wires that are a little toasty. Truck runs fine but was just wondering what these hook up to. Also the three green wires, they are just cut off.



You must be registered for see images attach


Attachments

  • 20140120_084906.jpg
    90.3 KB · Views: 111

SC-Chevy

Junior Member
Joined
Nov 26, 2013
Posts
6
Reaction score
0
Location
Beaufort
First Name
Dan
Truck Year
1985
Truck Model
1500
Engine Size
350
You must be registered for see images attach


Boone83K10

Full Access Member
Joined
Feb 4, 2013
Posts
841
Reaction score
42
Location
Boone, NC
First Name
Benjamin
Truck Year
1983
Truck Model
K10
Engine Size
350

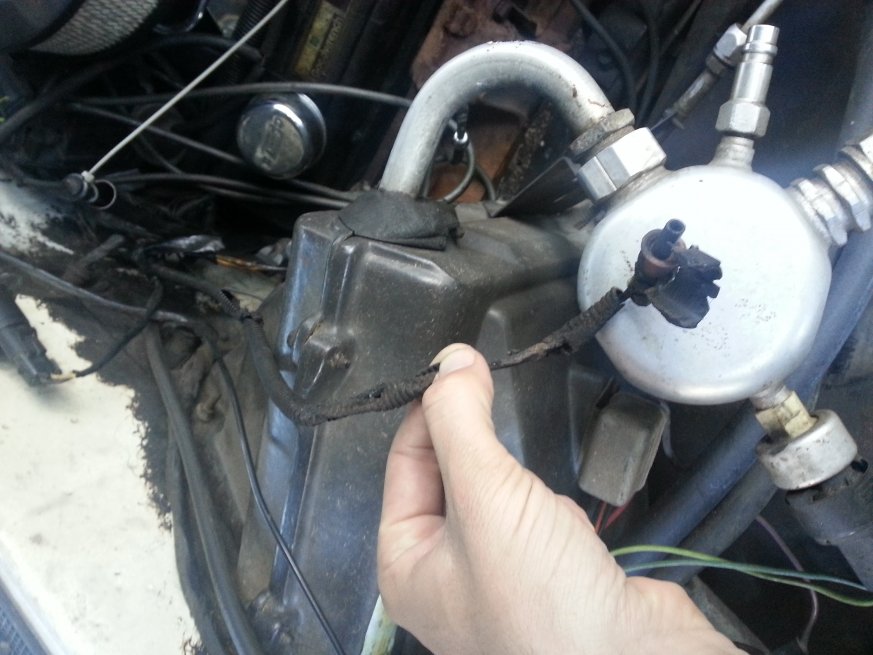

pic 1 - your A/C pressure switch wiring
pic 2 - I think it's part of the ESC, maybe the knock sensor?
pic 3 - never seen that before. see below

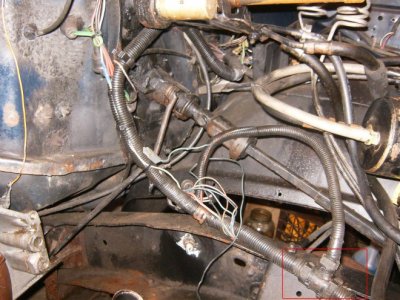

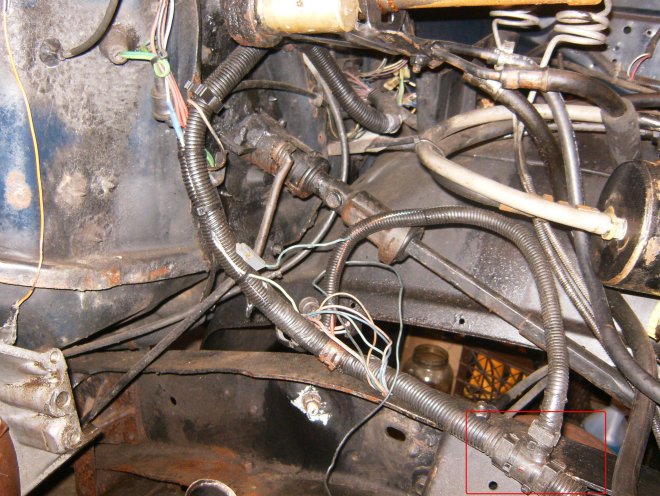

on pic 3, I see a wiring loom, but no wires, now I am thinking that is the piece that snaps into the loom hole on the valve cover, yours is missing the nipple to push into the hole, you can see it right next to the fill cap. you are missing the wires that are on that side of my block. The temp sensor wire and the AC idle solenoid switch wire/AC wiring to compressor(yours is cut at firewall in pic 1).

Last edited:

chengny

Full Access Member
Joined
Feb 22, 2012
Posts
4,086
Reaction score
1,010
Location
NH
First Name
Jerry
Truck Year
1986
Truck Model
K3500
Engine Size
350/5.7
Like Ben says, the plastic piece shown in image #3 is part of the factory loom that protects the engine wiring harness.

The routing of the engine wiring harness for these trucks (C/K, 10/20/30 81-87) is standard.

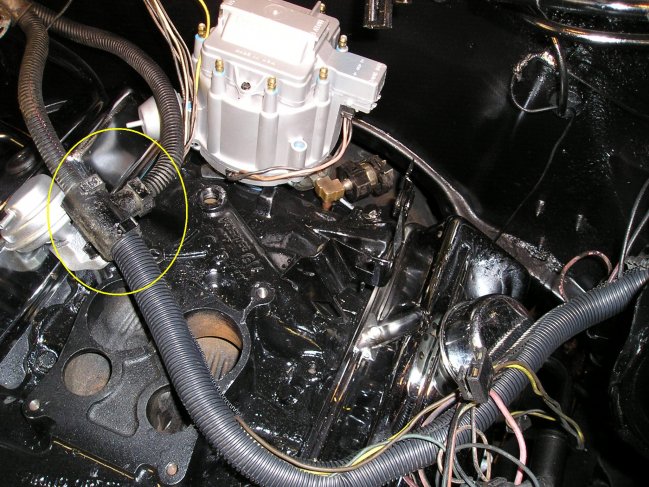

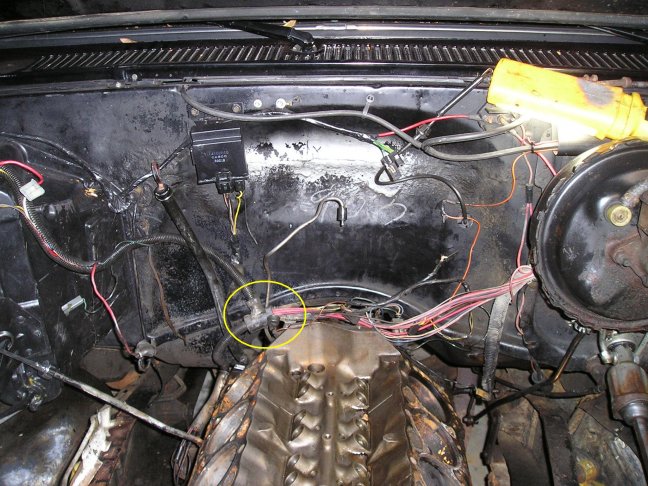

It is basically layed out like a "Y". The 3 legs are joined together by a plastic "T" that is down behind the back of the intake manifold. It normally is resting on the very top of the transmission bell housing. That area of the harness loom is secured by a clamp which is a few inches away - towards the drivers side. It is fastened by the uppermost transmission to engine block bolt (LH side).

What you have in your hand is the actual tee that all the wiring for the engine passes through. The ends of the 3 corrugated loom sections butt up against the tee and are fastened to it by wrap-around plastic clamps.

The side of the tee facing out in the image still has it's clamp in place. The back side looks to have a piece of loom still attached and on the right is the 3rd side which has no clamp or loom.

The tee has two connections for 3/4" loom and one for 1/2". As originally installed, the bigger sides go left & right while the small one kind of faces up.

The solenoid wires & battery power enter/exit on the RH side.

The wiring that goes through the firewall and into the cab & also the feeds to the junction block on the firewall, distributor, coolant/oil pressure sensors, etc. enter/exit on the LH side.

The small outlet faces up and the leads to the alternator, choke heater, AIR system diverter valves, firewall mounted ECM, etc pass through it.

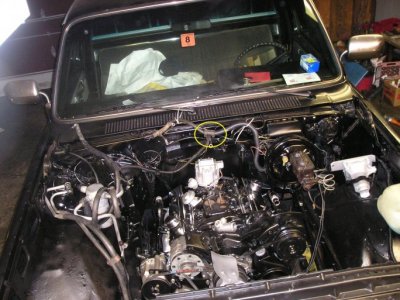

Here are some photos that might explain what I am talking about:


Attachments

  • HPIM1669.jpg
    99.8 KB · Views: 134
  • P1010002.jpg
    99.8 KB · Views: 132
  • P1010003.jpg
    99.9 KB · Views: 139
  • P1010007.jpg
    99.3 KB · Views: 122
Last edited:

SC-Chevy

Junior Member
Joined
Nov 26, 2013
Posts
6
Reaction score
0
Location
Beaufort
First Name
Dan
Truck Year
1985
Truck Model
1500
Engine Size
350
Awesome thanks guys. The pictures explained a lot. I'm thinking I'll have to find a replacement wiring harness. I don t like the look of cut and melted wires everywhere.


Boone83K10

Full Access Member
Joined
Feb 4, 2013
Posts
841
Reaction score
42
Location
Boone, NC
First Name
Benjamin
Truck Year
1983
Truck Model
K10
Engine Size
350
I wouldn't do that personally.

Why put the ESC back on there, get and HEI and be done with the knock sensor and all the other ESC crap. You live in SC, they don't have inspection there if I remember correctly.

The AC wiring I can understand if you want to retain it. I would just get a soldering iron and some 18 gauge wiring and make new ones. Not that hard really.
