Show me your electric fan conversion

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

fussfeld

Full Access Member
Joined
Mar 25, 2013
Posts
340
Reaction score
54
Location
east coast
First Name
j
Truck Year
83
Truck Model
c-10
Engine Size
4.3 v-6 262CID
Ok, fan no good. Pics coming asap of the otherwise good installation---i used a SPAL wiring kit and Edlebrock lighted toggle.

Can anyone recommend a bolt-in unit?


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,122
Reaction score
2,960
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
Last edited:

gmachinz

Harnessworx Inc
Joined
Nov 10, 2012
Posts
762
Reaction score
287
Location
Iowa
First Name
Jabin
Truck Year
1986
Truck Model
K10
Engine Size
350

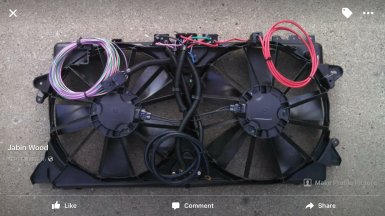

I'll toss my fan kit out there for another option-it's a new set of fans from a 2010 F150 with my 3-speed conversion harness-it uses (2) 100A and (2) 50A relays and a fixed resistor board circuit to vary resistance to give you three speeds....


Attachments

  • IMG_1324.jpg
    22.1 KB · Views: 332

gmachinz

Harnessworx Inc
Joined
Nov 10, 2012
Posts
762
Reaction score
287
Location
Iowa
First Name
Jabin
Truck Year
1986
Truck Model
K10
Engine Size
350

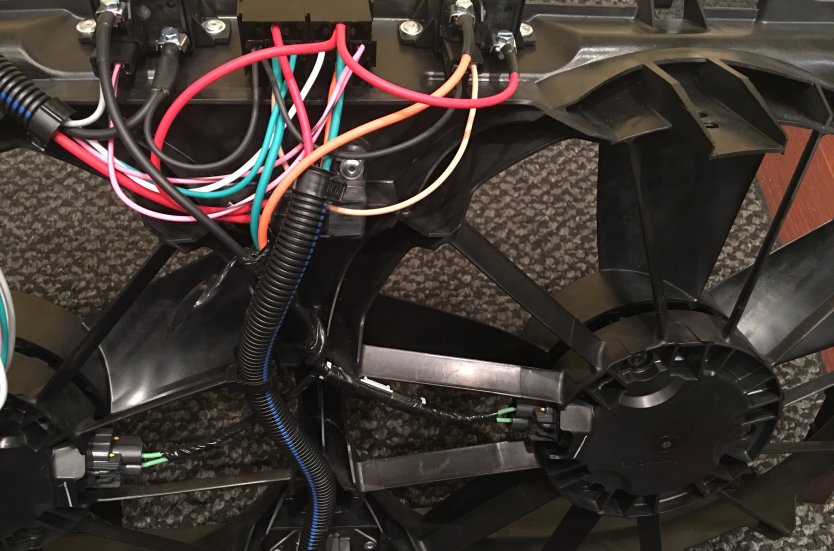

These fans are rated at 6000 CFM-measuring 32x19x6.75 and are the most robust fan assembly you can possibly find and will keep anything cool! Specifically designed to accommodate BBC or 6.2L truck radiators.


Attachments

  • IMG_1352.jpg
    97.1 KB · Views: 287

gmachinz

Harnessworx Inc
Joined
Nov 10, 2012
Posts
762
Reaction score
287
Location
Iowa
First Name
Jabin
Truck Year
1986
Truck Model
K10
Engine Size
350

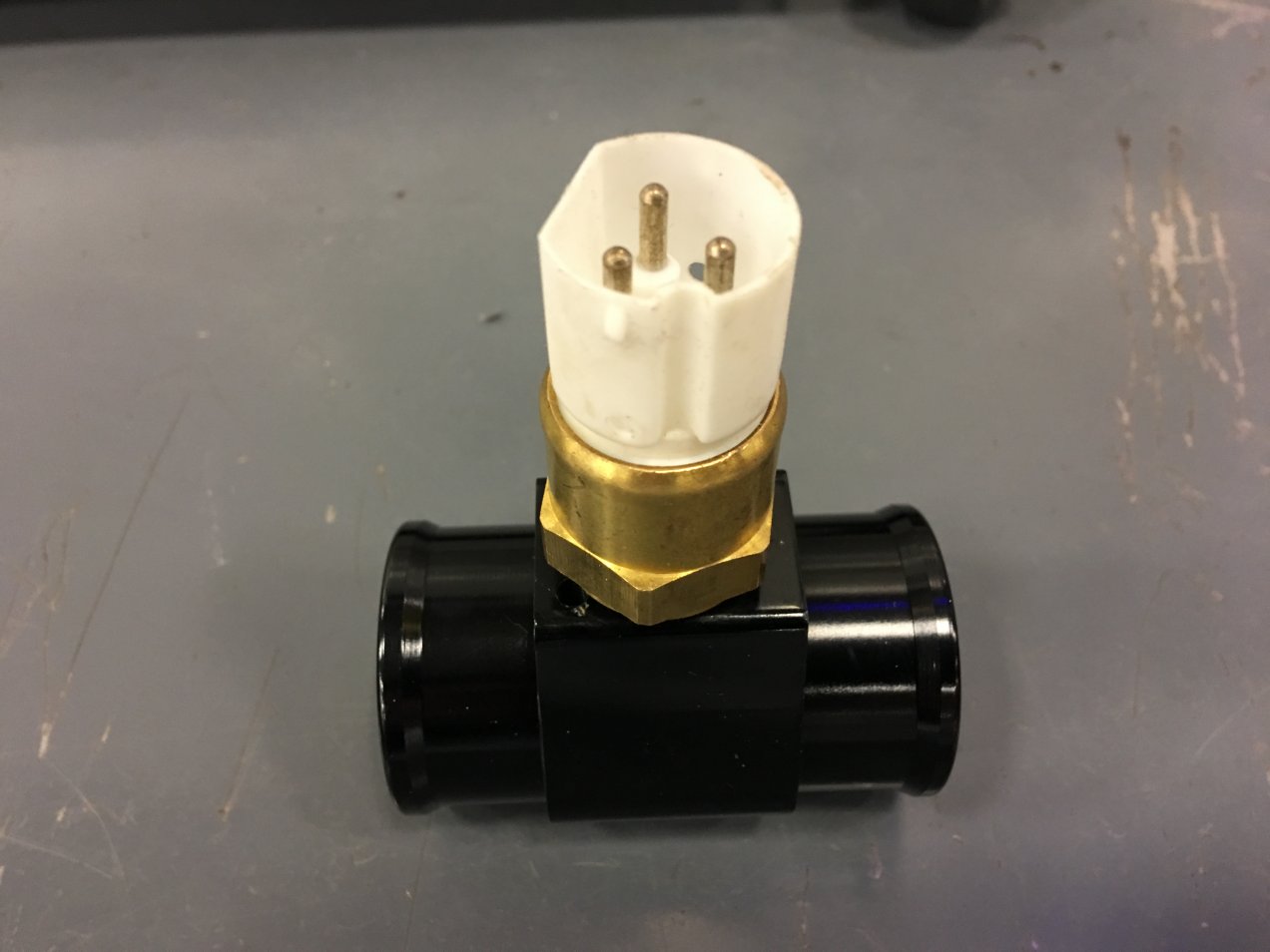

For truly universal applications I also stock these upper hose adapters w/dual temp sensor and pigtail!


Attachments

  • IMG_1515.jpg
    83.8 KB · Views: 202

gmachinz

Harnessworx Inc
Joined
Nov 10, 2012
Posts
762
Reaction score
287
Location
Iowa
First Name
Jabin
Truck Year
1986
Truck Model
K10
Engine Size
350

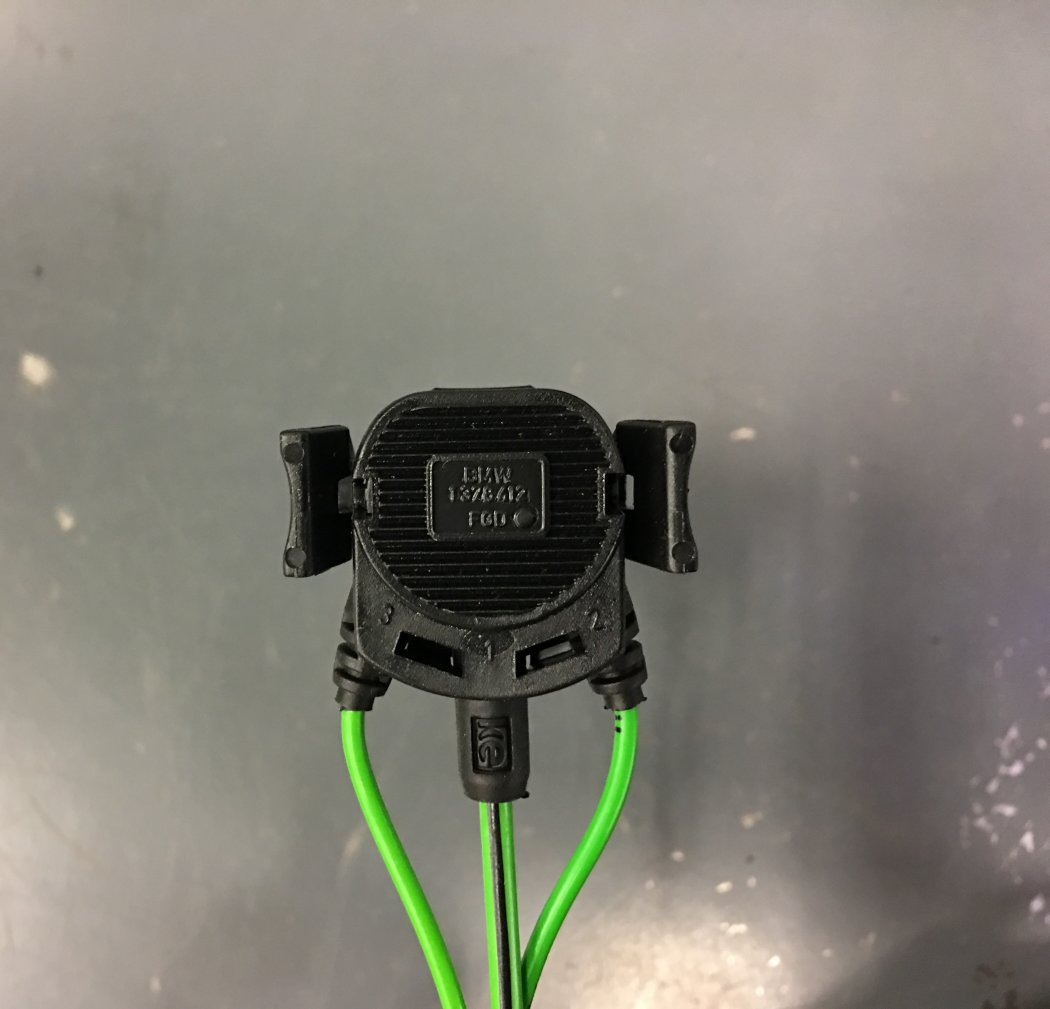

Dual temp pigtail connector tower....center wire goes to engine ground, the other two are low and medium speed triggers....if used with my 3-speed harness there is an AC circuit which triggers high speed. Nothing is free in terms of power and these NEW Motorcraft OEM fans are the king!!


Attachments

  • IMG_1511.jpg
    82.3 KB · Views: 209

Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,122
Reaction score
2,960
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
what you got controller wise for the windstar and how much?


austinado16

Full Access Member
Joined
May 25, 2012
Posts
611
Reaction score
220
Location
Central Coast, CA
First Name
Todd
Truck Year
1990 w/307k miles on the clock
Truck Model
GMC V1500 Suburban SLE
Engine Size
5.7L TBI/4L60/3.42's
Thanks for the detailed photos of the set-up you're making. Excellent product!


NOPHO84K30

Full Access Member
Joined
Feb 28, 2013
Posts
479
Reaction score
84
Location
north phoenix
First Name
justin
Truck Year
1984 silverado k30
Truck Model
K30 dana 60 corp14 ff
Engine Size
454 sm465 np205
do not buy painless f5 fan controller waste of money forst one was bad outa the box second died in a month. in cool temps. 300 down the drain. atleast thats my experience.


gmachinz

Harnessworx Inc
Joined
Nov 10, 2012
Posts
762
Reaction score
287
Location
Iowa
First Name
Jabin
Truck Year
1986
Truck Model
K10
Engine Size
350
I used to be a vendor for Spal for a short time but after their "third" improved and revised fan controller it still didn't handle running an OEM Mark VIII fan I had at the time. Then found out Spal was making more and more inferior controllers with a 30A max rating and had built in over/under current protection circuits that would basically shut off if current approached 30A!

I'm sure the F5 falls into that category too-sure it'll run a pos aftermarket Derale or Flexalite fan but try to run any type of robust OEM fan and the damn things fall on their face it seems. So I went to my drawing board and came up with a bullet proof fan kit-sure it isn't cheap but it will power any possible fan you can throw at it if maximum fan performance is what you need.


RThiel

Full Access Member
Joined
Jan 11, 2017
Posts
56
Reaction score
4
Location
Worland, WY
First Name
Robb
Truck Year
1982
Truck Model
C10
Engine Size
6.0 LQ9
Ford Windstar Fans

You must be registered for see images attach


You must be registered for see images attach


I made brackets out of 14ga and welded them to the core support. I like to use parts that are readily available. I think these were $120 at Rockauto.


crazy4offroad

Equal Opportunity Destroyer
Joined
Jul 30, 2010
Posts
8,468
Reaction score
1,068
Location
West BY-GOD Virginia
First Name
Curt
Truck Year
1979
Truck Model
K-10
Engine Size
350/SM465/NP205
I made brackets out of 14ga and welded them to the core support. I like to use parts that are readily available. I think these were $120 at Rockauto.

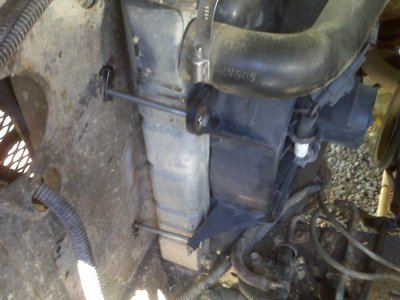

Nice! I drilled 3/8" holes in the radiator support to slip in extruded u-nuts, and used long bolts and aluminum tubing/washers to serve as standoffs cut to just the right length to give the fan mounts a little tension. Turned out to be pretty sturdy. I dont think this pic shows the tubing standoffs, I was still trying to figure out how I was going to mount it but you get the idea.


Attachments

  • 470812_372065396174927_1256121164_o.jpg
    92.2 KB · Views: 232

Daveo91Burb

Full Access Member
Joined
Jul 6, 2014
Posts
663
Reaction score
229
Location
Vancouver, WA
First Name
Dave
Truck Year
1991
Truck Model
V2500 Silverado Suburban
Engine Size
Vortec 383, modified TBI/4L80e
So for the Windstar conversion, what years of Windstars are we looking for? I just looked on CL and found a couple of different specimens I could pick up for around $300 (one had a bad tranny, the one other was an unspecified "non-working") My wife will generally be amenable to parting out a vehicle as long as I can break even or better. Seems like $300 should be do-able? Probably better to hunt around a junk yard for the fans, but I kind of enjoy parting out rigs, who knows maybe I could make a buck or two and get some e-fans to boot.


gmachinz

Harnessworx Inc
Joined
Nov 10, 2012
Posts
762
Reaction score
287
Location
Iowa
First Name
Jabin
Truck Year
1986
Truck Model
K10
Engine Size
350

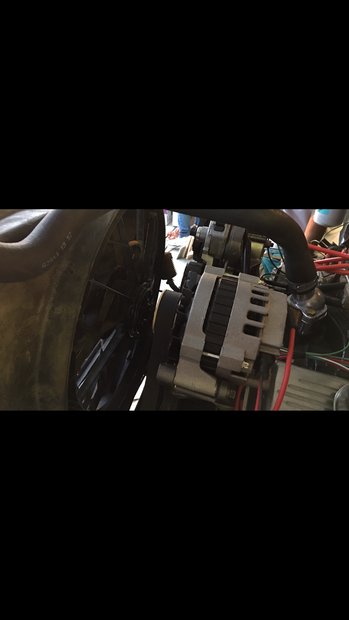

Heres another one of mine-an RF24 T-Bird dual speed fan mounted inside the stock 73-80 SB shroud. These fit 81-up SB shrouds too!


Attachments

  • IMG_2330.jpg
    18.1 KB · Views: 268
