How and what do mechanical gauges do differently? What is the time frame to work out for install of a mechanical gauge?
A mechanical gauge is getting direct supplied oil, from one of the main oil galleries that feed oil through the block. So it's reading it has the literal oil from the engine flowing into the gauge, moving the needle through a mechanism in the gauge.

So basically it's just an arm that moves due to hydraulic pressure, and almost never fail, and are very accurate. Like any other hydraulic pressure gauge.

It'll take you a couple hours to install. Depending on where you install it. I tapped into the block in a 3/8ths plug above the oil filter on the drivers side of the block. Your engine probably has a sensor there, that it'll need. So you could get a 3/8 y fitting to accept the old and new fitting.

Do not get the plastic lines! Get the copper line.


JamesSam

Full Access Member
Joined
Feb 15, 2023
Posts
1,342
Reaction score
3,744
Location
VA
First Name
Sam
Truck Year
1987
Truck Model
Silverado V10
Engine Size
5.7 L 350 v8

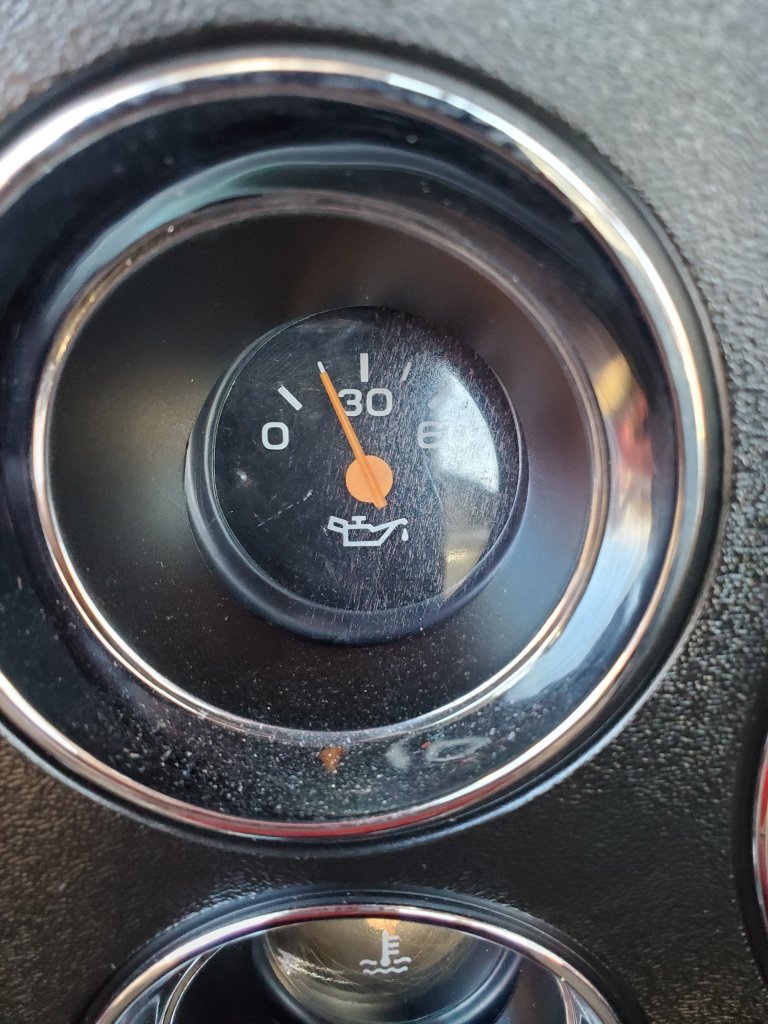

This is generally where it hangs out. I'm hoping a new pressure sending unit will do it for now. Probably trying to switch it out Saturday


Attachments

  • 20230316_155916.jpg
    152.8 KB · Views: 40

Randy and Easton

Full Access Member
Joined
Feb 6, 2021
Posts
891
Reaction score
1,271
Location
North Richland Hills, Texas
First Name
Randy
Truck Year
1976
Truck Model
C-10 LWB
Engine Size
350

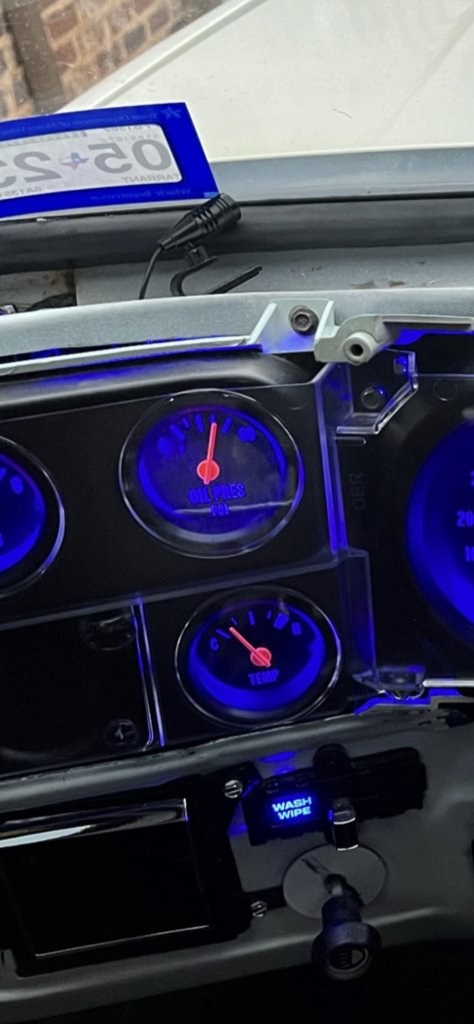

We have older style gauge and it usually hangs out at about 1 o’clock and higher when at highway speeds…


Attachments

  • E2DB00EC-357B-4BB5-A127-164958BC38DE.jpeg
    67 KB · Views: 41

JamesSam

Full Access Member
Joined
Feb 15, 2023
Posts
1,342
Reaction score
3,744
Location
VA
First Name
Sam
Truck Year
1987
Truck Model
Silverado V10
Engine Size
5.7 L 350 v8
Yes that is where this one used to live riding down the highway. I miss it.


JamesSam

Full Access Member
Joined
Feb 15, 2023
Posts
1,342
Reaction score
3,744
Location
VA
First Name
Sam
Truck Year
1987
Truck Model
Silverado V10
Engine Size
5.7 L 350 v8
Does anyone have recommendations for the best aftermarket part?
AC Delco? Is there anything better?


JamesSam

Full Access Member
Joined
Feb 15, 2023
Posts
1,342
Reaction score
3,744
Location
VA
First Name
Sam
Truck Year
1987
Truck Model
Silverado V10
Engine Size
5.7 L 350 v8
Redfish, thanks for the feedback! Much appreciated! Where did you get the Standard version? Online, NAPA, Advanced Auto...?


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,216
Reaction score
3,126
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
with it hooked up to the meter like in the pic.....you can hook up a syringe with tubing and push to vary the pressure to test. Also, you could hook it up to your air compressor with it set to a low pressure to test.....vary the pressure to test accuracy.


RanchWelder

Full Access Member
Joined
Jan 14, 2023
Posts
723
Reaction score
1,039
Location
Earth
First Name
--------
Truck Year
87
Truck Model
Blazer
Engine Size
355ci
When my block was out I used a 1/8" NPT adapter with two 1/8" NPT ports so I could attach the Oil Pressure Switch, for fuel pump relay protection and a plastic hose fitting for the manual pressure gauge on my dash. The manual gauge uses a small tubing to the gauge to constantly monitor pressure, where the electrical unit uses a sometimes sketchy pressure diaphragm unit with a rubber bladder to estimate the pressure and send a signal from .05 to 5v. The problem is the electrical versions are easily subjected to ground corrosion and faulty rubber bladders on the cheapo sending units...

Getting to the rear engine block, where the modification needs to happen is nearly impossible with the engine installed, due to the proximity to the firewall and the space required to install the main adapter and then plumb and leak proof the fittings... I had to wrap teflon to build up so the angle of the fittings did not face towards the block or away from where they would actually fit without obstruction. It was several attempts to get it correct, when out of the engine bay, by wrapping enough teflon tape until it sets the angle of the ports just right... I would not want to attempt it with engine installed. There is no way to turn the wrench. It is an impossible angle to get to.
You'll need to dislocate your thumb to do it and then relocate it back after the install...

My engine came without the oil switch installed and the pressure gauge in its place. I would not recommend eliminating the pressure sending switch, as it allows the truck to run on the 1987 without a functioning fuel pump relay. Or you'll get stuck on the highway without fuel pressure... WHEN the Fuel Pump Relay fail's...

The OEM fuel pump relays did come with fly back protection from the factory, so every time they load and unload, they do not kill the alternator circuit.
Buying a quality relay, from Dephi, GM or National is very important, as the aftermarket relays are ****.
Even buying OEM quality, they still fail and you should carry a spare...

Many builders replace these OEM relays with Bosch or aftermarket cube style relays, (without flyback protection)... and then you are really in for trouble.

The stainless fitting (Second picture belowe) is what I used... it allowed me to fit the switch to the side port and use the top port for the compression fitting to the plastic hose to my manual gauge on my dash, through the firewall. The brass unit works well too.

You must be registered for see images attach
You must be registered for see images attach

This fitting VVVVV (Below) eliminates the very important function of the emergency oil pressure switch and should be avoided. It is the rubber diaphragm sending unit for the electric dash gauge... it works for old school engines, and would not be advised for the 1987 model year... These are not reliable... the engine heat kills the diaphragm way too fast... they suck and will lie to you about the most important thing... actual oil pressure...
You must be registered for see images attach

^^^ your casting numbers are here, under the blue wires...
There may be an oil port available near your oil filter, depending on the block you have. 1987 had several different blocks, from different factories.
Some had provisions for roller cam, oil ports, manual fuel pump machining, some came without any of these features.

Unfortunately, the casting numbers are located behind the block near the firewall and most likely are not able to be seen and confirmed when the block is still in the engine bay. The 1987 year engines are so close to the firewall, and at such an incline to the frame, there is no way to even use a mirror to inspect the casting marks for engine manufacture.

I tried for months... it is not possible on many 1987 trucks to see what your casting numbers are, unless you pull the head on the driver's side or remove the engine.
Borrow a bore scope from somebody, is my only advice to confirm casting marks. Removing the hood will not help. It will just piss you off, because now you have potentially broken your windshield, in order to find out you still cannot see the casting marks... (Hood accidentally goes through windshield, without a second set of hands during removal comments, please post here:)

If there's a 1/8" NPT plug near your oil filter port, you are in luck... Pic from the HAMB:
You must be registered for see images attach

Tap for the manual gauge compression fitting here. Just make certain the feed hose for the manual oil gauge cannot get any heat from the headers or exhaust manifold. It will be very close to your pipes, in this area. Copper tubing compression is better than plastic tubing compression fittings here.

Here's a copper compression tubing oil pressure fitting at the filter location, on a BBC:
You must be registered for see images attach

Little to no heat on your tubing, is the best solution, either way.
Be prepared to get a face full of oil when you pull that plug and have the parts ready with teflon tape... to close it before your engine pukes in your face, or perform this install during your oil change, to avoid the mess.

Close proximity to your exhaust may mean using 45 or 90 degree fittings here, and changing direction of your plumbing fittings, to avoid heat and to enable getting a wrench on anything... the exhaust in many cases will become the limiting factor. There is simply not enough room to work, on some engine access situations. Your linkage will be in your face, as well.

Last edited:

JamesSam

Full Access Member
Joined
Feb 15, 2023
Posts
1,342
Reaction score
3,744
Location
VA
First Name
Sam
Truck Year
1987
Truck Model
Silverado V10
Engine Size
5.7 L 350 v8
RanchWelder, lots of info here, thank you! You even began discussing the fuel pump relay and I don't know if you saw any of my other threads but the other main issue I am dealing with is my truck only running on the passenger tank. When switched to drivers side tank the power immediately dies(or rarely will die a minute or two after switching, it's Ben a while since I tried troubleshooting the fuel issues...) lots to discuss on that. We could message back and forth about it if your up for it. Anyway, I will definitely be re-reading your response several times to soak it all in. Thanks again!


JamesSam

Full Access Member
Joined
Feb 15, 2023
Posts
1,342
Reaction score
3,744
Location
VA
First Name
Sam
Truck Year
1987
Truck Model
Silverado V10
Engine Size
5.7 L 350 v8
*been a while


Randy and Easton

Full Access Member
Joined
Feb 6, 2021
Posts
891
Reaction score
1,271
Location
North Richland Hills, Texas
First Name
Randy
Truck Year
1976
Truck Model
C-10 LWB
Engine Size
350
@RanchWelder great info! Beyond grateful for the info. Our OP gauge works great and I think it’s in a port on top side of block just below HEI I think. I always worried if I had to replace that how would we do it. The oil filter option gives us options if we end up there. Thank you sir

Randy and Easton


Redfish

Full Access Member
Joined
Nov 6, 2021
Posts
2,450
Reaction score
13,258
Location
Prairieville, LA
First Name
Andrew
Truck Year
1987
Truck Model
V1500
Engine Size
350/5.7
Redfish, thanks for the feedback! Much appreciated! Where did you get the Standard version? Online, NAPA, Advanced Auto...?
Ordered it from RockAuto. Used the discount posted on this forum


JamesSam

Full Access Member
Joined
Feb 15, 2023
Posts
1,342
Reaction score
3,744
Location
VA
First Name
Sam
Truck Year
1987
Truck Model
Silverado V10
Engine Size
5.7 L 350 v8
Ordered it from RockAuto. Used the discount posted on this forum

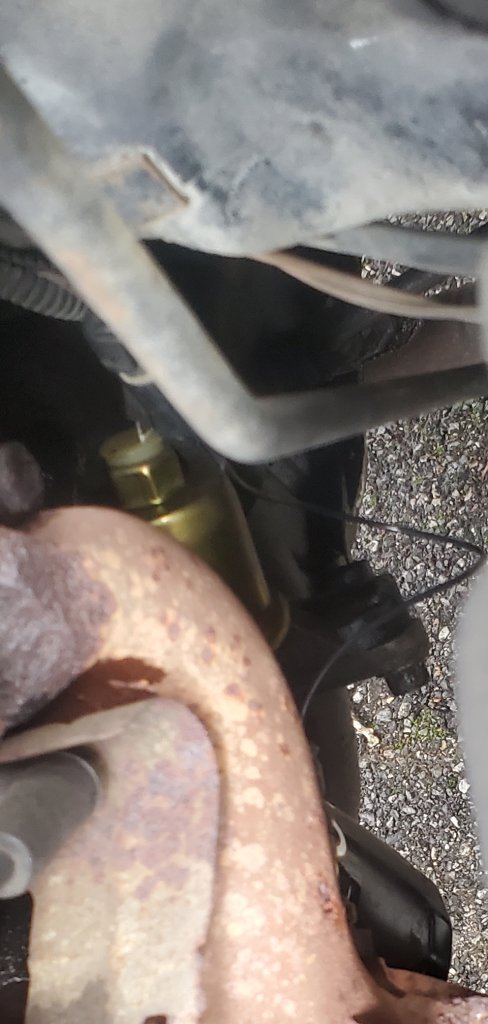

So here is a snapshot of my current one from the top. I understand there are 60 and 80 psi versions. If I ask for a year specific one at an autoparts store they should pull up the correct one right?


Attachments

  • 20230318_094511_resized.jpg
    77.8 KB · Views: 53

bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
29,525
Reaction score
25,423
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
This is generally where it hangs out. I'm hoping a new pressure sending unit will do it for now. Probably trying to switch it out Saturday

Unplug the sender and turn the ignition on. The guage should peg to max pressure. If not, there is a gauge or wiring issue. If it does, then proceed with trying another sender or verify pressure with a mechanical gauge.
