Fuse Box Issues

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Chevyman22360

Junior Member
Joined
Nov 1, 2022
Posts
1
Reaction score
0
Location
NESD
First Name
Ryan
Truck Year
1987
Truck Model
C30
Engine Size
6.2

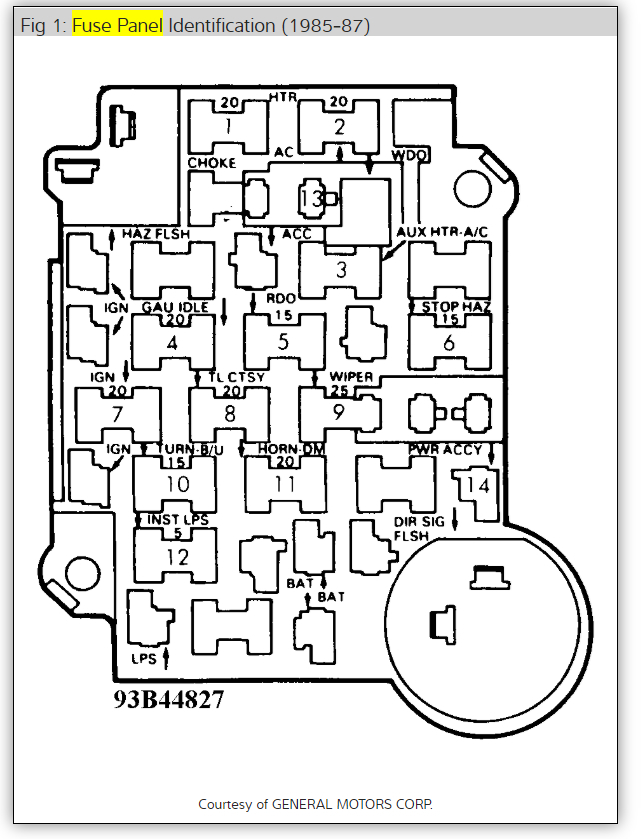

Working on a 1987 C30 Truck. Having issues getting switched power from the "IGM" on the fuse box. We lost power to that port and that also must be the field wire for the alternator and gauge lights. I backfeed power back into that port and alternator and gauge lights work. It must just be a tap as it does not have an area where a fuse will push into. Wondering if this is protected by a fuse/Relay or fusible link. It is located on bottom left corner just above where fusebox screw is located. Thanks for any help!!


Attachments

  • original.jpg
    187.9 KB · Views: 109

WP29P4A

Full Access Member
Joined
Jul 18, 2021
Posts
866
Reaction score
1,469
Location
Nevada
First Name
Mike
Truck Year
1987
Truck Model
Sierra Classic V1500
Engine Size
350 TBI
I would check the fusible links first, should be 2 on the starter and one or two on the firewall terminal.
