Fuel Injectors not working

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

squarebodynewbie

Junior Member
Joined
Feb 26, 2023
Posts
3
Reaction score
0
Location
Virginia
First Name
Brandon
Truck Year
1987
Truck Model
Chevy
Engine Size
V8
Looking for next steps...(never worked on vehicles but wanted to start a new hobby with my son)

Vehicle details - 87 Chevy, 4 wheel drive, 1/2 ton, 2 door, 305 V8 w/TBI

Truck cranks but doesn’t start because it’s not getting fuel - Fuel injectors are good, checked the electrical harness with a noid light and got no light (flashing or steady) when key was turned.

Replaced all the fuses - then checked the power to the fuse box. Also replaced the fuel pump relay.

ECM1 only getting power to the right side but not the left. ECMB not getting power at all.

Has a new distributor so not sure if that’s the issue. Just looking for a list items to run down and locate the problem.


gmbellew

Full Access Member
Joined
May 27, 2018
Posts
1,090
Reaction score
1,097
Location
Kansas city
First Name
glen
Truck Year
1990
Truck Model
suburban 1500
Engine Size
350

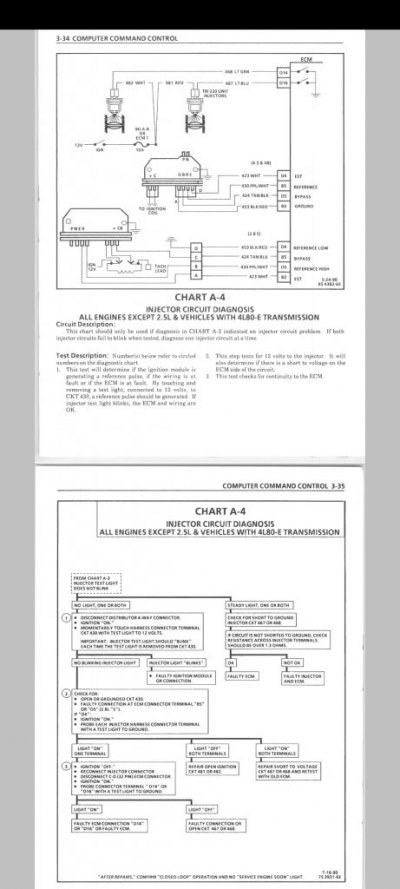

if start here if you don't have injector pulse from a noid light when cranking.

the injector harness won't flash a noid light with key just in the "on" position. you have to crank


Attachments

  • Screenshot_20230226_101359_Adobe Acrobat.jpg
    Screenshot_20230226_101359_Adobe Acrobat.jpg
    74.4 KB · Views: 62

fast 99

Full Access Member
Joined
Dec 31, 2021
Posts
1,724
Reaction score
2,373
Location
Spokane, Washington
First Name
Brian
Truck Year
81,85
Truck Model
K20
Engine Size
350
Should be power standing on one side of injector with key on.


fast 99

Full Access Member
Joined
Dec 31, 2021
Posts
1,724
Reaction score
2,373
Location
Spokane, Washington
First Name
Brian
Truck Year
81,85
Truck Model
K20
Engine Size
350
true, but it won't flash the noid light. the ECM provides ground when they pulse.
Exactly, it's just an easy check if a noid light isn't available. No power there, problem not there.


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
4,363
Reaction score
6,473
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
Pull both fuses,check them for continuity. Key on check for power at all 4 contact points for those fuses at the fuse panel. You should have power at 2 points.


gmbellew

Full Access Member
Joined
May 27, 2018
Posts
1,090
Reaction score
1,097
Location
Kansas city
First Name
glen
Truck Year
1990
Truck Model
suburban 1500
Engine Size
350
Looking for next steps...(never worked on vehicles but wanted to start a new hobby with my son)

Vehicle details - 87 Chevy, 4 wheel drive, 1/2 ton, 2 door, 305 V8 w/TBI

Truck cranks but doesn’t start because it’s not getting fuel - Fuel injectors are good, checked the electrical harness with a noid light and got no light (flashing or steady) when key was turned.

Replaced all the fuses - then checked the power to the fuse box. Also replaced the fuel pump relay.

ECM1 only getting power to the right side but not the left. ECMB not getting power at all.

Has a new distributor so not sure if that’s the issue. Just looking for a list items to run down and locate the problem.
ECMB is the main power feed to the ECM and also feeds power to the fuel pump relay and also ties into the oil pressure switch as redundancy in case the fuel pump relay dies.

the ECMB wires are on the 440 circuit and are orange. they run in the main harness across the firewall and are prone to rub through on various brackets (MAP, cruise control, etc). it is constant hot. if ECMB isn't blown, but you don't have power on one side of ECMB, that may be a circuit to track down.

does the service engine light come on with key on? if not, your ECM may not have power at all.

Last edited:

squarebodynewbie

Junior Member
Joined
Feb 26, 2023
Posts
3
Reaction score
0
Location
Virginia
First Name
Brandon
Truck Year
1987
Truck Model
Chevy
Engine Size
V8

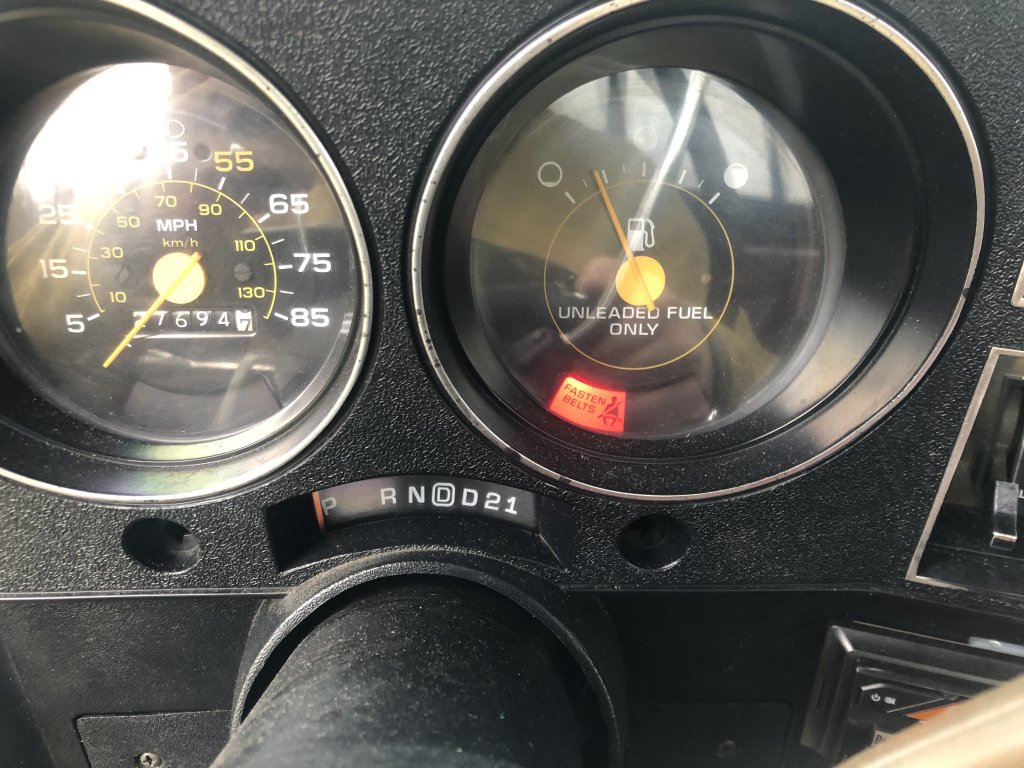

No service engine light with the key on

I have tone when the key is inserted.

When the key is turned to the on position I get the ‘Fasten Seatbelt’ light.

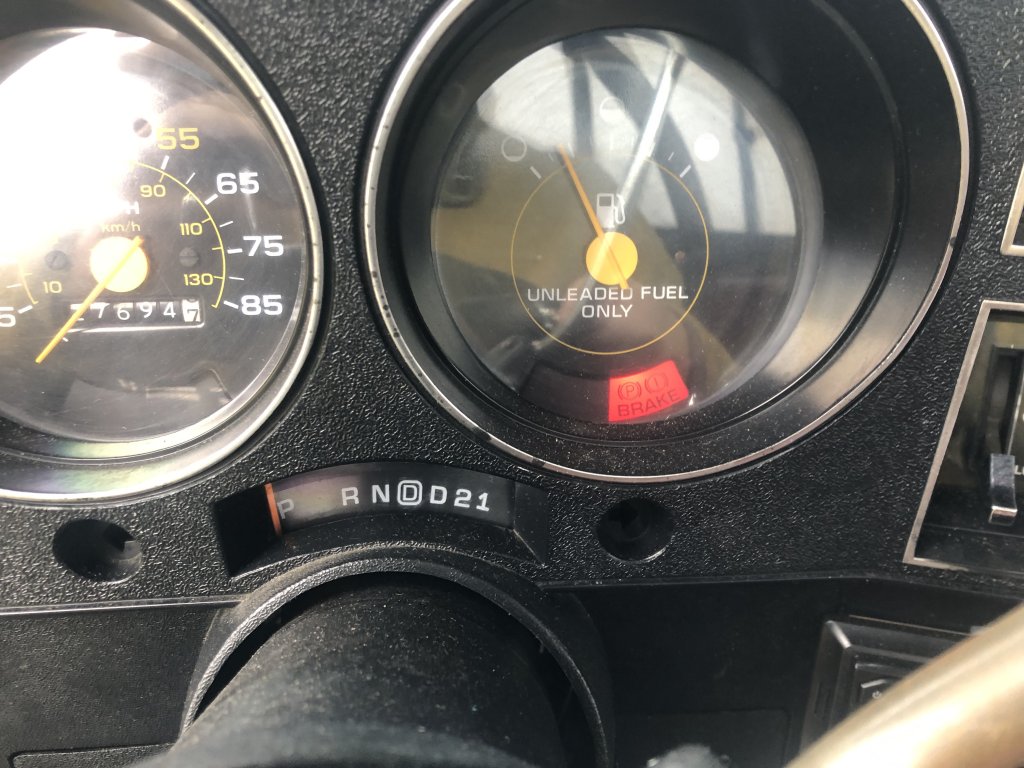

Then when I turn to crank I get the ‘Brake


Attachments

  • C69D5F31-C59F-444B-B00F-9AF96558684F.jpeg
    152.1 KB · Views: 39
  • EABFAE29-4863-4EF4-8325-833AEC1AB4F5.jpeg
    163.8 KB · Views: 43

gmbellew

Full Access Member
Joined
May 27, 2018
Posts
1,090
Reaction score
1,097
Location
Kansas city
First Name
glen
Truck Year
1990
Truck Model
suburban 1500
Engine Size
350
No service engine light with the key on

I have tone when the key is inserted.

When the key is turned to the on position I get the ‘Fasten Seatbelt’ light.

Then when I turn to crank I get the ‘Brake

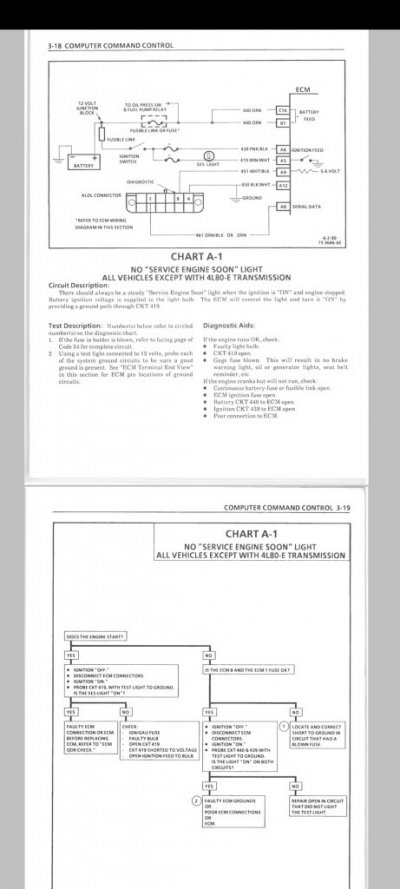

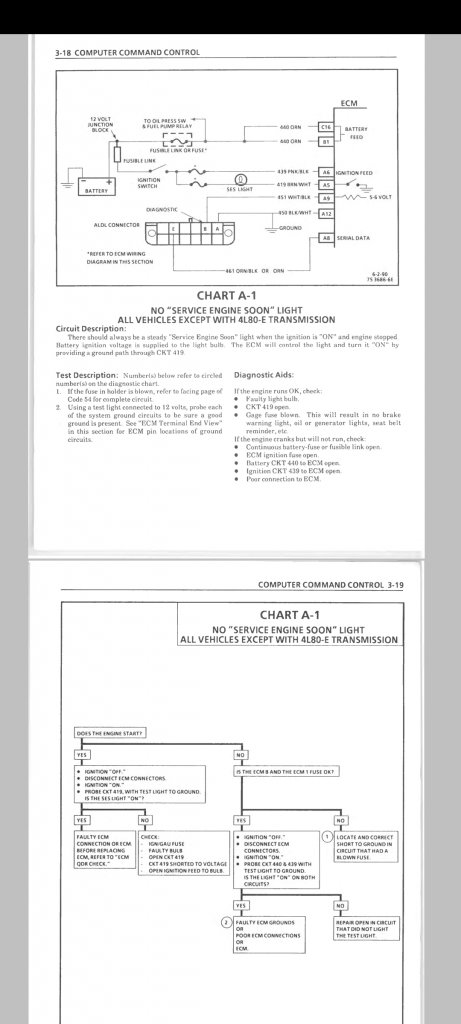

see if ECMB fuse is blown and or has power. did the light work before? there could be a chance that the bulb is out.

but this is the 440 circuit I described earlier.


Attachments

  • Screenshot_20230227_124953_Adobe Acrobat.jpg
    Screenshot_20230227_124953_Adobe Acrobat.jpg
    66.9 KB · Views: 58
Last edited:

squarebodynewbie

Junior Member
Joined
Feb 26, 2023
Posts
3
Reaction score
0
Location
Virginia
First Name
Brandon
Truck Year
1987
Truck Model
Chevy
Engine Size
V8
What resource did this come from and where could I find it? I have a Haynes but not as much detail as I would like.


gmbellew

Full Access Member
Joined
May 27, 2018
Posts
1,090
Reaction score
1,097
Location
Kansas city
First Name
glen
Truck Year
1990
Truck Model
suburban 1500
Engine Size
350
What resource did this come from and where could I find it? I have a Haynes but not as much detail as I would like.
it's in the Reference Library on this website. it is in the Drivability Manual, which is like the TBI Bible. there are also wiring manuals, service manuals, and repair manuals. all the GM manuals organized by year. download your year manuals and you will be set.


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
4,363
Reaction score
6,473
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
Exactly, it's just an easy check if a noid light isn't available. No power there, problem not there.
Who knows LEDs where to get them,different voltages types etc. I'll put it in context about 20 years ago one of our instructors told us to get xyz LEDs from radio shack twist the tails together,long side to short side and vise versa. Solder on 6 foot of 2 conducted wire and solder t pins on the other end. A homemade noid light that works on any injector and you can see from the drivers seat. I can't point people where or what to buy,Radio Shack is gone.


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
4,363
Reaction score
6,473
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
Look at this! They pre make them now. Mine is 2 leds tail to tail so you can't get polarity wrong, T pins for probes,and stick the light end under the wiper.
