Charcoal/evap hookup help

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Jims86

Full Access Member
Joined
Aug 3, 2010
Posts
5,492
Reaction score
132
Location
Patterson,Ca
First Name
Jim
Truck Year
1986
Truck Model
K10 Suburban Silverado
Engine Size
5.7 TBI
The only manifold vacuums i see go to brake and ac condenser(which does nothing because i dont have a compressor)
Where would port T be on the edelbrock carb?

Port T would be the bowl vent. Did you buy this truck fowled up like this?


RustyBuckets

Full Access Member
Joined
Mar 23, 2013
Posts
105
Reaction score
5
Location
Kansas City
First Name
Jake
Truck Year
85
Truck Model
k10
Engine Size
350

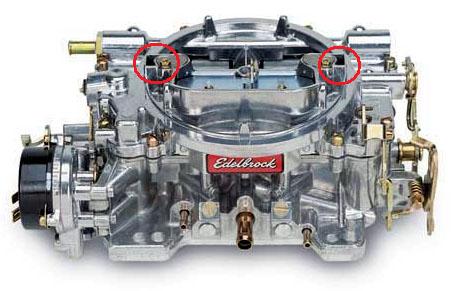

Ya I bought it like this. If I had taken it apart I probably wouldve been able to put it back but I never saw it right. I appreciate all the help guys, I didnt know what I was in for just getting plates. how would I attach to bowl vents, I looked up where they are on my carb and this is apparently them.


Attachments

  • edelbrock.jpg
    28.4 KB · Views: 168

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,977
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
The plastic elbowed hose on left of carb goes into the firewall
1)I think that is the ported vacuum so attach the large carb bowl nipple from canister to that

2)The middle ish top small nipple on canister to t into pcv

3)The small nipple on the right above the pcv one to the same port on carb as step one or to lockup solenoid... Im not sure what that is

4)The far left canister port into Macgyver'ed port on bottom of air cleaner

And can someone clear up what this is and if I need it

That round ball is called a Vacuum Amplifier or Vacuum Resevoir. Different vehicles, makes and models use it for different purposes. Heat and Air controls as Jim said, is most common, sometims vac operated headlights that open and close like on old Ford Birds, some wiper washers, some cruise control, whatever the case may be. Supposed to have a bit of vac in reserve and/or make vacuum stronger. Have you ever seen a like a tin can or what looks like an old Juice Can without a label painted black on an old Ford??? Same thing, just a can instead of plastic.


Jims86

Full Access Member
Joined
Aug 3, 2010
Posts
5,492
Reaction score
132
Location
Patterson,Ca
First Name
Jim
Truck Year
1986
Truck Model
K10 Suburban Silverado
Engine Size
5.7 TBI
Yup, you dont have the nipple for the bowl vent. To do this right, you really need to get a q jet from SMI Carburetor if you have the means to do so. It is the correct carburetor for your truck, and is far superior to the Edelbrock. But for now, maybe T that in with the other line going under the air claner, and see if they pass you...I have a feeling that they just dont want to see a bunch of open ports to the aptmosphere.


RustyBuckets

Full Access Member
Joined
Mar 23, 2013
Posts
105
Reaction score
5
Location
Kansas City
First Name
Jake
Truck Year
85
Truck Model
k10
Engine Size
350
I might grab a junkyard carb for the inspection unless you think i would be better off buying a better carb and selling the Edelb. So far ive got all but the lines going to the airfilter t'ed in. havent tried to start it
Thanks for being a help Ive been learning a lot just by poking around the forum. It looks like Jims expertise is around every corner of this place


Jims86

Full Access Member
Joined
Aug 3, 2010
Posts
5,492
Reaction score
132
Location
Patterson,Ca
First Name
Jim
Truck Year
1986
Truck Model
K10 Suburban Silverado
Engine Size
5.7 TBI
I personally would get a Q jet from SMI, no exceptions. Sell the eddy.
The Q jet is 750 CFM, and tuned right, can get you the power you want, and if you want to take it easy, can deliver in the neighborhood of 16-20 mpg, and will get you passed inspection every time. i woul also look for an enclosed TBI style air cleaner, or stock for that year. dont run open.


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,977
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
I hate to see someone go spend $400 just to pass emissions for an Evap hose plugged off when he's passing tailpipes emissions. Then a carp swap, needing tuned, might not pass tailpipe emmisions. IF you're this close to passing, I'd make it work with what I had for FREE, other than a few vac hoses. As Jim said, I also have a feeling they just don't want to see a bunch of hoses go to the atmostphere. If it's hooked someway to the intake system via PCV line, carb vac or whatever, then the vapor is getting sucked into the intake and burnt and that's the purpose and that's what they want to see. I really doubt they'll follow every hose to where it goes, they are just looking to see the ports are hooked to something.


RustyBuckets

Full Access Member
Joined
Mar 23, 2013
Posts
105
Reaction score
5
Location
Kansas City
First Name
Jake
Truck Year
85
Truck Model
k10
Engine Size
350

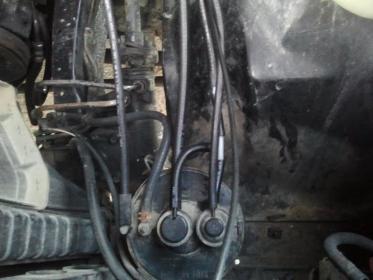

I hooked her up the way ya'll said and she purrs real nice. Hopefully this gets me passed.
