Are locking hubs factory or personal add on?

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Nasty-LSX

TogetherforeverCovid19
Joined
Nov 22, 2014
Posts
1,097
Reaction score
1,157
Location
HOUSON TX
First Name
Mi Hung Lo
Truck Year
85/86/87
Truck Model
c10/k10/k20
Engine Size
LSX
I'm still new to playing with 4x4's, but I ask because I remember my k20 came with locking hubs before I replaced them with warn hubs. The k10 just has caps on the end of the hubs. Got me thinking if they are aftermarket add on's. Thanks

You must be registered for see images attach
You must be registered for see images attach
You must be registered for see images attach


Jgonick

Full Access Member
Joined
Jan 12, 2017
Posts
197
Reaction score
262
Location
West Texas
First Name
Joel
Truck Year
1985
Truck Model
K10
Engine Size
350

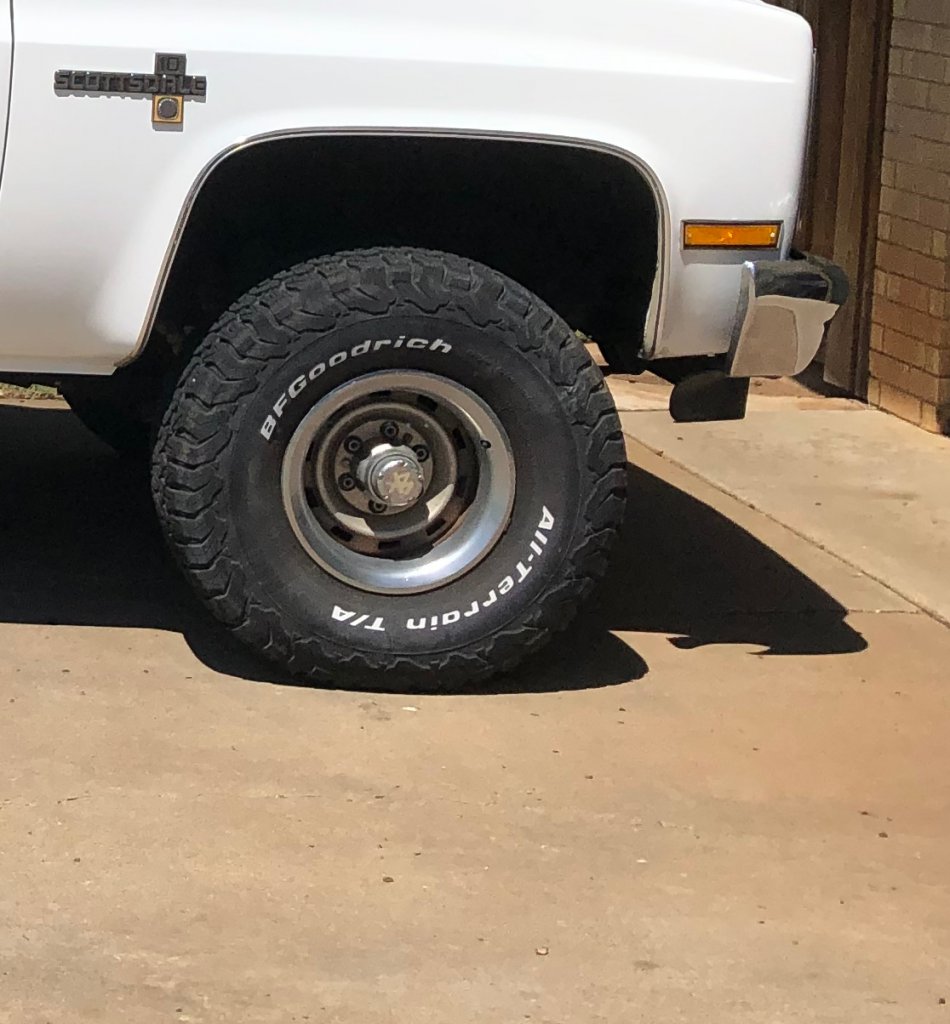

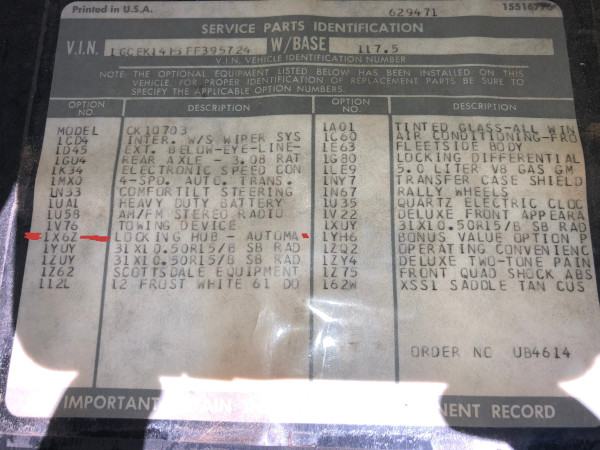

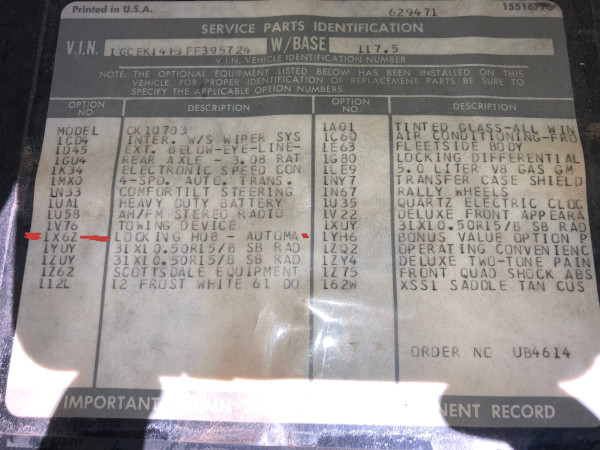

auto locking hubs are factory- at least mine are.

Edited to fix image size


Attachments

  • see2.jpg
    126.4 KB · Views: 25
  • see.jpg
    87.9 KB · Views: 25
Last edited:

vr1967

Full Access Member
Joined
Apr 16, 2023
Posts
174
Reaction score
648
Location
Mississippi
First Name
Virgil
Truck Year
1984
Truck Model
k1500
Engine Size
6.2L turbo
Main thing about automatic hubs is, don’t put too much grease in them, just need a small amount. I think overgreasing them is the reason they got such a bad name.


Bextreme04

Full Access Member
Joined
May 13, 2019
Posts
4,170
Reaction score
5,063
Location
Oregon
First Name
Eric
Truck Year
1980
Truck Model
K25
Engine Size
350-4bbl
There are permanently locked, manually locking, and then auto locking hubs. A standard 4x4 would have manually locking hubs as standard with an NP205, NP208, or NP241 depending on year and GVWR. Auto locking was an optional RPO for those transfer cases.

Permanently locked hubs only came on 4x4 with the full-time 4wd RPO option and they had an NP203 equipped. Lots of people swapped the slug out for Manually locking hubs on those trucks and converted to part-time 4wd.


Nasty-LSX

TogetherforeverCovid19
Joined
Nov 22, 2014
Posts
1,097
Reaction score
1,157
Location
HOUSON TX
First Name
Mi Hung Lo
Truck Year
85/86/87
Truck Model
c10/k10/k20
Engine Size
LSX
Thanks for the info. Ill check tomorrow to see what T/C I have. I thought it would be a 208.


nvrenuf

Full Access Member
Joined
Jul 30, 2010
Posts
1,707
Reaction score
1,911
Location
Mobile, Al.
First Name
John
Truck Year
1991
Truck Model
K5
Engine Size
454
It should be a 208 tcase. The 241 was 89-91(iirc) and the 205 was only in 1 tons for 81+.

As far as manual vs auto locking hubs, for 81+ (all series) the manuals were base and auto locking hubs were an option.

Conversely, my understanding is that for most (if not all) 73-79 full time (which used solid drive slugs) was standard equipment with manual hubs being an option. I believe the sales pitch was convenience because you didn’t have to get out to lock the hubs.

Trivia, you could get a 1 ton with auto locking hubs and a synchronized 205 from 82-84.


CalSgt

Full Access Member
Joined
Oct 3, 2021
Posts
1,500
Reaction score
3,161
Location
CA
First Name
Casey
Truck Year
1980
Truck Model
Chevy K-10 Custom Deluxe
Engine Size
350
Here’s what the factory Spicer manual hubs look like. Not sure if there’s any difference in the ’81 & newer models

You must be registered for see images attach


Nasty-LSX

TogetherforeverCovid19
Joined
Nov 22, 2014
Posts
1,097
Reaction score
1,157
Location
HOUSON TX
First Name
Mi Hung Lo
Truck Year
85/86/87
Truck Model
c10/k10/k20
Engine Size
LSX
Ok thanks all, so do I want to put the WARN manual locking hubs Like my K20? Is this a better option?
I dont care if I have to get out the truck to lock the hub. :happy160:


nvrenuf

Full Access Member
Joined
Jul 30, 2010
Posts
1,707
Reaction score
1,911
Location
Mobile, Al.
First Name
John
Truck Year
1991
Truck Model
K5
Engine Size
454
Here’s what the factory Spicer manual hubs look like. Not sure if there’s any difference in the ’81 & newer models

You must be registered for see images attach

Around 81-82 GM started using an unmarked Warn hub.

@Nasty-LSX it depends on how you’ll use it really. If you’re not going to beat on it hard a set of Warn hubs will be fine. If it’s going to be wheeled or beat on hard I’d suggest Yukon Hardcore hubs or used Spicers.


Doppleganger

Full Access Member
Joined
May 24, 2019
Posts
11,700
Reaction score
54,094
Location
OH-MI: Just like it sounds
First Name
Chris
Truck Year
1985
Truck Model
K20
Engine Size
5.7
My K10 had the 4x4 full time caps - my K20 had the lockouts. When it arrived, it had the lower line Warn hubs and were whipped. Alot of plastic parts I wasn't too thrilled with either.
You must be registered for see images attach



I replaced them with the premium line and love them. Can tell they are better built by the weight alone. All metal.
You must be registered for see images attach


Nasty-LSX

TogetherforeverCovid19
Joined
Nov 22, 2014
Posts
1,097
Reaction score
1,157
Location
HOUSON TX
First Name
Mi Hung Lo
Truck Year
85/86/87
Truck Model
c10/k10/k20
Engine Size
LSX
My K10 had the 4x4 full time caps - my K20 had the lockouts. When it arrived, it had the lower line Warn hubs and were whipped. Alot of plastic parts I wasn't too thrilled with either.
You must be registered for see images attach



I replaced them with the premium line and love them. Can tell they are better built by the weight alone. All metal.
You must be registered for see images attach
This is what I put on the K20. Its been a few years and they are not even faded. the quality is excellent.


vr1967

Full Access Member
Joined
Apr 16, 2023
Posts
174
Reaction score
648
Location
Mississippi
First Name
Virgil
Truck Year
1984
Truck Model
k1500
Engine Size
6.2L turbo
They even made auto hubs for the Dana 60 after 81. Here is a NOS set I have (one has a Ford cover, but other than that, they are the same)
You must be registered for see images attach


And from the 1981 pickup brochure
You must be registered for see images attach


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,194
Reaction score
6,158
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
It should be a 208 tcase. The 241 was 89-91(iirc) and the 205 was only in 1 tons for 81+.

As far as manual vs auto locking hubs, for 81+ (all series) the manuals were base and auto locking hubs were an option.

Conversely, my understanding is that for most (if not all) 73-79 full time (which used solid drive slugs) was standard equipment with manual hubs being an option. I believe the sales pitch was convenience because you didn’t have to get out to lock the hubs.

Trivia, you could get a 1 ton with auto locking hubs and a synchronized 205 from 82-84.
The only trucks that didnt get the slugs in the early years were the manual transmissions i believe
You must be registered for see images attach
You must be registered for see images attach
You must be registered for see images attach
You must be registered for see images attach

You must be registered for see images attach

so nevermind, the manual/auto thing is not true all around, and the 1973 year you could have free wheeling hubs (np205) in a 3/4 but not in 1974. Weirdddd. Then it went to the 6 cylinders only having the option for the np205, but it was presumably standard to be np203
But a 1974 jimmy COULD NOT have an inline 6 with np203


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,194
Reaction score
6,158
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
You must be registered for see images attach
You must be registered for see images attach

suburbans could have it

THEN you get 1975!
Gmc six cylinder trucks (base engine) could come with non-manual locking hubs AND a part-time t case? so all the negatives of the np203 with the selectable nature of the np205... lol. But im guessing that wasnt a common choice.
You must be registered for see images attach

1976 spells it out as manual only
You must be registered for see images attach



1981 chevy ad:

You must be registered for see images attach
