92 K case 700R4 tear down

[Paulscrawler78]

This is the servo from the transmission

You must be registered for see images attach



[HotRodPC]

Did you look to see if you have the Beast or the GM Smart shell? Get some pics of the Sunshell. The back of it face down, and then the inside of it face up.



[Paulscrawler78]

You must be registered for see images attach

Bottom of the sun shell



[Paulscrawler78]

You must be registered for see images attach

The drum the 2-4 band sits on and it has groves like a brake rotor



[Paulscrawler78]

You must be registered for see images attach

Inside sun shell / reaction drum



[Paulscrawler78]

You must be registered for see images attach

Inside the input drum



[Paulscrawler78]

You must be registered for see images attach

Side view of the servo



[HotRodPC]

Hmmmmm, buddy, I'll have to do some more research and look at some more pics to be sure, but I do believe that is the Beast and the Vette Servo. . Just might be saving you some cash. So you don't see any sign of chewed teeth on the Sunshell, or cracks going the around the ring with the teeth ring meets the shell?



[HotRodPC]

I don't see the holes like the Beast has, but it could be an older Beast. Is there any #'s or markings at all on it? the Beast will have some numbers stamped into it. On the face down part toward the outside edge.



[HotRodPC]

You must be registered for see images attach

The drum the 2-4 band sits on and it has groves like a brake rotor

Yeah, I"m thinking that's bad enough it needs replaced. You need to scrap that drum. When that wears down like that, it affects the travel of your servo, and being the 2-4 band has common issues, it's just not worth pissing with. Also the coloration says it got very hot and could be heat checked or lost it's temper and not be as strong now.



[Paulscrawler78]

OK I'll check in the morning at the sun shell for numbers and the shell looks to be perfect



[HotRodPC]

You must be registered for see images attach

Bottom of the sun shell

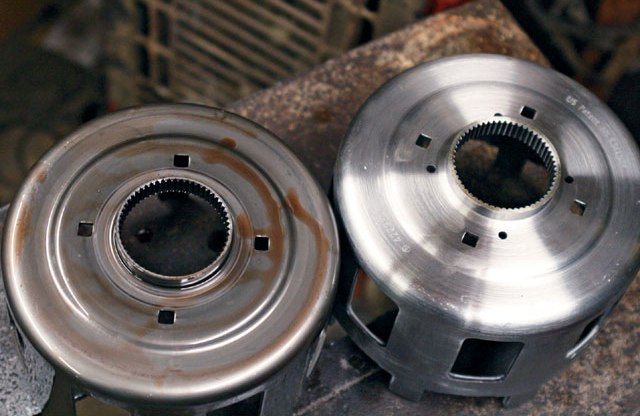

You see this comparison photo? Look how thin the ring or teeth with the one on the left, then look how much meat on the Beast on the right. You're looks like it has more meat, and I can't tell for sure, but yours also looks like it has a little step right there at the base of the ring with more meat. That would be a Beast type shell I'm thinking you have. If it's not, then I'd have to wonder if it's a China made hardened shell. Also looks like your was run without a thrust washer behind it. Look at the scraping there. There should have been a flat washer there. Maybe you took it off for the pic?

Here is a comp photo.

You must be registered for see images attach



[Paulscrawler78]

Ya I had a thrust washer on mine



[Paulscrawler78]

Here is a better over head pic so you can see the thickness of the shell

You must be registered for see images attach



[Paulscrawler78]

U think I have a china made sun shell so it could save me a little money being that I have to replace the drum the 2-4 band rides on?
