Where Does This Connector Go

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

surfrocker3

Junior Member
Joined
Mar 13, 2022
Posts
1
Reaction score
0
Location
Palmdale
First Name
John
Truck Year
1987
Truck Model
c30
Engine Size
454

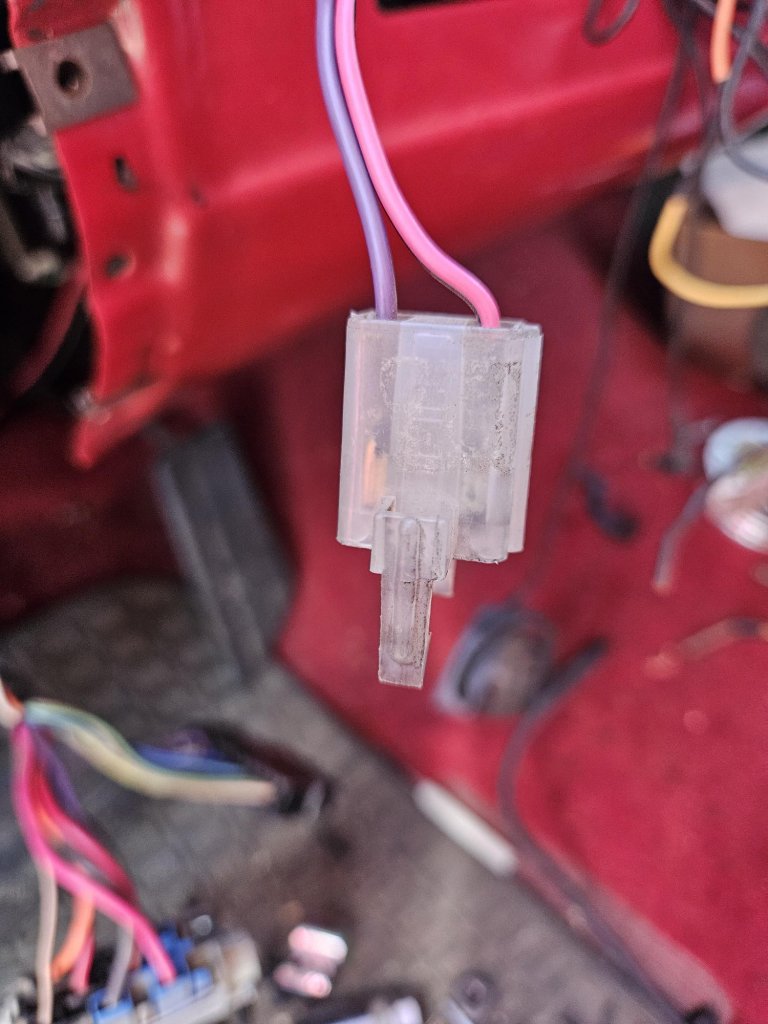

My 1987 Silverado Crew Cab Dually 3500 has this pictured connector dangling down behind the dash. I can't find a connector to attach it to. Tried checking wiring diagrams, but can't seem to find it. Anyone out there know where it belongs? Thank you.


Attachments

  • Connector.jpg
    102.7 KB · Views: 60

Finkaire

Finkaire
Joined
Dec 28, 2021
Posts
434
Reaction score
707
Location
California
First Name
Loren
Truck Year
1984
Truck Model
Silverado c10
Engine Size
305
Doesn’t appear factory, colors could be from the neutral switch? Maybe a for a kill switch? I would start by testing, start with ignition on, off.…See if it’s connected to the fuse box?


dertsy

Junior Member
Joined
Oct 1, 2023
Posts
2
Reaction score
1
Location
nice
First Name
nicak
Truck Year
1993
Truck Model
c35
Engine Size
Gasoline 1.5L, Four Cylinders in line
Good info! Front panel connectors are nice and easy on a test bench, but I hate putting them on when I've got the board in the case already, but not really an option!





192.168.100.1 192.168.1.1

Last edited:

Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
2,306
Reaction score
3,496
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds
that looks like the brake switch connector for the torque converter clutch. If the truck has a TH400, that would explain why it was t plug into anything.
