This makes 0 sense to me! Heater hose route

[jimmy78]

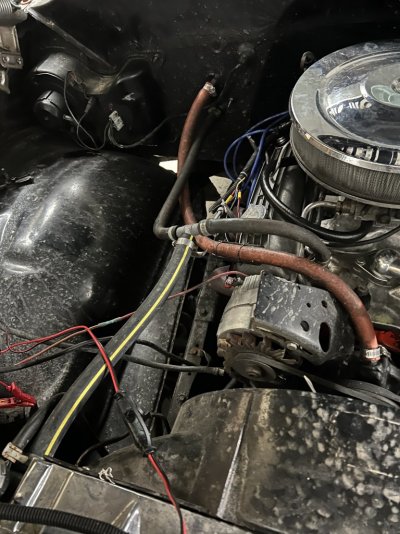

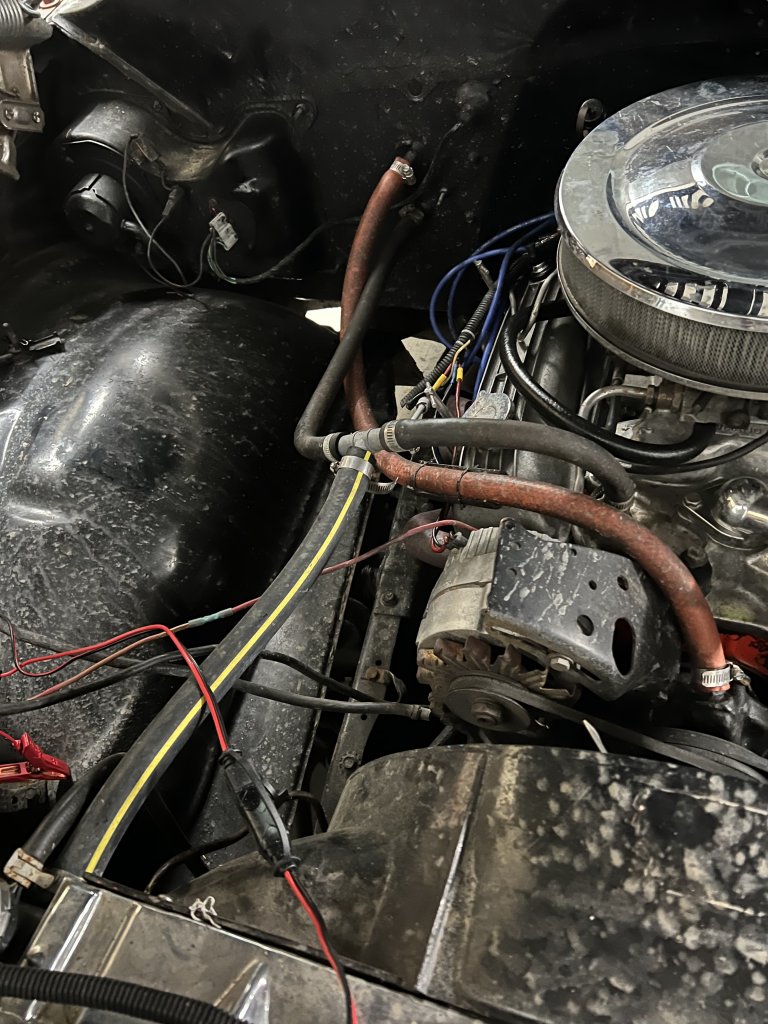

Can someone shed some light on this monstrosity of a heater hose routing.

Rad to heater core with tee to intake manifold

Heater core to water pump

This seems janky to say the least.



[mtbadbob]

Not sure what the line to rad is for, maybe it had a secondary return line for whatever reason.



[jimmy78]

Not sure what the line to rad is for, maybe it had a secondary return line for whatever reason.

I’m thinking capping the intake port and flowing rad in pump out or vice versa.

I’m not super mechanically inclined so the help I get on here is amazing and greatly appreciated



[AuroraGirl]

Not sure what the line to rad is for, maybe it had a secondary return line for whatever reason.

has to do with automatic transmissions

Can someone shed some light on this monstrosity of a heater hose routing.

Rad to heater core with tee to intake manifold

Heater core to water pump

This seems janky to say the least.

If your lines are not leaking, you are at worst going to causew noise in your heater hoses and core and wear it out faster and wear our your water pump and potentialyl cavitate fluid.
At best it would work fine. I would leave it



[jimmy78]

has to do with automatic transmissions

If your lines are not leaking, you are at worst going to causew noise in your heater hoses and core and wear it out faster and wear our your water pump and potentialyl cavitate fluid.
At best it would work fine. I would leave it

It’s leaking at the manifold lol also my ocd is triggered



[AuroraGirl]

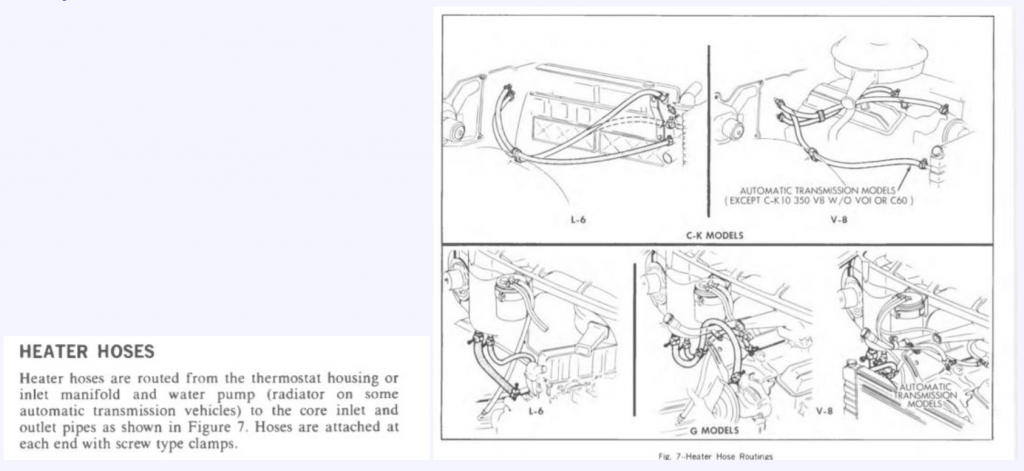

You must be registered for see images attach

its to heat up the trans in cold weather. and the other stuff i said



[AuroraGirl]

It’s leaking at the manifold lol

then the hose looks sus i would advise replace that length of hose and the other one. you need both sizes of hose, then just get some spring style clamkps and they will be good for years
Your hoses are also too short for factory routing. factory they clip to the fender.



[jimmy78]

You must be registered for see images attach

its to heat up the trans in cold weather. and the other stuff i said

then the hose looks sus i would advise replace that length of hose and the other one. you need both sizes of hose, then just get some spring style clamkps and they will be good for years
Your hoses are also too short for factory routing. factory they clip to the fender.

I will swap the hoses out. From the second image it looks like auto trans should be rad to core core to manifold. Eliminating the water pump connection. I feel this would block the heater core off till the thermostat opens though



[mtbadbob]

So, is there supposed to be a third nipple from the core for that line?



[AuroraGirl]

I will swap the hoses out. From the second image it looks like auto trans should be rad to core core to manifold. Eliminating the water pump connection. I feel this would block the heater core off till the thermostat opens though

The diagram is showing the water pump connection its just a little far over.

You must be registered for see images attach

see the water pump in the pic and the intake

The split of the hose, done here, is factory, you can reuse the pipe you have to T into the line to the water pump.



[AuroraGirl]

So, is there supposed to be a third nipple from the core for that line?

no they factory had a special fitting or hose that spllit off to two



[jimmy78]

The diagram is showing the water pump connection its just a little far over.

You must be registered for see images attach

see the water pump in the pic and the intake

The split of the hose, done here, is factory, you can reuse the pipe you have to T into the line to the water pump.

I see it now. I thought it was an either or diagram. Autos going to the rad and manual s going to the water pump



[AuroraGirl]

I see it now. I thought it was an either or diagram. Autos going to the rad and manual s going to the water pump

oh lol. And If you WANT to improve the setup you could get a Y fittting instead of a T but thats splitting hairs lol..



[jimmy78]

oh lol. And If you WANT to improve the setup you could get a Y fittting instead of a T but thats splitting hairs lol..

It would help the ocd trigger lol



[jimmy78]

oh lol. And If you WANT to improve the setup you could get a Y fittting instead of a T but thats splitting hairs lol..

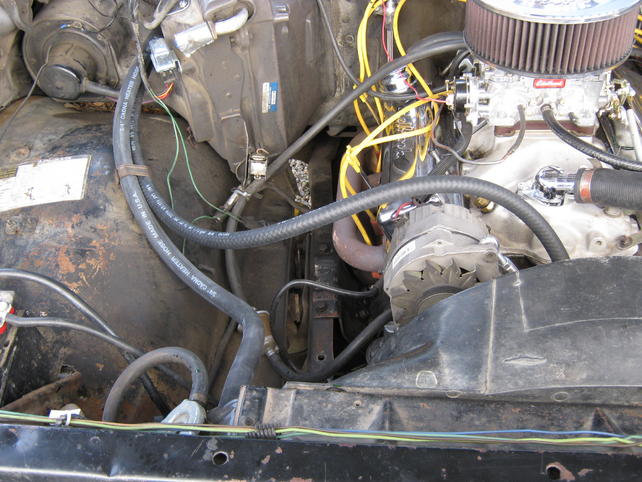

I was looking at this thinking it might be correct
