I have a TH400 in my 31 Chevy pickup , the trans has a 4 pin weather pack style connector . I have never seen a 400 with more then 2 pins . Did GM have a lockup convertor ?
You must be registered for see images attach


nvrenuf

Full Access Member
Joined
Jul 30, 2010
Posts
1,113
Reaction score
692
Location
Mobile, Al.
First Name
John
Truck Year
1991
Truck Model
K5
Engine Size
454
No lock up, kick down and reverse are the only wires I can think of. How sure are you it’s a 400?


Vbb199

B-rate Hillbilly Customs
Joined
Jan 12, 2018
Posts
8,374
Reaction score
13,436
Location
Salisbury NC
First Name
Vince
Truck Year
89, 79
Truck Model
89 Suburban R1500, 79 C10
Engine Size
350, 502
Sounds like it's a 700r4 in there.

Does it have a big round cover about 4" on the passenger side of the trans?


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
7,794
Reaction score
4,431
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
I have a TH400 in my 31 Chevy pickup , the trans has a 4 pin weather pack style connector . I have never seen a 400 with more then 2 pins . Did GM have a lockup convertor ?
You must be registered for see images attach
Are you sure this isnt a
You must be registered for see images attach

One of these guys. Im guessing early 4l60e unless the PN switch wiring is on the external switch and this is the wiring going into the case


Donald

Member
Joined
Jun 24, 2018
Posts
42
Reaction score
54
Location
Loris SC.
First Name
Don
Truck Year
1985
Truck Model
GMC 1500
Engine Size
350 / 290
Yes it is a. 400 I worked for GM dealers and rebuilt many 400's .It is a metric trans at least the bolts in it are .The connector AuroraGirl has pictured is what I have . I think this trans is from Monster transmission , they must have used that instead of the correct one . Looks like I will have to pull the pan and check the wiring .



at

Last edited:

Vbb199

B-rate Hillbilly Customs
Joined
Jan 12, 2018
Posts
8,374
Reaction score
13,436
Location
Salisbury NC
First Name
Vince
Truck Year
89, 79
Truck Model
89 Suburban R1500, 79 C10
Engine Size
350, 502
OK now you got me interested. What motor is in the 31?

I know the th400 was used behind other mfgs like Chrysler, Ferrari, Rolls Royce, and I think also jaguar


Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
1,751
Reaction score
2,289
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds
If your absolutely sure it’s a 400, someone has swapped the case connector. I have used the single wire 400 case connector on 700 swaps, I suppose the case connector would interchange the other way. Since it didn’t come stock that way, you will need to drop the pan and figure out what has been done.

Every 400 has a kickdown solenoid, some had a pressure switch on the 3rd accumulator passage on the valve body for transmission controlled spark (basically delayed spark advance until the car was in 3rd gear) the early BOP 400 had a switch pitch (basically a 2 speed converter) so at most you would need 3 wires. Since Chevy never had the switch pitch converter, and I seriously doubt you have functional spark control, a single wire connector is all you need.


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
7,794
Reaction score
4,431
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
OK now you got me interested. What motor is in the 31?

I know the th400 was used behind other mfgs like Chrysler, Ferrari, Rolls Royce, and I think also jaguar
fun fact, BMW used a 4l30e


Donald

Member
Joined
Jun 24, 2018
Posts
42
Reaction score
54
Location
Loris SC.
First Name
Don
Truck Year
1985
Truck Model
GMC 1500
Engine Size
350 / 290

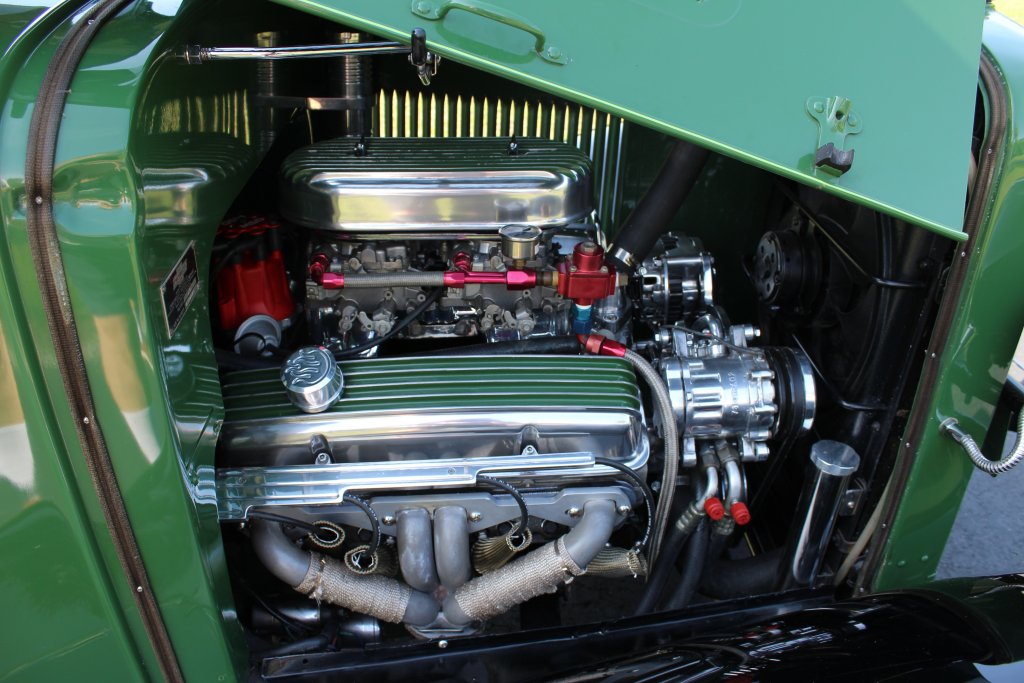

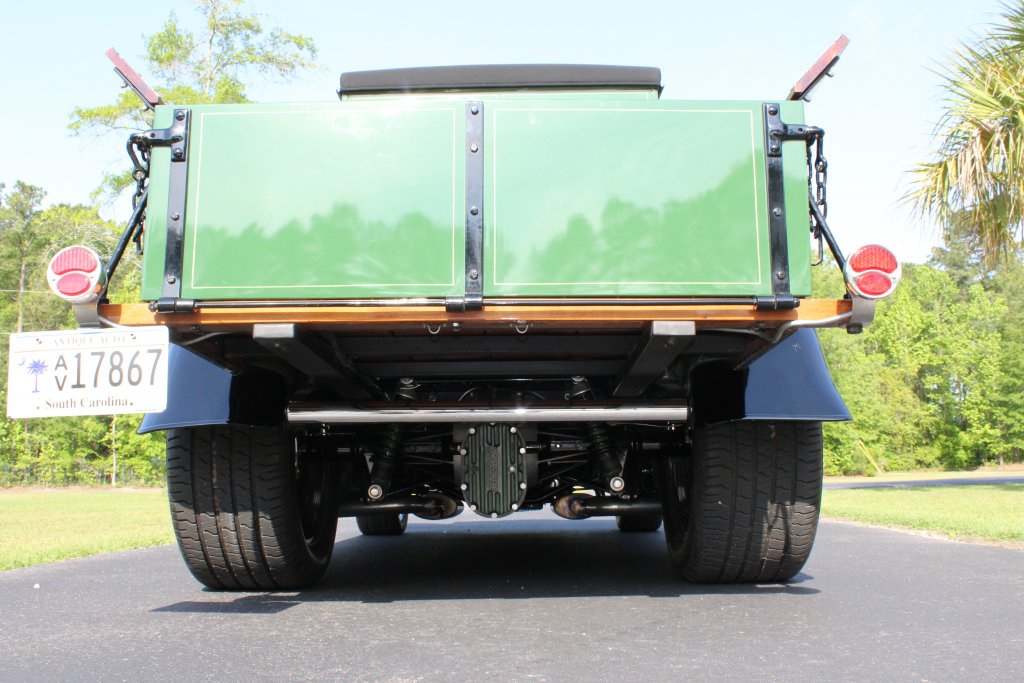

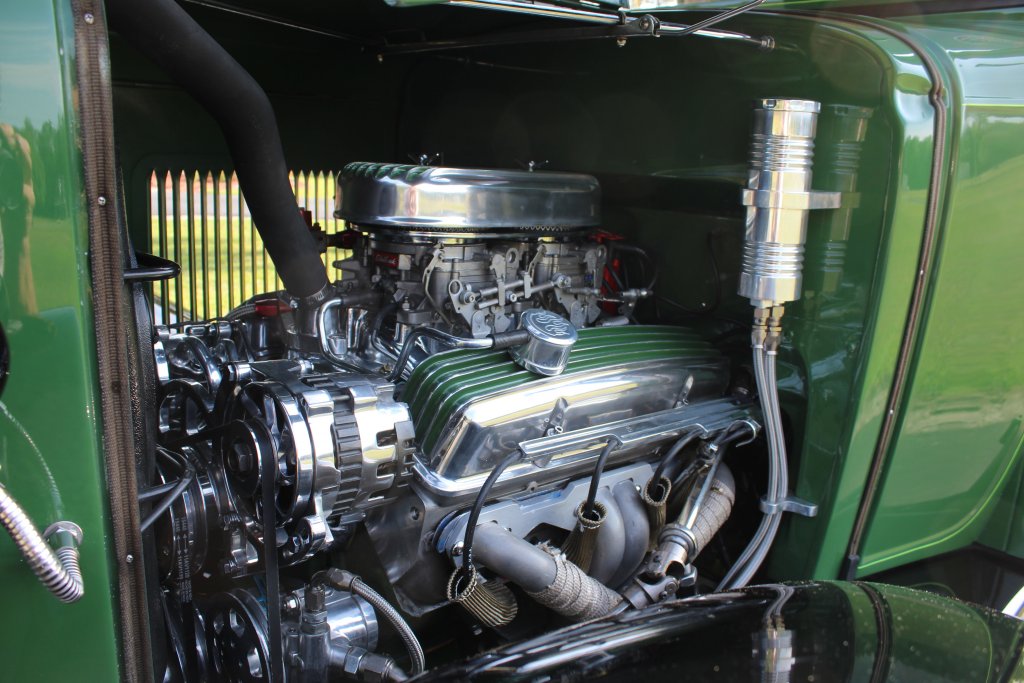

The 31 has a 350 with aluminum angle plug heads , Edelbrock dual 4 air gap manifold of course Edelbrock carbs , MSD ignition and box . TH400 and a Richmond quick change rear . By the way thanks for the input . Don
