Gonna do something with either the dash or the nipple… not sure what but for now it ain’t going anywhere. Of course Easton said it’s jacked up and we should get Dakota Digital because he knows I will buy that to save my sanity! Kid knows how to work mom and dad….


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,121
Reaction score
6,038
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
Gonna do something with either the dash or the nipple… not sure what but for now it ain’t going anywhere. Of course Easton said it’s jacked up and we should get Dakota Digital because he knows I will buy that to save my sanity! Kid knows how to work mom and dad….
is it a voltage voltage gauge? from 1976? And your metal or your plastic is out of spec. yo ucan buy a new plastic back piece.
You can also do a dakoa digital if you want


Randy and Easton

Full Access Member
Joined
Feb 6, 2021
Posts
877
Reaction score
1,227
Location
North Richland Hills, Texas
First Name
Randy
Truck Year
1976
Truck Model
C-10 LWB
Engine Size
350

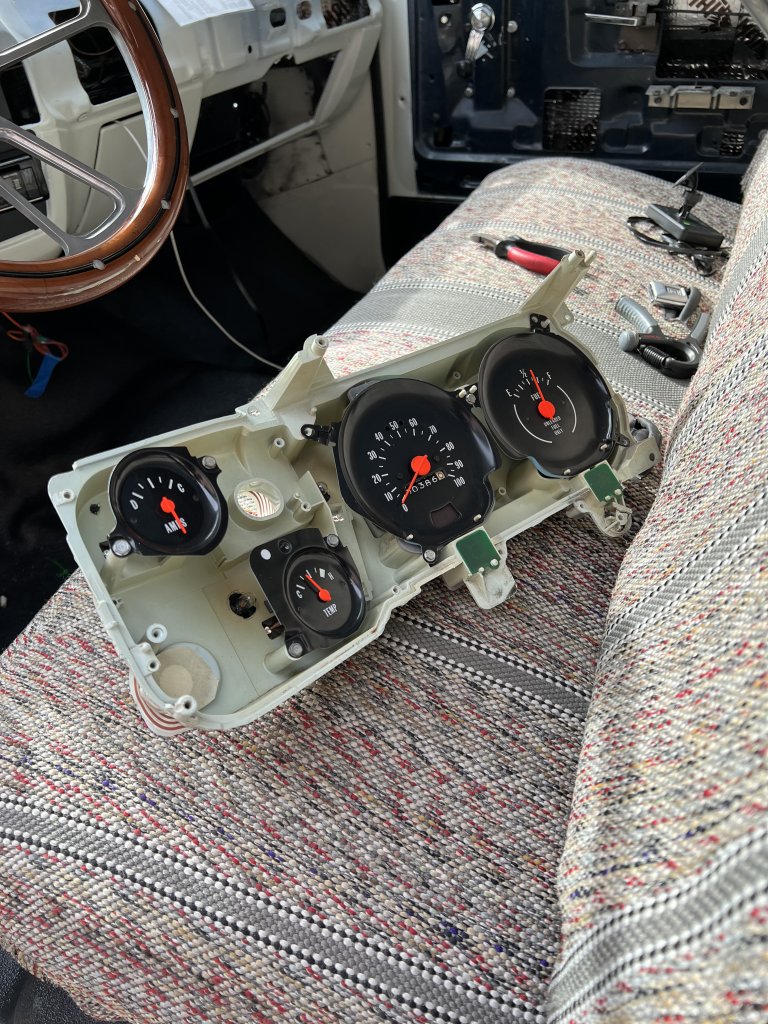

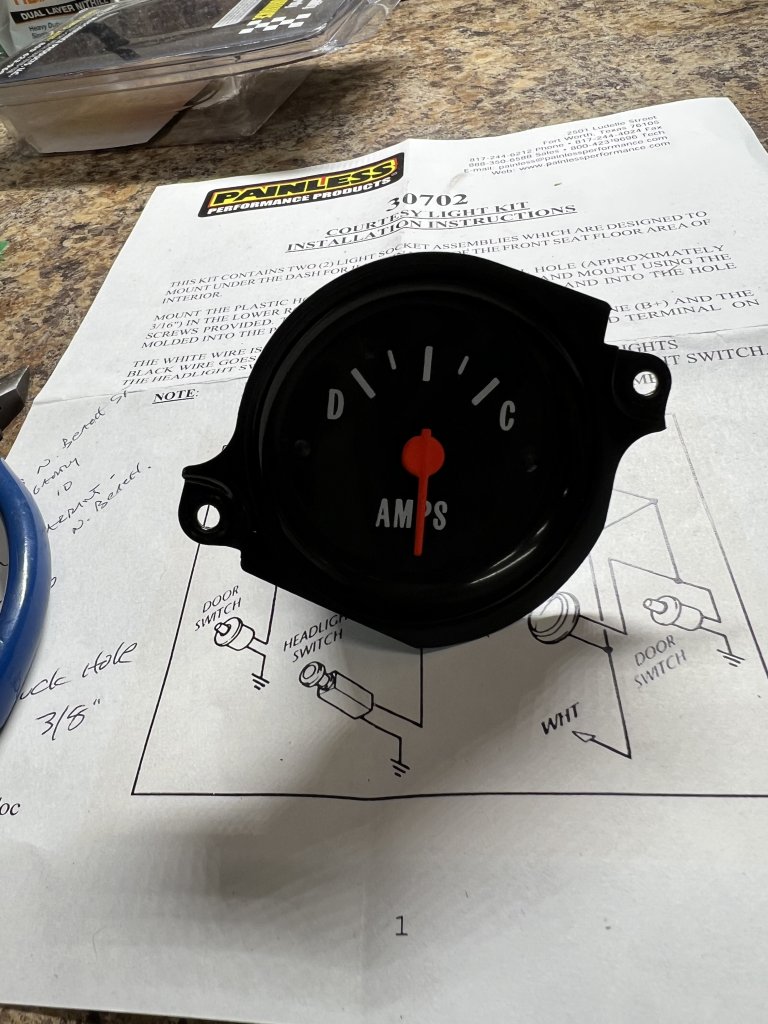

Here is pics. It’s metal. I know DC dies but don’t think needle is supposed to be at 6 o’clock. Put cluster in and it does nothing.

How do I check if there is power at pins in cluster? Put a v meter on it and nothing….


Attachments

  • C2DA95B1-39A6-46A0-87E6-8EFA74219297.jpeg
    249.2 KB · Views: 44
  • 89023D65-3457-45C1-B14F-FACCF454530C.jpeg
    144.6 KB · Views: 48

mtbadbob

Full Access Member
Joined
May 9, 2021
Posts
617
Reaction score
921
Location
Montana
First Name
Bob
Truck Year
1987
Truck Model
V20
Engine Size
350
Here is pics. It’s metal. I know DC dies but don’t think needle is supposed to be at 6 o’clock. Put cluster in and it does nothing.

How do I check if there is power at pins in cluster? Put a v meter on it and nothing….
Do you have access to a wiring schematic for the alternator? Find out what wire sends the reading to the instrument panel and test it there to start with. I'm not sure which one it is, maybe someone can chime in on that???


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,121
Reaction score
6,038
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
Here is pics. It’s metal. I know DC dies but don’t think needle is supposed to be at 6 o’clock. Put cluster in and it does nothing.

How do I check if there is power at pins in cluster? Put a v meter on it and nothing….
do NOT use that Ammeter. its not a voltage gauge!


Terry Wilkerson

Full Access Member
Joined
Dec 2, 2021
Posts
437
Reaction score
584
Location
Kansas
First Name
Terry
Truck Year
1986
Truck Model
GMC 1500
Engine Size
350
Hold the black meter lead to a good ground, I used the door latch stud. Use the red on the guage attachment points in the dash cluster with the guage removed with the key in the run position. I can't remember which pin but you should get 12v on one of the pins. This just confirms you are getting voltage to the guage.


DoubleDingo

Full Access Member
Joined
Jul 3, 2012
Posts
10,019
Reaction score
14,164
Location
Right where I am
First Name
Bagoomba
Truck Year
1981, 1965
Truck Model
81-C20 Silverado Camper Special-TH400-4.10s; 65-C20 with 4:57 gears and Borg Warner Overdrive
Engine Size
Carb'ed Vortec 350; 1972 L48 350
I agree, get a volt gauge and ditch the ammeter.


Randy and Easton

Full Access Member
Joined
Feb 6, 2021
Posts
877
Reaction score
1,227
Location
North Richland Hills, Texas
First Name
Randy
Truck Year
1976
Truck Model
C-10 LWB
Engine Size
350

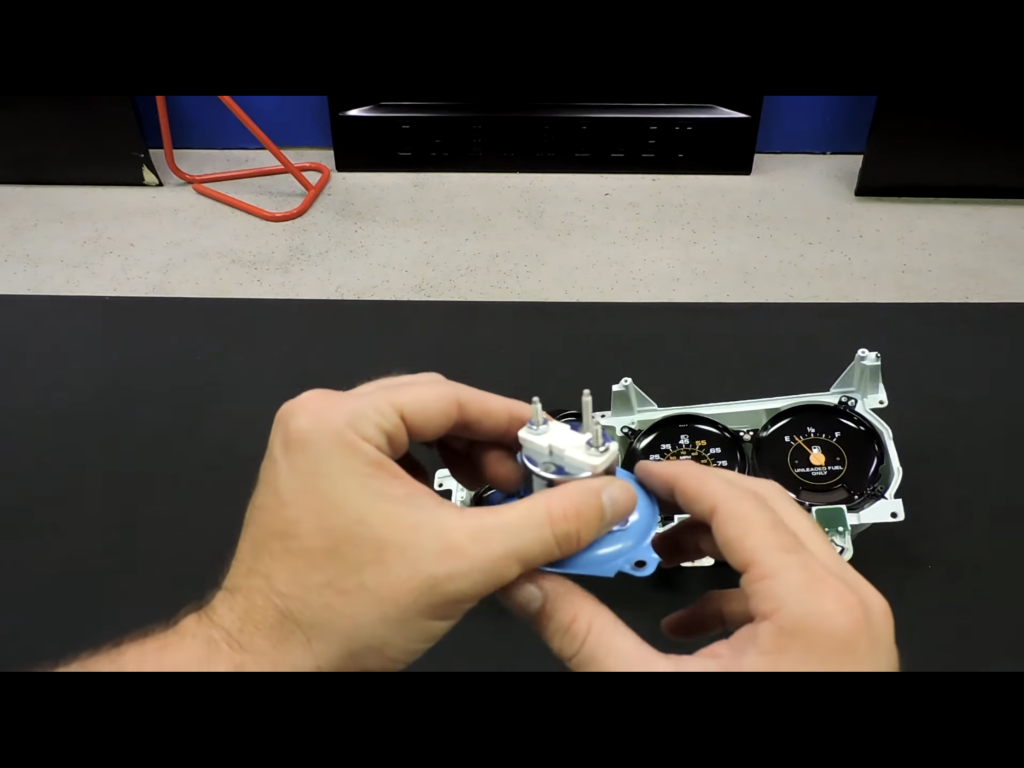

Slight problem. There are only two contacts on the back of the cluster housing where amp meter was. The newer volt meters are 3e prong.. not sure it will work in my housing.


Attachments

  • AC356AEE-9F93-4D16-99D6-2E910C46E21F.png
    407.8 KB · Views: 44
  • 9291B0DA-9333-49BC-9D33-919547875E20.jpeg
    249.2 KB · Views: 47

DoubleDingo

Full Access Member
Joined
Jul 3, 2012
Posts
10,019
Reaction score
14,164
Location
Right where I am
First Name
Bagoomba
Truck Year
1981, 1965
Truck Model
81-C20 Silverado Camper Special-TH400-4.10s; 65-C20 with 4:57 gears and Borg Warner Overdrive
Engine Size
Carb'ed Vortec 350; 1972 L48 350
Hopefully someone that knows these clusters can chime in. I wonder if the third prong is for the light?


Goldie Driver

Full Access Member
Joined
Mar 19, 2018
Posts
3,925
Reaction score
6,376
Location
Houston, Texas
First Name
Britt
Truck Year
1980
Truck Model
GMC K1500 Suburban
Engine Size
350
I know 75s had an ammeter- I thought 76s switched to a voltmeter.

Frankercluster at work here?

:anitoof:


Randy and Easton

Full Access Member
Joined
Feb 6, 2021
Posts
877
Reaction score
1,227
Location
North Richland Hills, Texas
First Name
Randy
Truck Year
1976
Truck Model
C-10 LWB
Engine Size
350
@DoubleDingo like background light or like a low amp light? @Goldie Driver thats an interesting question, maybe I research that but like you said… it’s the sum of many years.. I could write a book on just the year of the doors and trying to buy the right parts for the door panel install… it’s nuts

Gonna try and set up a run through my multimeter and see if I even have any amps on the contacts in dash and go from there.


DoubleDingo

Full Access Member
Joined
Jul 3, 2012
Posts
10,019
Reaction score
14,164
Location
Right where I am
First Name
Bagoomba
Truck Year
1981, 1965
Truck Model
81-C20 Silverado Camper Special-TH400-4.10s; 65-C20 with 4:57 gears and Borg Warner Overdrive
Engine Size
Carb'ed Vortec 350; 1972 L48 350
Since I have never taken apart a square dash, I don't know if the gauges have individual lights, or if there are just dash lights that illuminate the gauges. I know standalone gauges typically have a light inside them and a separate wire to illuminate the light when the dash lights come on.


Randy and Easton

Full Access Member
Joined
Feb 6, 2021
Posts
877
Reaction score
1,227
Location
North Richland Hills, Texas
First Name
Randy
Truck Year
1976
Truck Model
C-10 LWB
Engine Size
350
@DoubleDingo the entire cluster is backlit by bulbs that are behind the gauges and are powered by the circuit board. I was able to test the contact in cluster today and have power there so I’m sure it’s the gauge that’s cooked. We will order a new one tomorrow.
I did find a post on another site on how to convert to a volt meter with just the two rear contacts and adding a few jumpers but I would have to take cluster out of truck and that’s a pain with the mechanical oil pressure gauge. E said he did not care about volts so we will leave it an amp meter.

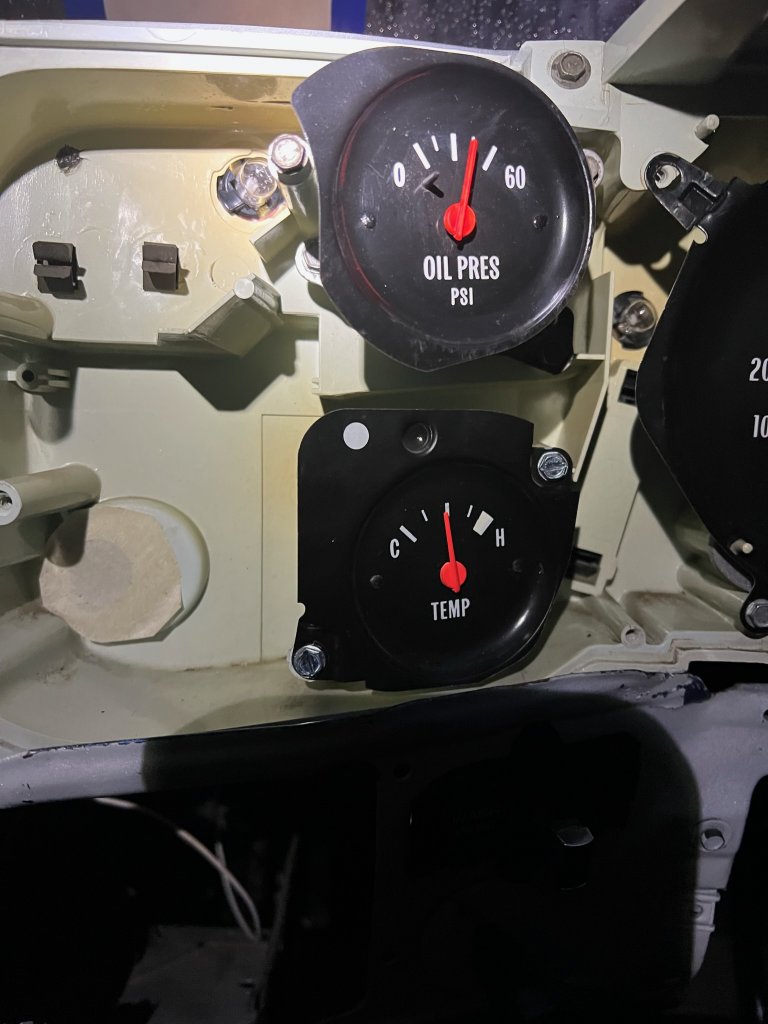

thanks for all the help. Got the temperature gauge working today. I’m an idiot and figured out we put in the wrong sensor. Needed a sensor for a gauge, not light… duh?
