Ok so I have tagged on to a post below about heater blower motor. It's getting cold up north.
I honestly need to know what wire will trigger the blower motor, directly off the battery. I'm not trying to start throwing parts at it.
I bought the relay that the purple wire goes into and connects to nothing. I tried both and the relay does click.
I really just want to make sure the blower motor spins, straight off the battery before wasting more money.
Thanks


mtbadbob

Full Access Member
Joined
May 9, 2021
Posts
629
Reaction score
951
Location
Montana
First Name
Bob
Truck Year
1987
Truck Model
V20
Engine Size
350
There is supposed to be a single wire from the relay to the blower motor. I'm thinking it is purple. There should be a big red wire that runs to the relay. Once the key is on, the relay throws 12v to the single terminal on the blower. I just had an issue with mine where I had the voltage to the blower, but it wasn't doing anything until I hit it with the side of my fist, then everything took off & ran like it should. For whatever reason, it wasn't making contact in the blower, or it was frozen up, but it's been fine ever since. Do you have a 12v stab tester to test the wires?


Wallace6

Full Access Member
Joined
Aug 4, 2023
Posts
144
Reaction score
77
Location
Wyoming
First Name
Ray
Truck Year
1987
Truck Model
Suburban
Engine Size
350
Ok can anyone please tell me where the purple wire connects? Thank you


RustyPile

Left on own accord
Joined
Oct 7, 2017
Posts
901
Reaction score
1,119
Location
Elkhart, TX
First Name
Nick
Truck Year
1983 GMC
Truck Model
1500
Engine Size
350 SBC
Look at the blower motor. There is only one wire connected to it. Never mind the color, or what it's connected to on the other end.. None of that is important to this test.. Disconnect that wire from the blower.. Using a suitable jumper wire, connect one end of your jumper to the positive battery post. connect the other end to the blower.. The blower should start running.. If not, the blower motor is probably bad..

With all due respect, Wallace6, if you can't figure how this simple test, you should seriously consider engaging some hands on help from someone locally.


Bextreme04

Full Access Member
Joined
May 13, 2019
Posts
4,232
Reaction score
5,167
Location
Oregon
First Name
Eric
Truck Year
1980
Truck Model
K25
Engine Size
350-4bbl
Ok can anyone please tell me where the purple wire connects? Thank you
The blower motor power comes from two different spots. when the fan switch is on Hi, it trips the relay and makes a direct connection from that large red wire that runs across the firewall above the engine and goes to the bulkhead circuit breaker block near the brake booster. If the blower motor switch is anywhere except Hi, it runs through the fan switch and the blower motor resistors before going into the blower motor. My system needed a new fan, fan switch, and a new relay before it functioned properly and reliably.


Wallace6

Full Access Member
Joined
Aug 4, 2023
Posts
144
Reaction score
77
Location
Wyoming
First Name
Ray
Truck Year
1987
Truck Model
Suburban
Engine Size
350
I have power down the line. My purple wire out of the relay is just hanging there. I have an ac vehicle and it's not simple to see what's going on.
Thanks all


Bextreme04

Full Access Member
Joined
May 13, 2019
Posts
4,232
Reaction score
5,167
Location
Oregon
First Name
Eric
Truck Year
1980
Truck Model
K25
Engine Size
350-4bbl
I have power down the line. My purple wire out of the relay is just hanging there. I have an ac vehicle and it's not simple to see what's going on.
Thanks all
Post a Pic? My AC equipped truck has a big red wire going into the relay providing direct power to the blower motor when Hi is selected. Then there are a few wires coming from the blower motor resistor going into the relay that are various shades of yellow and green. Then the purple wire goes straight to the blower motor. Is there no end on it? Do you not have anything connected to the blower motor?


PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
3,487
Reaction score
4,655
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,70,48
Truck Model
Suburban k10, bonanza k10, c30 C&C, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350
If you want to work on old trucks, you have to put in the effort. The wires aren't going to magically pop out at you and we can't do it for you. Just tellin it how it is.


Wallace6

Full Access Member
Joined
Aug 4, 2023
Posts
144
Reaction score
77
Location
Wyoming
First Name
Ray
Truck Year
1987
Truck Model
Suburban
Engine Size
350
If you want to work on old trucks, you have to put in the effort. The wires aren't going to magically pop out at you and we can't do it for you. Just tellin it how it is.
Oh I'm well aware been building truck for years,just certainly things I need to ask help for but I appreciate your comment


Wallace6

Full Access Member
Joined
Aug 4, 2023
Posts
144
Reaction score
77
Location
Wyoming
First Name
Ray
Truck Year
1987
Truck Model
Suburban
Engine Size
350

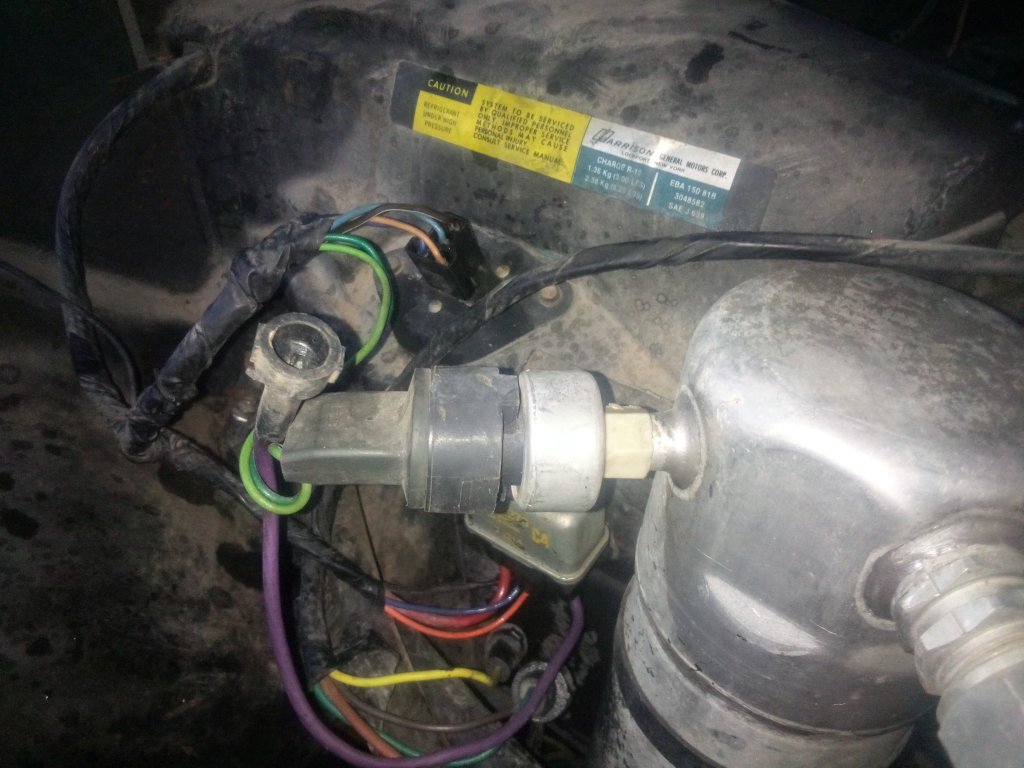

This is my purple wire and it's definitely different with the large ac box


Attachments

  • IMG_20231103_174852~2.jpg
    120.6 KB · Views: 29

Wallace6

Full Access Member
Joined
Aug 4, 2023
Posts
144
Reaction score
77
Location
Wyoming
First Name
Ray
Truck Year
1987
Truck Model
Suburban
Engine Size
350
I can certainly move it, where the heck does it plug in?


RustyPile

Left on own accord
Joined
Oct 7, 2017
Posts
901
Reaction score
1,119
Location
Elkhart, TX
First Name
Nick
Truck Year
1983 GMC
Truck Model
1500
Engine Size
350 SBC
I can certainly move it, where the heck does it plug in?
Several people have already told you where it goes, but I'll chime in one more time before I have to leave here and sort out the wires on my stereo..

Wallace, it plugs onto the little spade connector on the blower motor.. Do you not recognize the blower motor???
