Tbi alternator wiring

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Slooptin

Slooptin

Full Access Member
Joined
Mar 6, 2017
Posts
116
Reaction score
55
Location
Houston
First Name
Vance
Truck Year
1985
Truck Model
k30
Engine Size
454

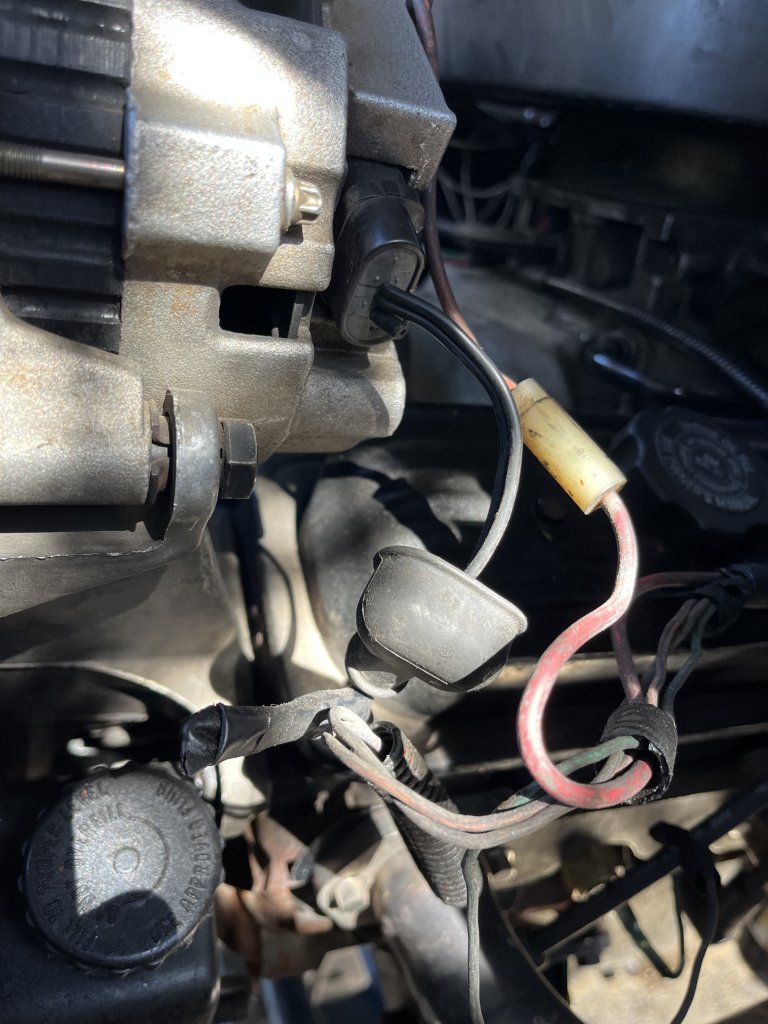

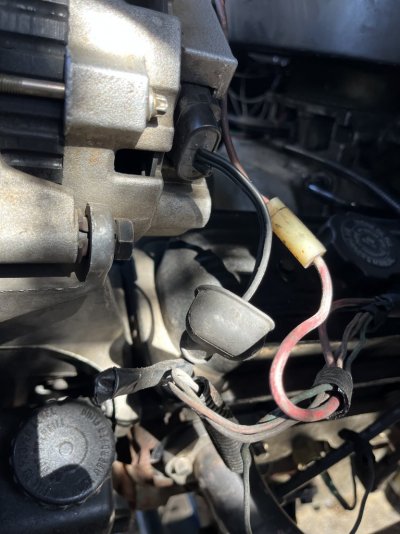

I think the alternator on my 90 suburban is going out. Took a look at it today and noticed this wire was cut (by previous owner presumably). Any idea why this might be the case?


Attachments

  • IMG_2092.jpeg
    134.9 KB · Views: 38
Jgonick

Jgonick

Full Access Member
Joined
Jan 12, 2017
Posts
197
Reaction score
262
Location
West Texas
First Name
Joel
Truck Year
1985
Truck Model
K10
Engine Size
350
The terminal should be labeled P,L,F,S or P,L,I,S

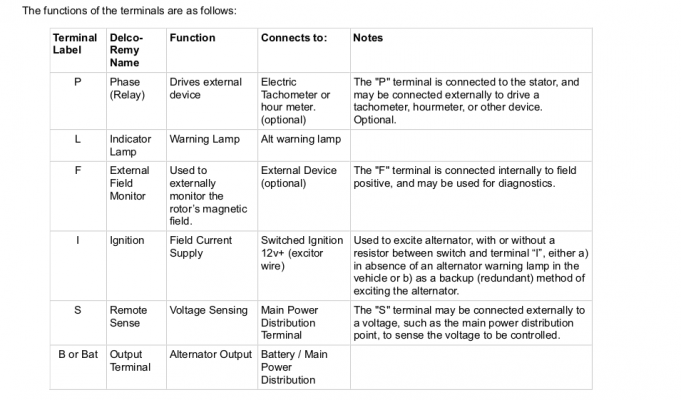

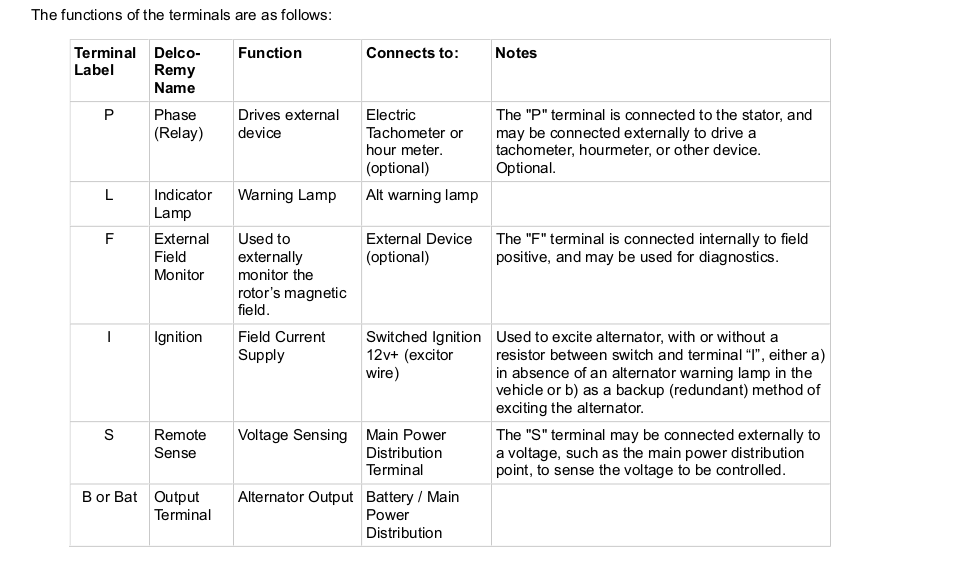

See image for explanation.


Attachments

  • Screenshot from 2023-10-09 13-30-23.png
    Screenshot from 2023-10-09 13-30-23.png
    85.6 KB · Views: 33
Last edited:
