Melted wires everywhere… need some help

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

greene

Junior Member
Joined
Feb 12, 2022
Posts
11
Reaction score
10
Location
arkansas
First Name
jason
Truck Year
1986
Truck Model
c10
Engine Size
5.0
Long story short, 86 stepside 5.0,

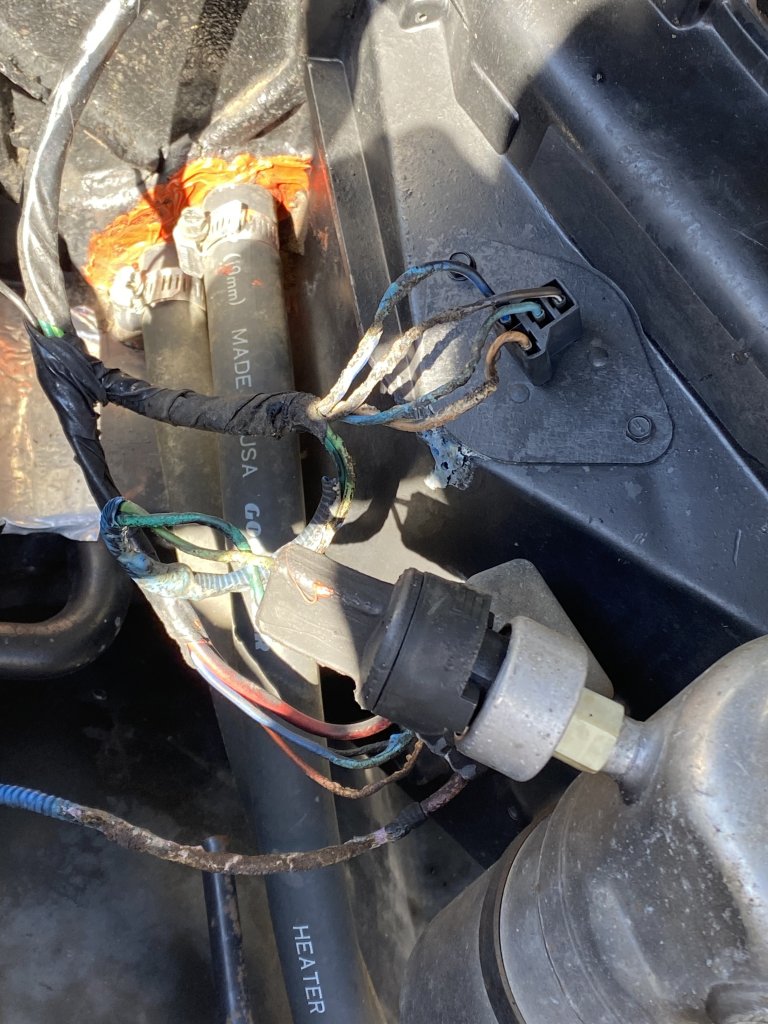

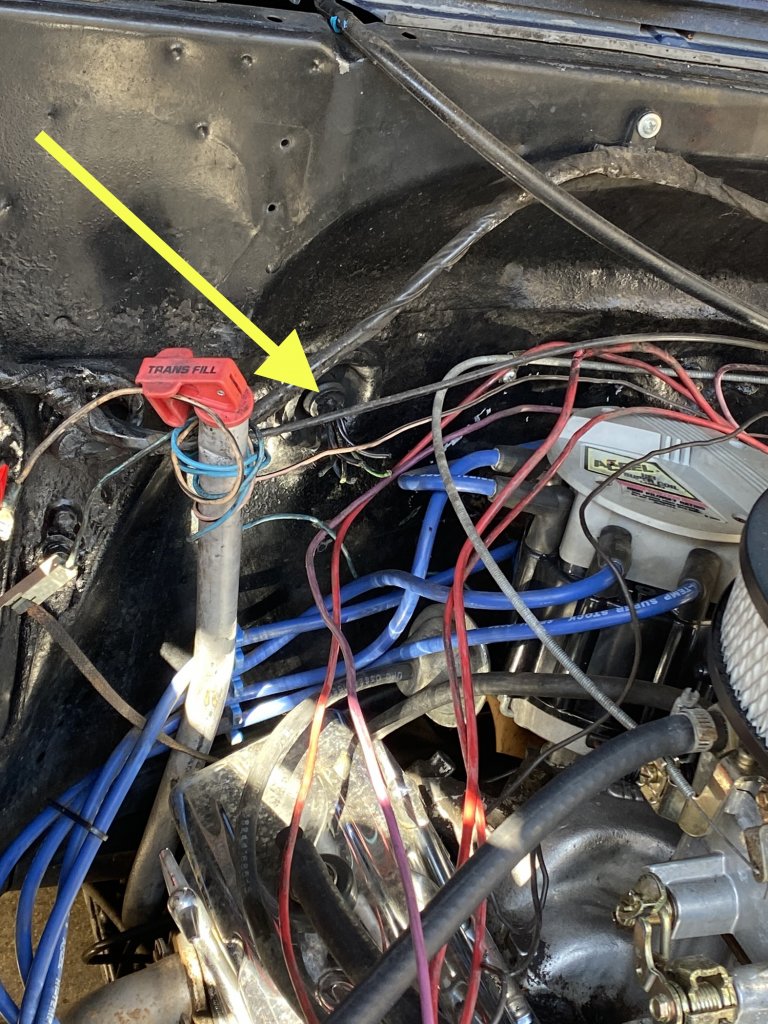

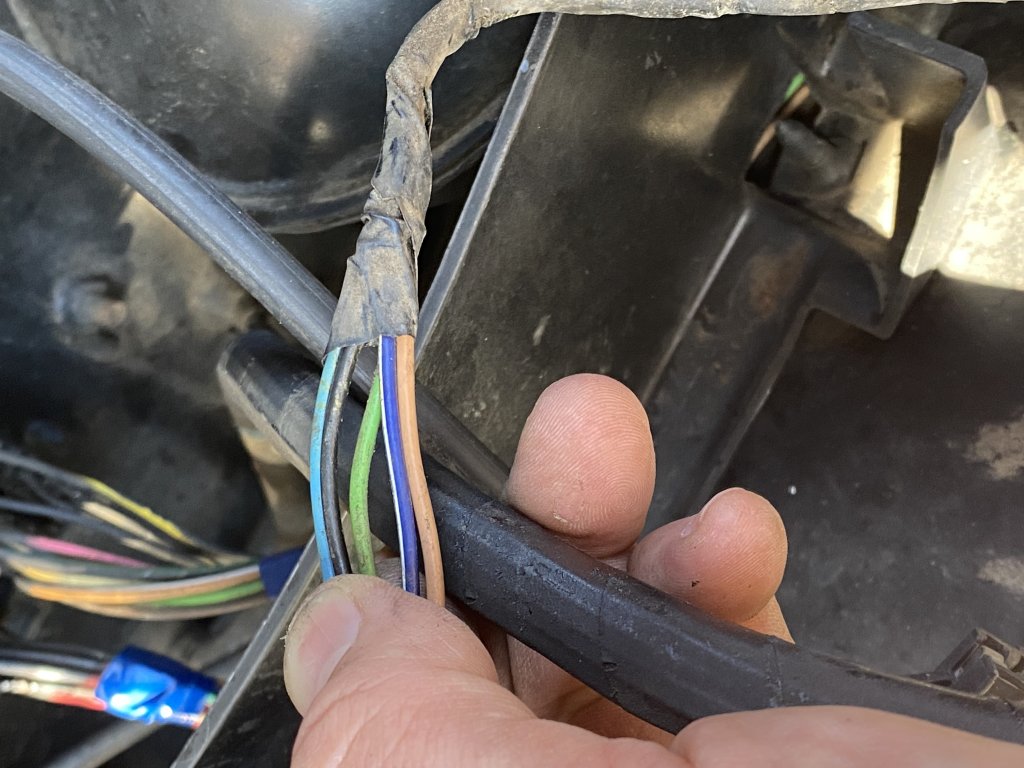

1976 350sbc installed by last owner with an accel distributor, man choke 1405, and a lot of melted wires. Need suggestions on what to do about the cut wires from the firewall (yellow arrow). I’m guessing it goes to the heater box that has badly melted wires. I can’t find any specific replacement harness for them. I’m guessing there isn’t one?

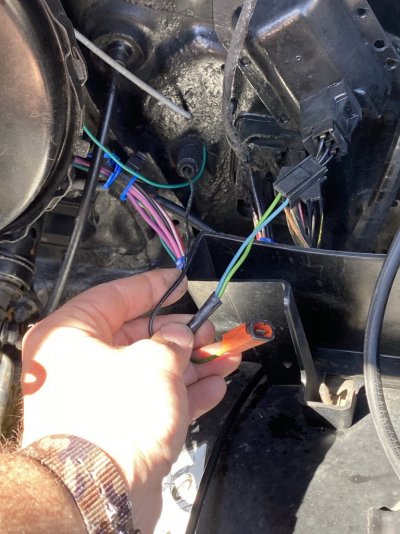

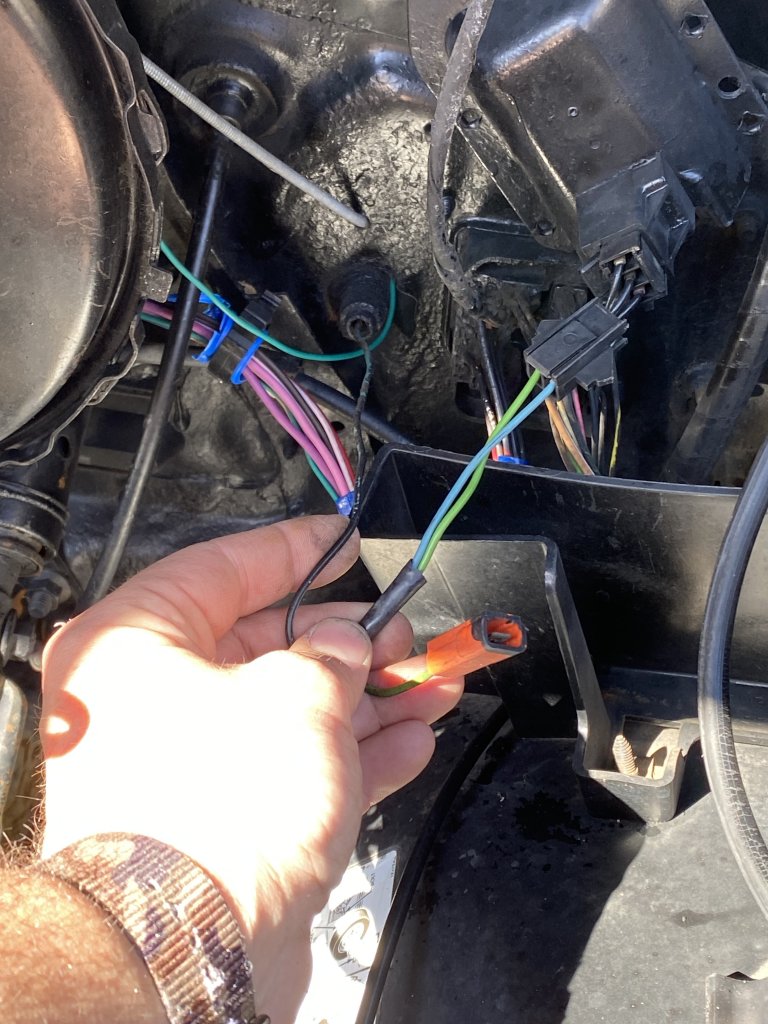

Pic 3 is an unused plug than I’m unsure of and pick 4 is also unplugged. What do these go to?
I ran the truck yesterday for about 20 minutes and shut it off. Half an hour later, I went to start it and it clicked once and then now it’s completely dead, no interior lights, headlights etc. with a key in the run position, the battery gauge will come on and show good voltage, but the second you try to start it, gauges shut down. I’m guessing it’s a fusible link? Do to the fact that I have a brand new battery and starter and ground wires. Should I try to make a new fusible link? Or I’m thinking about rewiring all the power wires/ crank wire all the way to the junction block. I plan on LS swapping in a few years but would hate to spend a lot of money on a painless harness that I won’t reuse.

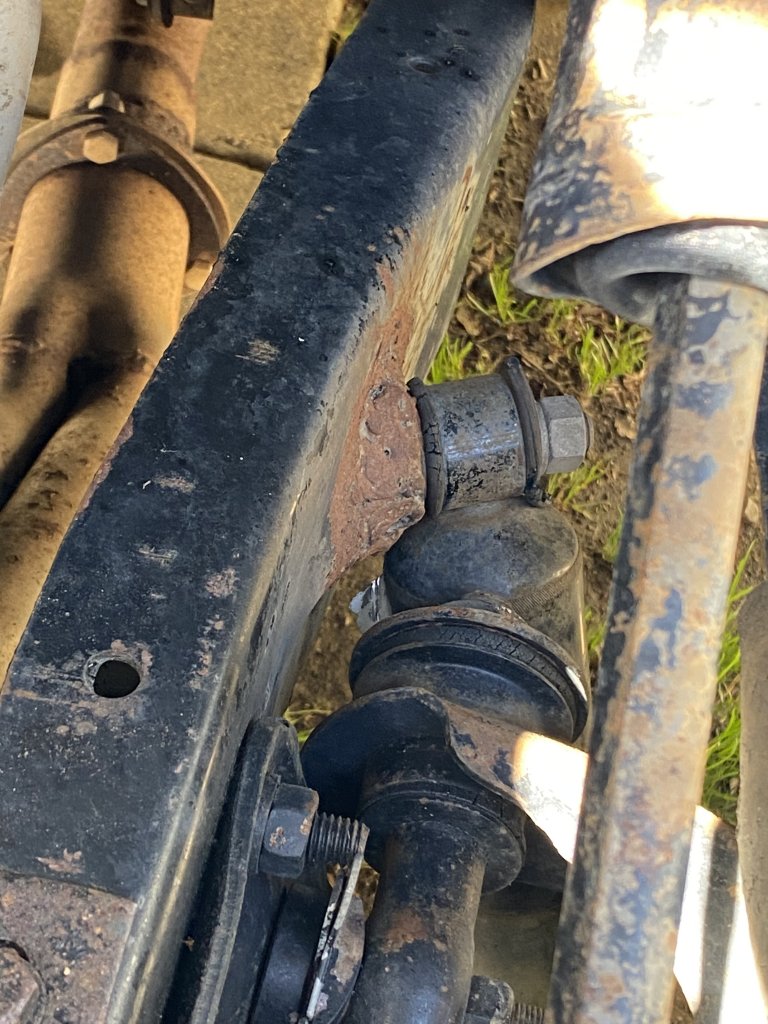

And on the last pic, does anyones shock to frame mount look like a nine-year-old welded it?
What would you do about the cut wires and melted wires to the heater box? Thanks for the input.


Attachments

  • C708A794-D4E3-4C69-8700-9928DAE2A6F7.jpeg
    213.1 KB · Views: 163
  • 79C7E5EC-6CFC-4917-9989-2A1249571EF3.jpeg
    159.6 KB · Views: 151
  • 5C3C461A-6EED-42F2-9471-883F6EC73723.jpeg
    131.1 KB · Views: 157
  • A5D90394-6178-4691-A512-4DC256D25097.jpeg
    162.3 KB · Views: 154
  • 8519F720-9D78-415A-94B1-97965DC756D6.jpeg
    175.2 KB · Views: 156

Rickf

Full Access Member
Joined
Jul 29, 2017
Posts
496
Reaction score
600
Location
Grafton NH
First Name
Rick
Truck Year
1974, 1954 & a 1937
Truck Model
K20
Engine Size
350
Anything under the dash melted? Maybe try a salvage yard or bite the bullet for a "Painless" solution.


Bextreme04

Full Access Member
Joined
May 13, 2019
Posts
4,276
Reaction score
5,236
Location
Oregon
First Name
Eric
Truck Year
1980
Truck Model
K25
Engine Size
350-4bbl
Those don't look like the right spot to be AC wiring. That looks like the ESC wiring that would be in place on an 86 305 motor.


WP29P4A

Full Access Member
Joined
Jul 18, 2021
Posts
869
Reaction score
1,476
Location
Nevada
First Name
Mike
Truck Year
1987
Truck Model
Sierra Classic V1500
Engine Size
350 TBI
I would start by down loading the wiring schematic for your truck, study it. Go over the burnt wiring and make notes of what circuits are affected, look for a pattern. Is it only affecting the engine compartment, is it affecting under dash wiring, is the lighting circuit affected. figuring out what is affected should help you find the location of the short. PO could have cut the wires going thru firewall to remove the short, but never replaced the burnt wires.

Find the short before replacing the harness so you don't smoke the new one. You will need a multimeter/voltmeter to trace down problem. A test light will help find voltage, meter will help find shorts.

It looks like the shock mount was broken and welded by someone that does not weld for a living, looks fairly secure, but not pretty.


greene

Junior Member
Joined
Feb 12, 2022
Posts
11
Reaction score
10
Location
arkansas
First Name
jason
Truck Year
1986
Truck Model
c10
Engine Size
5.0
I have the diagrams now, and I’ll try and track down the problems. Do you know if any literature that would show resistance between circuits or ohms?


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,296
Reaction score
6,298
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
I have the diagrams now, and I’ll try and track down the problems. Do you know if any literature that would show resistance between circuits or ohms?
The electrical manual for an 1986 or maybe the service manual may contain diagnostic flow charts for problems but tthats about the only thing I could see Maybe doing that. You dont need to know a lot of resistances except for things like checking switchs or ignition coil

voltage dropwould be better likely anywasy


Grit dog

Full Access Member
Joined
May 18, 2020
Posts
6,194
Reaction score
10,519
Location
Auburn, Washington
First Name
Todd
Truck Year
1986, 1977
Truck Model
K20, C10
Engine Size
454, 350
@greene, a little context would help diagnose. Like wires been melted for however long? Heater/AC still function?
Your issue looks like someone direct wired or used far too large of a fuse, or something similar where a live short didn't blow a fuse before cooking wires.


wlwarnke

Full Access Member
Joined
Sep 14, 2021
Posts
132
Reaction score
183
Location
Helotes, TX
First Name
William
Truck Year
1983
Truck Model
K5
Engine Size
5.7
From what I see the the melted wires are blower motor/relay/resistor block. All 3 of these items are available and cheap.
You must be registered for see images attach


wlwarnke

Full Access Member
Joined
Sep 14, 2021
Posts
132
Reaction score
183
Location
Helotes, TX
First Name
William
Truck Year
1983
Truck Model
K5
Engine Size
5.7
The power for the highest fan speed is direct from the junction in the firewall. No fuse. If shorted. **** melts.


greene

Junior Member
Joined
Feb 12, 2022
Posts
11
Reaction score
10
Location
arkansas
First Name
jason
Truck Year
1986
Truck Model
c10
Engine Size
5.0
@greene, a little context would help diagnose. Like wires been melted for however long? Heater/AC still function?
Your issue looks like someone direct wired or used far too large of a fuse, or something similar where a live short didn't blow a fuse before cooking wires.

I’m unsure how long they have been like that, I got the truck about a month ago. Heater doesn’t work and there is no a/c compressor.
I’m going to start replacing wiring soon, I’ll probably use a painless kit.
I just wanted to drive it some before something major like that.


wlwarnke

Full Access Member
Joined
Sep 14, 2021
Posts
132
Reaction score
183
Location
Helotes, TX
First Name
William
Truck Year
1983
Truck Model
K5
Engine Size
5.7
....added "Put fuse on heater fan wire" to my **** to do list now!
Luckily that wire is fairly short. Junction, to relay, to fan. I’m guessing 40-50amps? I haven’t seen a rating on those fans as far as watts or amps.


Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
2,389
Reaction score
3,687
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds
The blower motor probably doesn’t pull more than 15-20 amps tops during operation. It pulls probably twice that during startup.


Snoots

Full Access Member
Joined
Jan 23, 2013
Posts
8,252
Reaction score
16,247
Location
Georgia
First Name
Roger
Truck Year
1973
Truck Model
Jimmy Sierra
Engine Size
350
20


greene

Junior Member
Joined
Feb 12, 2022
Posts
11
Reaction score
10
Location
arkansas
First Name
jason
Truck Year
1986
Truck Model
c10
Engine Size
5.0
Well I replaced numerous wires with proper gauge and tested the fuseable links and made sure my grounds/fuses were good. Still will not start. Test light shows power to the junction block, starter and hei (with key on).
I can turn the key to on and the battery gauge works until I try to start it then goes dead. I can also kill the battery gauge if I touch the headlight switch… not sure where to go from here.


Latest posts

Forum statistics

Threads
42,572
Posts
918,539
Members
34,112
Latest member
chassell4670
Top
