HELP..Looking for a connector
- Thread starter CronicVapez
- Start date
Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.
chengny
Full Access Member
- Joined
- Feb 22, 2012
- Posts
- 4,086
- Reaction score
- 1,008
- Location
- NH
- First Name
- Jerry
- Truck Year
- 1986
- Truck Model
- K3500
- Engine Size
- 350/5.7

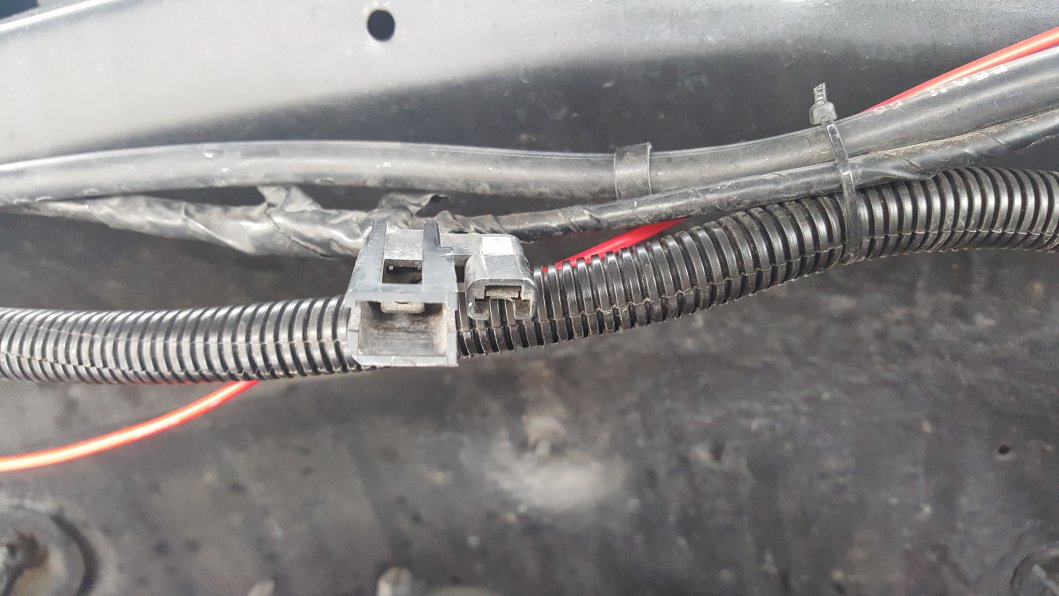

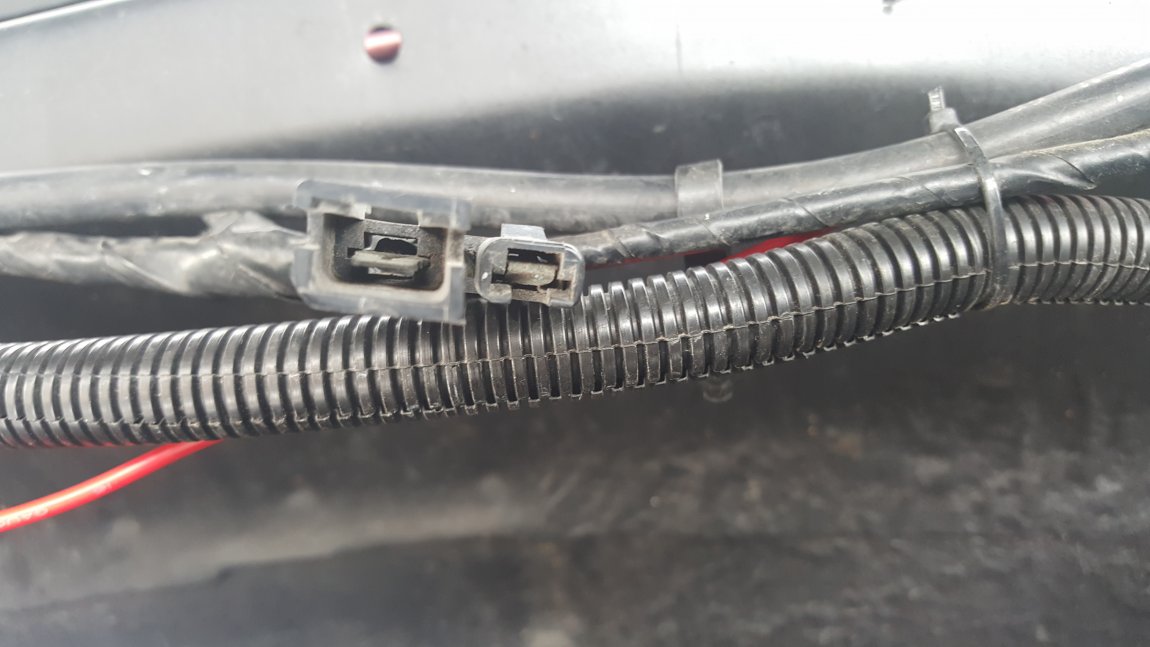

The side of the harness connector that is showing in the images is one piece. Delphi part number is 8900675 .
The side you are missing is actually comprised of two separate connectors. Whether you need them both depends on whether you are still running a fast idle solenoid on your carb.
If not, you only need the connector that plugs into the bigger cavity on the left. It then heads straight down the inboard side of the valve cover and plugs onto the compressor clutch coil two pin terminal. That shell part number is Delphi 2977253 use terminal 2965142:
The shorter one (on the right) is the connection for power to the fast idle solenoid. If you need that shell, it is part Delphi 2984528 and use terminal 2971962.
These connector shells and pigtails are on the shelf everywhere:
http://www.midwestconnectorsupply.com/delphi-series-male-pigtail-2971962-p-237.html
They are sold separately and wicked cheap (like $.20 each). When you get them, just assemble the terminal to the shell and then splice the pigtail to your existing harness.
The side you are missing is actually comprised of two separate connectors. Whether you need them both depends on whether you are still running a fast idle solenoid on your carb.
If not, you only need the connector that plugs into the bigger cavity on the left. It then heads straight down the inboard side of the valve cover and plugs onto the compressor clutch coil two pin terminal. That shell part number is Delphi 2977253 use terminal 2965142:
You must be registered for see images attach
You must be registered for see images attach
The shorter one (on the right) is the connection for power to the fast idle solenoid. If you need that shell, it is part Delphi 2984528 and use terminal 2971962.
You must be registered for see images attach
You must be registered for see images attach
These connector shells and pigtails are on the shelf everywhere:
http://www.midwestconnectorsupply.com/delphi-series-male-pigtail-2971962-p-237.html
They are sold separately and wicked cheap (like $.20 each). When you get them, just assemble the terminal to the shell and then splice the pigtail to your existing harness.
Last edited:
CronicVapez
Junior Member
- Joined
- Mar 7, 2016
- Posts
- 2
- Reaction score
- 0
- Location
- Lytle
- First Name
- Andres
- Truck Year
- 1981
- Truck Model
- C10
- Engine Size
- 350ci
Awesome thank you so much!!
