Just wondering if anyone has cleaned up / welded holes shut when installing AC? Vintage Air (I think) has a blank panel to cover up the original holes - then you drill new ones closer to where their system fits. I have that plus an aftermarket blank that I could use. Mine is a tad different as back in the day the dealer installed an aftermarket AC setup where the installer was a midget with the hiccups that used lefty scissors and butchered 2 holes way out of the way I'll also need to plug. There's a few pics online from the ghosts of projects past - just wondered if anyone here ever encountered this.

I have also heard of the VA boxes being a PITA to access mounting bolts with the ports in the way. One YT vid the guy said he wish he'd routed the ports through the floor vent. I'd kind of like to keep my vents if possible.

Just wondering if anyone ran into any of these kind of issues when installing the AC. I have a while before I'm at that point but like to at least have a plan / order parts while they're still available. In about 6 weeks the south will start warming up again and this stuff will disappear from inventories.

THX


Randy and Easton

Full Access Member
Joined
Feb 6, 2021
Posts
886
Reaction score
1,250
Location
North Richland Hills, Texas
First Name
Randy
Truck Year
1976
Truck Model
C-10 LWB
Engine Size
350

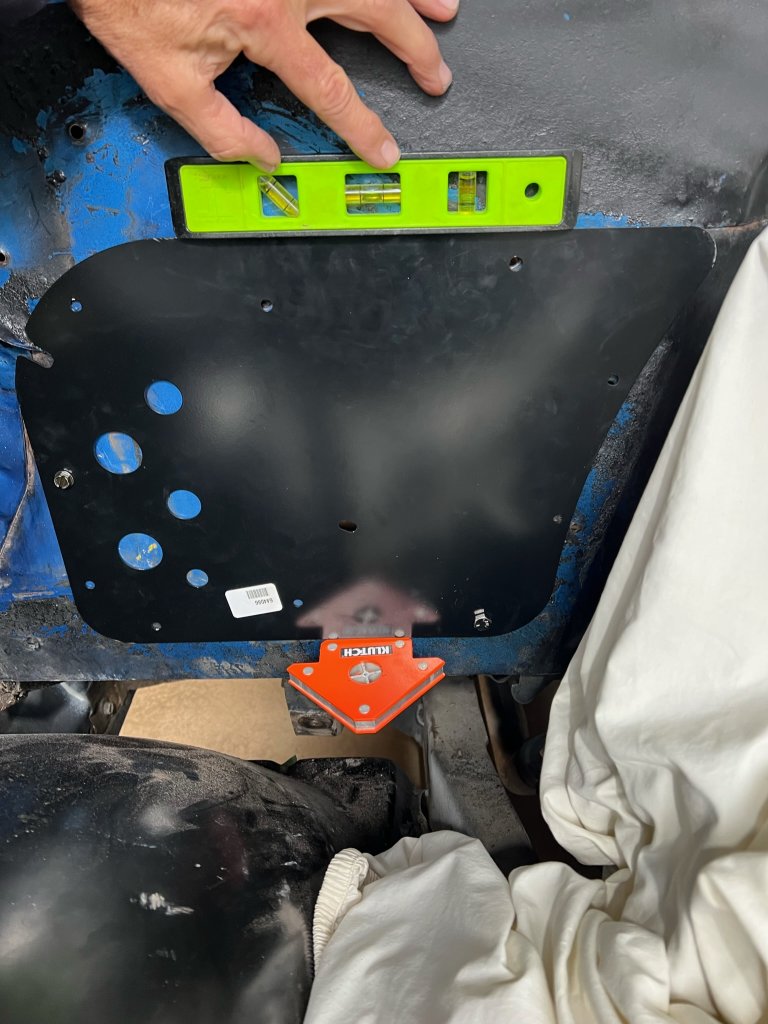

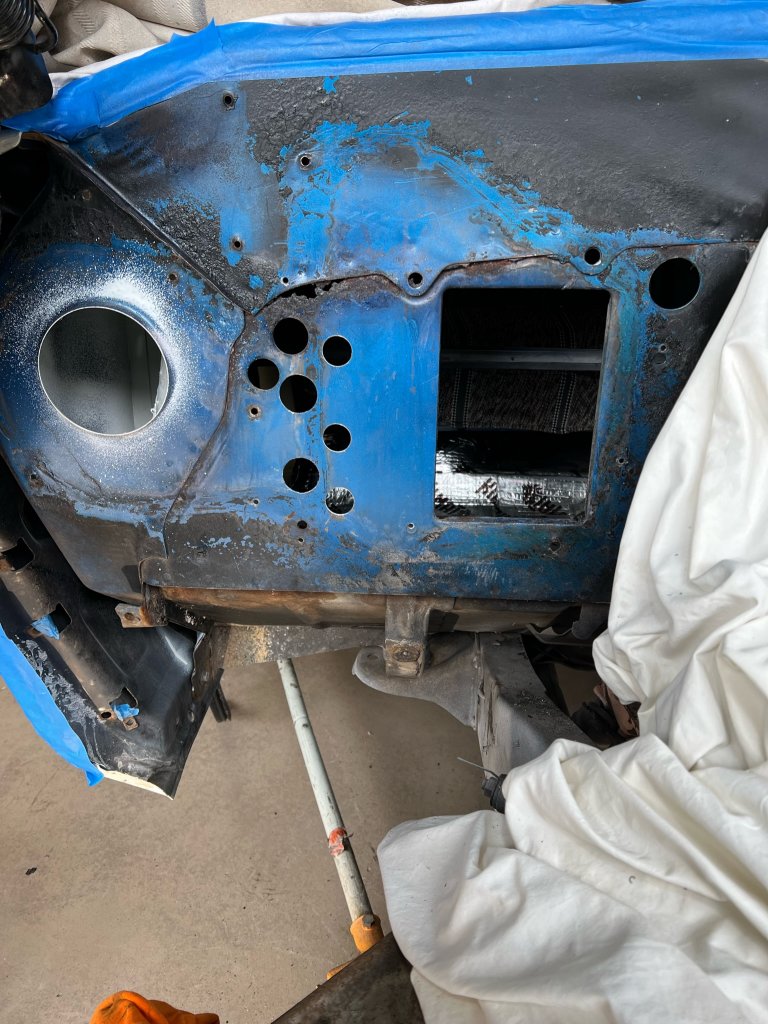

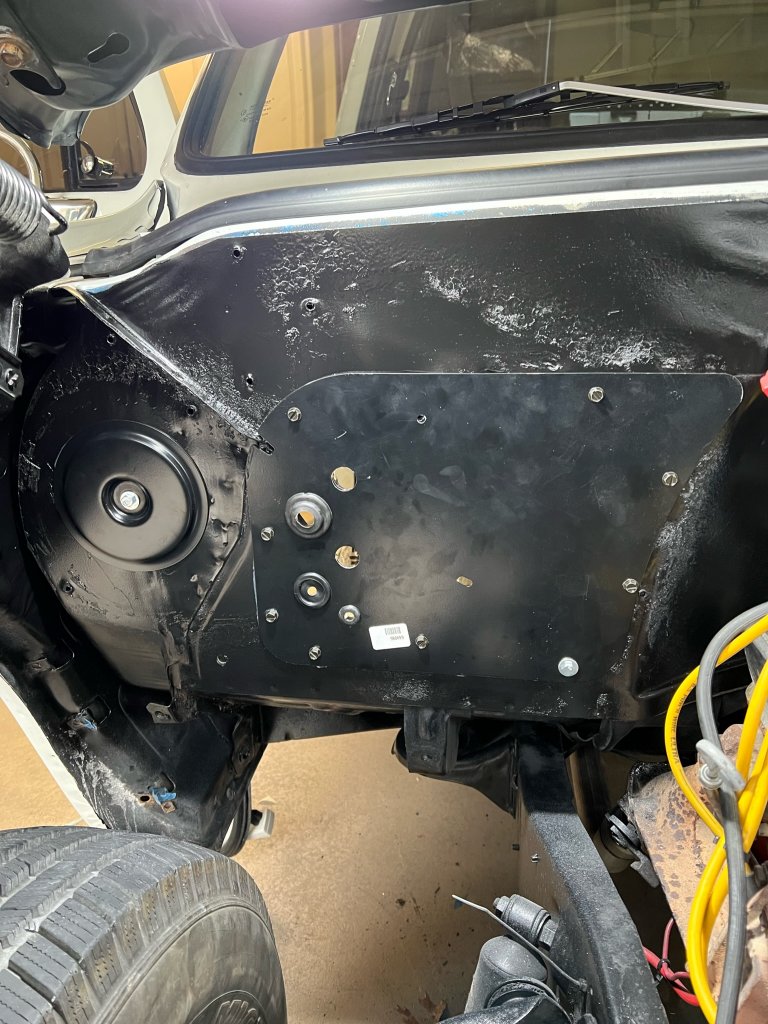

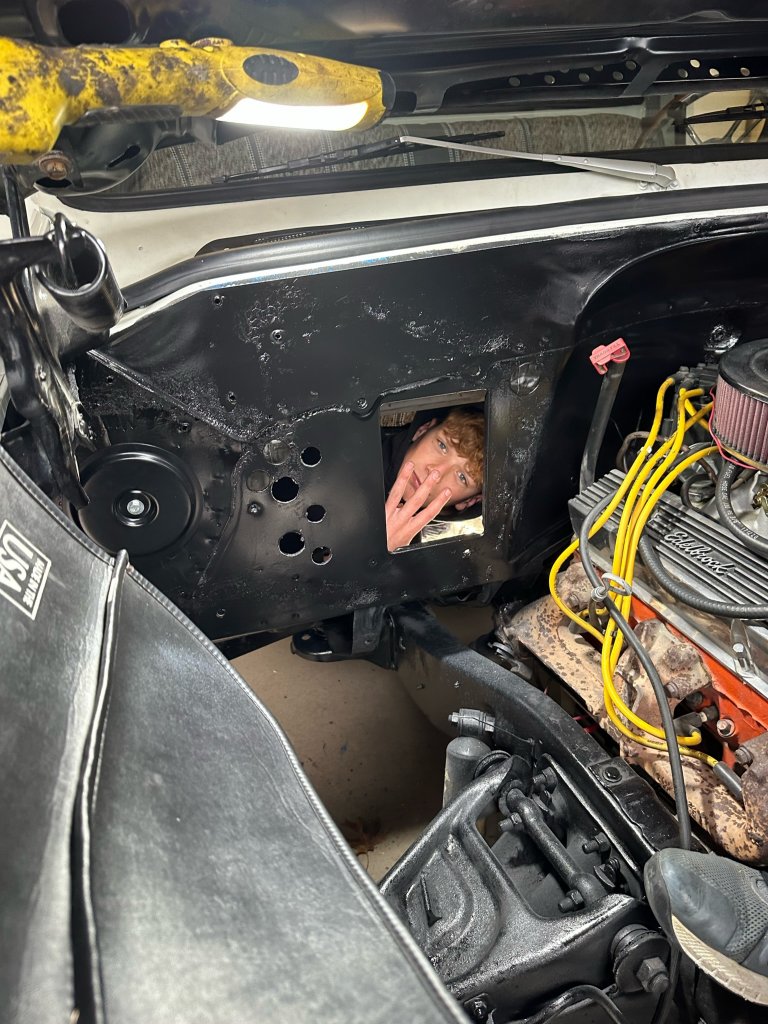

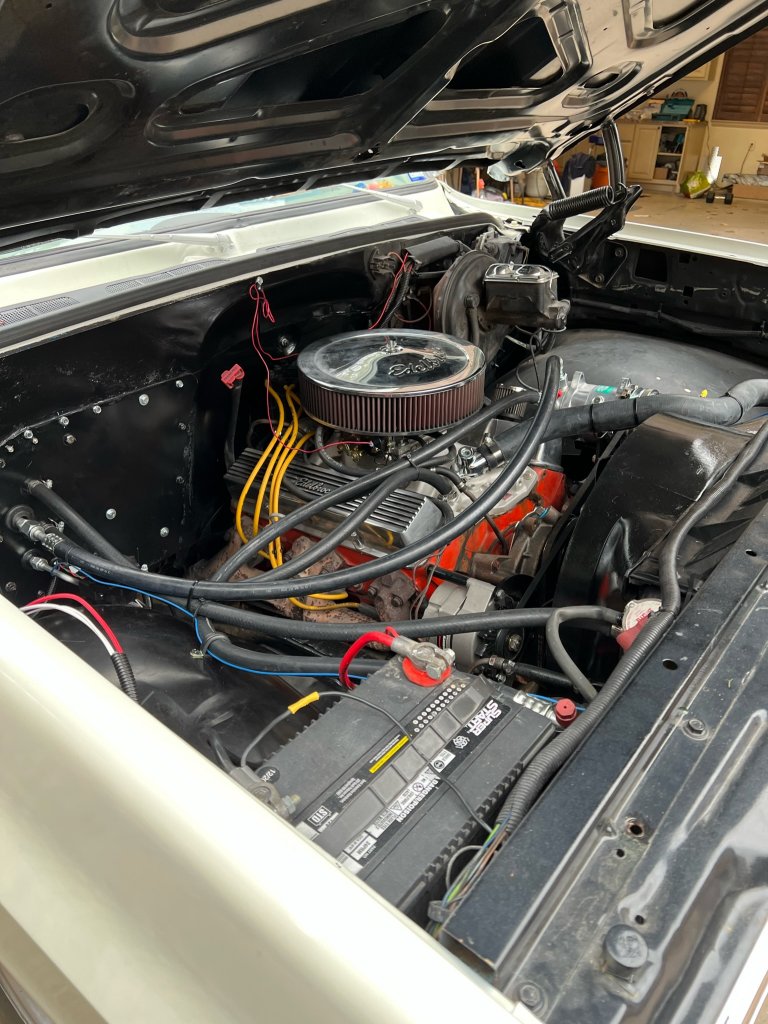

E and I did VA the week before Christmas. Straight up installation with everything ending up where it should. The plate is 12GA steel or better and really covers everything up. New holes do end up being close to old ones but because the plate is there you don’t see anything.


Attachments

  • 6CCAF5B5-C51F-4A6A-99F9-BB62535559D5.jpeg
    173.4 KB · Views: 88
  • 0D012759-5AB0-47C4-B7A0-251F7B6C7959.jpeg
    124 KB · Views: 87
  • 8EEF94FD-E0B2-4E79-B524-F18844294A68.jpeg
    175.7 KB · Views: 97
  • 50D16BC1-F58A-4776-9AE6-A01A4ED55D3D.jpeg
    189.9 KB · Views: 92
  • 49E29C5F-8B81-41F4-A081-D7DABAF198D9.jpeg
    173.4 KB · Views: 93

Powerhouse Ranch

3G Connoisseur
Joined
Jan 6, 2021
Posts
1,459
Reaction score
2,560
Location
PA
First Name
Luke
Truck Year
1980 & 1988
Truck Model
C25 & V15
Engine Size
454 & 350
i'm swapping from AC to heater and i have to close holes/make new ones. Different though but i still feel your pain.


Doppleganger

Full Access Member
Joined
May 24, 2019
Posts
11,738
Reaction score
54,257
Location
OH-MI: Just like it sounds
First Name
Chris
Truck Year
1985
Truck Model
K20
Engine Size
5.7
One advantage I have ATM is my dash is out and the entire cab is stripped. Wont be easier to mock up or weld up holes than now. Another thing that could change is rear vs top ports on the compressor.


CalSgt

Full Access Member
Joined
Oct 3, 2021
Posts
1,509
Reaction score
3,178
Location
CA
First Name
Casey
Truck Year
1980
Truck Model
Chevy K-10 Custom Deluxe
Engine Size
350
LOL... I think the same dude installed my original AC set up, there were some seriously jagged hacked in holes in the firewall and at the core support they just bent a knockout section to route the hoses through. Not to mention the rubiks cube to remove or install any of the heat or AC components which were separate stand alone systems.

I welded up everything on the firewall (almost) and cut down the Vintage Air adapter plate so it would be flush. I would probably have custom made new mounting brackets that bolt on the inside of the firewall if I had to do it again, or maybe just weld some studs to the firewall to slip the unit over. It was an all day job mounting the VA box under the dash for the final time, even after test fitting it without the AC & heater lines several times. Laying upside down and backwards while holding the box in just the right position for the bolts to line up just ended up causing fights.

IIRC the welded nuts in the VA brackets had galled jacked up threads, I think we ended up drilling one of them out and using a slightly longer bolt and nut.

Also, it was a bit of a PIA to mount the new firewall pad without any of the holes for the rubber plugs to push through. You'll want to replace the pad before your final install if you plan on replacing it at all.


You must be registered for see images attach


You must be registered for see images attach



You must be registered for see images attach


Doppleganger

Full Access Member
Joined
May 24, 2019
Posts
11,738
Reaction score
54,257
Location
OH-MI: Just like it sounds
First Name
Chris
Truck Year
1985
Truck Model
K20
Engine Size
5.7
E and I did VA the week before Christmas. Straight up installation with everything ending up where it should. The plate is 12GA steel or better and really covers everything up. New holes do end up being close to old ones but because the plate is there you don’t see anything.
Did you replace or install the firewall insulation before mounting the VA box? Mine was pretty ragged so I pulled it all out. Debating on the OE style pad or maybe dynomat type of stuff.


Randy and Easton

Full Access Member
Joined
Feb 6, 2021
Posts
886
Reaction score
1,250
Location
North Richland Hills, Texas
First Name
Randy
Truck Year
1976
Truck Model
C-10 LWB
Engine Size
350

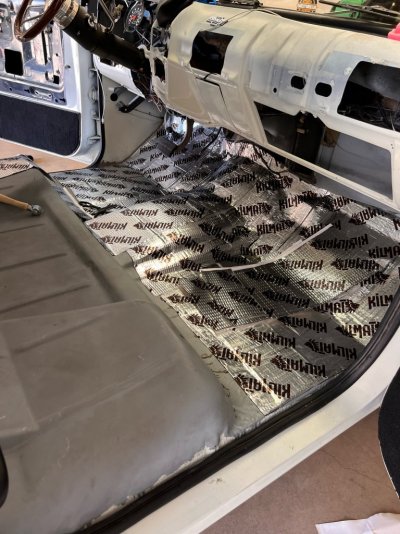

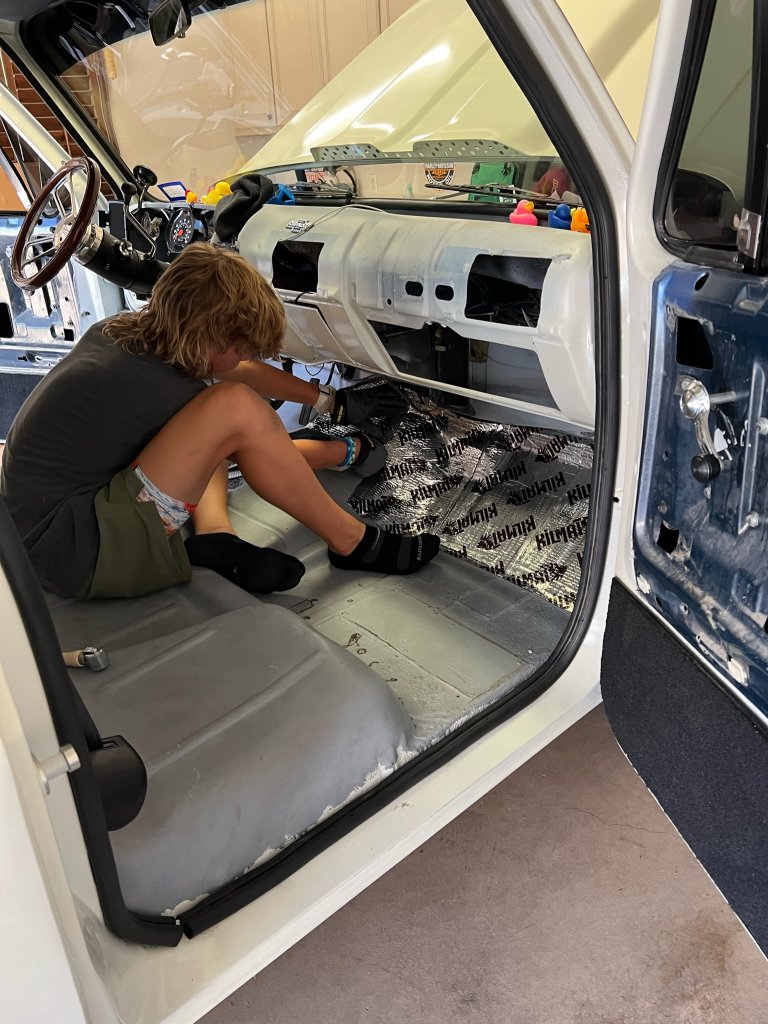

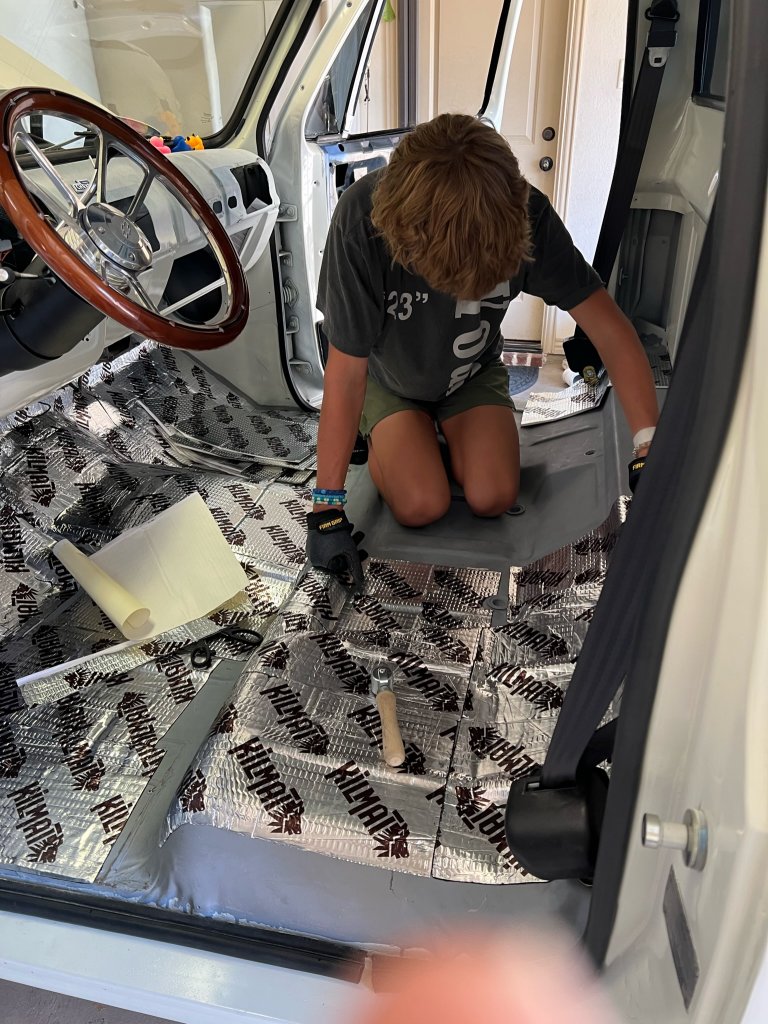

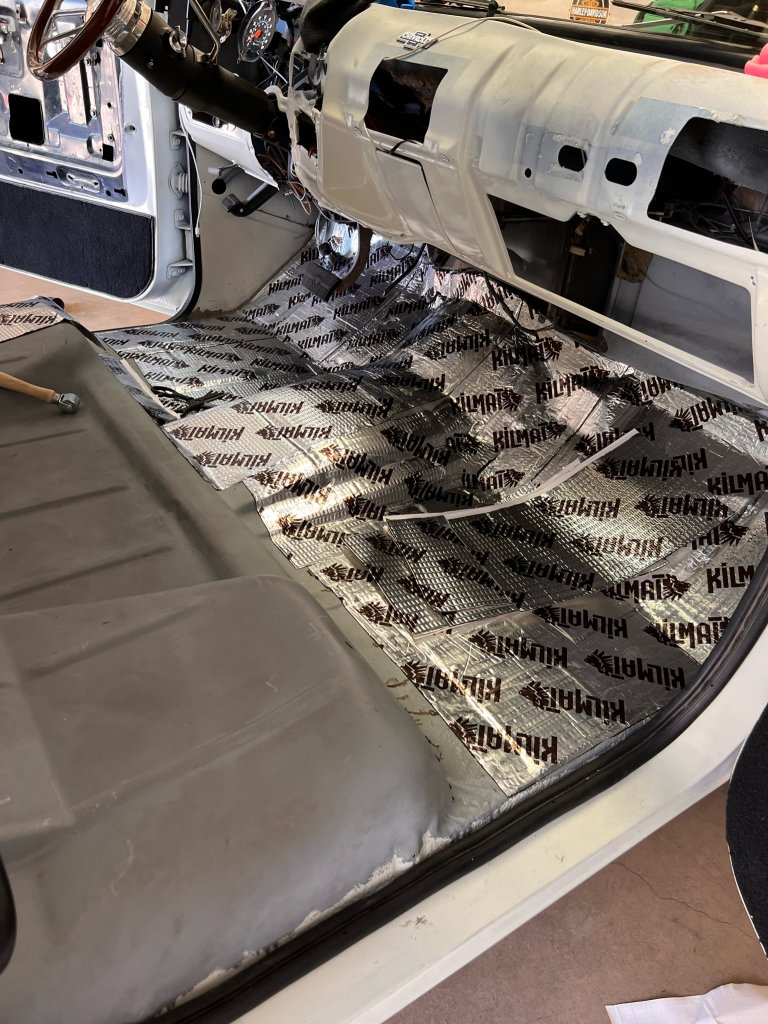

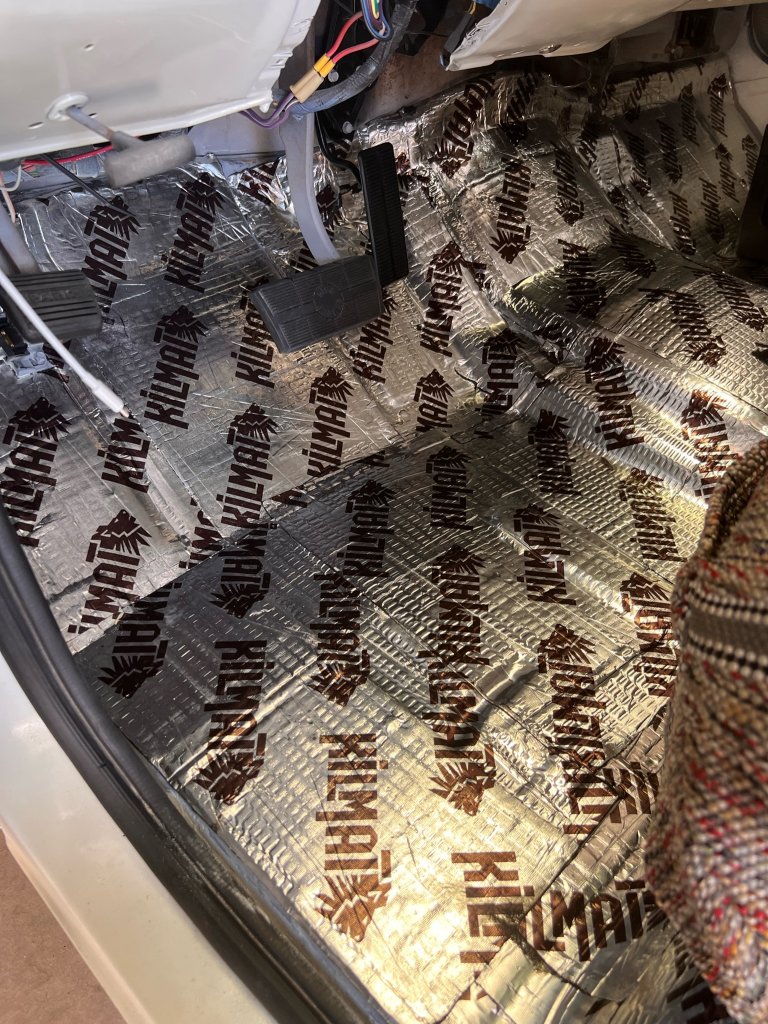

Easton used Kilmat and put it up before the install. Then afterwards he filled in the missing pieces


Attachments

  • 581317EC-2858-40A0-BC59-5C82EBCC937D.jpeg
    199.8 KB · Views: 58
  • 4DAD8E6B-C9DC-4C94-9803-43FD83E56658.jpeg
    166.1 KB · Views: 63
  • 20572558-065E-4764-9831-45AF13555934.jpeg
    193 KB · Views: 64
  • A23C7C4A-F22D-4411-8A66-64668582C9EF.jpeg
    153.3 KB · Views: 64
  • 38387FB6-2066-4260-96E7-9CD1B823E322.jpeg
    252.6 KB · Views: 64

Randy and Easton

Full Access Member
Joined
Feb 6, 2021
Posts
886
Reaction score
1,250
Location
North Richland Hills, Texas
First Name
Randy
Truck Year
1976
Truck Model
C-10 LWB
Engine Size
350

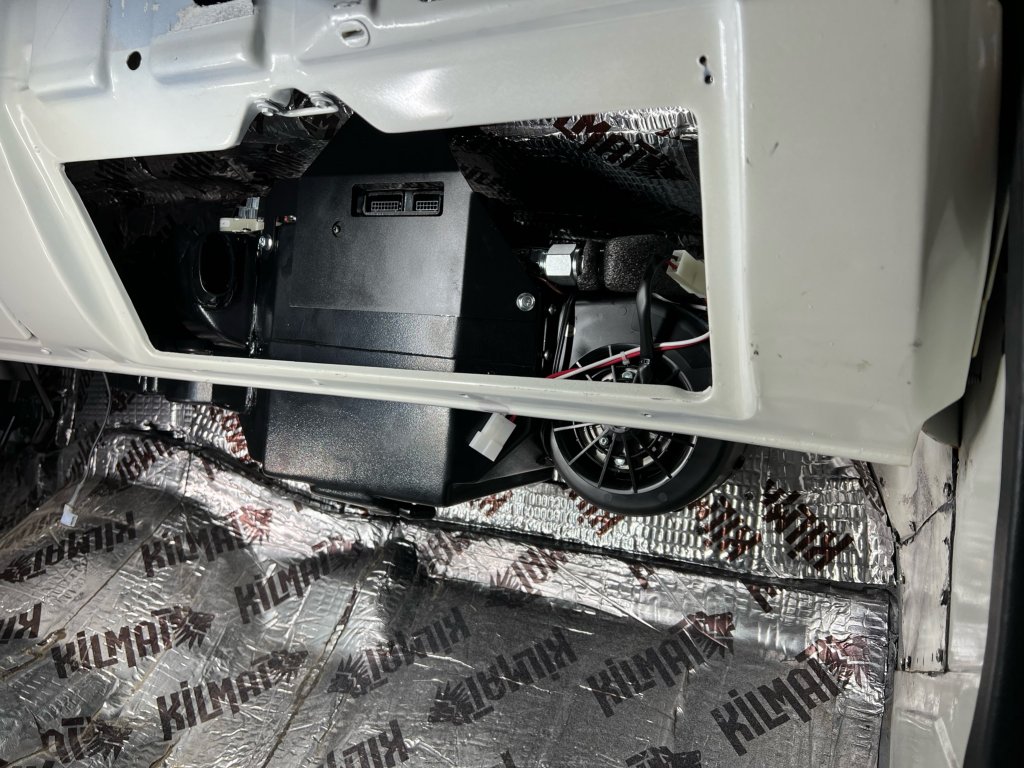

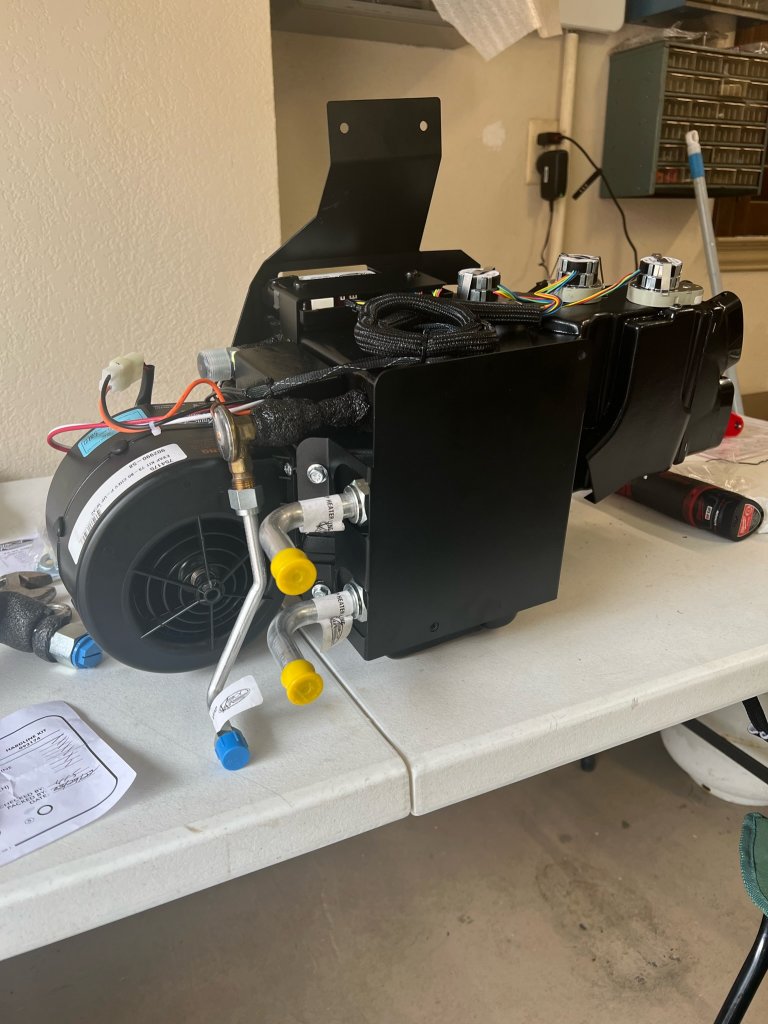

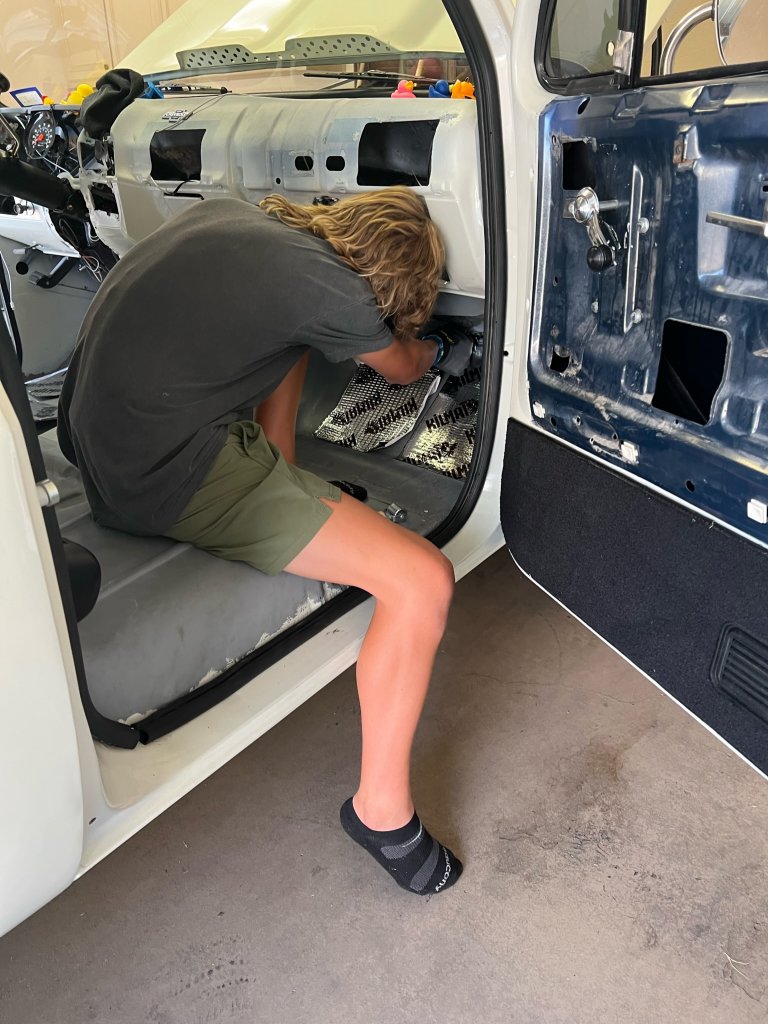

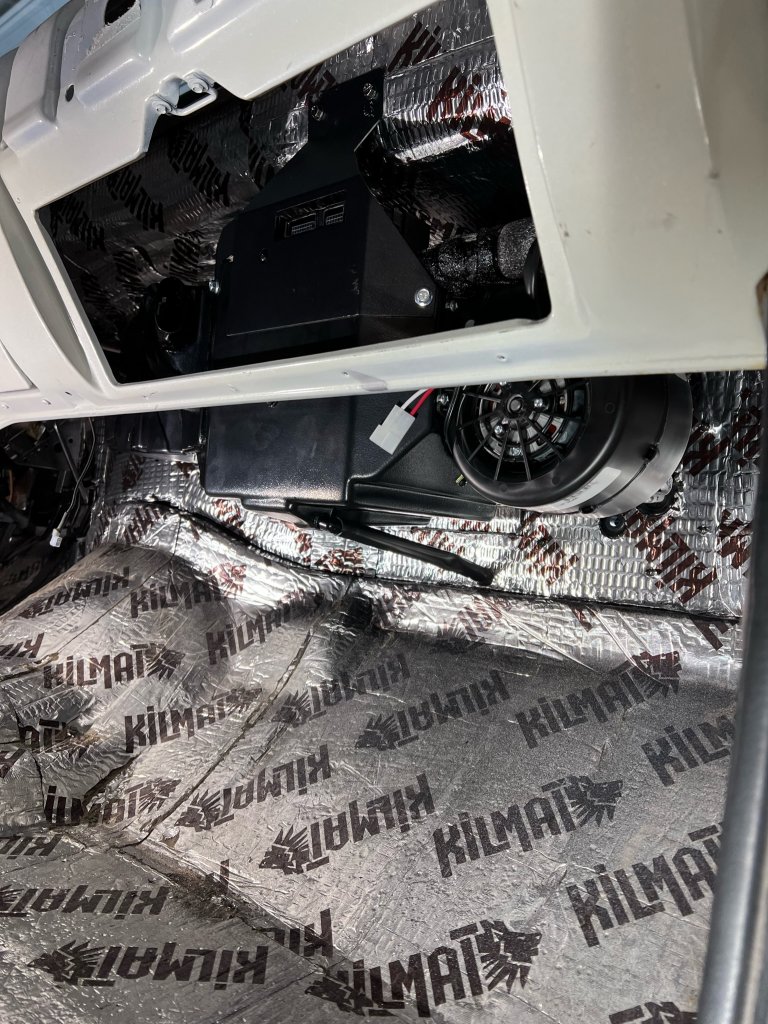

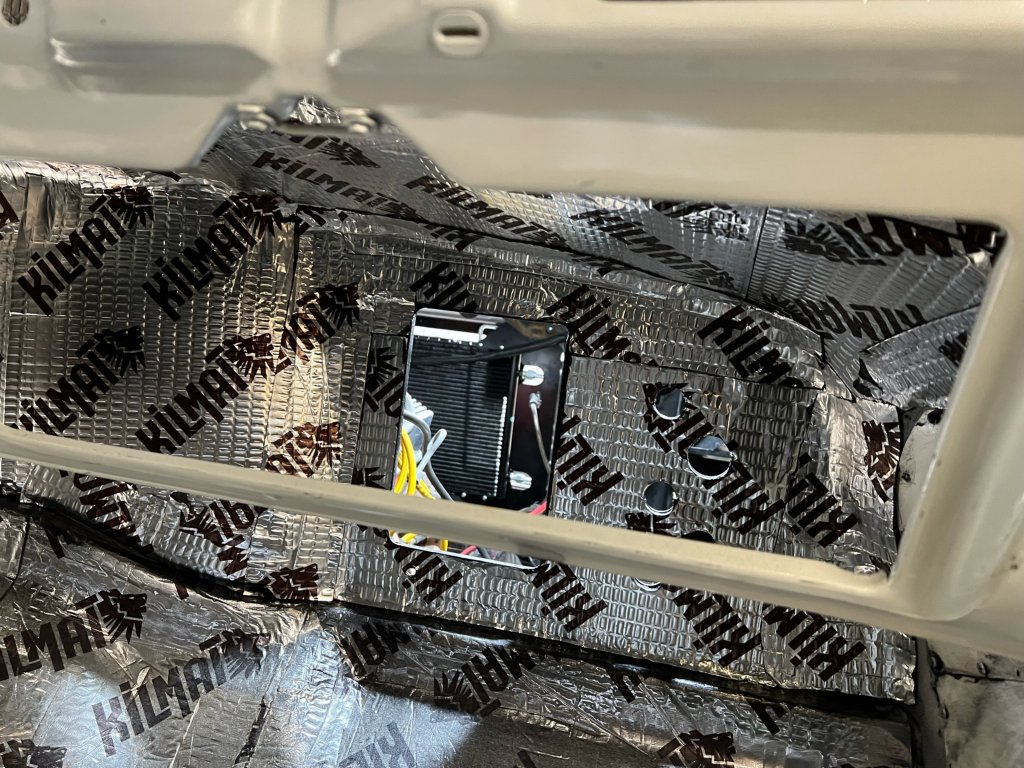

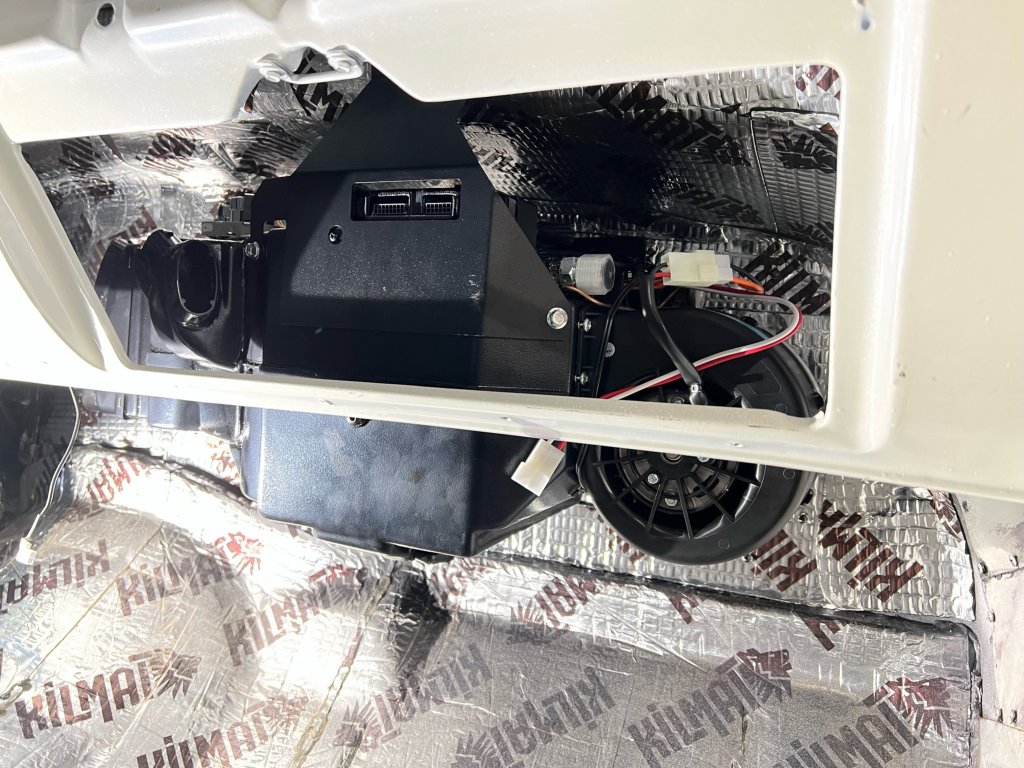

@CalSgt love the look! Great color too! We gave E the VA kit for his 16th birthday and the catch was he had to do install so, not near as nice (not even close) as yours for sure.

I will echo your comment on the inside VA box, I just really took my time on it and it ended up a day job that I must say was a tad awkward but workable. Even for a couple of shade tree mechanics….


Attachments

  • 810A3793-2DFD-4D5E-AA21-AED9FAD4D329.jpeg
    118.3 KB · Views: 71
  • 428640E2-EC55-49EE-85CA-F3D4FAB47214.jpeg
    183.2 KB · Views: 73
  • 0A854E11-FF36-43B7-AFA4-E7EA9EF712CE.jpeg
    172.8 KB · Views: 78
  • 2FD31EB1-27A0-4B75-8D89-0DC6330C66E4.jpeg
    214 KB · Views: 74
  • D100E911-CFBE-47E4-BC04-63CCB1A14CAC.jpeg
    226.6 KB · Views: 73

CalSgt

Full Access Member
Joined
Oct 3, 2021
Posts
1,509
Reaction score
3,178
Location
CA
First Name
Casey
Truck Year
1980
Truck Model
Chevy K-10 Custom Deluxe
Engine Size
350
@CalSgt love the look! Great color too! We gave E the VA kit for his 16th birthday and the catch was he had to do install so, not near as nice (not even close) as yours for sure.

I will echo your comment on the inside VA box, I just really took my time on it and it ended up a day job that I must say was a tad awkward but workable. Even for a couple of shade tree mechanics….
Lol, our interior pics are almost identical

You must be registered for see images attach


bluex

Full Access Member
Joined
May 9, 2013
Posts
1,841
Reaction score
2,148
Location
Spartanburg SC
First Name
Paul
Truck Year
1978
Truck Model
C15
Engine Size
350
I kept the vents open/stock with my VA install. The Dr side one obviously still works just fine, the pass side when you open it the air comes in, hits the VA box an then comes right out into your face. It's basically unusable unless you want to wear goggles.

That said I'll be giving up my pass side vent to run the hoses through an have a smooth firewall....


Randy and Easton

Full Access Member
Joined
Feb 6, 2021
Posts
886
Reaction score
1,250
Location
North Richland Hills, Texas
First Name
Randy
Truck Year
1976
Truck Model
C-10 LWB
Engine Size
350

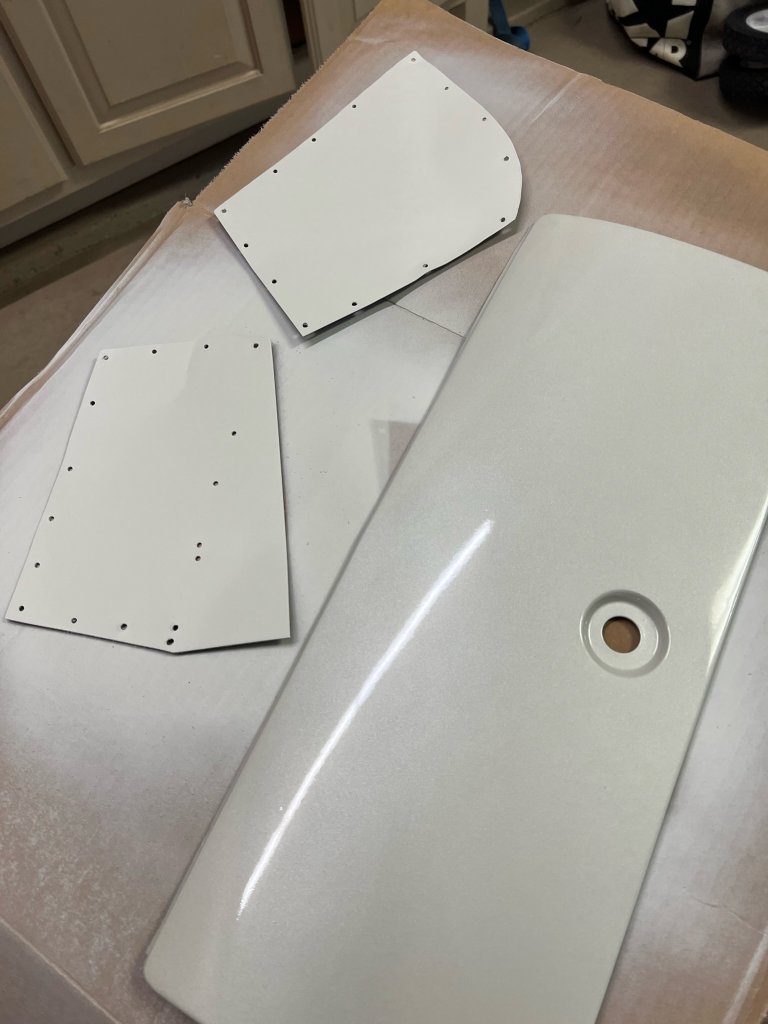

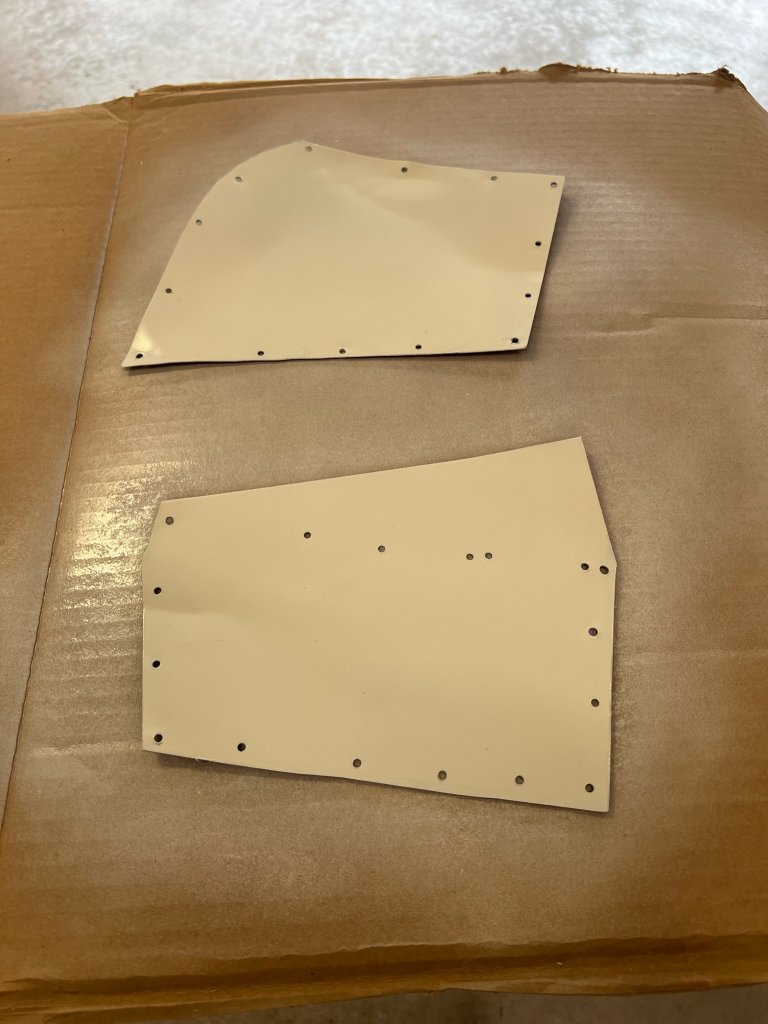

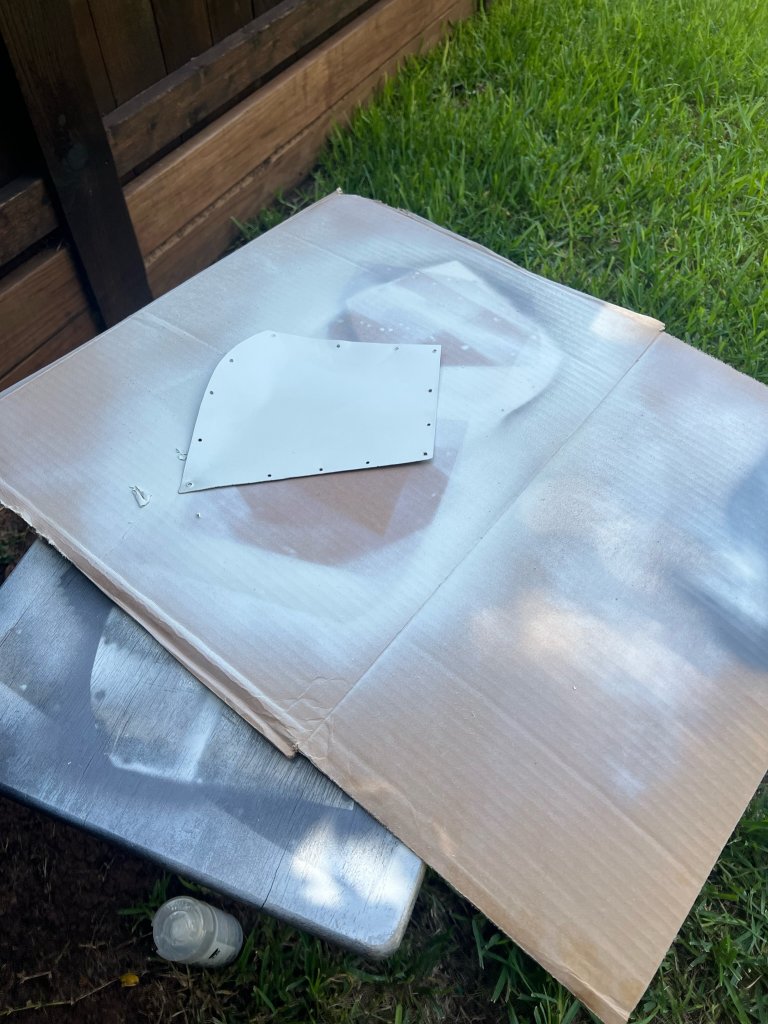

E wanted a clean look so he made a makeshift cover for pax side vent and closed it off. Not the greatest metal work but, he likes it
You must be registered for see images attach


Attachments

  • 063E53C5-3AF2-4361-AE56-CAAB903C00F2.jpeg
    76.4 KB · Views: 29
  • 538AF952-AB10-47DD-B902-CE63B276E482.jpeg
    141 KB · Views: 30
  • 2AC323F3-682C-4836-AB43-A3513021A316.jpeg
    96.5 KB · Views: 32

Bennyt

Full Access Member
Joined
May 17, 2019
Posts
1,035
Reaction score
1,446
Location
Surprise
First Name
Ben
Truck Year
1977
Truck Model
C10
Engine Size
350
We welded up my sons smooth, however I forgot to weld a stud on the inside to hold the system so it will have an allen head showing when I actually do the install.

Thera are some really nice panels made from atomic armadillo and Vannatta that have various patterns/ logos that I wish I had done as well.

You must be registered for see images attach


You must be registered for see images attach


gilby959798

Junior Member
Joined
Sep 12, 2022
Posts
4
Reaction score
7
Location
CLT NC
First Name
John
Truck Year
1977
Truck Model
GMC K25 Camper Special
Engine Size
350
I plan to shave my firewall with a panel from Vannatta as BennyT posted above. I figure as I am doing the cab repair, I might as well clean up the firewall.


Forum statistics

Threads
42,087
Posts
908,646
Members
