Did they mess up belts?

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

TruckCo

Full Access Member
Joined
Feb 3, 2023
Posts
82
Reaction score
24
Location
MA
First Name
Jay
Truck Year
87
Truck Model
C10
Engine Size
350
Well on top of me trying to figure out a bad idle when warm, I installed a new coolant temperature sensor.

When I went to fire up the truck, I noticed a quick belt squeal (new to me). I just had flow masters 40s and new belts put on. (Serpentine and two V Belts) from a local shop that works on a lot of older vehicles.

Note this...

-I noticed that the new ac compressor is running a belt from the compressor, around the water pump, and the front part of the pulley on the power steering pump.

-On the back part of the powering steering pump, there is another belt running the pump that goes around harmonic balancer.

Is this right? Why would you have two belts running a power steering pump? One belt runs the ac compressor and one runs off the harmonic balancer. Wouldn't this cause fighting between the two belts? I could have sworn I only had one power steering belt running off of the harmonic balancer.

Ugh just my luck. Any responses would be greatly appreciated.

Also I provided the three belts to them that were exact part number off of the old ones and they told me one of em wasn't right and ordered a different one. Is this how it may have gotten messed up. Also the rear powersteering belt doesnt seem to fit down into the pulley very well. Please HELP!


Attachments

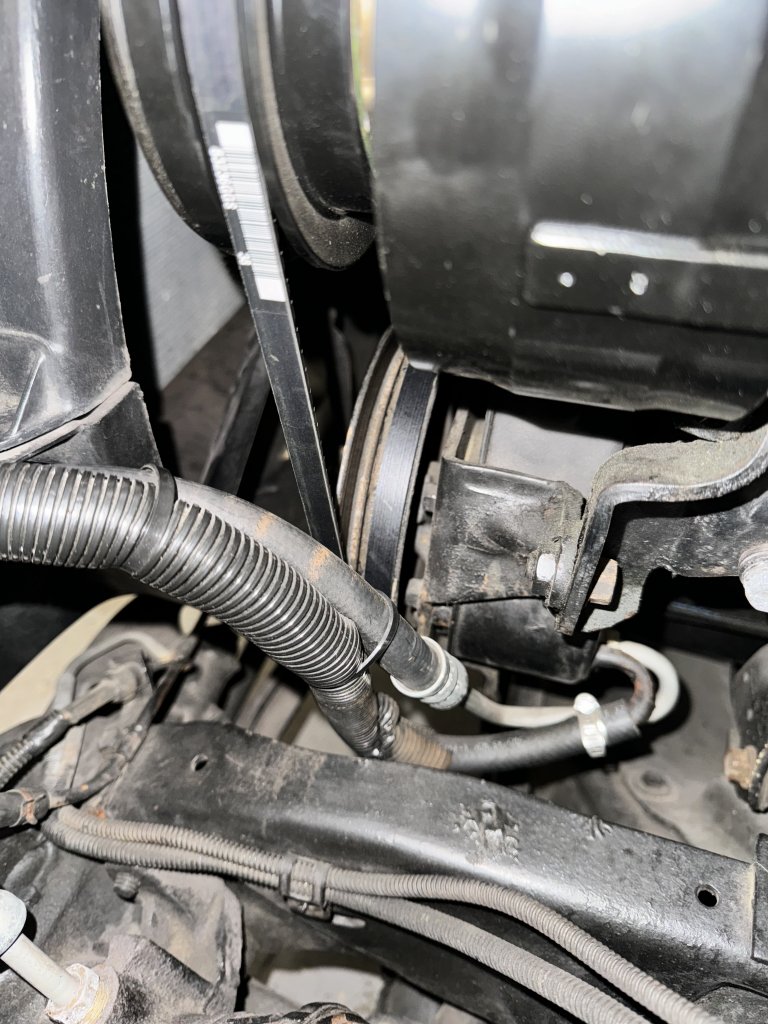

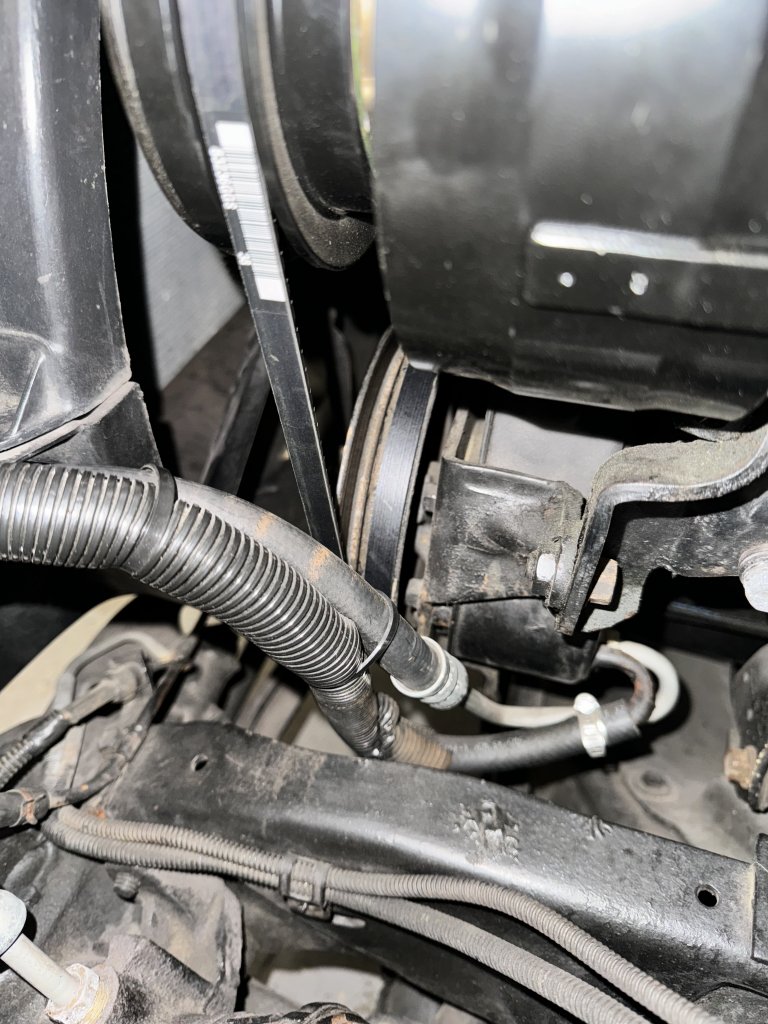

  • IMG_0207.jpeg
    159.2 KB · Views: 44

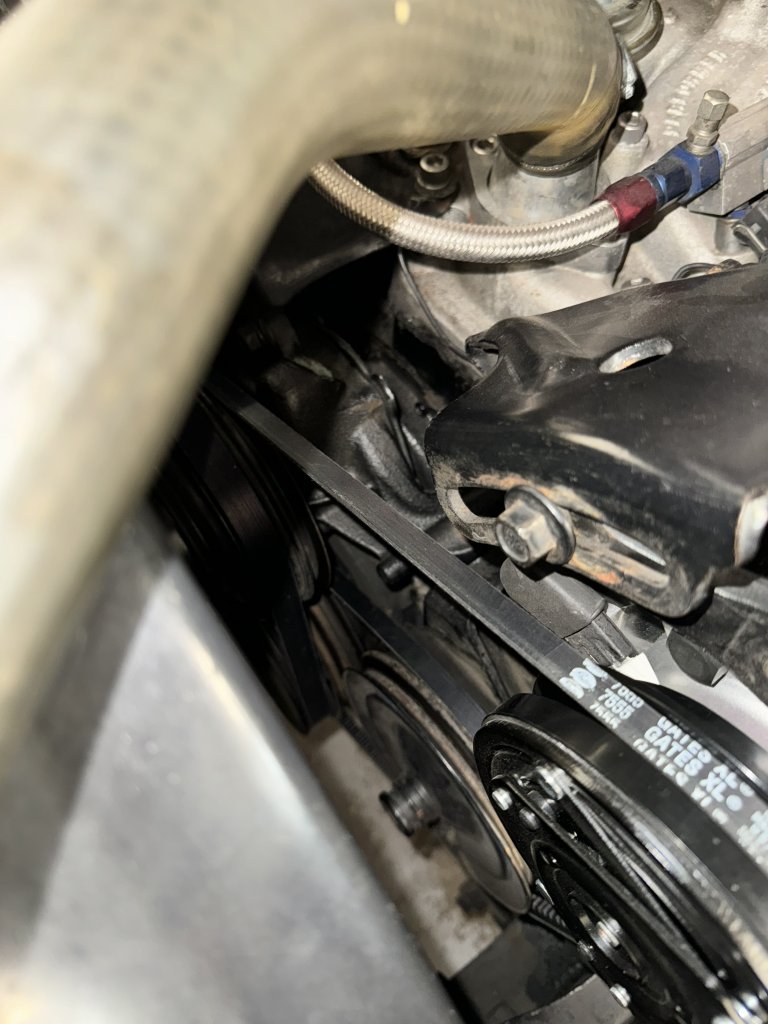

  • IMG_0208.jpeg
    112.2 KB · Views: 40

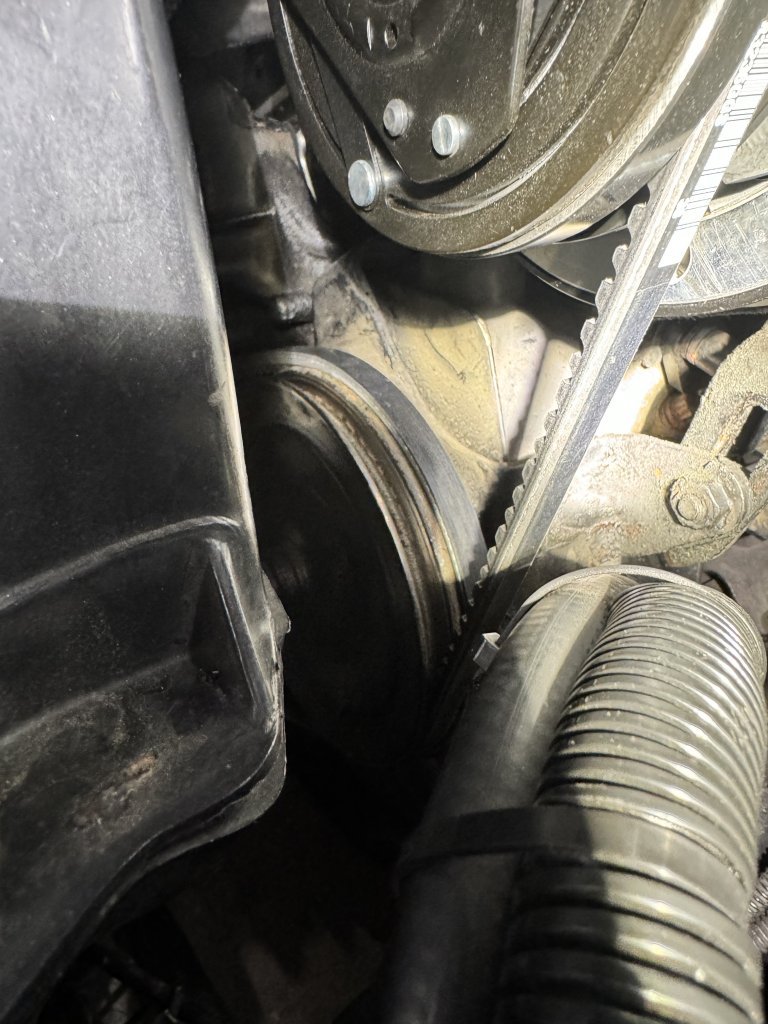

  • IMG_0209.jpeg
    148 KB · Views: 36
Last edited:

DoubleDingo

Full Access Member
Joined
Jul 3, 2012
Posts
10,619
Reaction score
15,500
Location
Right where I am
First Name
Bagoomba
Truck Year
1981
Truck Model
81-C20 Silverado Camper Special-TH400-4.10s
Engine Size
Carb'ed Vortec 350
Well on top of me trying to figure out a bad idle when warm, I installed a new coolant temperature sensor.

When I went to fire up the truck, I noticed a quick belt squeal (new to me). I just had flow masters 40s and new belts put on. (Serpentine and two V Belts) from a local shop that works on a lot of older vehicles.

Note this...

-I noticed that the new ac compressor is running a belt from the compressor, around the water pump, and the front part of the pulley on the power steering pump.

-On the back part of the powering steering pump, there is another belt running the pump that goes around harmonic balancer.

Is this right? Why would you have two belts running a power steering pump? One belt runs the ac compressor and one runs off the harmonic balancer. Wouldn't this cause fighting between the two belts? I could have sworn I only had one power steering belt running off of the harmonic balancer.

Ugh just my luck. Any responses would be greatly appreciated.

Also I provided the three belts to them that were exact part number off of the old ones and they told me one of em wasn't right and ordered a different one. Is this how it may have gotten messed up. Please HELP!
Take a pic of this and post it up


DoubleDingo

Full Access Member
Joined
Jul 3, 2012
Posts
10,619
Reaction score
15,500
Location
Right where I am
First Name
Bagoomba
Truck Year
1981
Truck Model
81-C20 Silverado Camper Special-TH400-4.10s
Engine Size
Carb'ed Vortec 350
It doesn't look right to me. Hopefully someone will chime in with more experience and knowledge of the belt routing.


Scott91370

Full Access Member
Joined
Apr 2, 2018
Posts
945
Reaction score
929
Location
Burleson, Tx
First Name
Scott
Truck Year
1985
Truck Model
Sierra1500
Engine Size
350
If this is an original setup head to the reference section and look in the service manual for your year, belt routing should be listed.


Radiohead

That guy on the Columbia
Joined
Mar 17, 2022
Posts
2,042
Reaction score
6,606
Location
Low Earth Orbit where it's safer
First Name
Eric
Truck Year
MCMLXXIX
Truck Model
C-20 Silverado Camper Special
Engine Size
454 crazy cubes, or 7.4 luscious litres
I can't speak to a small block, but on a big block they have the AC running off the PS dual V groove with the PS running off the crank/WP in the other. Thusly
You must be registered for see images attach


You must be registered for see images attach


You must be registered for see images attach


This is a '79. I can't imagine it's much different on a SB of a similar vintage and options list. I hope this is helpful.


TruckCo

Full Access Member
Joined
Feb 3, 2023
Posts
82
Reaction score
24
Location
MA
First Name
Jay
Truck Year
87
Truck Model
C10
Engine Size
350
My neighbor whose a big chevy guy said my setup looks ok. He said the only thing mechanically turning everything is the crank (obviousley) so he said it looks fine? . I just figured the belts would fight eachother but i guess if they were then theyd be making a hell of a a racket or toss one.


Youd think with two grooves on the PS that it would be designed for two belts unless it was for alignment issues.


DoubleDingo

Full Access Member
Joined
Jul 3, 2012
Posts
10,619
Reaction score
15,500
Location
Right where I am
First Name
Bagoomba
Truck Year
1981
Truck Model
81-C20 Silverado Camper Special-TH400-4.10s
Engine Size
Carb'ed Vortec 350
The routing that @Radiohead looks like it's supposed to be. I'd suggest double checking the routing to make sure it is correct before you toss a belt


TruckCo

Full Access Member
Joined
Feb 3, 2023
Posts
82
Reaction score
24
Location
MA
First Name
Jay
Truck Year
87
Truck Model
C10
Engine Size
350
I can't speak to a small block, but on a big block they have the AC running off the PS dual V groove with the PS running off the crank/WP in the other. Thusly
You must be registered for see images attach


You must be registered for see images attach


You must be registered for see images attach


This is a '79. I can't imagine it's much different on a SB of a similar vintage and options list. I hope this is helpful.
Thank you. I also have an AC pump


Grit dog

Full Access Member
Joined
May 18, 2020
Posts
6,219
Reaction score
10,586
Location
Auburn, Washington
First Name
Todd
Truck Year
1986, 1977
Truck Model
K20, C10
Engine Size
454, 350
Thank you. I also have an AC pump
Do you mean an air pump?
Have you compared to an OE belt routing diagram for your model?
That’s assuming your setup is still OE configuration.
Surprised shop lets you byop. (Bring your own parts)


75gmck25

Full Access Member
Joined
Oct 13, 2016
Posts
2,085
Reaction score
1,912
Location
Northern Virginia
First Name
Bruce
Truck Year
1975
Truck Model
K25 Camper Special TH350 NP203
Engine Size
5.7
Alternator belt looks fine.

For the PS belt there were two OEM solutions
- short belt goes around the PS pulley and the crankshaft pulley. This was the stock non-A/C belt
- or there is a longer belt that goes around the PS, crankshaft and the water pump. This was usually used on A/C or HD cooling. The advantage of this setup is that if you break the alternator belt, the PS belt will keep the water pump turning, so you still have cooling. Yours appears to use that belt.

- routing of the A/C belt depends on the compressor. IIRC, with my original A6 compressor, the compressor pulley was mounted way out to the side, so the belt ran directly from the compressor to the crankshaft, with the bottom of the belt up guided by the PS pulley, and the top running in free air from compressor to crankshaft. I’m not sure how it was routed with the R4 compressor.


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
29,412
Reaction score
25,094
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
The belt routing is correct. Those belts don't fight each other because the crank pulley grooves and the PS pulley grooves are the same diameter.
