87 TBI connector questions

[87TBIguy]

Hey guys just got a few questions about a few unknown ( to me) connectors, hoping somebody could tell me where these all go. Pics are attached, sorry for the crappy picture of the black single terminal connector, this is on a long black wire coming from the fuse block.



[89Suburban]



[foamypirate]

Can you tell us what the wire colors are for the pictures? They are kind of hard to pick out.



[87TBIguy]

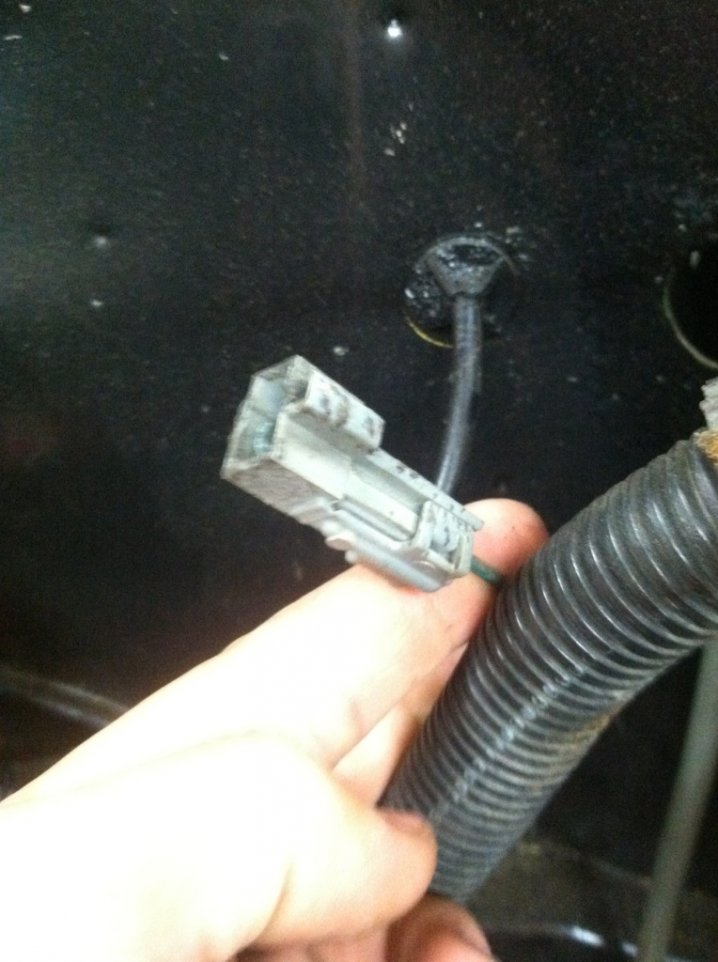

pic 1 is a long black wire, coming from fuse block, long enough to reach the nose.

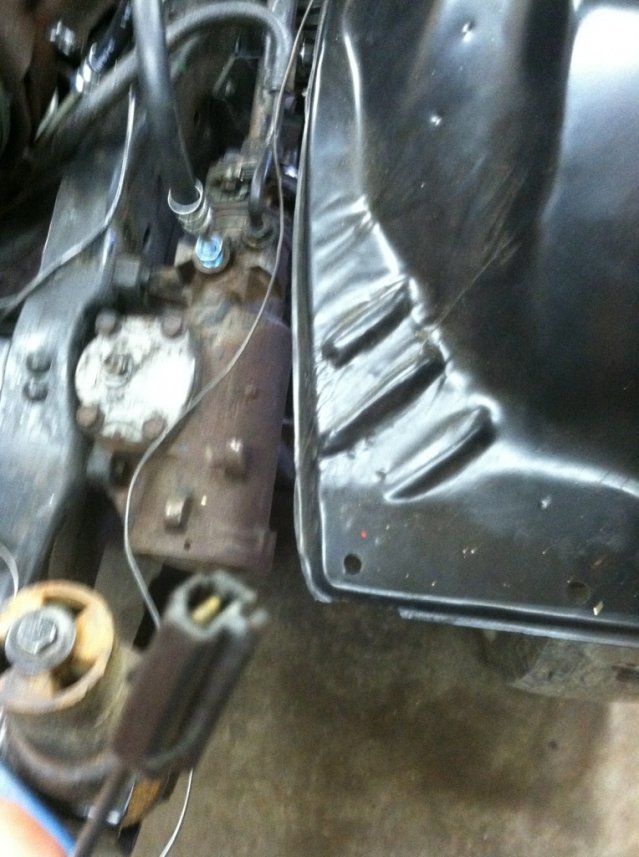

pic 2 is a tan? wire coming from far right connector in firewall

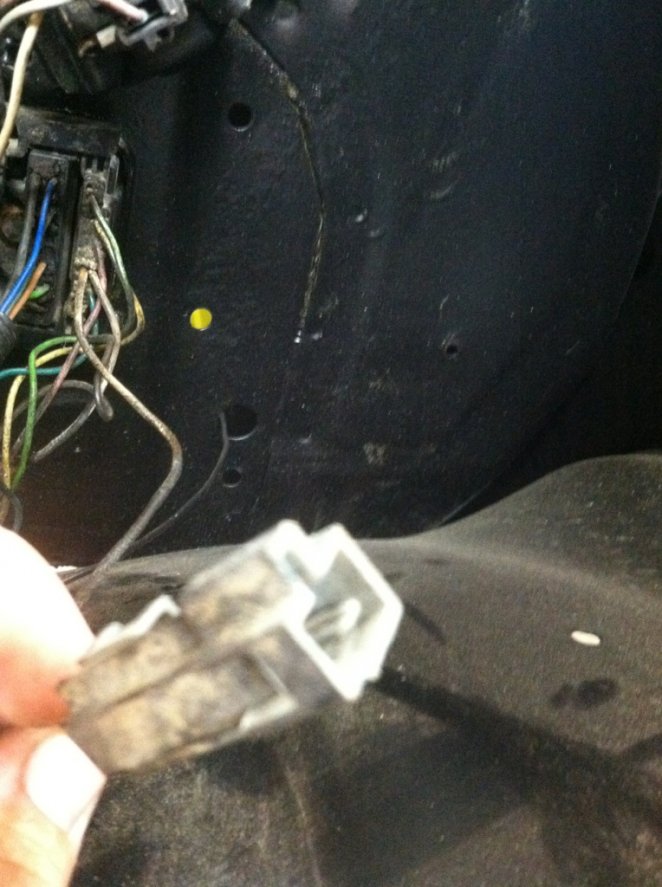

pic 3 is a single tan wire coming from a gromet in the firewall, havnt traced this one back yet.

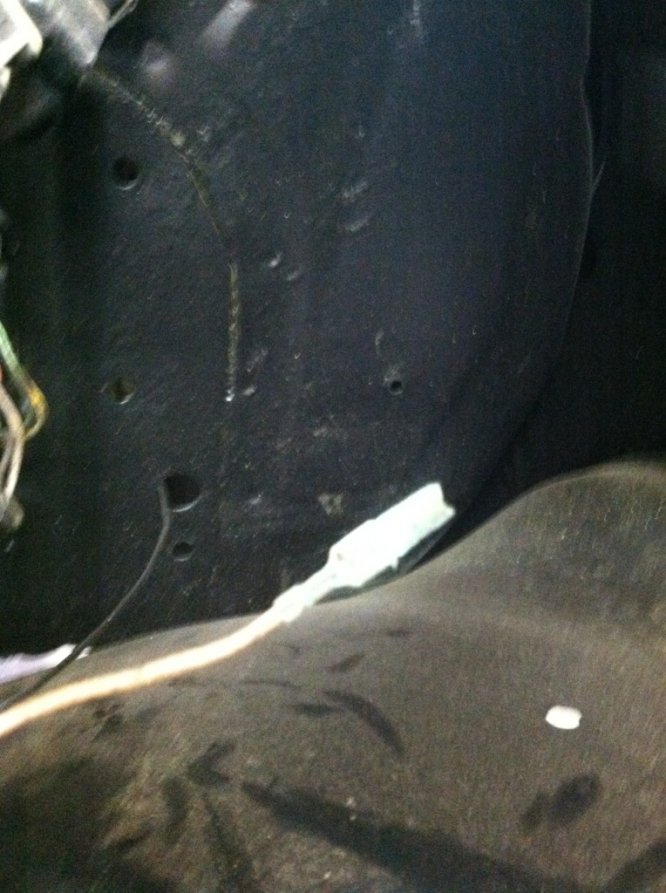

pic 4 is single green wire breakout from the main engine harness



[foamypirate]

pic 1 is a long black wire, coming from fuse block, long enough to reach the nose.

pic 2 is a tan? wire coming from far right connector in firewall

pic 3 is a single tan wire coming from a gromet in the firewall, havnt traced this one back yet.

pic 4 is single green wire breakout from the main engine harness

I'll take a look through my 87' wiring diagrams and see what I can come up with. You'd think this info would be burned into my brain after doing a TBI swap into my 84', lol.



[87TBIguy]

Awesome thanks, I know I've looked through all my 87 diagrams and could find a thing, I hope youve got something I've missed lol



[89Suburban]

Hope these help:

87 TBI Wiring Diagram 7.4 L

You must be registered for see images

You must be registered for see images

You must be registered for see images

image hosting 20mb







87 TBI Wiring Diagram 4.3 L, 5.0 L, 5.7 L

You must be registered for see images

You must be registered for see images

You must be registered for see images

pc screen shot



[87TBIguy]

Hmm still not really seeing anything that looks right. Also the black wore to the starter, what terminal for that?



[foamypirate]

I'm having a hard time matching these up as well. You'll probably need to end up tracing them with a multimeter.
