Steering Box Screw

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Rich77

Full Access Member
Joined
Oct 14, 2019
Posts
102
Reaction score
37
Location
SE Wisconsin
First Name
Rich
Truck Year
1977
Truck Model
C10 Scottsdale
Engine Size
400
You must be registered for see images attach

Hi Guys,
I don’t know how this screw/bolt came off. I can’t find it.
I think it’s supposed to be the adjusting screw.
I’ve looked all over. Do you know where I can get a replacement?
Thank you!


Rich77

Full Access Member
Joined
Oct 14, 2019
Posts
102
Reaction score
37
Location
SE Wisconsin
First Name
Rich
Truck Year
1977
Truck Model
C10 Scottsdale
Engine Size
400
You must be registered for see images attach

I think the bolt/cap in the blue photo is what I’m looking for.


75gmck25

Full Access Member
Joined
Oct 13, 2016
Posts
2,037
Reaction score
1,833
Location
Northern Virginia
First Name
Bruce
Truck Year
1975
Truck Model
K25 Camper Special TH350 NP203
Engine Size
5.7
It should have an Allen wrench fitting in the middle, and a locknut around the outside.

You put the Allen wrench in to hold the adjuster, and then loosen the outer locknut. If you want to take a little play out of the steering you would turn the center adjuster portion clockwise a very small amount (not more than 1/4 turn), and then drive the truck to check that it still returns to center properly.


Rich77

Full Access Member
Joined
Oct 14, 2019
Posts
102
Reaction score
37
Location
SE Wisconsin
First Name
Rich
Truck Year
1977
Truck Model
C10 Scottsdale
Engine Size
400
Ah, it is an Allen head.
But from the second pic that I posted, it looks like there’s a cap or something missing??

You must be registered for see images attach


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
4,060
Reaction score
5,896
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350

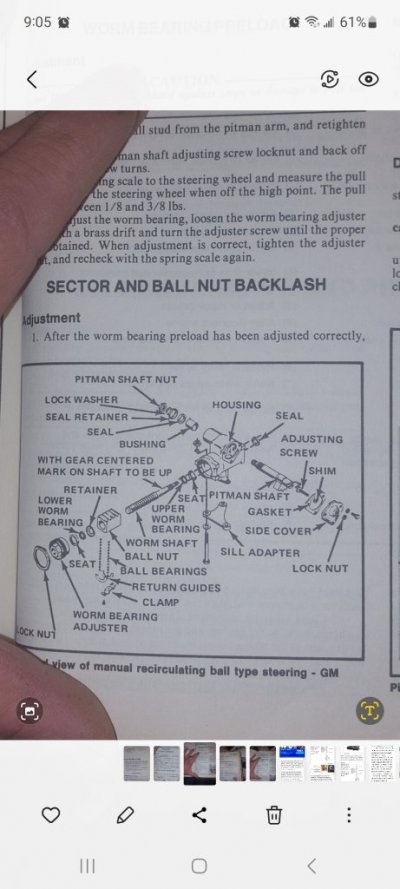

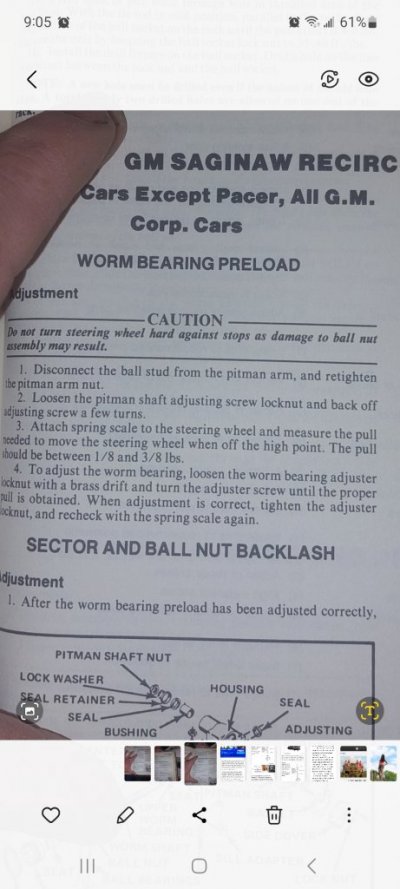

That screw is the last screw you touch if doing an adjustment. If you are trying to adjust play out by removing backlash you probably have a worn bushing and the box is rebuildable after you push everything to eliminate the slop in the bushing it eggs out the housing,now its junk. Kinda like setting up a rearend, just taking the lash out doesn't fix incorrect pinion depth or a worn out bearing.


Attachments

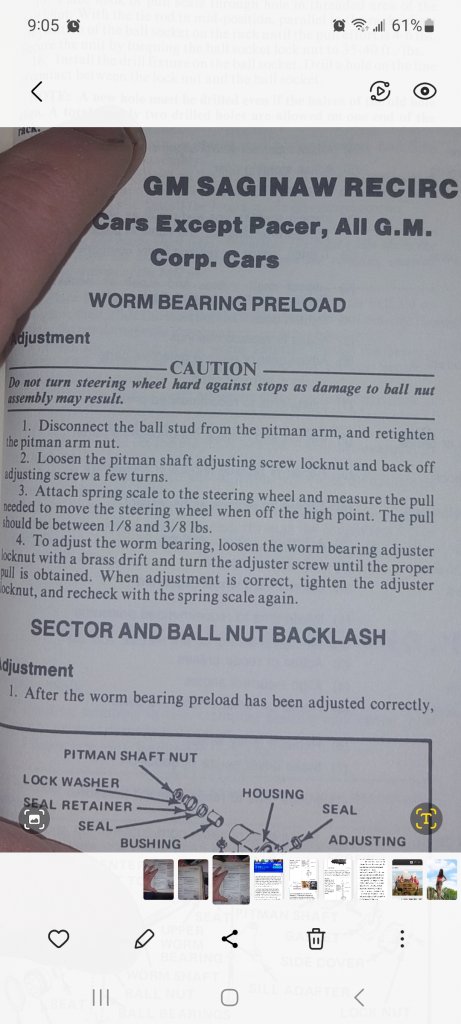

  • Screenshot_2023-11-22_210524.jpg
    80.8 KB · Views: 36

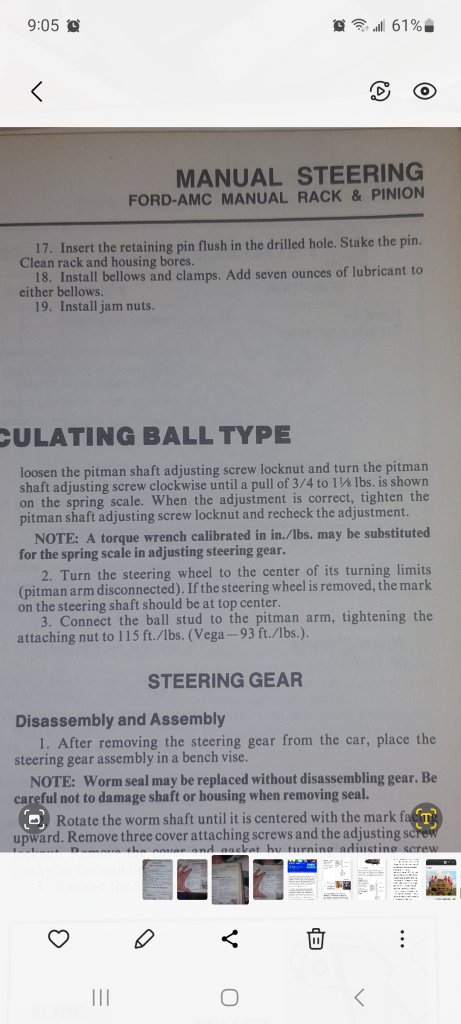

  • Screenshot_2023-11-22_210535.jpg
    76.8 KB · Views: 35

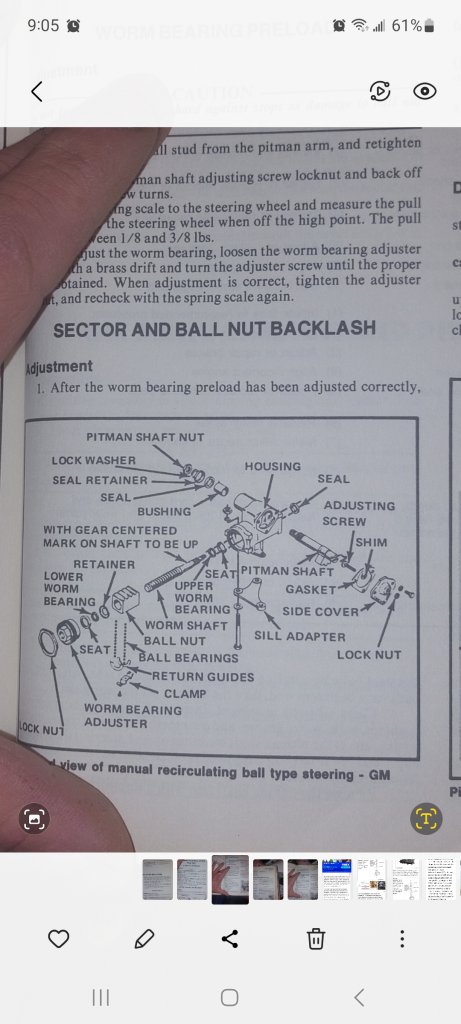

  • Screenshot_2023-11-22_210544.jpg
    76.9 KB · Views: 35

Rich77

Full Access Member
Joined
Oct 14, 2019
Posts
102
Reaction score
37
Location
SE Wisconsin
First Name
Rich
Truck Year
1977
Truck Model
C10 Scottsdale
Engine Size
400
Is there supposed to be a cap over the screw to cover the Allen head?


Turbo4whl

Supporting Member
Supporting Member
Joined
Oct 30, 2019
Posts
2,873
Reaction score
6,451
Location
Downingtown, PA
First Name
Wayne
Truck Year
1974
Truck Model
Jimmy
Engine Size
350
That allen adjuster screw is captured when the steering box is assembled.

See in the picture how the head of the adjuster screw is in the slot, on the end of the pitman shaft. Some steering boxes may have a longer adjusting screw with a cap nut, your box does not.

You must be registered for see images attach


KingKlung

Junior Member
Joined
Aug 17, 2020
Posts
3
Reaction score
5
Location
Gilbert,AZ
First Name
Mark
Truck Year
1978
Truck Model
K10
Engine Size
350
I recently replaced my steering box with a rebuilt box among other steering parts. After adjusting all the other parts I finally decided to adjust the steering box with an allen wrench . I only moved it by 1/16 turn. It worked but I turned it again by 1/16 turn. Its right on now.


TotalyHucked

Full Access Member
Joined
Feb 24, 2020
Posts
2,713
Reaction score
8,787
Location
Auburn, Georgia
First Name
Zach
Truck Year
1985
Truck Model
Sierra 1500
Engine Size
5.3
That's how it's supposed to look, no cover or anything. Don't touch it, don't adjust it. It's not an adjustment contrary to what so many people claim.


75gmck25

Full Access Member
Joined
Oct 13, 2016
Posts
2,037
Reaction score
1,833
Location
Northern Virginia
First Name
Bruce
Truck Year
1975
Truck Model
K25 Camper Special TH350 NP203
Engine Size
5.7
If you read the GM shop manual, it is definitely an adjustment point. However, there is at least one other adjustment you do before you touch that allen screw. It’s all explained in the repair manual.

And when you adjust the Allen screw the steering box should be disconnected from the steering linkage, and you should measure the drag with a spring scale to ensure you do not get it too tight.

I have also seen multiple posts where someone adjusted the play without following the manual, and they all seem to have survived. However, you need to be very cautious because in the worst case it could cause the steering box to unexpectedly bind, and possible lock up.
