Power only comes on intermittently

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

melueloff

Junior Member
Joined
Oct 10, 2023
Posts
11
Reaction score
9
Location
Windsor
First Name
Matthew
Truck Year
1988
Truck Model
v1500
Engine Size
5.7
I’ve been through most everything I can find on this problem, but mine seems to have a twist no one else has reported. Beast has run just fine off and on over about the last five years I’ve used him until now. Has been in pretty much constant service for the last two years. Sorry, it’s kinda long but I’m trying to be thorough.

About three weeks ago we went up into the mountains to put our trailer in storage for the winter. Did just fine until I dropped the trailer, pulled forward and turned him off. Went to start up again and it wouldn’t do anything. Power went out on the dash, little puff of electrical smoke up from the drivers engine side of the firewall somewhere. Tried the only thing I knew and tapped on the starter. Yes I know you’re not supposed to do that. Another time or two trying to start nothing happening and another puff or two of electrical smoke up on the drivers engine side of the firewall again, more tapping and he fired right up. Got back down into town, he worked for another two or three days and did it again. Tapped on the starter, he would start. Now, nothing. I turn the key, get the CEL and seatbelt light sometimes. Turn the key, dead. I pulled the starter and benched tested it, it’s fine. The battery just sitting is reading 12.3 V. I tried jumping the neg battery to a spot on the alternator to ground, nothing. I’ve checked the fuse links, they’re good. I’ve replaced the ignition module and that hasn’t helped. And I’ve put hands on every inch of wire I can.

But now, I found something different from everybody else. Turning the key may or may not light up the CEL and seatbelt light, but when it does there’s a relay click under the dash. It’s not outside in the engine compartment and it’s not the starter solenoid, but I can’t figure out what it is or where it is. I’ve been trying to find if there’s a relay that could be bad but I read electrical diagrams about as well as I read Greek. And the dash lights will come on, with the relay click on their own and go off on their own.

Laugh, point, laugh And point. It’s all good lol


75gmck25

Full Access Member
Joined
Oct 13, 2016
Posts
2,219
Reaction score
2,131
Location
Northern Virginia
First Name
Bruce
Truck Year
1975
Truck Model
K25 Camper Special TH350 NP203
Engine Size
5.7

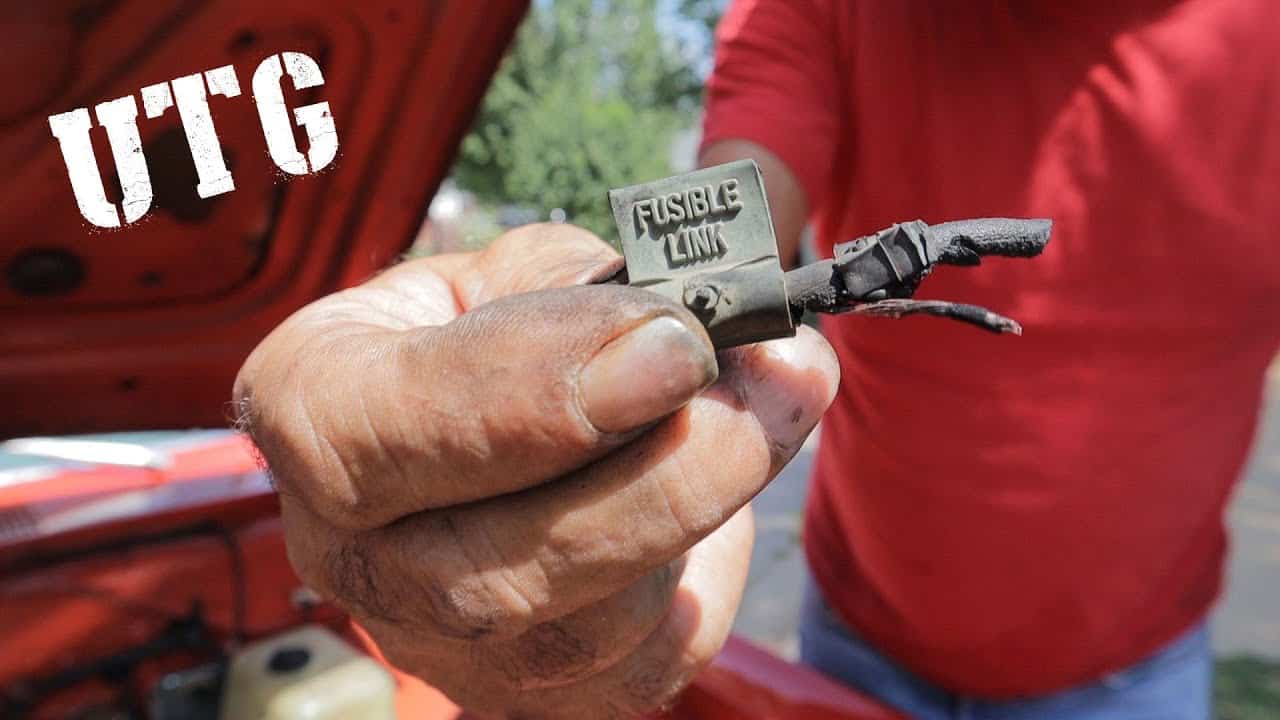

Your truck is much newer than mine, but in my truck it would be the fusible link that comes straight down from the power junction next to the brake booster. This 10 gauge wire with 14 gauge fusible link is what powers the dash and the HEI. If it has too much current it will start to burn through inside (the puff of smoke), but may keep enough integrity to power the dash. Usually it only takes a couple of “incidents” to burn through completely.

My fusible link started to fry/smoke when I installed battery cables backwards, but then worked fine later on. I didn’t realize how much it been weakened. Later on I was driving on the highway and turned on the headlights. The extra power draw and the extra amps burned completely through the link and I suddenly came to a stop on the highway. I spliced it temporarily, and then later replaced the link with a 14 gauge GM fusible link I bought at the parts store.


melueloff

Junior Member
Joined
Oct 10, 2023
Posts
11
Reaction score
9
Location
Windsor
First Name
Matthew
Truck Year
1988
Truck Model
v1500
Engine Size
5.7
75gmck25, I’ll go back and check those out again. I did continuity but not voltage. Maybe I’ll just replace all three of them to be on the safe side.


melueloff

Junior Member
Joined
Oct 10, 2023
Posts
11
Reaction score
9
Location
Windsor
First Name
Matthew
Truck Year
1988
Truck Model
v1500
Engine Size
5.7
We’ll, hours later, busted knuckles, more swearing than a battalion of Marines, and a sunburned leg, I went back to square one. Burnt out fusible. I had cut into it above where the wire itself had blown out. Replaced it more or less correctly and darn thing fired right up. Occam's Razor, “the simplest solution is almost always the best.” LOL


Scott91370

Full Access Member
Joined
Apr 2, 2018
Posts
983
Reaction score
1,001
Location
Burleson, Tx
First Name
Scott
Truck Year
1985
Truck Model
Sierra1500
Engine Size
350
Is there not a "real fix" to these fusable links that won't burn the truck to the ground?

I've been lucky and haven't had any issues (I should not have said that!!!) but so many do. And from what I understand you can't just put a regular fuse in its place.


YakkoWarner

Full Access Member
Joined
May 29, 2024
Posts
135
Reaction score
142
Location
Central Texas
First Name
Wolf
Truck Year
1989
Truck Model
R2500 Suburban
Engine Size
454
Is there not a "real fix" to these fusable links that won't burn the truck to the ground?

I've been lucky and haven't had any issues (I should not have said that!!!) but so many do. And from what I understand you can't just put a regular fuse in its place.

I don't know - but I would love to understand the reasoning about why just using an inline fuse won't work (seems like the concept is the same, too much current and it pops protecting from fire).


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
5,280
Reaction score
8,373
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
I don't know - but I would love to understand the reasoning about why just using an inline fuse won't work (seems like the concept is the same, too much current and it pops protecting from fire).
The surge current on a fusible link is completely different. Theses are not real numbers just examples,all fusible links would not have the same values. But let's say you had a fusible link that would take a 50 amp surge but burn with 30 amps continuous, you would have to replace it with a 50 amp fuse to keep it from popping,but a 50 amp fuse would be too much to protect the circuit over an extended period.

Last edited:

Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
5,280
Reaction score
8,373
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
Is there not a "real fix" to these fusable links that won't burn the truck to the ground?

I've been lucky and haven't had any issues (I should not have said that!!!) but so many do. And from what I understand you can't just put a regular fuse in its place.
A fusible link won't burn your car to the ground. Replacing one with plain wire or a fuse might though.


Jgonick

Full Access Member
Joined
Jan 12, 2017
Posts
280
Reaction score
361
Location
West Texas
First Name
Joel
Truck Year
1985
Truck Model
K10
Engine Size
350
i always liked this explanation-

"Fuses blow relatively faster than fusible links, providing quicker protection to the electrical system. Fusible links, on the other hand, are more tolerant of short-duration faults and can withstand higher current surges for a short period of time."


YakkoWarner

Full Access Member
Joined
May 29, 2024
Posts
135
Reaction score
142
Location
Central Texas
First Name
Wolf
Truck Year
1989
Truck Model
R2500 Suburban
Engine Size
454
i always liked this explanation-

"Fuses blow relatively faster than fusible links, providing quicker protection to the electrical system. Fusible links, on the other hand, are more tolerant of short-duration faults and can withstand higher current surges for a short period of time."

OK that actually is an explaination that I can comprehend the concept of. With all the other electrical gremlins I've encountered in my truck, I would not be surprised to find some of the links bypassed or removed. Do any of the manuals have a comprehensive list of which circuits have fusible links, and even more importantly WHERE they are (or should be) located)??


Jgonick

Full Access Member
Joined
Jan 12, 2017
Posts
280
Reaction score
361
Location
West Texas
First Name
Joel
Truck Year
1985
Truck Model
K10
Engine Size
350
Do any of the manuals have a comprehensive list of which circuits have fusible links, and even more importantly WHERE they are (or should be) located)
Wiring diagram LINK

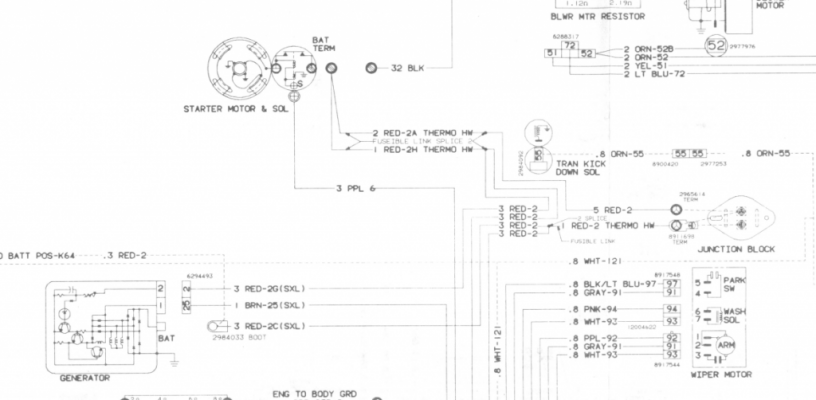

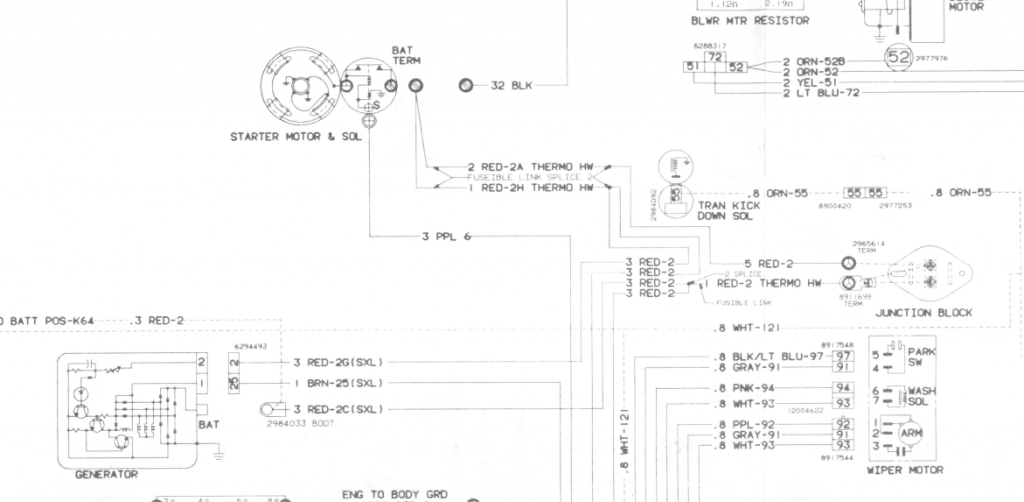

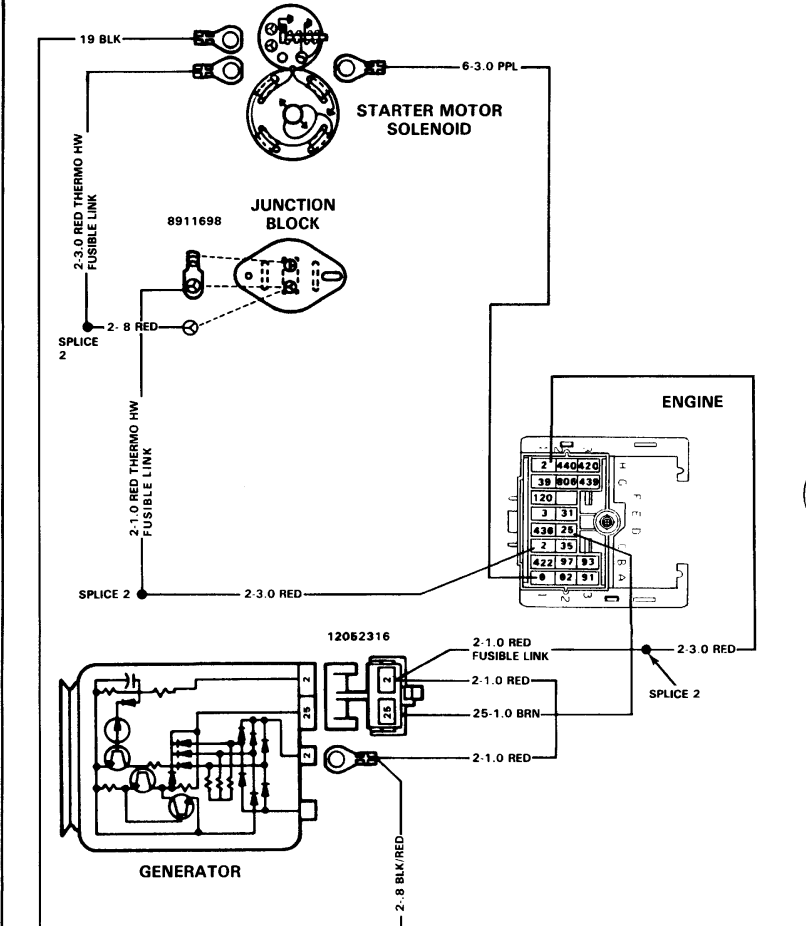

Attached is an example for 89 & 84 "Fusible link" - usually on starter, junction block -alternator

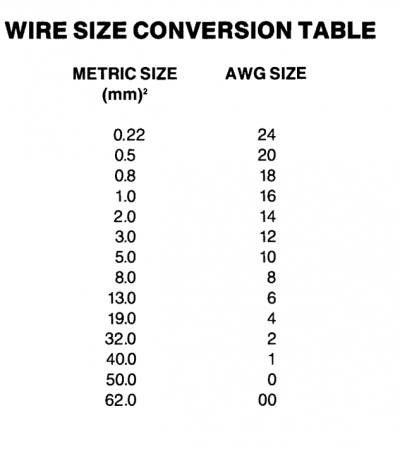

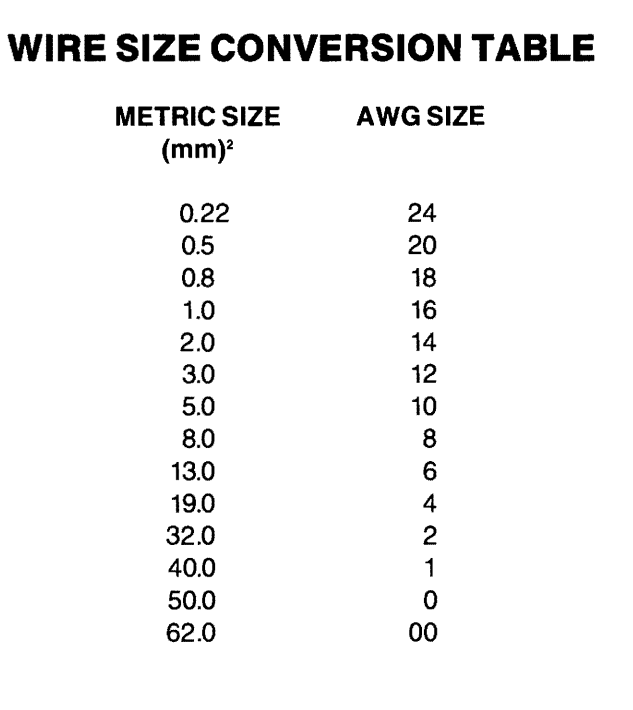

In example- wire size is metric- 84 the first number is wire size & 89 it is the second number.

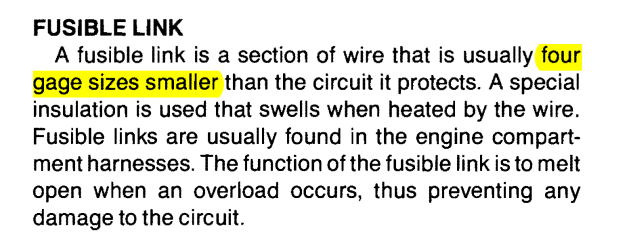

Also attached is other helpful info.


Attachments

  • wire_size.png
    52.8 KB · Views: 21
  • flink2.png
    80 KB · Views: 20
  • 84.png
    258.3 KB · Views: 27
  • 89.png
    156.9 KB · Views: 21
Last edited:

Scott91370

Full Access Member
Joined
Apr 2, 2018
Posts
983
Reaction score
1,001
Location
Burleson, Tx
First Name
Scott
Truck Year
1985
Truck Model
Sierra1500
Engine Size
350
I don't know - but I would love to understand the reasoning about why just using an inline fuse won't work (seems like the concept is the same, too much current and it pops protecting from fire).

A fusible link won't burn your car to the ground. Replacing one with plain wire or a fuse might though.

I get that @Ricko1966 but as mentioned above by YakkoWarner, why? You may or may not know - I definitely don't and won't pretend to.

As he says, I (we) would love to understand why it won't work and why it was designed the way it was. You have to admit it's annoying to have wiring protected by thinner wiring that isn't as easy to replace as a fuse if something goes wrong.

But if the explanation that Jgonick gave is true then why would a fuse burn the truck to the ground?
[insert thoroughly confused emoji here]


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
5,280
Reaction score
8,373
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
I get that @Ricko1966 but as mentioned above by YakkoWarner, why? You may or may not know - I definitely don't and won't pretend to.

As he says, I (we) would love to understand why it won't work and why it was designed the way it was. You have to admit it's annoying to have wiring protected by thinner wiring that isn't as easy to replace as a fuse if something goes wrong.

But if the explanation that Jgonick gave is true then why would a fuse burn the truck to the ground?
[insert thoroughly confused emoji here]
Okay the reason a fuse might or a piece of plain wire might. A fusible link will take a surge of say 50 amps and not blow but will blow pulling a continuous 30amps through it. So if you wanted to replace the fusible link with a fuse you would have to use a 50 amp fuse to accommodate for the sirge rating,but 50 amps is too high for continuous as all the other wires will overheat. The fuse doesn't have the capability of a high surge rate and a lower continuous rate to pop. A fuseable link ,the jacket is fire resistant its not just regular wire,so when it burns it won't set your car on fire. When your 16 gauge wires in your dash overheat and burn because you have a 50 amp fuse instead of a 30 amp fusible link,the dash wires are not in a fireproof jacket. So now you get fire.


Snoots

Full Access Member
Joined
Jan 23, 2013
Posts
8,577
Reaction score
17,402
Location
Georgia
First Name
Roger
Truck Year
1973
Truck Model
Jimmy Sierra
Engine Size
350 w/203
Welp, OP bailed 10 months ago. Point is, DORMAN makes fusible links so, unless you just have an insatiable urge to melt/fry your harness, there ya go.
