Fuseblock / Bulkhead Pics and Comparisons

[HotRodPC]

For your compariosn...
It is looking like the 81 is very similar to your 84 block. I noticed the 81 and your 84 block both have dual turn signal / flasher relays, where the 85 and 86 appear to have a single flasher relay that likely works both the flashers and the turn signals.

I entirely expected the 91 Fuse block to be different than the rest.

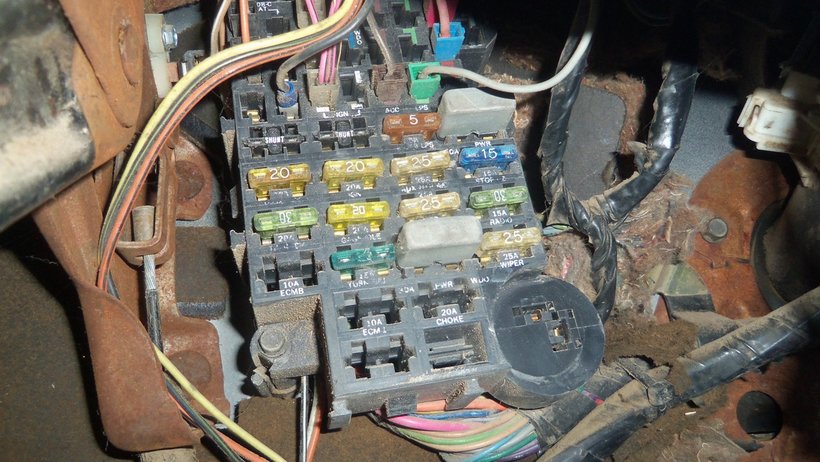

Pic #1 85 K10 Silverado 6.2 Diesel Auto Truck

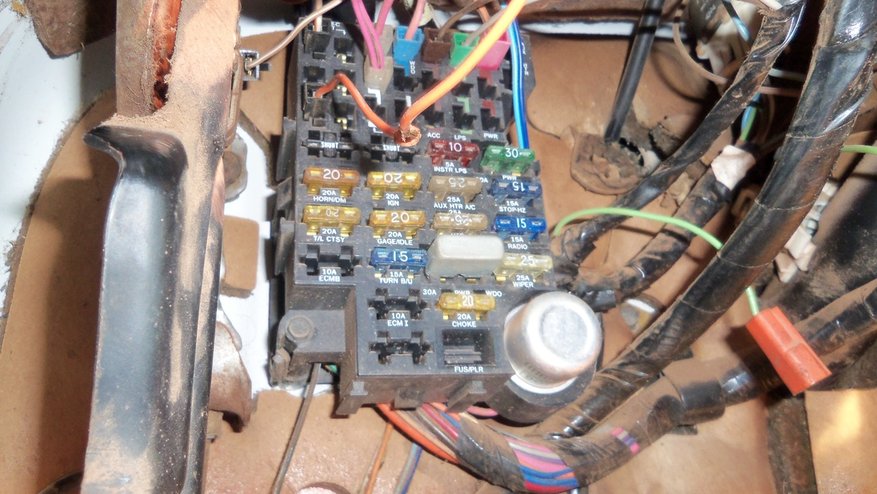

Pic #2 85 K1500 Sierra Grande (Silverado Equal) 305 Auto Gas Truck
Pic #3 86 C20 Silverado 454 Auto Gas Truck

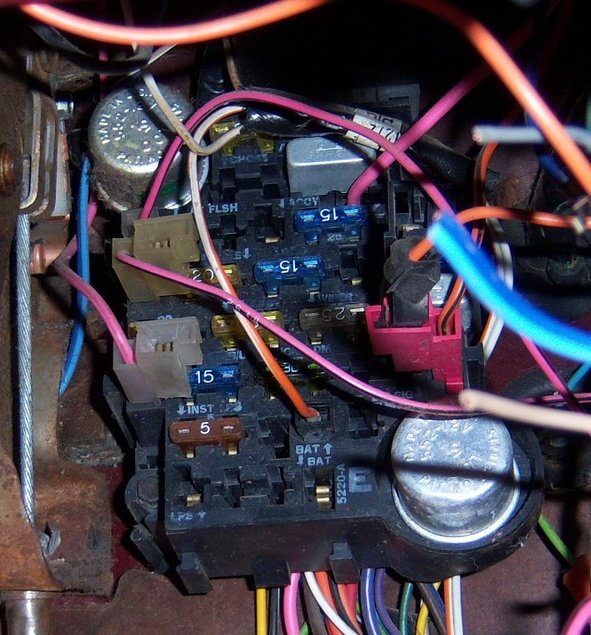

Pic #4 81 C10 Silverado 305 Auto Gas Truck

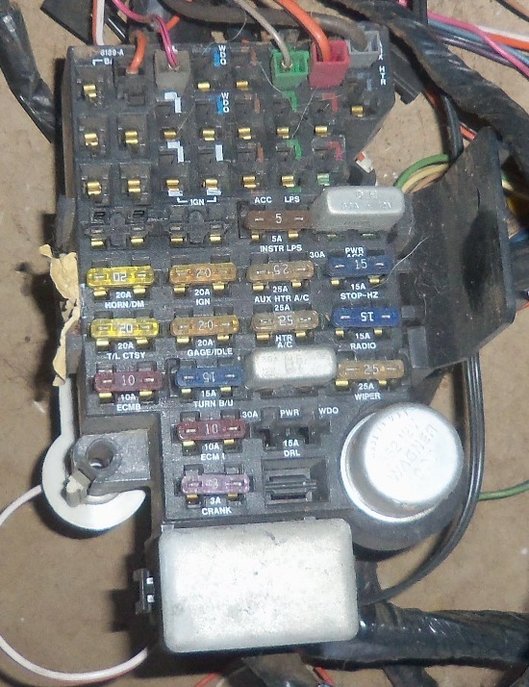

Pic #5 91 C10 Siverado 350 Auto Gas Surburban



[dougbert]

Interesting. (to quote Spock)

I mentioned earlier that the wiring diagrams for 1984, have only ONE flasher (lower right) in the diagram. I am going to check the 81 diagram..........Found a 1982 diagram and it has 2 flashers on the panel

Getting more pictures of actual panels would be great for comparisons

BTW I like the look of the 91 panel, fuses on the lower part and tap points on the upper part, cleaner appearance IMHO



[HotRodPC]

Interesting. (to quote Spock)

I mentioned earlier that the wiring diagrams for 1984, have only ONE flasher (lower right) in the diagram. I am going to check the 81 diagram..........Found a 1982 diagram and it has 2 flashers on the panel

Getting more pictures of actual panels would be great for comparisons

BTW I like the look of the 91 panel, fuses on the lower part and tap points on the upper part, cleaner appearance IMHO

I too liked the 91 better. Seems more organized and making more sense.

Makes me wonder if your 84 fuse block maybe isn't an 84. I really expected it to look alot like the 85 and 85 blocks with the single flasher, but it has 2 like the 81.



[CSFJ]

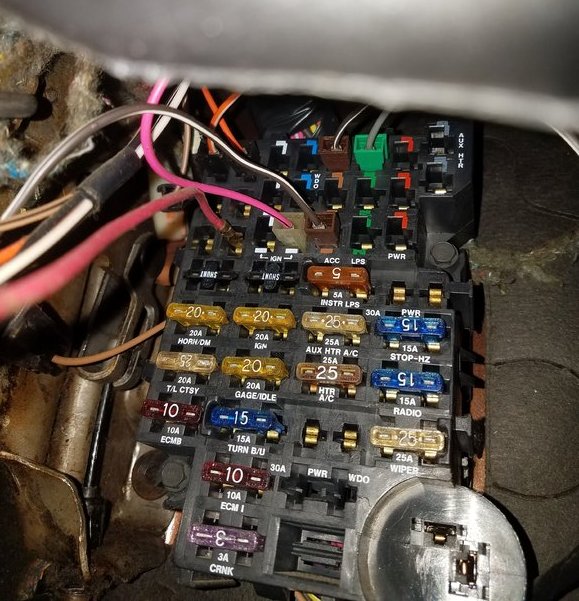

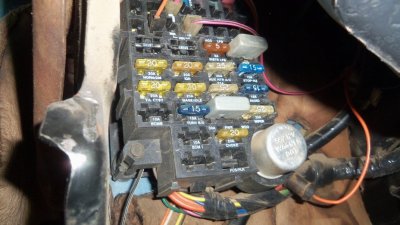

1987 v20 350 tbi 700r4 auto trans.

Pic Rotated, My neck feels better already, HRPC



[CSFJ]

Fwiw, the block in my 84 d30 has a flasher relay in oposite corners. I'll post a pic when I get hom this afternoon.



[chengny]

Here's how the fuse locations are layed out in a 1984 block:

You must be registered for see images attach

And the back side - showing the various circuit feeds in and out:

You must be registered for see images attach

And an actual image:

You must be registered for see images attach



[HotRodPC]

Here's how the fuse locations are layed out in a 1984 block:

You must be registered for see images attach

And the back side - showing the various circuit feeds in and out:

You must be registered for see images attach

@chengny Do you by any chance have these same diagrams of an 85 year model? On my 85 K10 that was OEM 6.2 diesel, I'm wondering if I used my engine bay harness off of my 85 C20 350 Gas truck if that would make any wiring changes I need to make by default to run a gas engine. I'm thinking not much is different with exception the Injection pump wire will now be a coil wire.



[chengny]

Dwgs for 1985.

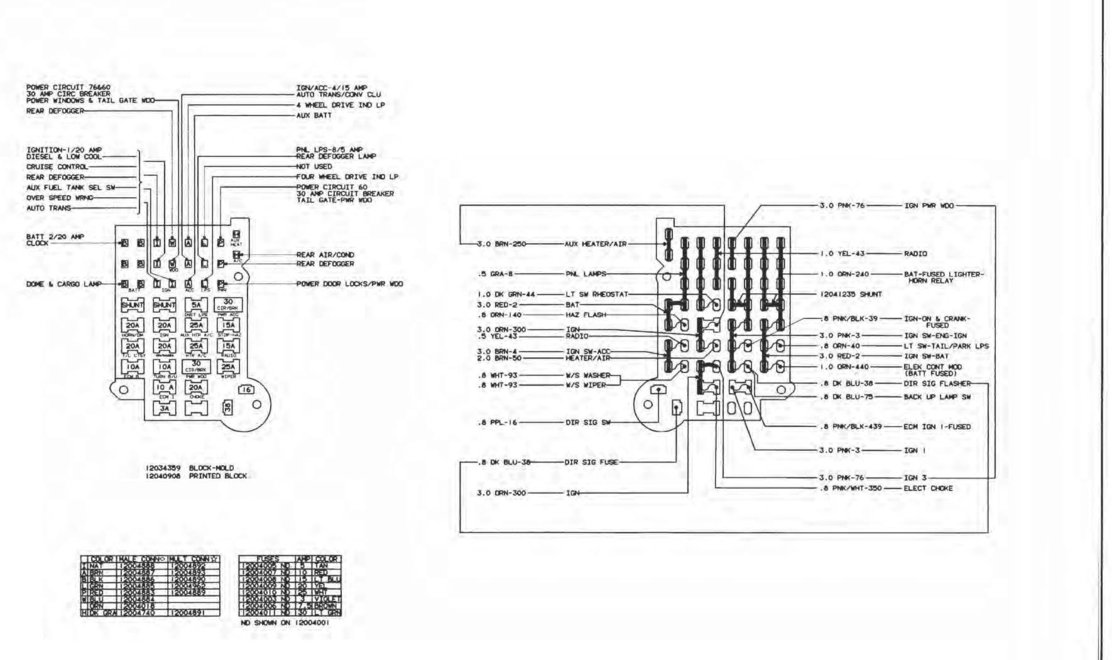

Fuse block layout and connections:

You must be registered for see images attach

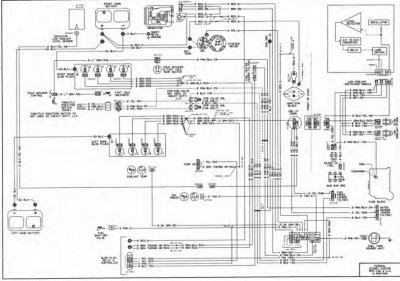

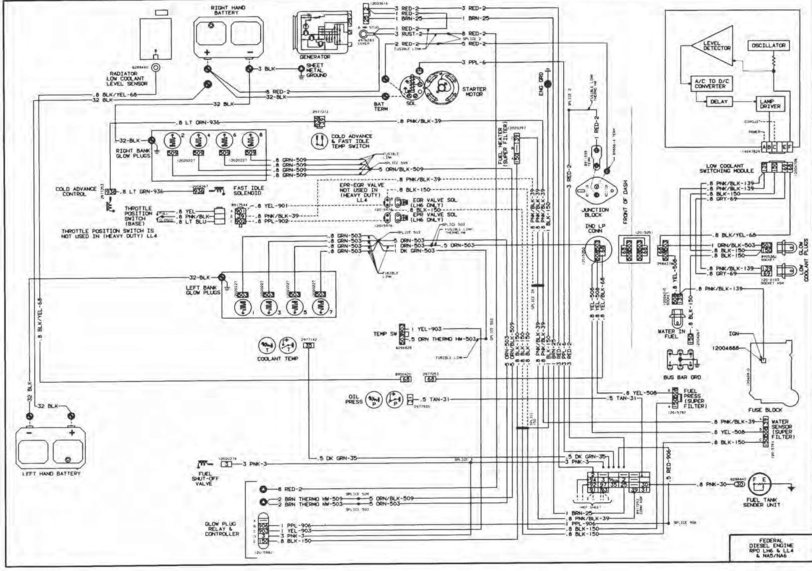

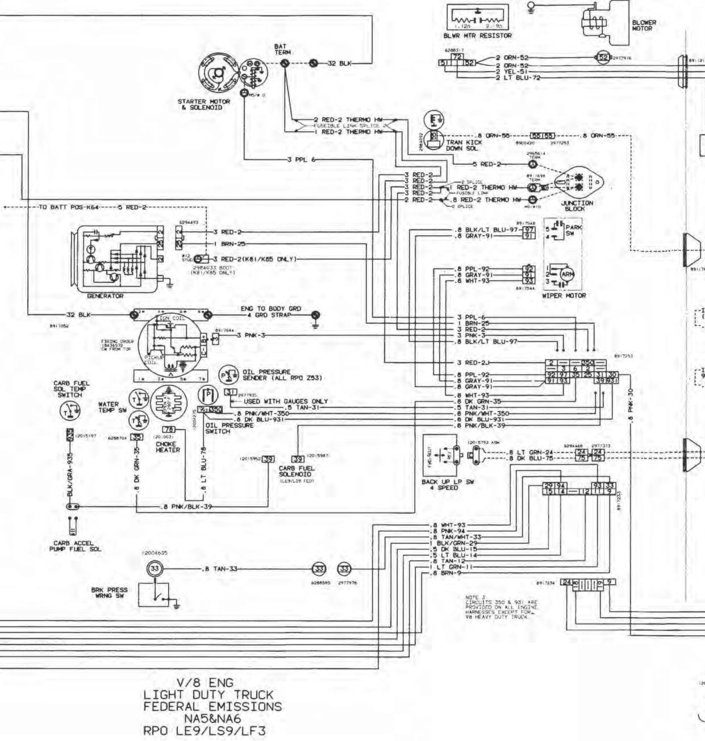

Engine wiring for 6.2 Diesel & Light Duty V8 gas:

You must be registered for see images attach

You must be registered for see images attach

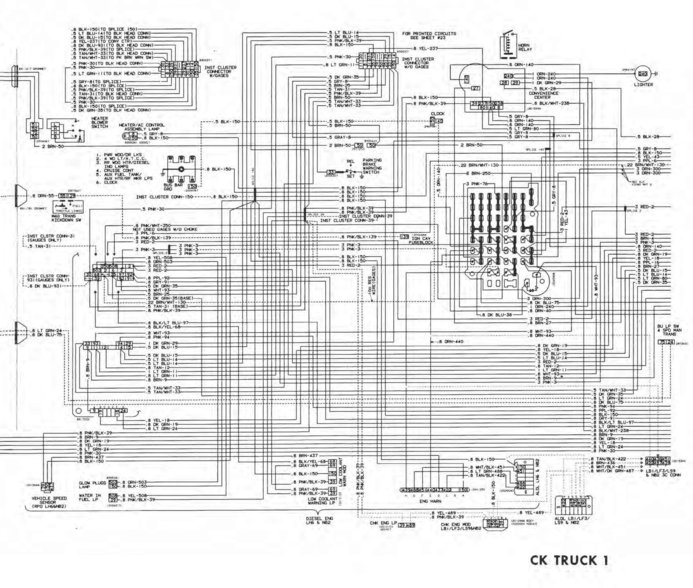

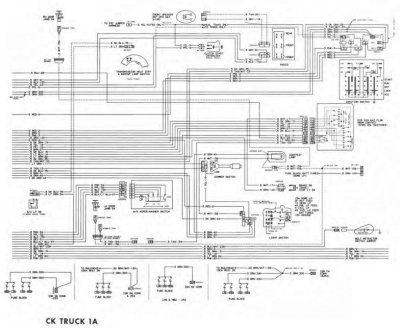

Cad Interior Wiring (1 & 2):

You must be registered for see images attach

You must be registered for see images attach



[HotRodPC]

So that pretty much confirms what I suspected and was hoping. The IGN and Diesel is all on the same lug. So IGN to dizzy for gas, To INJ Pump for Diesel. I don't have to change ****. Just pull the GAS underhood harness off the C20 and plug it into the block.
The Glow Plug Controller is it's own stand alone harness so it'll be eliminated. Then I'll swap my C20 Fuel Gauge in too so it don't say Diesel Fuel Only or Unleaded Fuel Only just to be politically correct.



[HotRodPC]

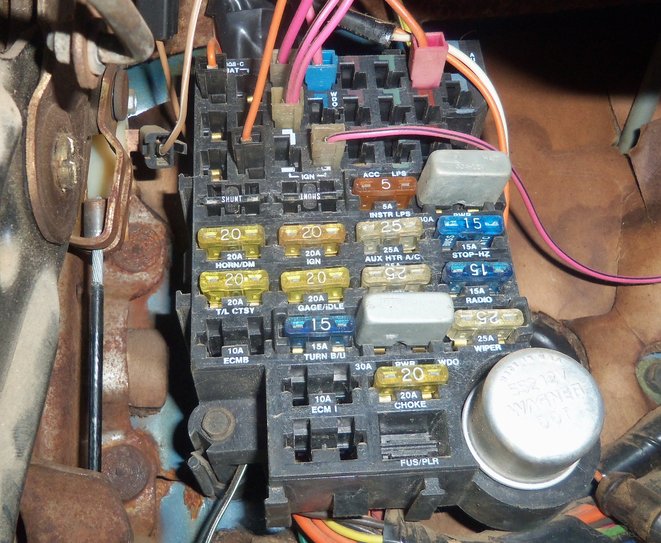

Better pic of an 86 C20 Silverado Gas 454 Auto Fuseblock.



[HotRodPC]

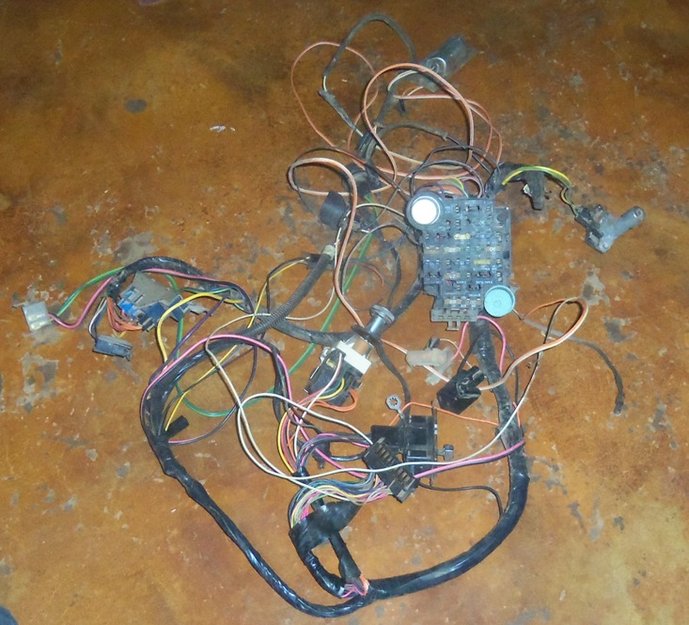

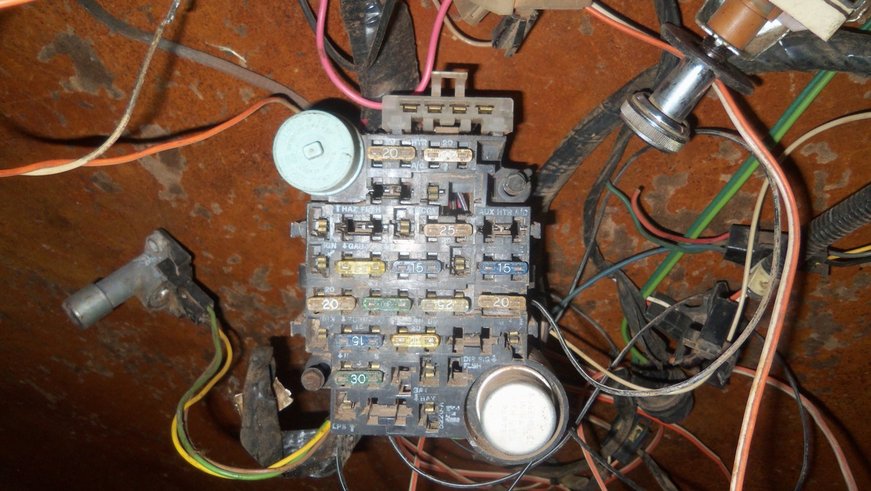

Fuseblock and interior wiring harness including wiper, headlight and dimmer switches, dome, ashtray and cargo lighting etc, from an 81 GMC LE9 305 with Th350 Lock Up Transmission. AC, No Tilt, No Cruise, No Power Locks or Windows.


Anyone need more pics of a harness for this 81 GMC C10, lemme know. I think I have every wire and harness to the this truck.



[cowboytaylor]

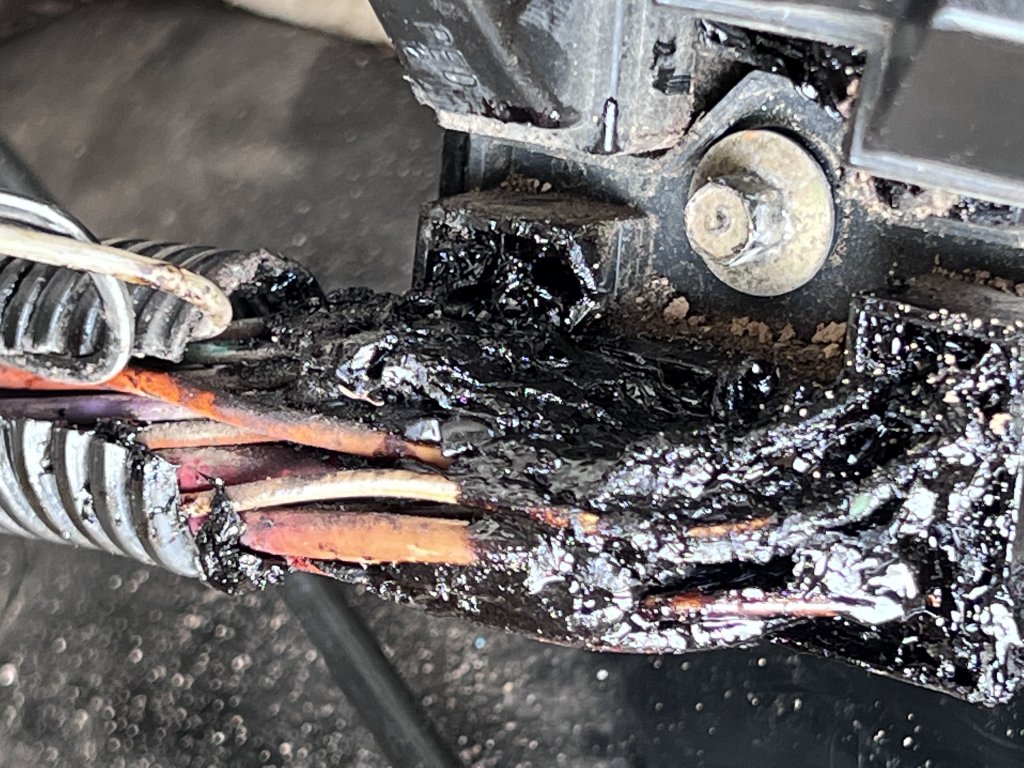

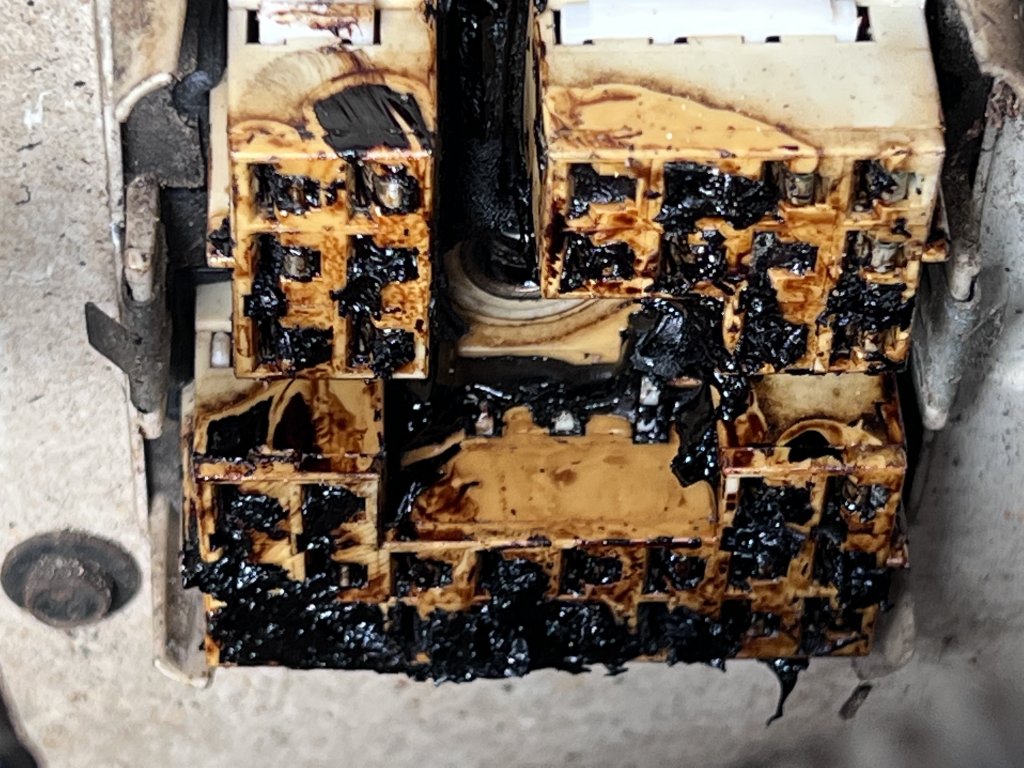

What is the name of this part? I’ve had several issues lately I had a wire pop inside the junction box and melted a couple wires in the harness and I tried splicing them but I’m not having any luck with finding the name of the part or anything and need to get this changed soon

You must be registered for see images attach



[cowboytaylor]

What is the name of this part? I’ve had several issues lately I had a wire pop inside the junction box and melted a couple wires in the harness and I tried splicing them but I’m not having any luck with finding the name of the part or anything and need to get this changed soon



[Snoots]

'Bulkhead connector' is what I've always heard it referred to.
