Brake and fuel line routin help

[Ryder73]

Hey guy putting the brake and fuel lines back on my 85 GMC Sierra classic 1/2 ton.
The pictures that I took of where the lines go and where they bolt to the frame got deleted by accident by my kid .
I am putting back all new lines.

Just wanted to know if someone could post some pictures of there frame showing where the lines and brackets go would be awesome.

Thanks in advance for any help

Confused
Adam



[Don5]

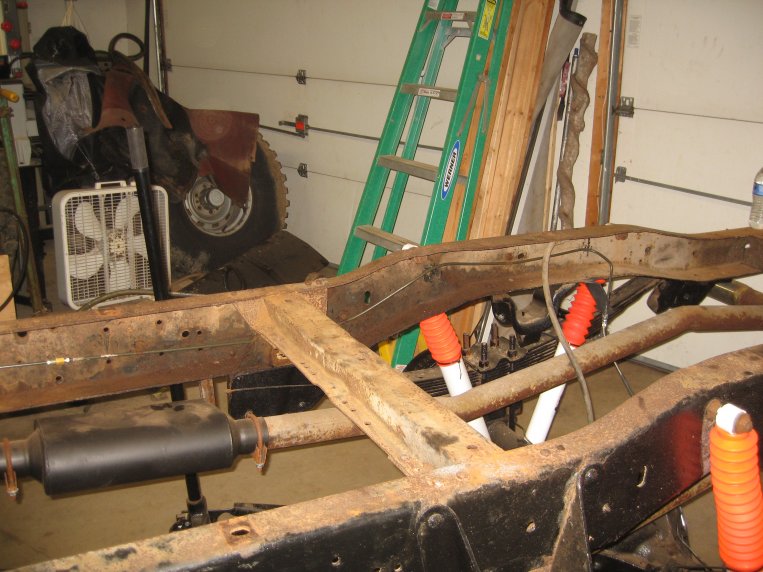

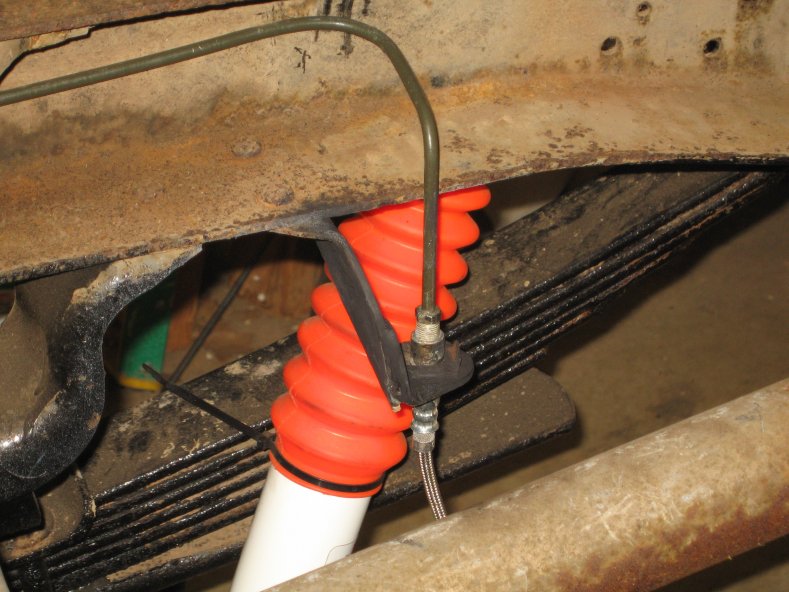

Here is a pic of the inside frame rail on my 1979 longbed. I replaced the rear brake line all the way from the prop valve clear to the stainless flex line.

At the back of the cab there is 2 clips, One for brake line and one for fuel line. Also look at the curve in the frame right behind the front tire. The brake line and fuel lines are stacked up. IIRC there are two clips pretty close together right in there. Good luck and I hope this helps.



[Georgeb]

Does anyone know how similar the 87 was? If its close I can dive under it and snap some pics for ya!



[Don5]

Does anyone know how similar the 87 was? If its close I can dive under it and snap some pics for ya!

I honestly don't know. I posted my pics as somewhat of a guide. I don't know if it is any help though due to the age difference of the trucks.

Ryder, I would look on the inside of your frame for any clean spots that might signify the location of the clips. Just a thought..



[Ryder73]

Brake lines

Yes a 87 should be very similar. 84-87 were basically the same in that way. It awesone if you send a few more pics. Especially where the fuel lines join in with the brake lines.

Thanks to all that replyed so far.

This site is awesome



[Georgeb]

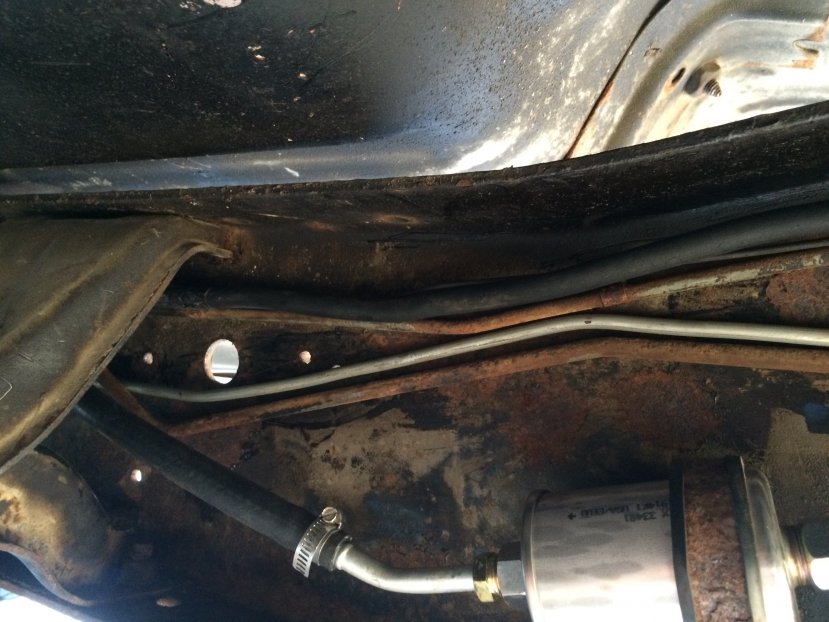

Here you go



[Georgeb]

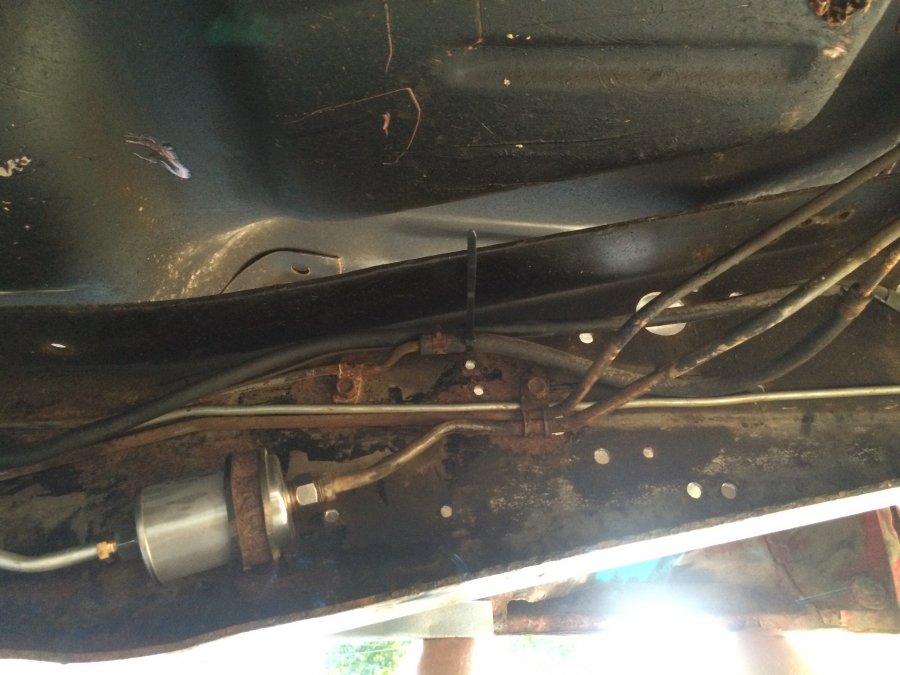

Take 2



[Georgeb]

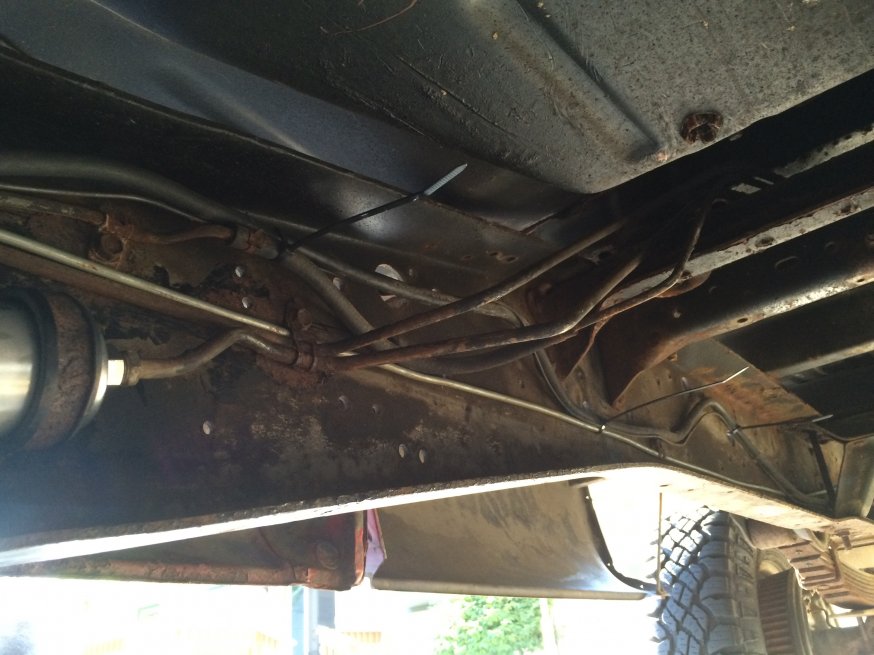

Dont mind my fuel line mess. You will also see my cable for the lift gate.



[Ryder73]

Georgeb you are the MAN. Thank you so much I really appericate it.

Cheers
Adam



[Georgeb]

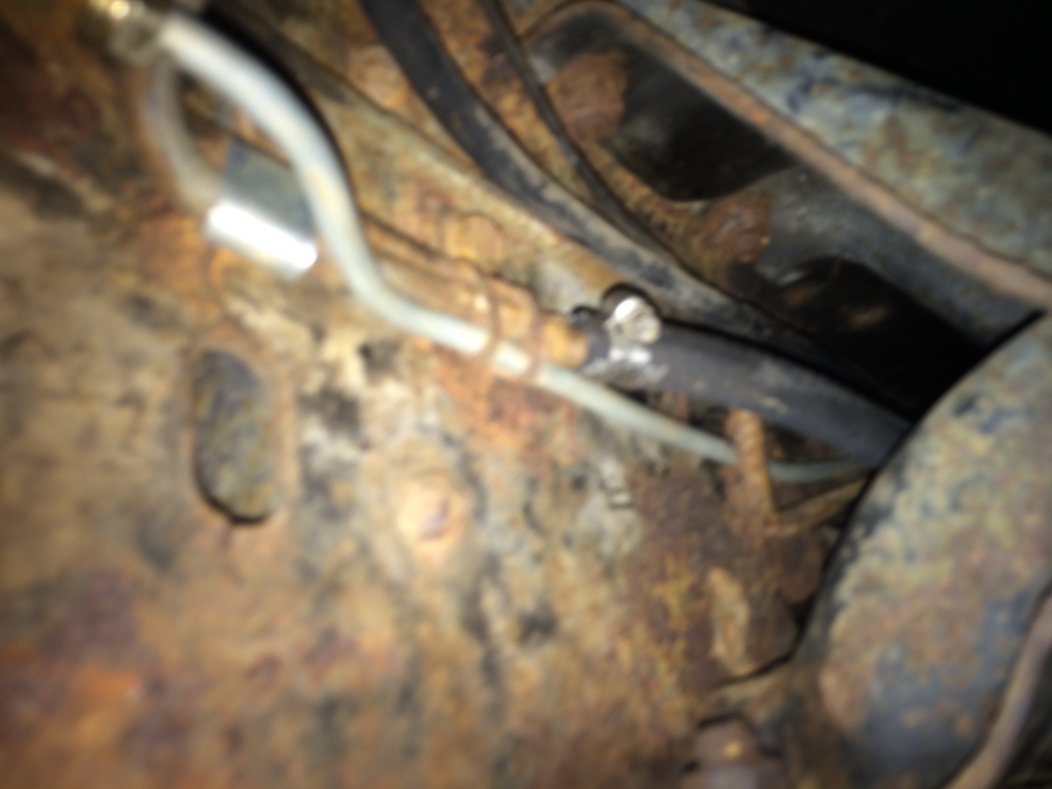

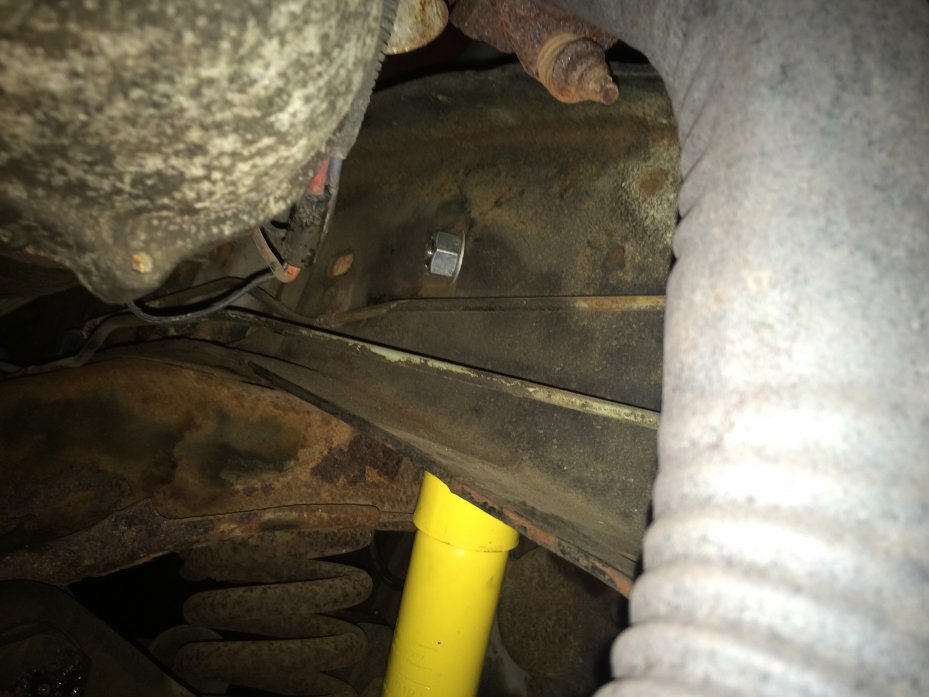

Sorry anout the quality its dark out now.



[Georgeb]

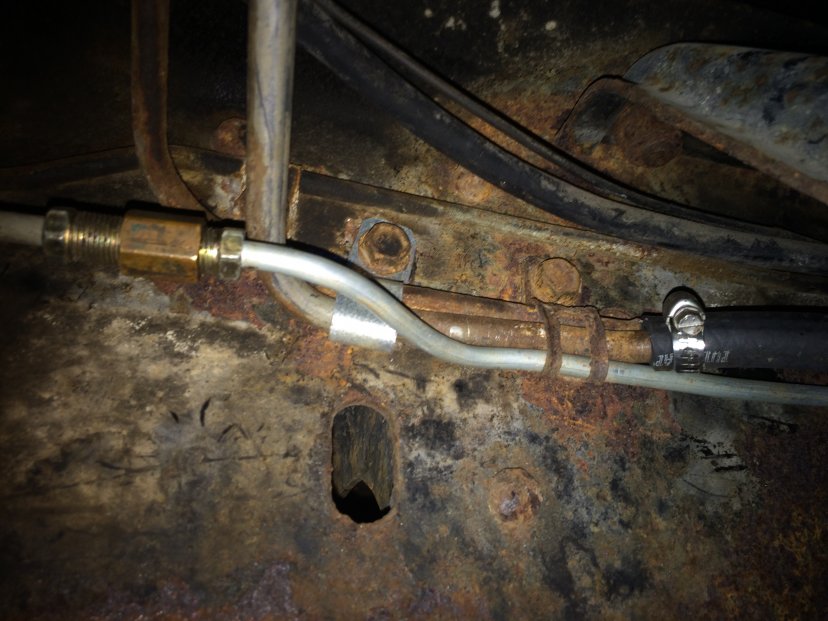

Pic two



[Georgeb]

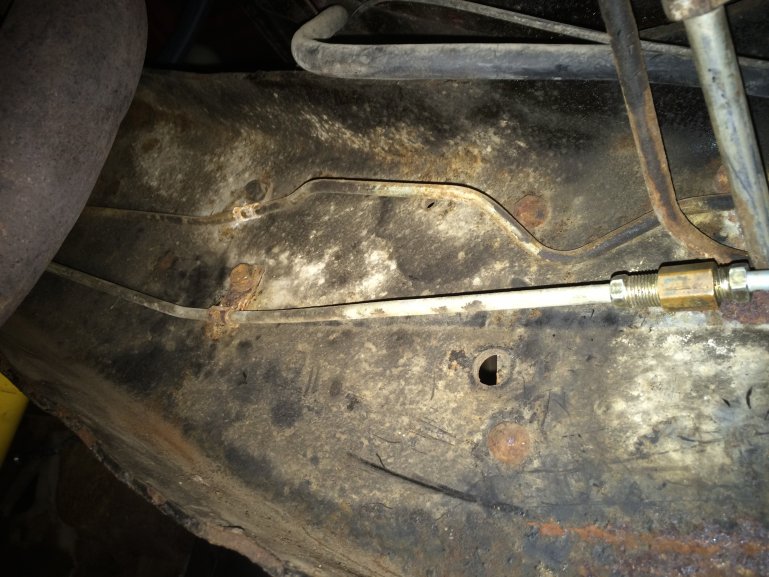

Pic three



[Georgeb]

Pic four
