85 k1500 head reinstall need pics!

[jetdoc]

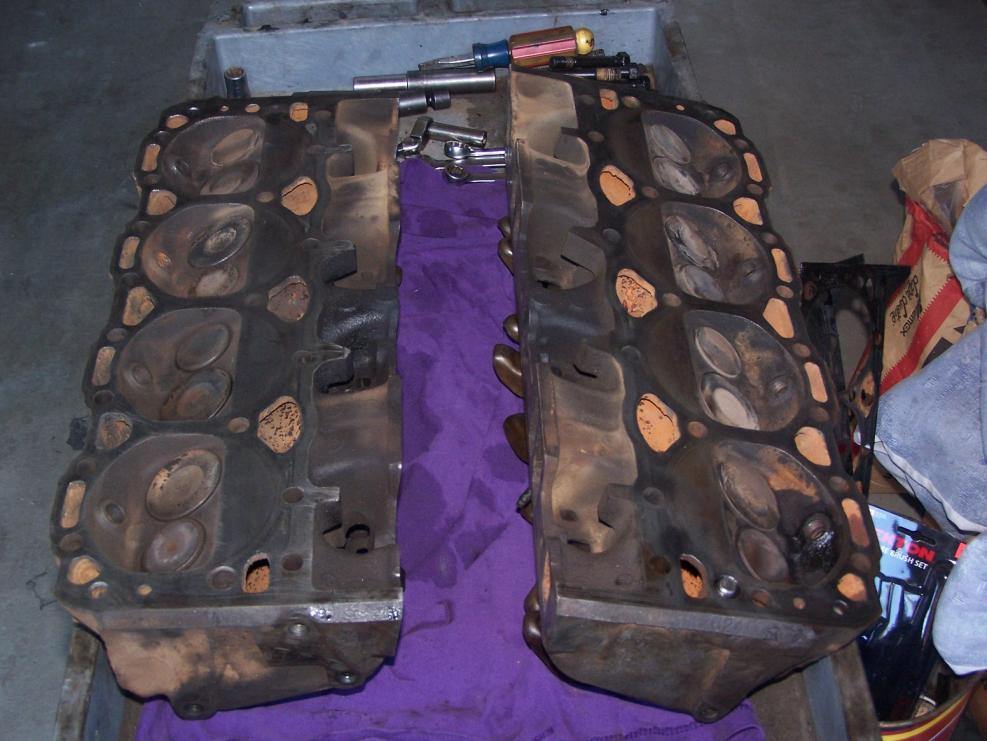

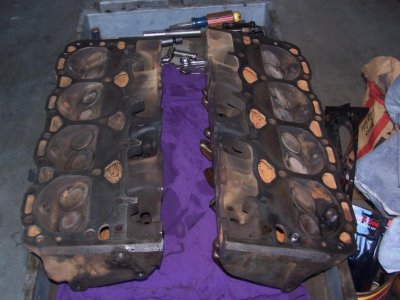

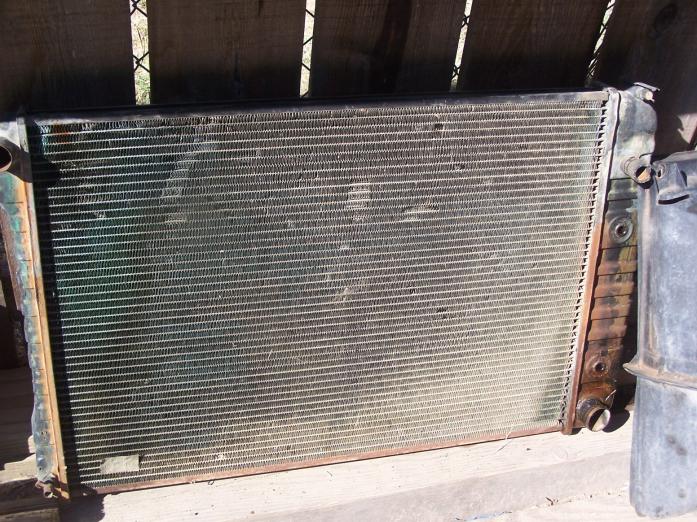

Hey guys just changed out the head gasket on my kids 85 took all vacuum and intake bolts with out marking all the locations of course,my memory isnt as good as use to be! it got cal smog **** everywhere if you could post some pics with the same set with the air cleaner off i would appreciate it! pics of the culprit the radiator leak the one i was going to get around to fixing!!! pic of my helper marley.



[HotRodPC]

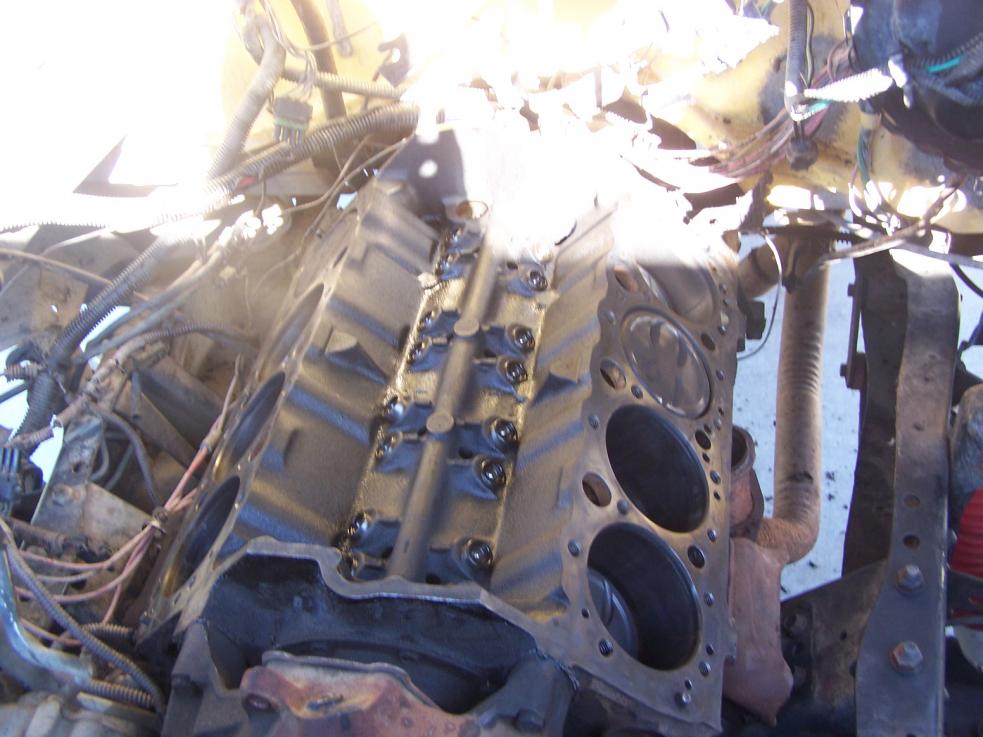

That is sure one clean looking motor as far as the internals. I assume you must have cleaned it up?

I do believe pics of ***** is illegal on this forum. I'll let it ride just this once though.

Are you more or less just looking for a vac diagram for the smog hoses??? Anyone that has any CA vac diagrams or pics, please post up to help jetdoc out.



[jetdoc]

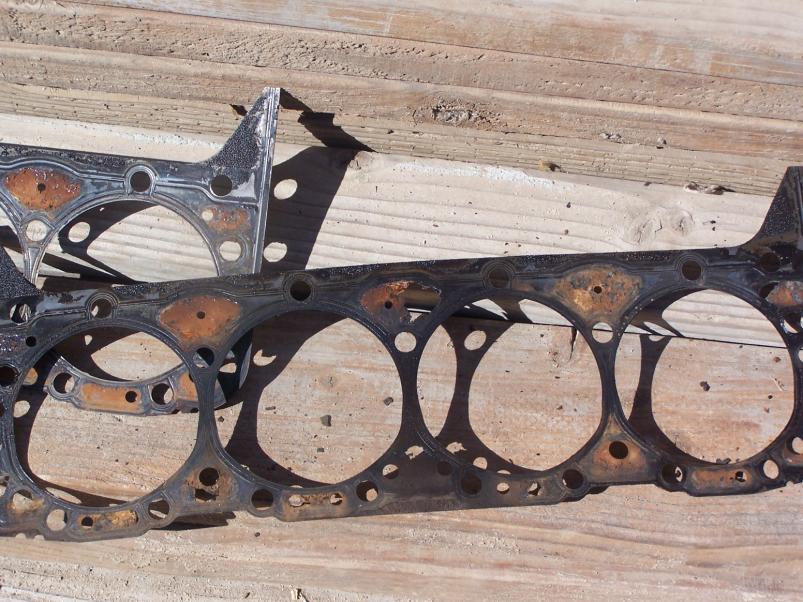

Thanks hot rod yea i cleaned it as good as i could with out tearing it down as far as pics i have a vac chart and have been able to piece most of it back together i have a set of wires on the rt side i think go over the ex manifold but i have it under don't think that's right ? heres a pic of the gaskets i hope this is the problem ill try to keep the ***** pics to a minimum!



[89Suburban]

I swore I replied to this post last night?



[bucket]

My '84 Has Cali emissions, it's a 305 though. I can take any pics if you need something specific.
