Wiring diagram needed

[HotRodPC]

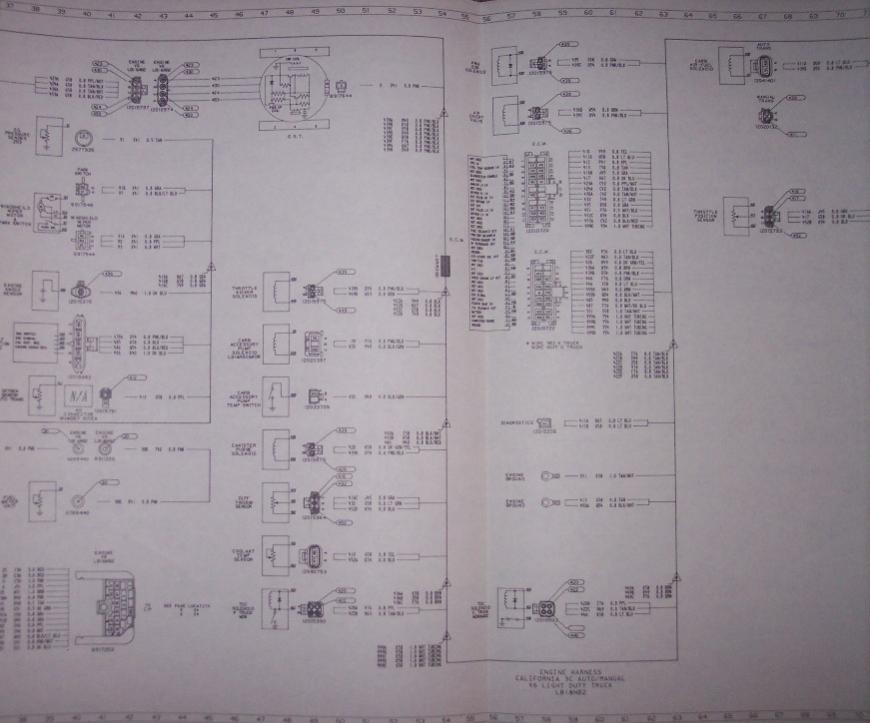

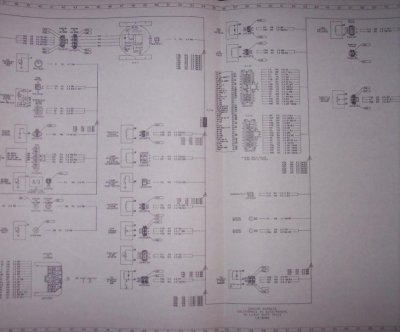

Test Photo. Can you read **** like this? This is with my cam. Not sure if my scanner works and it'll be hell to hook up now.



[HotRodPC]

That doesn't really look legibe Dawg. You can tell what it is, but that's about it.



[HotRodPC]

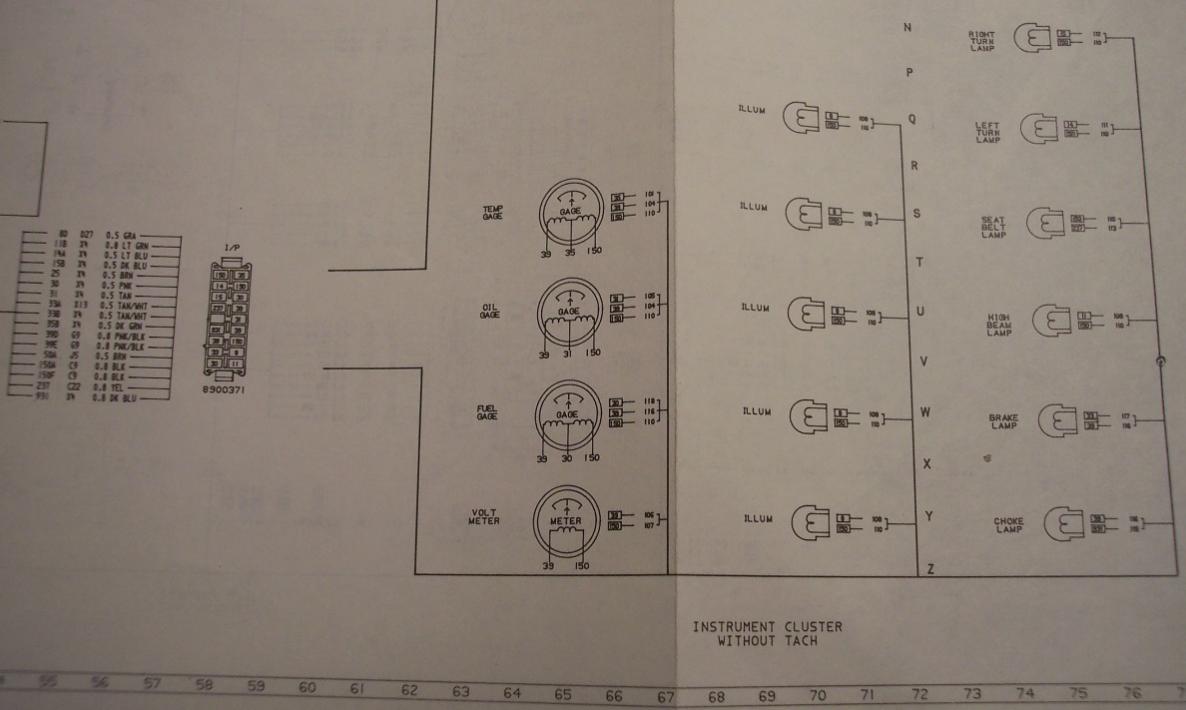

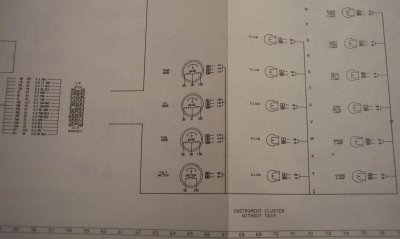

Can you read this one?? This is best I can do.



[HotRodPC]

I think you can read that one if you click the bar and make it a full size photo. Do that, then print it out. Maybe you can even enlarge it a bit. I cropped the hell out of just that secton to get it big as I can.



[oneluckypops]

DAMN Still cant make it out



[oneluckypops]

The connecter should have 18 spaces in it, They are numbered 1-9 on one side then 10-18 on the other side. Can you just read the diagram and tell me what color wires and what they go to are for each terminal?

My connector I have now is:

1. Lt. Green
2. Black
3. Tan
4. Pink/BLK Stripe
5. Purple
6. Empty
7. Empty
8. Dk. Green
9. Grey

OTHERSIDE

10. Lt. Blue/BLK Stripe
11 Pink/BLK Stripe
12. Black/WHT Stripe
13. Tan/WHT Stripe
14. Pink
15. Yellow
16. Dk. Blue
17. Lt. Blue

All terminals are brass terminals EXCEPT #18 it has bare aluminuim???



[RetroC10Sport]

See below.



[RetroC10Sport]

The connecter should have 18 spaces in it, They are numbered 1-9 on one side then 10-18 on the other side. Can you just read the diagram and tell me what color wires and what they go to are for each terminal?

My connector I have now is:

1. Lt. Green = high beam
2. Black = ground
3. Tan = oil pressure sending unit
4. Pink/BLK Stripe = hot in run, bulb test and start
5. Purple = fuel sending unit
6. Empty
7. Empty
8. Dk. Green = coolant temp sender
9. Grey = illumination

OTHERSIDE

10. Lt. Blue/BLK Stripe = to DRAC module
11 Pink/BLK Stripe = hot in run, bulb test and start
12. Black/WHT Stripe = I think this is for the SES light
13. Tan/WHT Stripe = Brake light warning
14. Pink = This one, I am not sure?
15. Yellow = seat belt light
16. Dk. Blue = right turn signal
17. Lt. Blue = left turn signal

All terminals are brass terminals EXCEPT #18 it has bare aluminuim???

Okay.



[oneluckypops]

Okay.

Ok I went ahead and strained my eyes really hard and with a tester my findings are real close to yours.

1. Lt. Green High Beam Indicator
2. Black Volt -
3. Tan Oil Pressure
4. Pink/BLK Stripe Volt +
5. Brown Charge Indicator Light
6. Empty
7. Empty
8. Dk. Green Temperature sending unit
9. Grey Illumination

10. Lt. Blue Left Turn Indicator
11. Dk. Blue Right Turn Indicator
12. EMPTY
13. Yellow Fasten Seatbelt
14. Pink Fuel sending unit
15. Tan/WHT Stripe Parking Brake Light
16. Brown/WHT Stripe Service Engine Soon
17. Pink/BLK Strip Fuel +, SES +, Parking Brake +,
18. Lt. Blue/BLK Stripe Speedometer



[HotRodPC]

Sure glad you guys got it. I have the damn diagram, with 2.0 reading glasses on, still need a magnifying glass.



[HotRodPC]

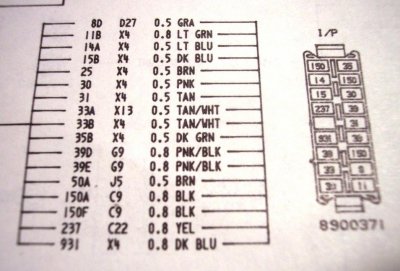

I know you can see this, but its of the IP connector only on an 86 CK Pick Up.



[HotRodPC]

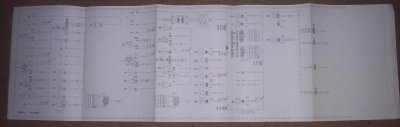

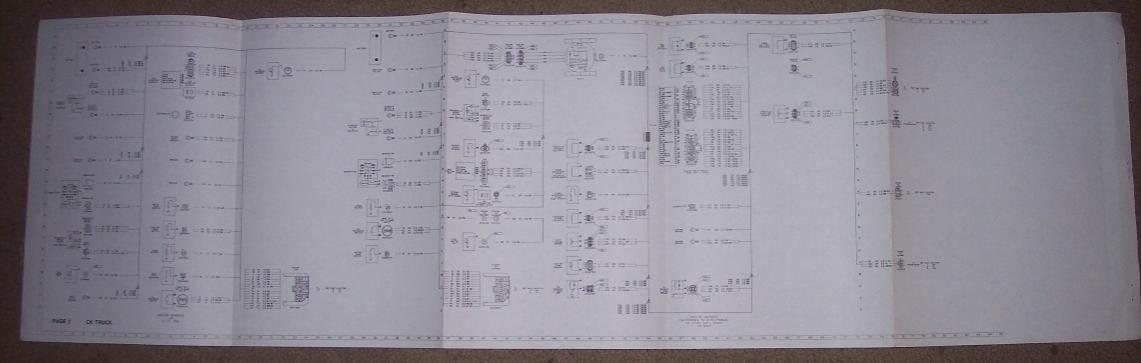

Here is what makes this such a bitch. Each page is a fold out of 5 pages long. Here's a sample of what each page looks like. And you see how small it is at that. Makes it tough to scan or copy to post here.

I also wish I knew for certain if the 84-86 harness is the same. I beleive they are. 84 was the transition year for the multifuncion switch and the dimmer switch moving to the column, but 87 was different due to TBI. It would make sense that 84-86 would be the same.



[foamypirate]

Neener fuggin Neener, I got the GM 1986 for 10-30 Series CK Pick-UPs, G Vans and P model Wiring Diagrams in Tri Fold pages. Prolly what you need and I think will work for 84-86. Just a matter of scanning the section you need.

That's what I've got, but mine are for 87. Ignition wiring is probably the same though, I'd imagine.

I'll scan em' up during lunch if I have time.



[PATCHES]

2 words:

Here is what makes this such a bitch. Each page is a fold out of 5 pages long. Here's a sample of what each page looks like. And you see how small it is at that. Makes it tough to scan or copy to post here.

I also wish I knew for certain if the 84-86 harness is the same. I beleive they are. 84 was the transition year for the multifuncion switch and the dimmer switch moving to the column, but 87 was different due to TBI. It would make sense that 84-86 would be the same.

Panaramic Photo



[HotRodPC]

Welcome aboard Travis. That might be worth a try.
