Transfer Case Shifter Rebuild Help Needed

Discussion in 'Transfer Case' started by dougbert, Apr 17, 2017.

  1. dougbert

    dougbert Full Access Member

    Age:
    61
    Posts:
    422
    Likes Received:
    9
    Joined:
    Nov 2, 2015
    Location:
    5535 feet in Utah Mountains
    First Name:
    doug
    Truck Year:
    1984
    Truck Model:
    K1500/nv4500/np241c/33x12.50x16/3.08 Gears
    Engine Size:
    5.3L - 2002 Silverado, rebuilt top end
    Request for help here on the 4wd shifter

    I took it apart some time ago and packaged all the parts and am cleaning them up, but is there a thread on how to proper install and lube this guy? I looked at the transfercase thread herein, but nothing on the shifter, etc

    thanks

    dougbert

  2. HotRodPC

    HotRodPC Administrator Staff Member

    Posts:
    38,959
    Likes Received:
    170
    Joined:
    Aug 29, 2010
    Location:
    OKC, OK
    First Name:
    HotRod
    Truck Year:
    85
    Truck Model:
    Silverado K10 to K20 Conversion
    Engine Size:
    6.2 to Gas???
    Some of these questions will get lost in your build thread @dougbert , so I've moved it to it's own thread in the right category. Not only that, some people don't look at build threads. Hopefully this will get some more attention this way.

  3. bucket

    bucket Super Moderator Staff Member

    Posts:
    12,972
    Likes Received:
    67
    Joined:
    Aug 3, 2010
    Location:
    Usually not in Ohio
    First Name:
    Andy
    Truck Year:
    '77, '79, '84, '88
    Truck Model:
    K5, K30, C10, K20 Burb
    Engine Size:
    350-454
    Is it the 208 style shifter? I don't recall them being complicated at all, just a shift lever mounted to a pivot plate, and a rod?

  4. dougbert

    dougbert Full Access Member

    Age:
    61
    Posts:
    422
    Likes Received:
    9
    Joined:
    Nov 2, 2015
    Location:
    5535 feet in Utah Mountains
    First Name:
    doug
    Truck Year:
    1984
    Truck Model:
    K1500/nv4500/np241c/33x12.50x16/3.08 Gears
    Engine Size:
    5.3L - 2002 Silverado, rebuilt top end
    thanks HR and bucket

    Probably a 208. This came from a auto tranny to sm465 4 speed conversion vehicle I bought. I sold the 465 and the transfercase (probably the 208) since I was putting in a LS, NV4500 and a np241c all into a 1984 K1500

    So the 4wd shifter is probably from the np208 era. I found in my trusty haynes repair manual for chevy pickups 81-87 a diagram on the np203, np205 and np208. although it didn't show the shifter for the 208 it did for the other two and they don't match what I got. The diagram did show the rod with the 90 degree short part, and the nut and other items. I have ordered a Haynes repair manual for 88-93 chevy pickup manual for reference. It should cover the np241c for me.

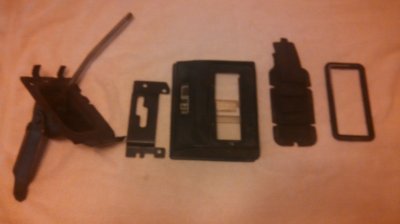

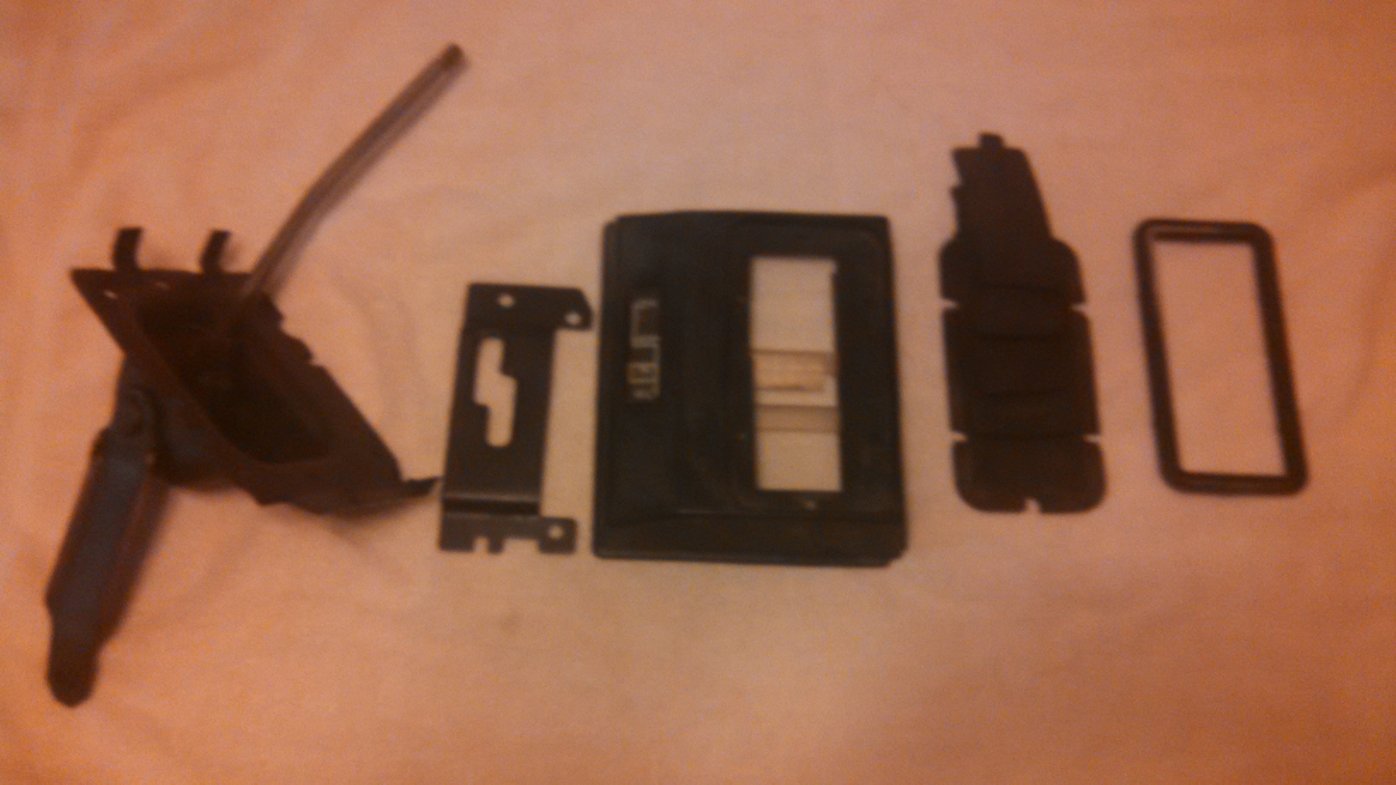

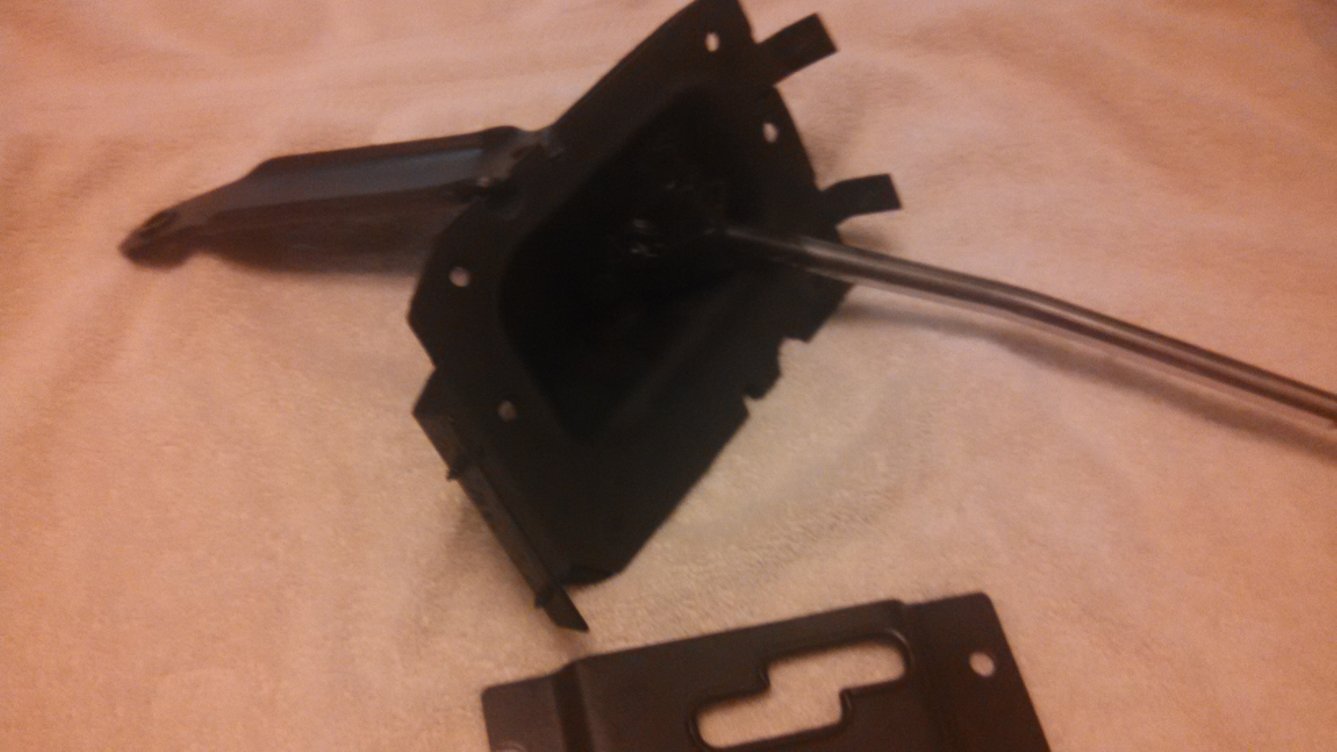

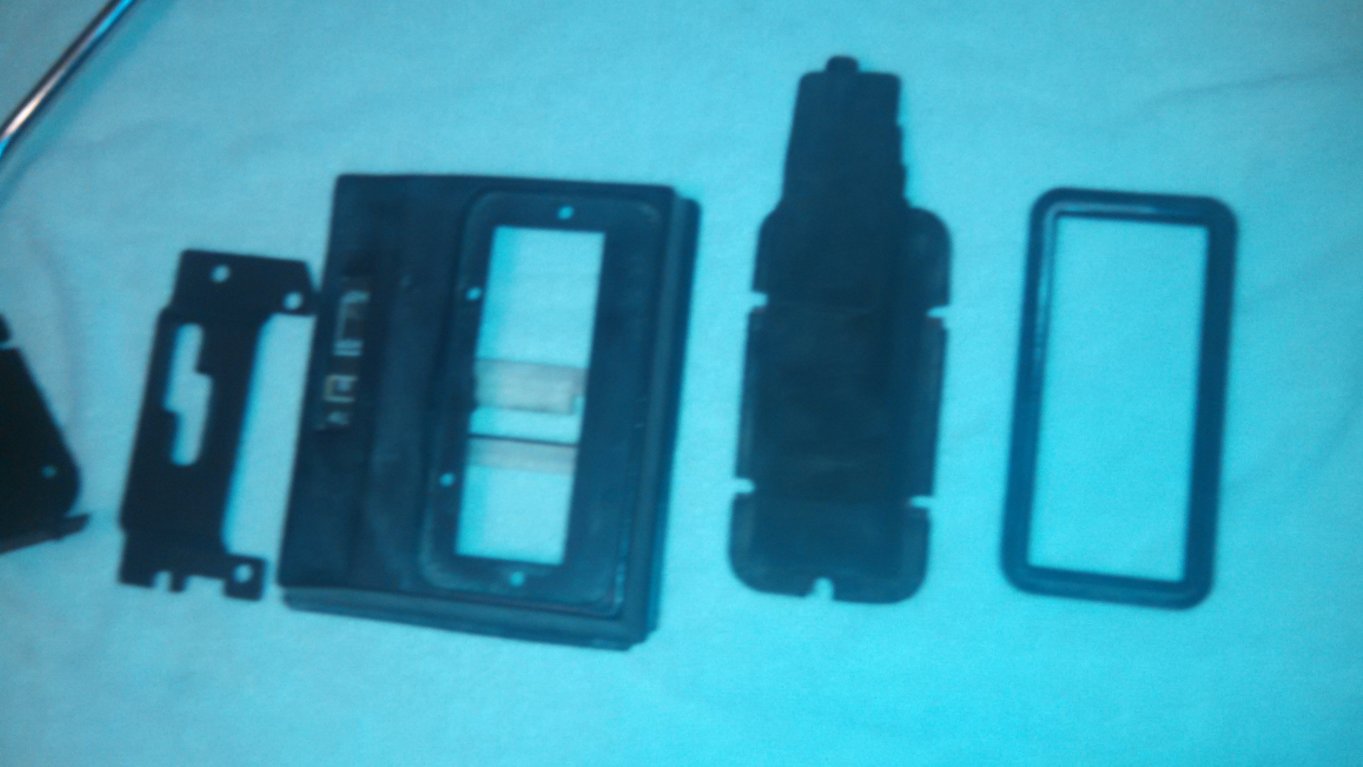

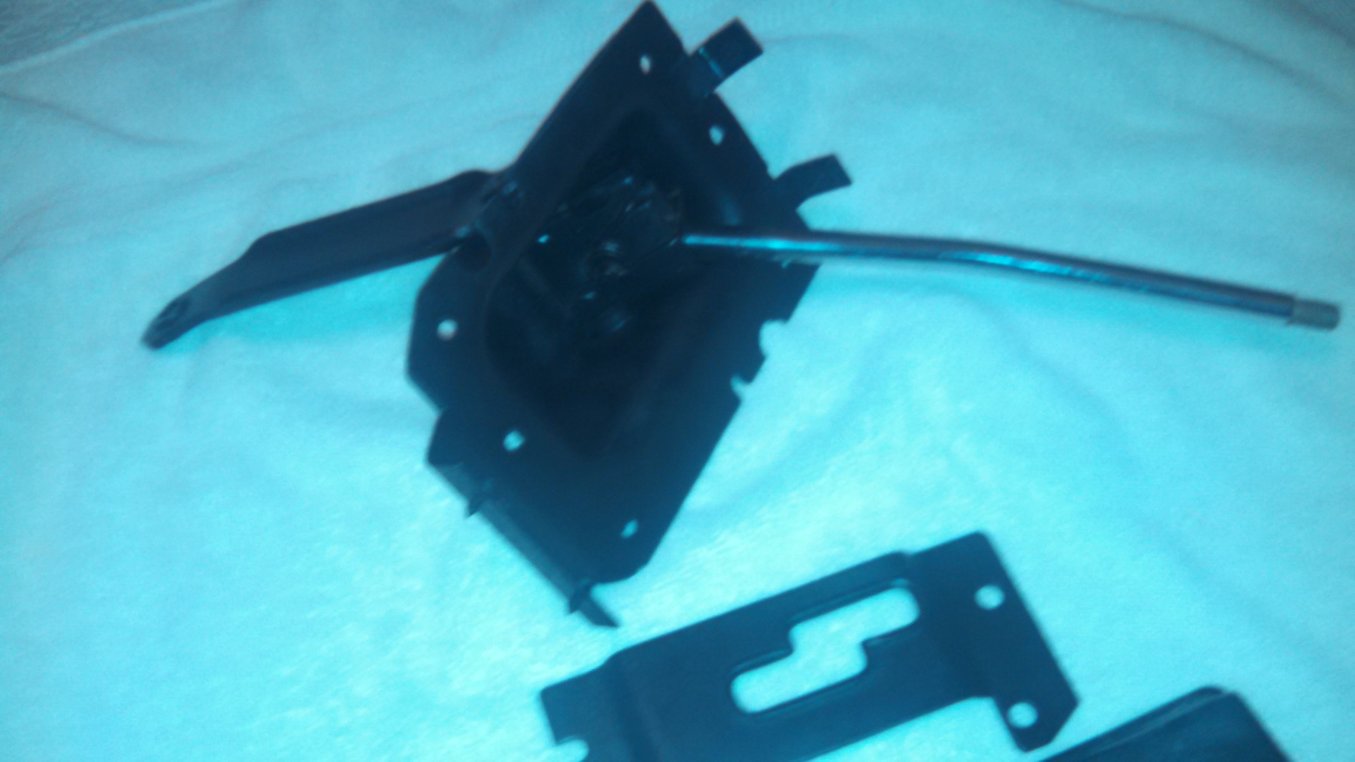

    below are the pics for what I have for the shifter. I know I have the linkage parts between the shifter and the TC - just where in the various totes I have I don't know.

    I did clean up and paint the shifter itself and the guide plate, the 2 left items in the 1st pic. I like cleaning and painting old parts to give them some more life, even if they only have surface rust.

    dougbert


    Attached Files:

    Last edited: Apr 19, 2017
  5. dougbert

    dougbert Full Access Member

    Age:
    61
    Posts:
    422
    Likes Received:
    9
    Joined:
    Nov 2, 2015
    Location:
    5535 feet in Utah Mountains
    First Name:
    doug
    Truck Year:
    1984
    Truck Model:
    K1500/nv4500/np241c/33x12.50x16/3.08 Gears
    Engine Size:
    5.3L - 2002 Silverado, rebuilt top end
    it was dry enough to crawl under the truck today to see if the linkage was there and it was save for a washer and cotter pin, so things will be easier than I first thought.

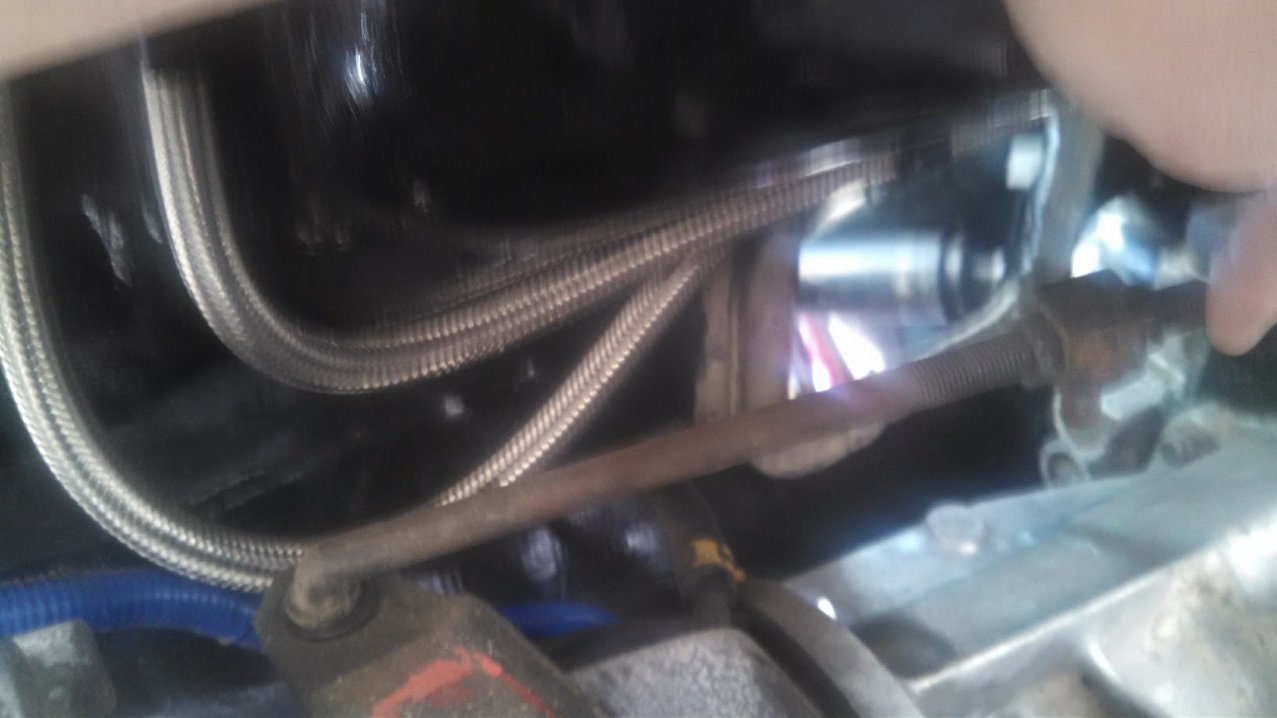

    pic of the linkage rod attached to the TC gear selector from under the truck


    Attached Files:

  6. dougbert

    dougbert Full Access Member

    Age:
    61
    Posts:
    422
    Likes Received:
    9
    Joined:
    Nov 2, 2015
    Location:
    5535 feet in Utah Mountains
    First Name:
    doug
    Truck Year:
    1984
    Truck Model:
    K1500/nv4500/np241c/33x12.50x16/3.08 Gears
    Engine Size:
    5.3L - 2002 Silverado, rebuilt top end

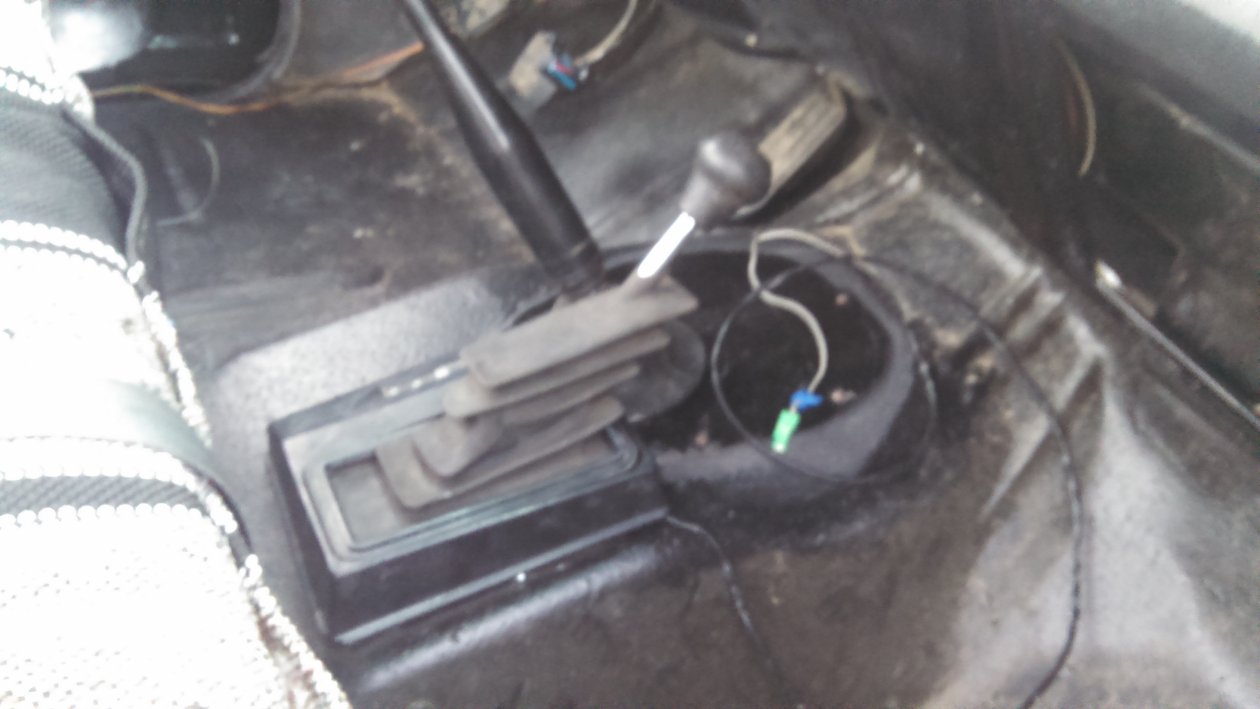

    Got it installed


    Attached Files:

  7. HotRodPC

    HotRodPC Administrator Staff Member

    Posts:
    38,959
    Likes Received:
    170
    Joined:
    Aug 29, 2010
    Location:
    OKC, OK
    First Name:
    HotRod
    Truck Year:
    85
    Truck Model:
    Silverado K10 to K20 Conversion
    Engine Size:
    6.2 to Gas???
    Yep, that's NP208/NP241C shifter.
