What is this plug for?

[Johnnyz453]

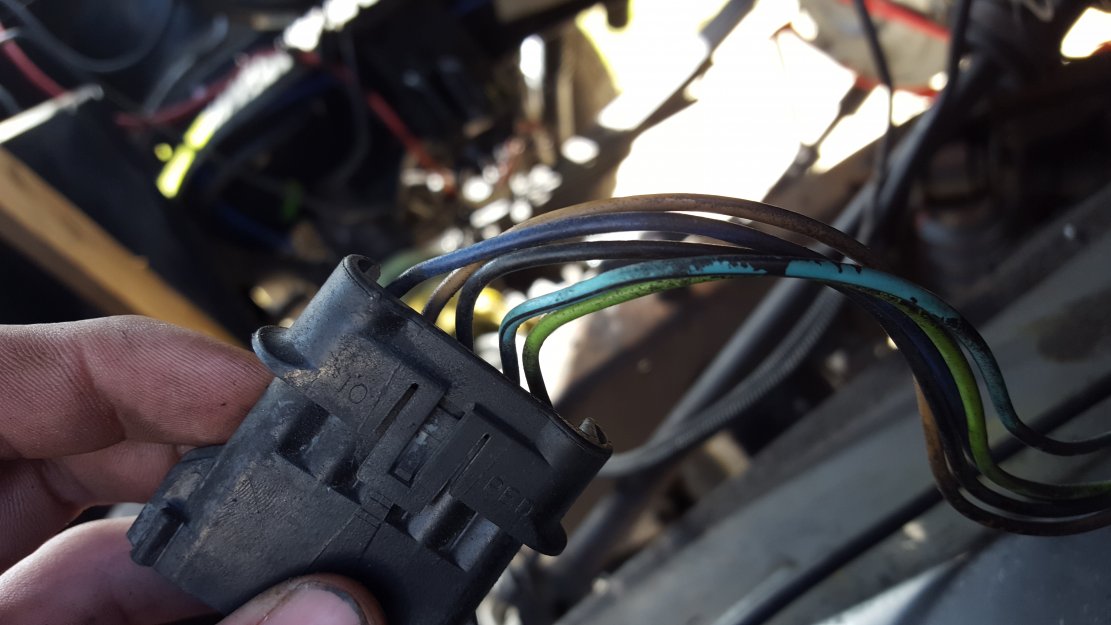

Trying to get rid of things i dont need anymore. Think this plug is for cruise control. It is connected to a pretty long rubber-like tube. Just want to make sure its cruise control before i get rid of it. Its a 83 k10 with a 350 in it. Originally had a 305 though.



[Camar068]

Not sure what it is but If it is cruise, I'd tuck it away. Never know down the road if you want to put a 5.3 in it and want to use the stock cruise on the steering column.



[1987 GMC Jimmy]

Where is it at, and where does it go to? Is there a cruise control servo still in the truck? It looks like either that or maybe the timing connector for an ESC distributor. Do you have that or regular HEI with a vacuum advance?



[chengny]

I'm suck at ID'ing wire color, but if the leads - from left to right - are:

DK BLU, TAN, BLK, LT BLU/BLK tracer & LT GRN. Then, yes - that is almost certainly the connector to the cruise control servo.

Check the P/N on the connector body. If it is a PED with the number 12020646...I would say it is definitely the CC servo connector.



[Johnnyz453]

It has the hei distributor with vac. Adv. It comes out of the firewall by everything else and goes nowhere. When i bought the truck it wasnt connected to anything.



[1987 GMC Jimmy]

I'm suck at ID'ing wire color, but if the leads - from left to right - are:

DK BLU, TAN, BLK, LT BLU/BLK tracer & LT GRN. Then, yes - that is almost certainly the connector to the cruise control servo.

Check the P/N on the connector body. If it is a PED with the number 12020646...I would say it is definitely the CC servo connector.

Sounds like you nailed it.
