Amplifier Wiring 4ga Pass-Through to Cab

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Joined
Aug 23, 2020
Posts
38
Reaction score
56
Location
Houston
First Name
Mike
Truck Year
1982
Truck Model
C10
Engine Size
489
I'm interested in how other board members are passing 4 gauge audio amplifier wiring through the cab. My amplifier requires a 4 gauge wire attached directly to the positive terminal of the battery and I don't want to drill another hole in the firewall if it isn't necessary. Pictures and descriptions of your methods are greatly appreciated.
How would you recommend passing the wire through to the cab?


PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
3,463
Reaction score
4,578
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,70,48
Truck Model
Suburban k10, bonanza k10, c30 C&C, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350
There are only a couple holes by the brake booster. If an a/c truck it should have one by the engine bay hvac box for wiring and one for the vac tube, 80's at least


Grit dog

Full Access Member
Joined
May 18, 2020
Posts
5,985
Reaction score
9,932
Location
Washington
First Name
Todd
Truck Year
1986
Truck Model
K20
Engine Size
454
There’s a large hole coming up from under each cab corner to behind the rear corner speakers.
That’s where I’m going to pull power in from under the hood.
You could run 2/0 through there if you wanted. And no drilling. (I think. Been a while since I hatched that plan).

Joined
Aug 23, 2020
Posts
38
Reaction score
56
Location
Houston
First Name
Mike
Truck Year
1982
Truck Model
C10
Engine Size
489
Thanks @Grit dog

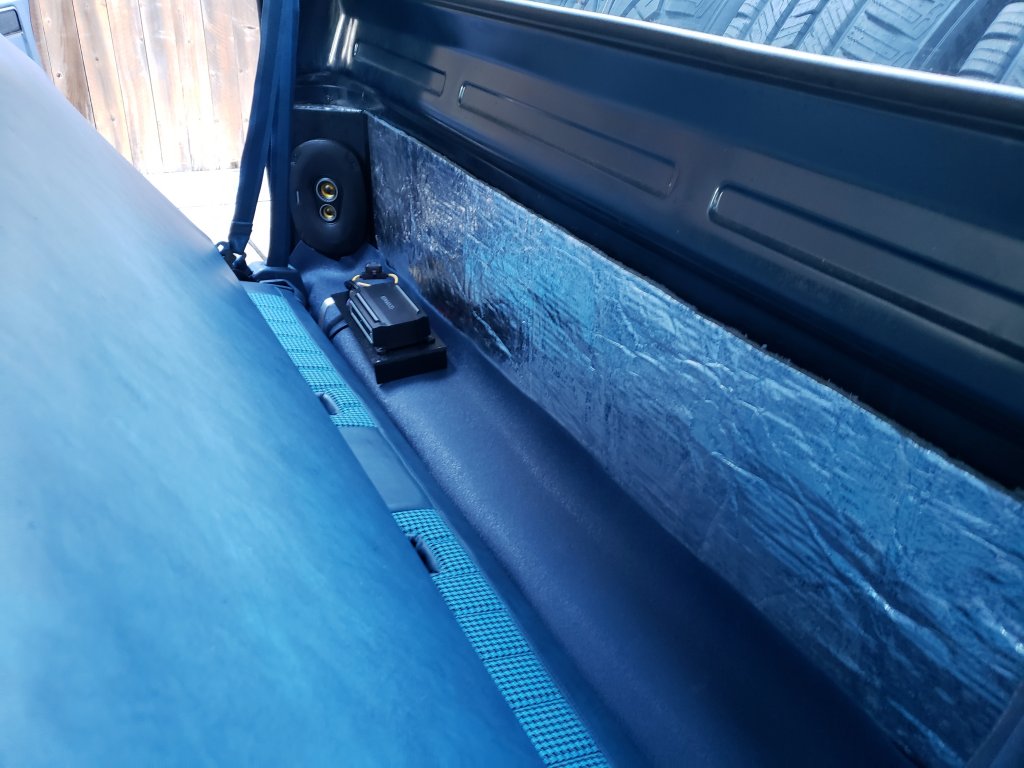

This is the method I chose. It was easy to route the 2ga and the wire is mostly hidden. I was able to route the wire inside the passenger front fender down under the rocker panel and then up through the cab corner using the factory rinse plug in the cab corner.
I made a mount for my amp out of aluminum strap and ABS plastic. I formed the aluminum to use the passenger rear seat bolt as a mounting point and on the amp side I screwed the strap to some ABS plastic that serves as an insulating mounting tray for the amp. The inboard side uses another piece of abs at a 90 degree to the tray to suspend the height so the amp sits level. Wires are run under the floor mat:


Attachments

  • 20230704_200658.jpg
    106.3 KB · Views: 74

SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,703
Reaction score
6,698
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350

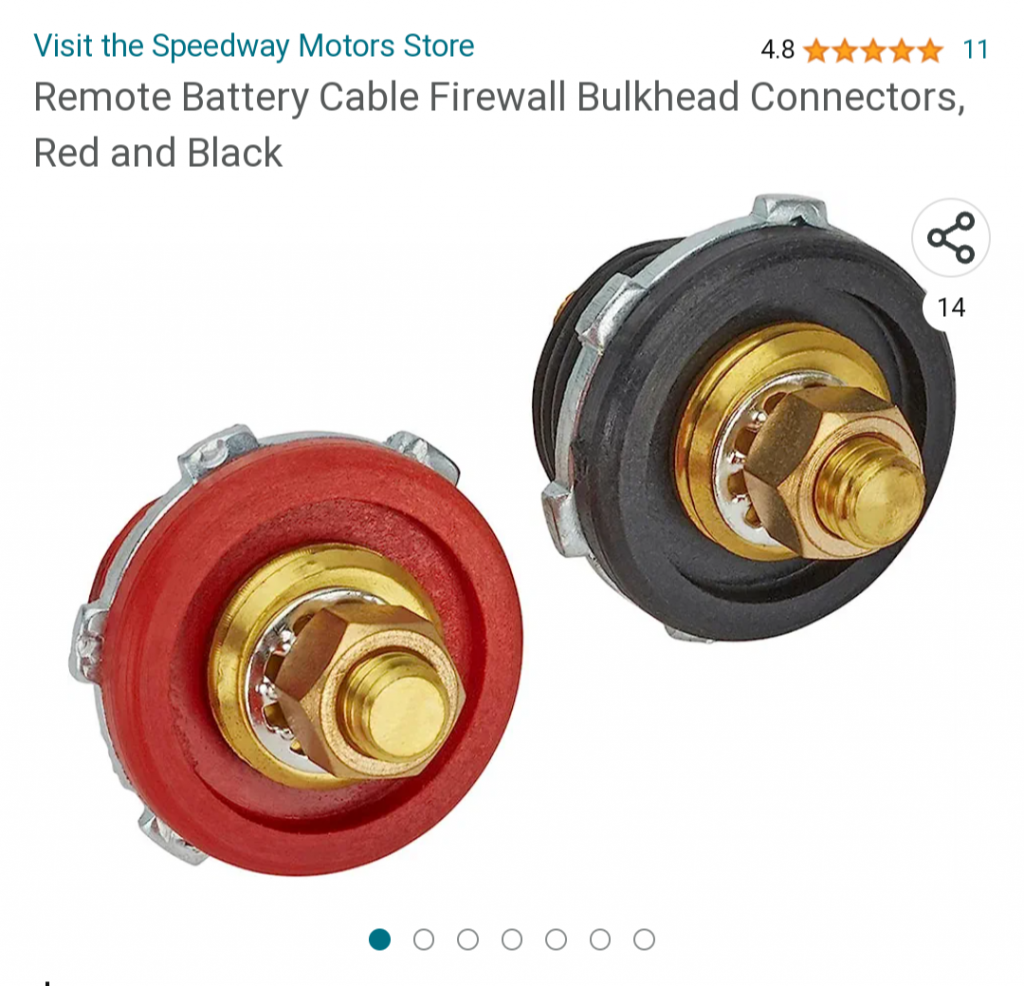

I used a bulkhead connector on the firewall. Comes thru behind the p/s inner fender, below the a/c box on the inside.


Attachments

  • Screenshot_20230708-091155.png
    739.3 KB · Views: 47
