K10 Electric fan that can fit in the Shroud

Discussion in 'Engine & Performance' started by Camar068, Jan 11, 2017.

  1. Camar068

    Camar068 Supporting Member Supporting Member

    Posts:
    1,441
    Likes Received:
    124
    Joined:
    Feb 5, 2014
    Location:
    Kentucky
    First Name:
    David
    Truck Year:
    1986
    Truck Model:
    K10/350/700r4/np208/3.08/31"
    Engine Size:
    10 yrs Air Force
    Anyone know of a model electric fan that can fit in place of the water pump fan? I'd like to keep it under $100 new/used.

  2. beest

    beest Member

    Posts:
    47
    Likes Received:
    1
    Joined:
    Feb 13, 2015
    Location:
    indiana
    First Name:
    matt
    Truck Year:
    84
    Truck Model:
    k10
    Engine Size:
    350
    A pair of fans from a ford windstar are about the perfect size to match up with the radiator on a square.

    Sent from my SM-G920P using Tapatalk

  3. gmachinz

    gmachinz Full Access Member

    Posts:
    486
    Likes Received:
    60
    Joined:
    Nov 10, 2012
    Location:
    Iowa
    First Name:
    Jabin
    Truck Year:
    1986
    Truck Model:
    K10
    Engine Size:
    350

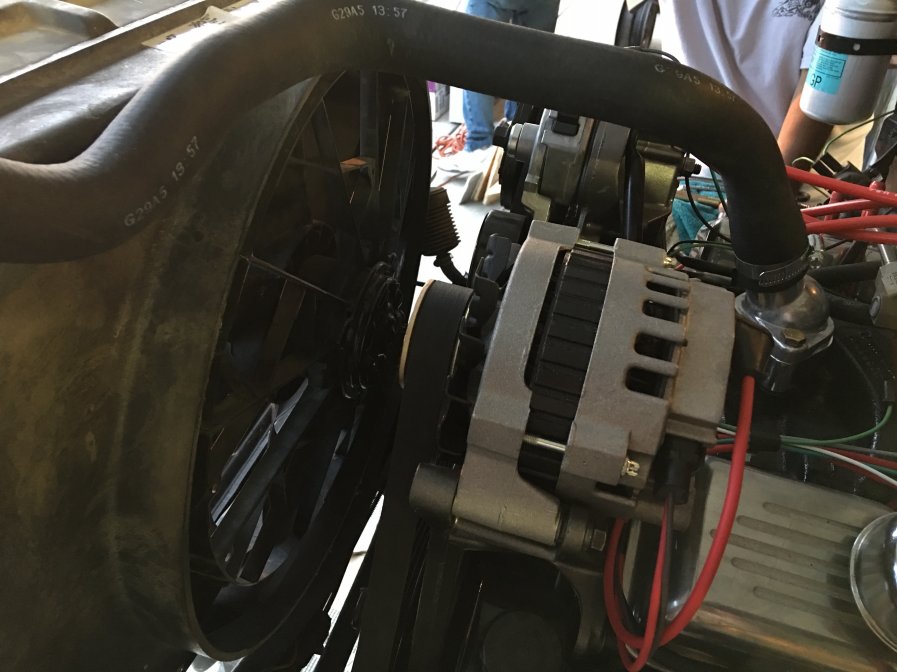

    Here ya go-I used a 93-97 T-Bird dual speed fan inside a stock shroud. I built a HD fan harness for it as well.


    Attached Files:

  4. crazy4offroad

    crazy4offroad Full Access Member

    Age:
    45
    Posts:
    7,901
    Likes Received:
    174
    Joined:
    Jul 30, 2010
    Location:
    West BY-GOD Virginia
    First Name:
    Curt
    Truck Year:
    1977
    Truck Model:
    One-Ton K-10
    Engine Size:
    350/TH350/NP205
    X2 this is what I used. May have to upgrade your anternator, any e-fan pulls a lot of amps. But the Aerostar dual fan from mid 90s is the perfect width, just have to rig up mounts.

  5. Camar068

    Camar068 Supporting Member Supporting Member

    Posts:
    1,441
    Likes Received:
    124
    Joined:
    Feb 5, 2014
    Location:
    Kentucky
    First Name:
    David
    Truck Year:
    1986
    Truck Model:
    K10/350/700r4/np208/3.08/31"
    Engine Size:
    10 yrs Air Force
    Thanks, I couldn't remember if that was for the 454 or diesel radiator shroud or not.

    Also thanks for the info on the Windstar model. Nice to have more than one option. This is for the LS swap, my engine has a DR44G alternator (145 amps). Should be enough right? No big boomin stereo lol.

    Last edited: Jan 12, 2017
  6. crazy4offroad

    crazy4offroad Full Access Member

    Age:
    45
    Posts:
    7,901
    Likes Received:
    174
    Joined:
    Jul 30, 2010
    Location:
    West BY-GOD Virginia
    First Name:
    Curt
    Truck Year:
    1977
    Truck Model:
    One-Ton K-10
    Engine Size:
    350/TH350/NP205
    That should be plenty. The problem you run into is the temperature switch and relays. Those little "e-fan kits" ain't much. I used a pair of fan relays I had from a toyota, and ordered a switch but it wasn't the right heat range. Once the fans kicked on they wouldn't kick off. I'm wondering if I moved the switch to a head or somewhere other than the thermostat housing if it would work better. I bought one 160-170 range then a 170-180 range but I think I needed 190-200 range or try moving the switch.

  7. gmachinz

    gmachinz Full Access Member

    Posts:
    486
    Likes Received:
    60
    Joined:
    Nov 10, 2012
    Location:
    Iowa
    First Name:
    Jabin
    Truck Year:
    1986
    Truck Model:
    K10
    Engine Size:
    350

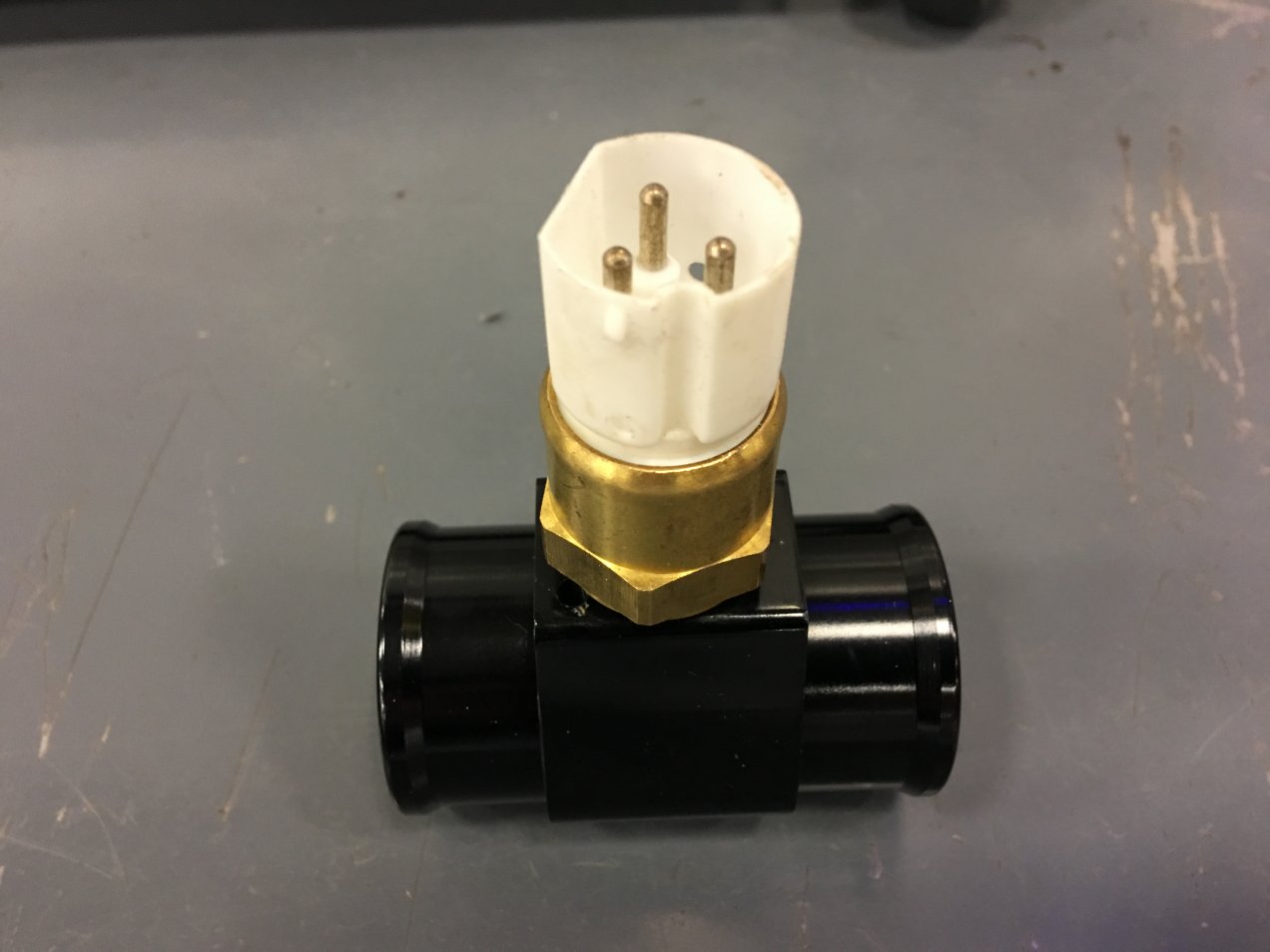

    Like this setup?


    Attached Files:

    crazy4offroad likes this.
  8. Camar068

    Camar068 Supporting Member Supporting Member

    Posts:
    1,441
    Likes Received:
    124
    Joined:
    Feb 5, 2014
    Location:
    Kentucky
    First Name:
    David
    Truck Year:
    1986
    Truck Model:
    K10/350/700r4/np208/3.08/31"
    Engine Size:
    10 yrs Air Force

    Attached Files:

    Last edited: Jan 12, 2017
