Where does this plug go?

newtonx1

Junior Member
Joined
Feb 13, 2022
Posts
3
Reaction score
1
Location
Missouri
First Name
Mark
Truck Year
85
Truck Model
Blazer/Jimmy
Engine Size
350

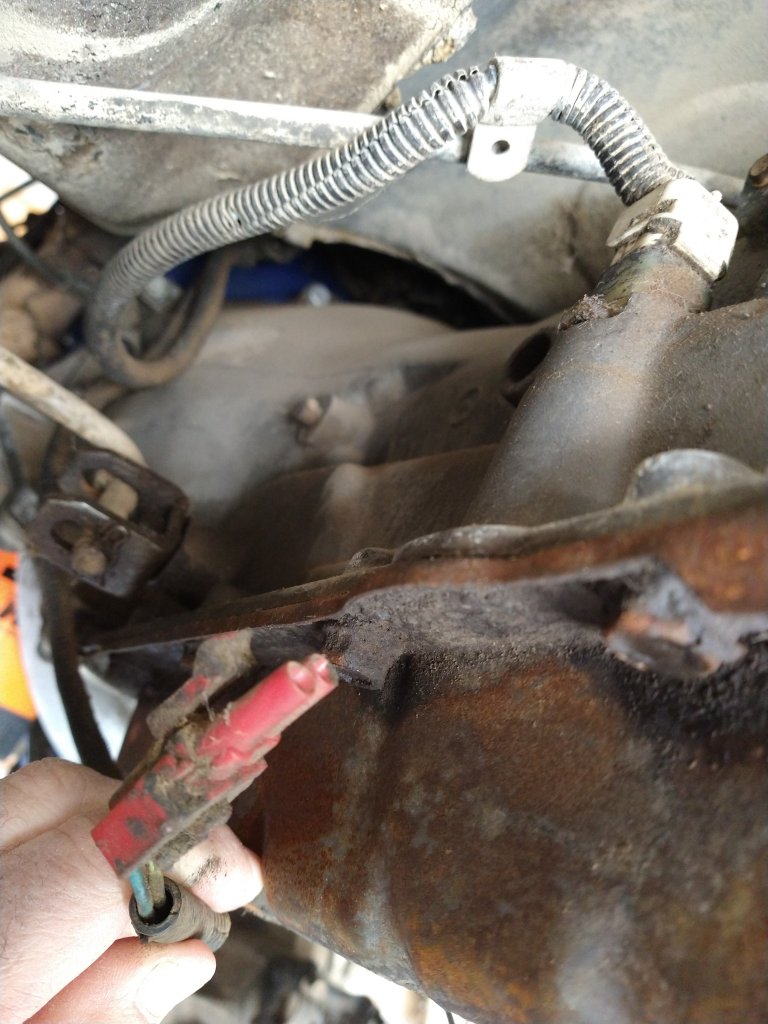

This is an 85 GMC Jimmy with a 96 vortex, carbureted and a 700R4 trans. I have 2 questions. First, this wire harness comes down behind the block, splits off and one plug goes into the transmission. Where does the other go? I've felt up and around and can't find the inlet for it. Any ideas?

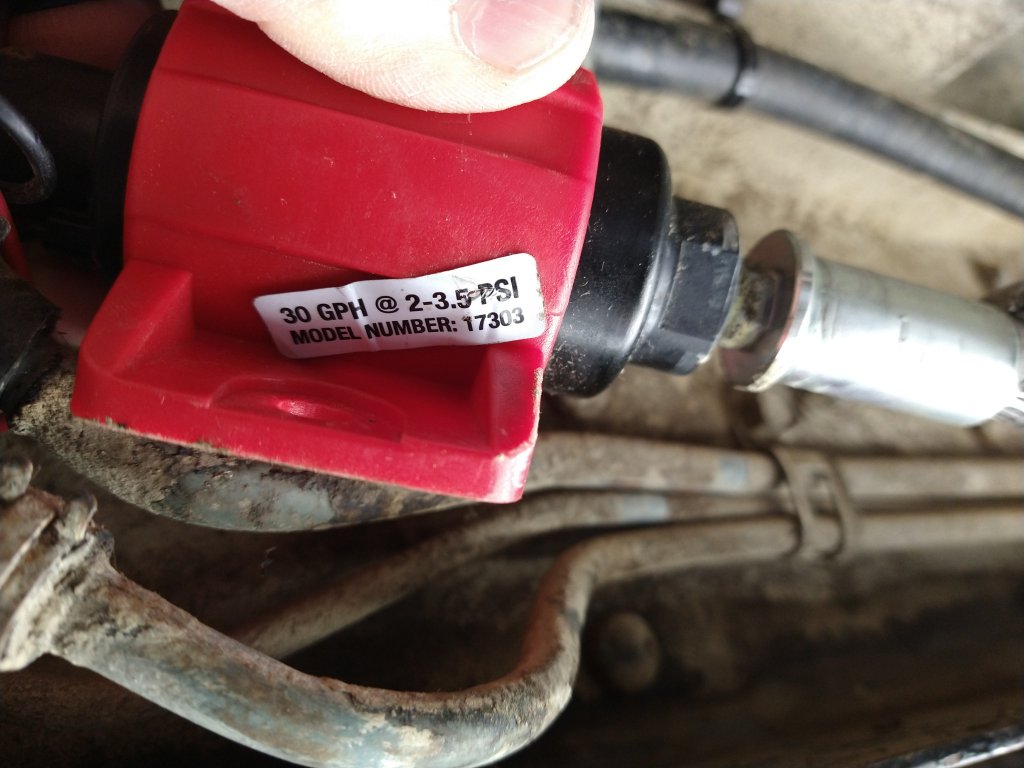

Second, the original motor had a mechanical fuel pump, this one's doesn't. The previous owner put an inline pump on it. I can't tell if it's getting enough fuel. The inline pump is an Edelbrock 17303 indicating 30gph. This truck requires 4-7gpm so I don't know if this will work for the application. Thoughts?


Attachments

  • IMG_20220213_123102526.jpg
    128.7 KB · Views: 46
  • IMG_20220213_120949398.jpg
    101.5 KB · Views: 40

PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
2,416
Reaction score
1,891
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,70,48
Truck Model
Suburban k10, bonanza k10, c30 C&C, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350
That red connector went to a vacuum switch thing on the passenger side rear of the intake, I believe it had two vacuum hoses connected to it. Beyond that I don't know what it does. I stripped all that stuff.

Not sure on the fuel pump.
You must be registered for see images attach


78C10BigTen

Full Access Member
Joined
Apr 12, 2017
Posts
13,197
Reaction score
15,534
Location
pennsylvannia
First Name
Ted
Truck Year
1978
Truck Model
C10 BIG TEN
Engine Size
350
Appears the fuel pump is only good up to 3.5 psi, most carbs need around 6-7 psi if i remember right.


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
25,961
Reaction score
14,620
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
That 3.5 psi is just where they rate the GPH. It probably has less output at higher PSI, so they don't advertise it. It should make enough PSI to run a carb on a very mild engine, since that's what it is sold for.


PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
2,416
Reaction score
1,891
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,70,48
Truck Model
Suburban k10, bonanza k10, c30 C&C, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350
I looked back in my build thread as I had this question. It has to do with the torque converter lock up solenoid. That red connector goes to a vacuum switch on the intake as I pictured, then i believe the vacuum lines ran to the vacuum tree on the thermostat housing, this would only let lockup activate once the engine was at a certain temp.


newtonx1

Junior Member
Joined
Feb 13, 2022
Posts
3
Reaction score
1
Location
Missouri
First Name
Mark
Truck Year
85
Truck Model
Blazer/Jimmy
Engine Size
350
I appreciate the replies. I'm going to get a 5-9psi fuel pump and try again. Seems that little pump doesn't have the pressure needed to keep the truck running.

As for the plug...PrairieDrifter, I appreciate the photo but there's so much going on there I can't tell what I'm supposed to see. This plug splits from a wire harness on the driver side, behind the block. I doubt it has the length to make it back up and over to the passenger side. I'll keep digging. Thanks for the assist.


PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
2,416
Reaction score
1,891
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,70,48
Truck Model
Suburban k10, bonanza k10, c30 C&C, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350
I appreciate the replies. I'm going to get a 5-9psi fuel pump and try again. Seems that little pump doesn't have the pressure needed to keep the truck running.

As for the plug...PrairieDrifter, I appreciate the photo but there's so much going on there I can't tell what I'm supposed to see. This plug splits from a wire harness on the driver side, behind the block. I doubt it has the length to make it back up and over to the passenger side. I'll keep digging. Thanks for the assist.
I circled in green on the left side. You can see a little bit of red at the back of the intake. That is where that plug sits.
