Well..this gonna be interesting....shifter boot/bezel

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,133
Reaction score
5,083
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
I have recently installed my newly rebuilt NV4500 and Twin Stick NP205. As usual, the domino effect has reared it's ugly head and made things difficult. The problem is, there's not enough real estate on the trans tunnel to accommodate three sticks poking thru the floor. Now I gots to figure a solution to make it look like its not a trainwreck of bad ideas. I tried everything to get two shifter boots to fit and not overlap but gave up in frustration. I also have to consider the way they mount and the order they go together as I now have a removable floor cover. Eventually the carpet will go over the cover and the bezel over the carpet. I have virtually zero access from under the truck due to the size of the trans and associated shifter linkage on the t-case.

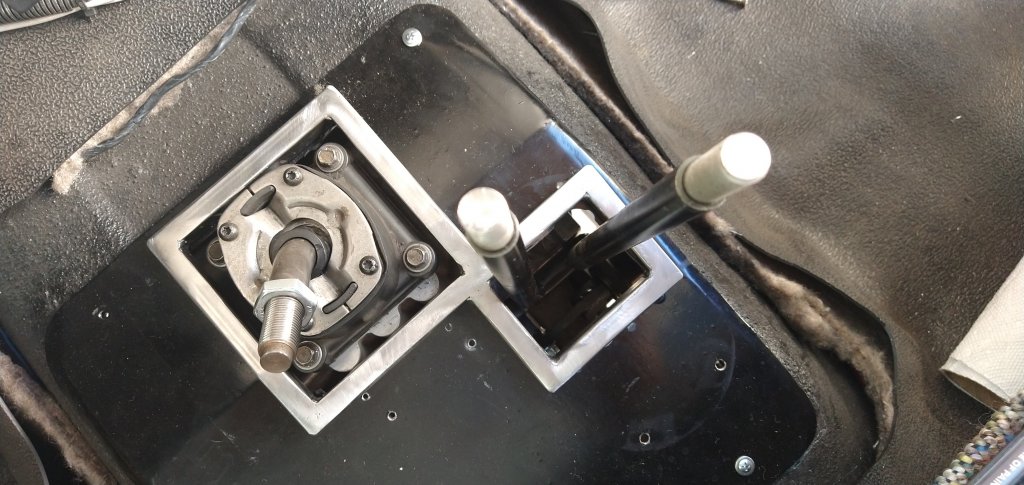

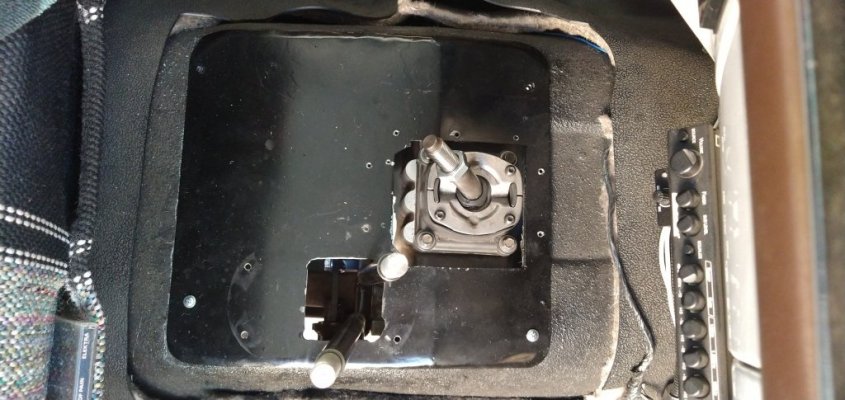

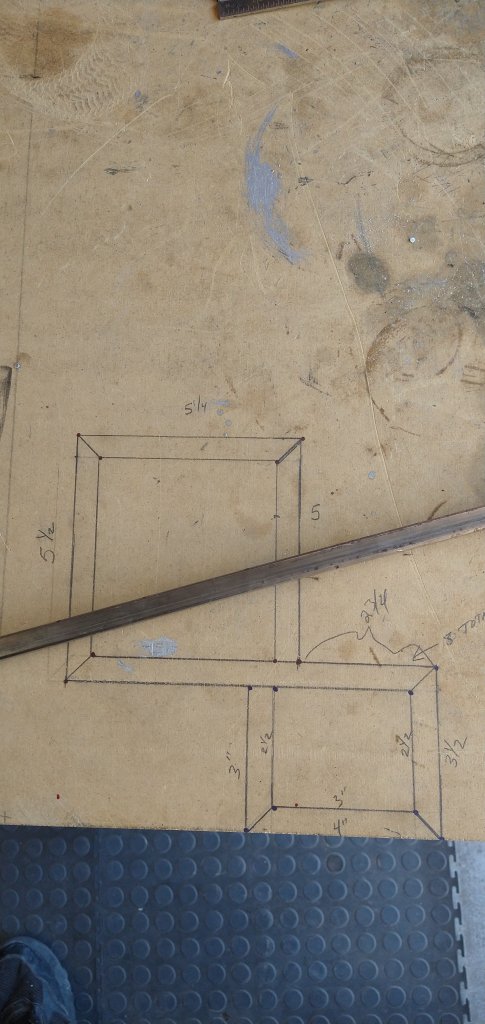

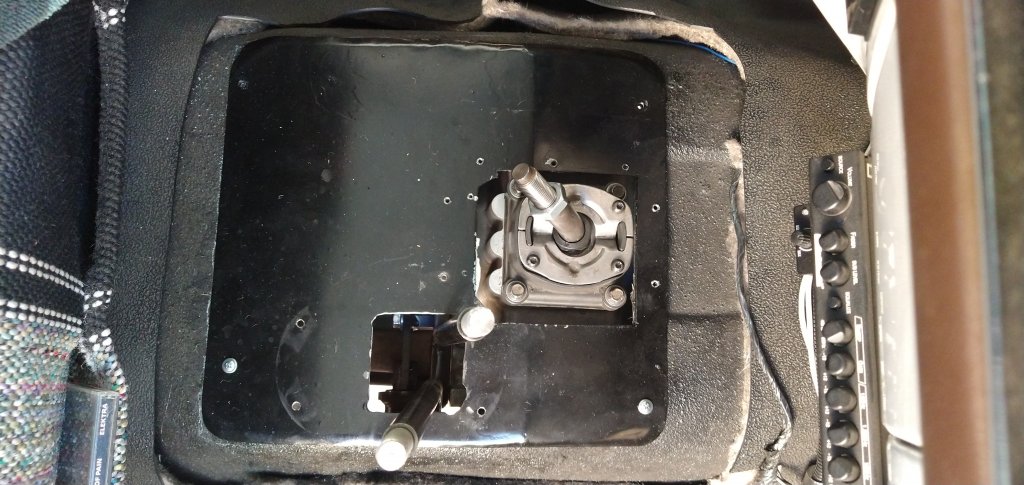

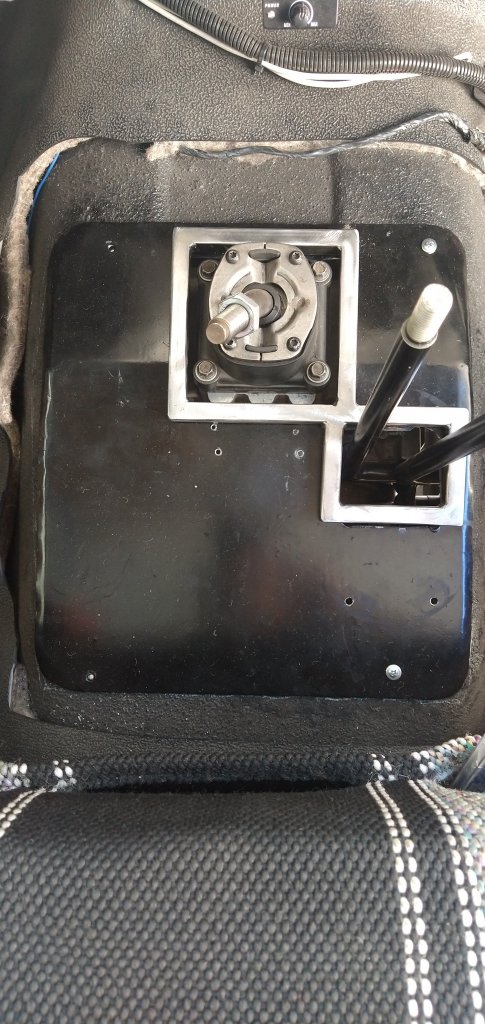

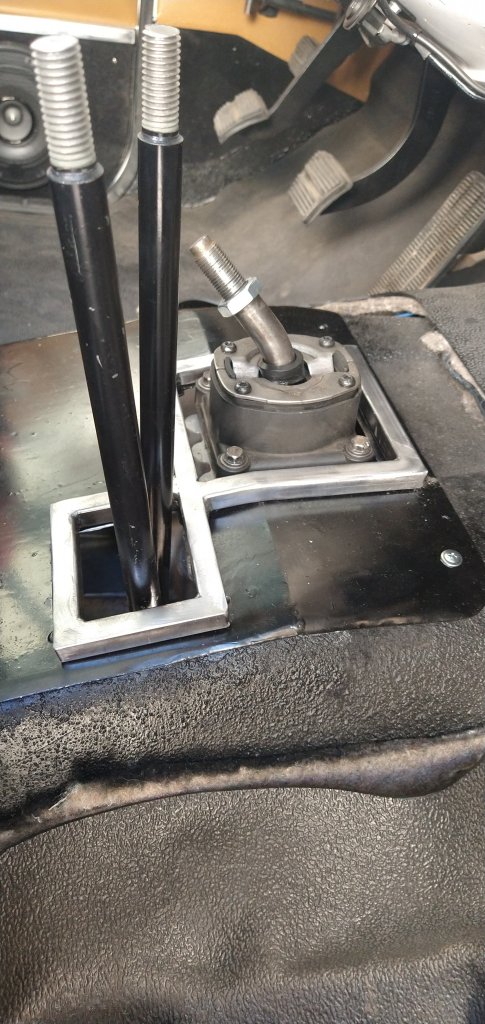

I concluded I would have to start from scratch. I opted to fab a bezel up with 1/2 x1/2 square tubing. One piece that incorporates both shifter boots. I can salvage the boot from a previous project for the Trans shifter I think. I'll get someone to sew me up a smaller boot with two holes for the T-case boot. I think I'll use some long machine screws on the corners of the bezel and install some Rivnuts in the removable cover. That way I can just screw the bezel to the floor from above and it will look good. This is what i got so far. Questions/comments/suggestions all welcome.


Attachments

  • IMG_20230529_164623773.jpg
    126.4 KB · Views: 42
  • IMG_20230529_164629780.jpg
    116 KB · Views: 39
  • IMG_20230529_164641288.jpg
    128.9 KB · Views: 45
  • IMG_20230528_183231159.jpg
    119 KB · Views: 41
  • IMG_20230528_183210690.jpg
    89.6 KB · Views: 42

SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,133
Reaction score
5,083
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350

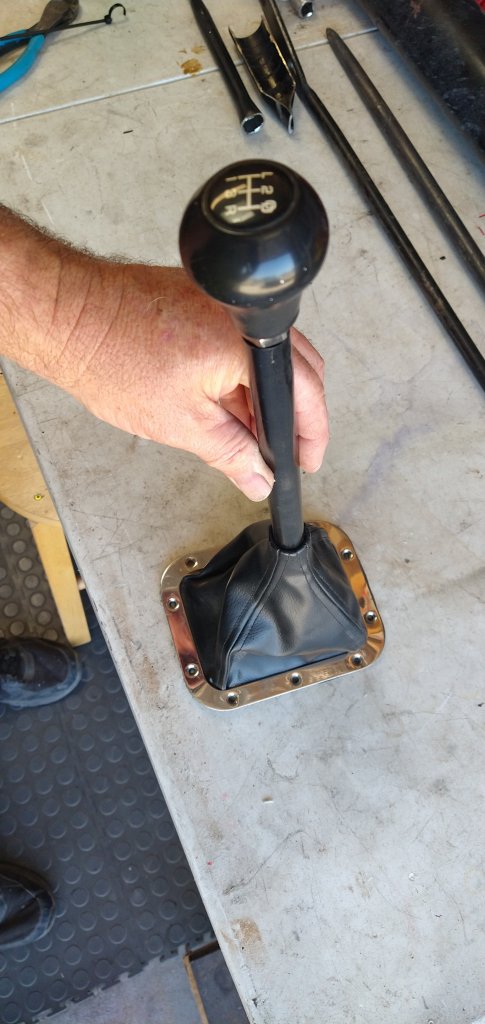

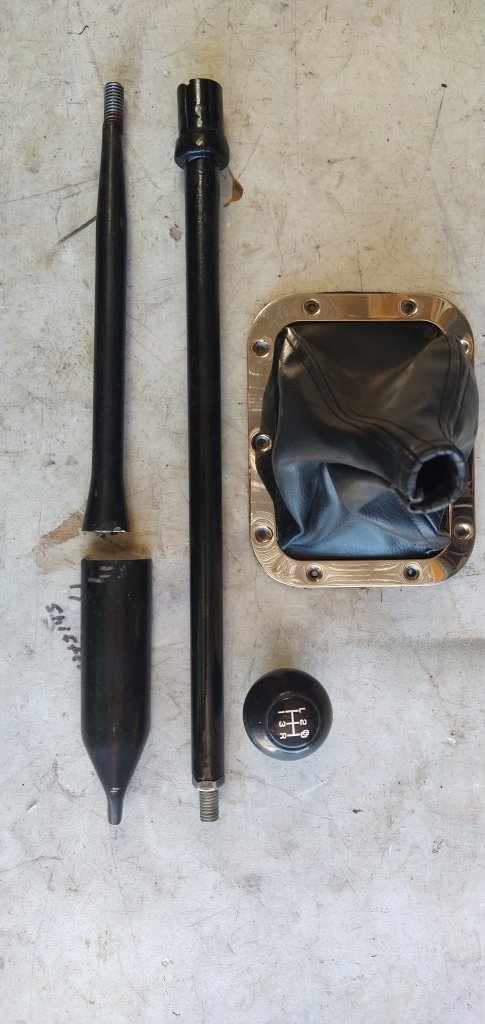

I might add, I modified the factory NV4500 shifter. The thing is a monstrosity. I had to cut it apart to get the insert out of the bottom of it so I had something to screw onto the metric stub shaft. I also chopped of the knob end and used them with a steel 5/8 tapered rod I had to come up with something a little more practical.


Attachments

  • IMG_20230429_090944985.jpg
    93.9 KB · Views: 33
  • IMG_20230429_091041001.jpg
    90.9 KB · Views: 28

waterpirate

Full Access Member
Joined
Jan 2, 2019
Posts
736
Reaction score
1,544
Location
delaware
First Name
Eric
Truck Year
1987
Truck Model
v10
Engine Size
5.7 tbi
That is Bad a$$! What ever you decide to do, make sure it looks right. It would be a shame to not finish it perfect after all that.
Eric


Buck69

Full Access Member
Joined
Feb 2, 2023
Posts
132
Reaction score
139
Location
Northern British Columbia
First Name
John
Truck Year
1986
Truck Model
D30 CUCV
Engine Size
6.2 (removed)
Is there enough clearance to set up the NP205 with actuators and go air shift? That would be kind of unique and cool.


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,133
Reaction score
5,083
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
Is there enough clearance to set up the NP205 with actuators and go air shift? That would be kind of unique and cool.
Maybe but, that would go against the theme of my truck. It's gotta be simple, reliable and bulletproof. It's built overkill on the premise of an expedition vehicle. Not all who roam are lost...lol.

Last edited:

SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,133
Reaction score
5,083
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
Update: Gonna have to rethink this. The bezel I made seemed like a good solution at the time but I have since realized there's no practical way to seal the hole where the twin sticks come thru. The boots and bezels between the shifter and the stick's are too damn close and I don't like overlapping them. Sooo, I'm going to go a new direction and fab a console that incorporates both shifters and incorporate a cup holder while I'm at it. I'll use mdf and fiberglass so I'm not limited on shapes and compound curves. I had to stare at it for awhile last night while the barley pop kicked in and then I remembered how I made the kickpanels for my speakers. See how that works! That's why I keep telling my wife that "I drink and I know things". lol. BTW, I ordered new ACC Carpet from RockAuto. Well see how that looks when it's finished.


Doppleganger

Full Access Member
Joined
May 24, 2019
Posts
10,387
Reaction score
46,901
Location
OH-MI: Just like it sounds
First Name
Chris
Truck Year
1985
Truck Model
K20
Engine Size
5.7
As absurd as this sounds....could you procure a couple of brushes - like from an ice scraper - and have them face each other? Most of the older cars I worked on had them both in the shifters and in the parking brake handle openings. Doesn't the 4WD lever have them too? Mind is soup.....cant remember.


PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
3,098
Reaction score
3,456
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,70,48
Truck Model
Suburban k10, bonanza k10, c30 C&C, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350
As absurd as this sounds....could you procure a couple of brushes - like from an ice scraper - and have them face each other? Most of the older cars I worked on had them both in the shifters and in the parking brake handle openings. Doesn't the 4WD lever have them too? Mind is soup.....cant remember.
90's chevys have got some lever brushes lol. Don't think any squares did.


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,133
Reaction score
5,083
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
As absurd as this sounds....could you procure a couple of brushes - like from an ice scraper - and have them face each other? Most of the older cars I worked on had them both in the shifters and in the parking brake handle openings. Doesn't the 4WD lever have them too? Mind is soup.....cant remember.
I know what you mean....about the brushes and the mind. lol


TotalyHucked

Full Access Member
Joined
Feb 24, 2020
Posts
1,737
Reaction score
5,210
Location
Auburn, Georgia
First Name
Zach
Truck Year
1985
Truck Model
Sierra 1500
Engine Size
5.3
Update: Gonna have to rethink this. The bezel I made seemed like a good solution at the time but I have since realized there's no practical way to seal the hole where the twin sticks come thru. The boots and bezels between the shifter and the stick's are too damn close and I don't like overlapping them. Sooo, I'm going to go a new direction and fab a console that incorporates both shifters and incorporate a cup holder while I'm at it. I'll use mdf and fiberglass so I'm not limited on shapes and compound curves. I had to stare at it for awhile last night while the barley pop kicked in and then I remembered how I made the kickpanels for my speakers. See how that works! That's why I keep telling my wife that "I drink and I know things". lol. BTW, I ordered new ACC Carpet from RockAuto. Well see how that looks when it's finished.
"I drink and I know things" Gonna have to steal that :lol:


squaredeal91

Full Access Member
Joined
Mar 10, 2023
Posts
961
Reaction score
1,456
Location
Cave junction Oregon
First Name
Greg bush
Truck Year
1991 SB
Truck Model
K30
Engine Size
5.9 Cummins 12 valve
Off topic question. When you push on the clutch, how far past the brake pedal does it go before it starts pushing fluid? My clutch pedal is hard from the git. I'm tired of it, time to fix that. I'm Hydraulic too.


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,133
Reaction score
5,083
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
Update:

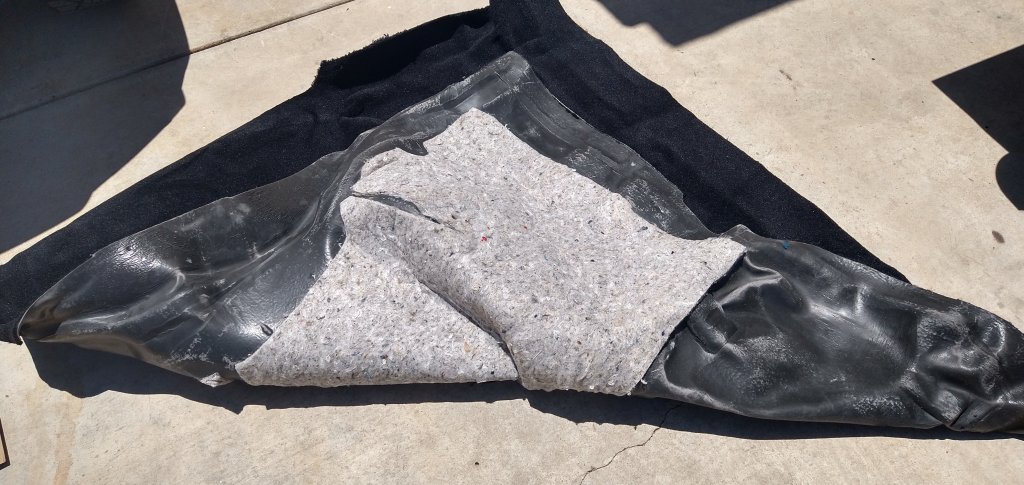

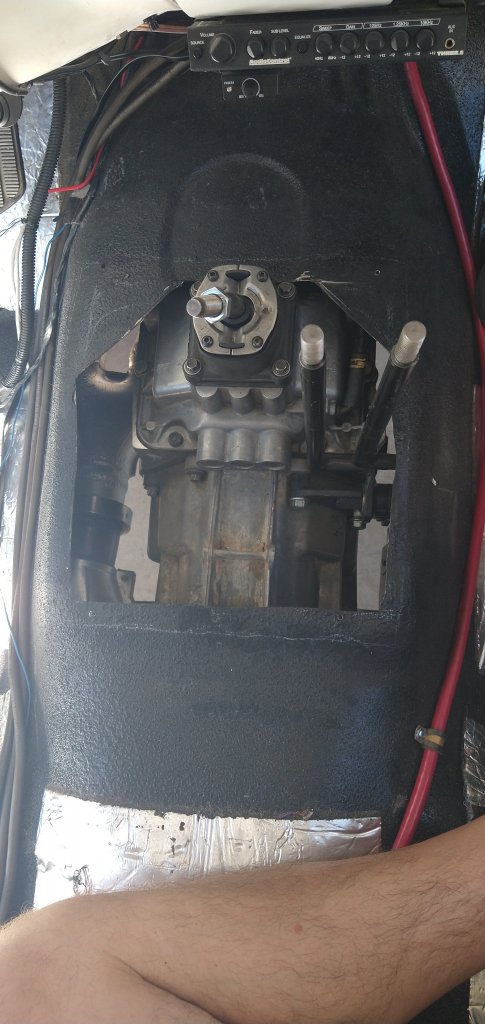

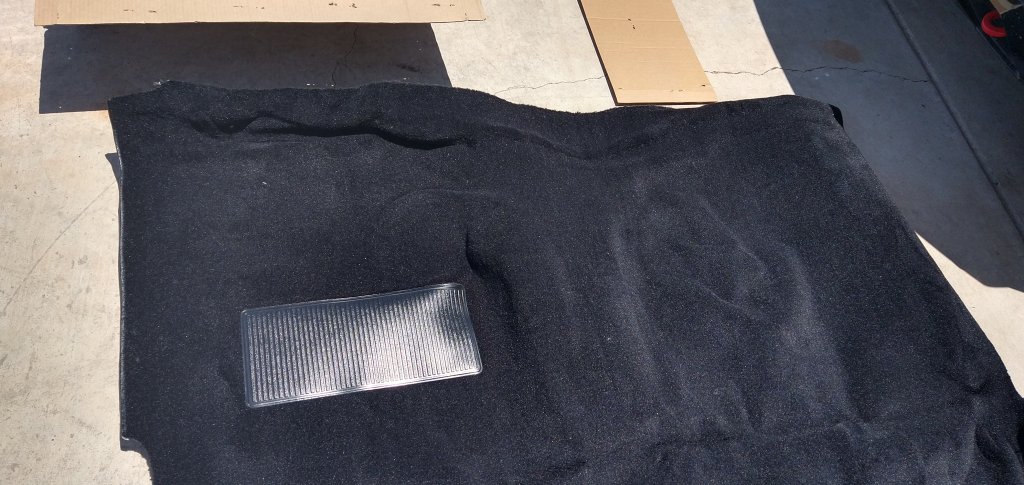

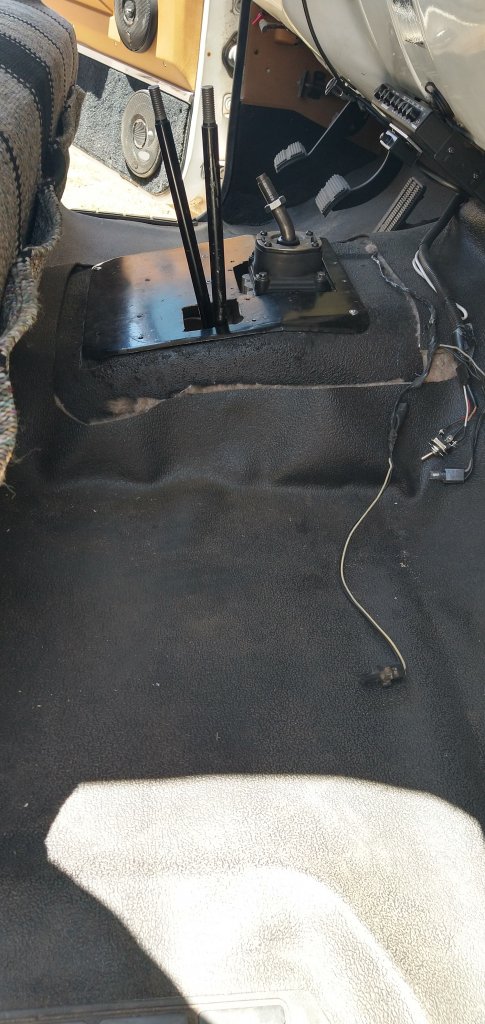

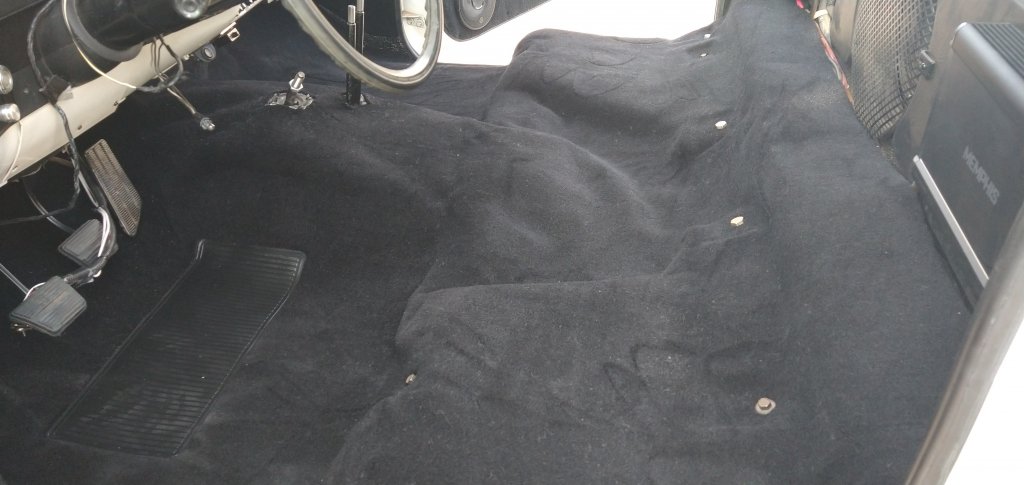

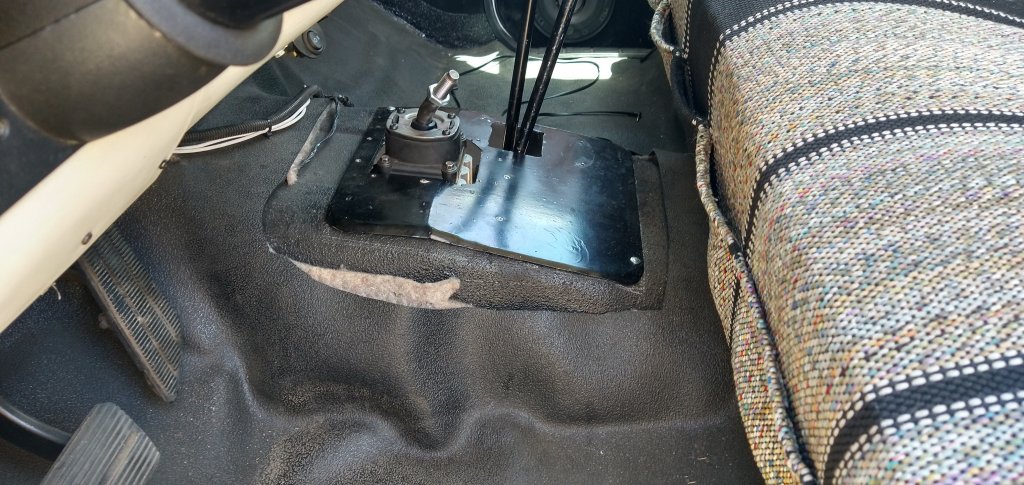

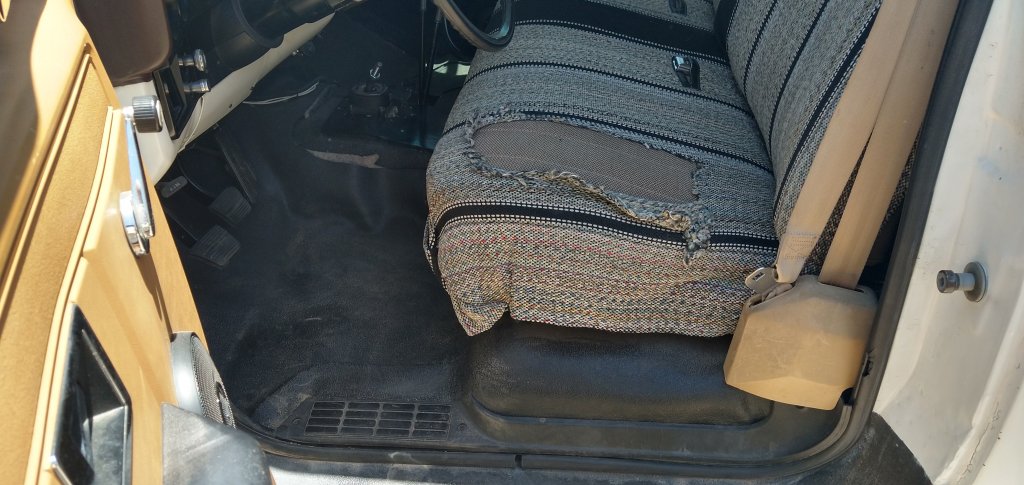

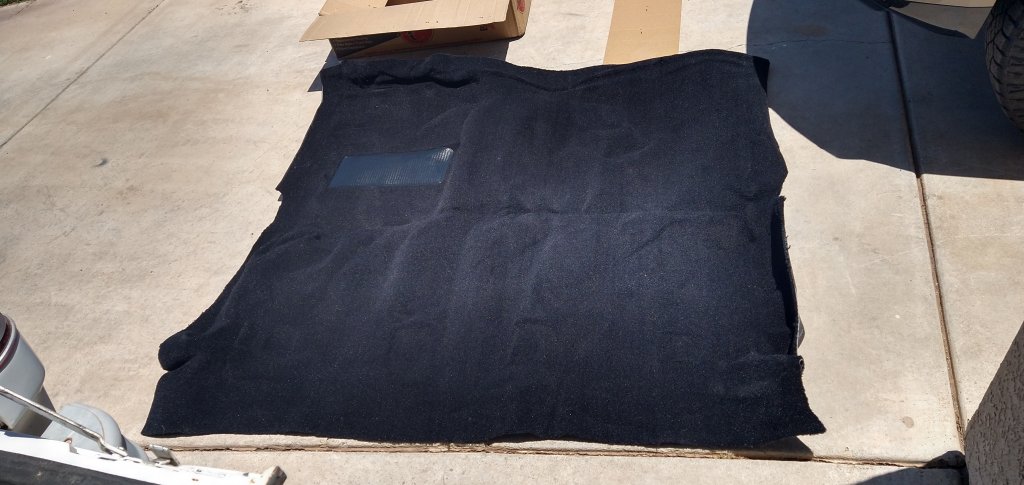

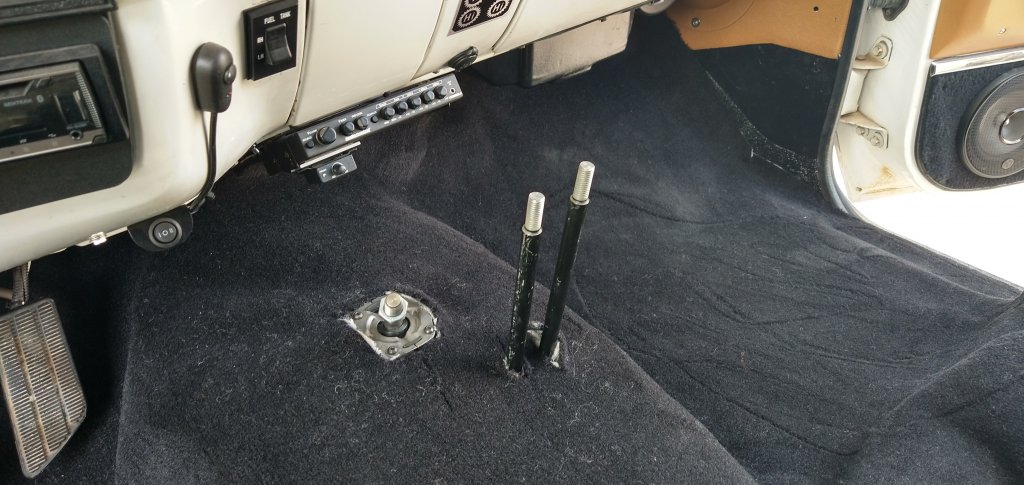

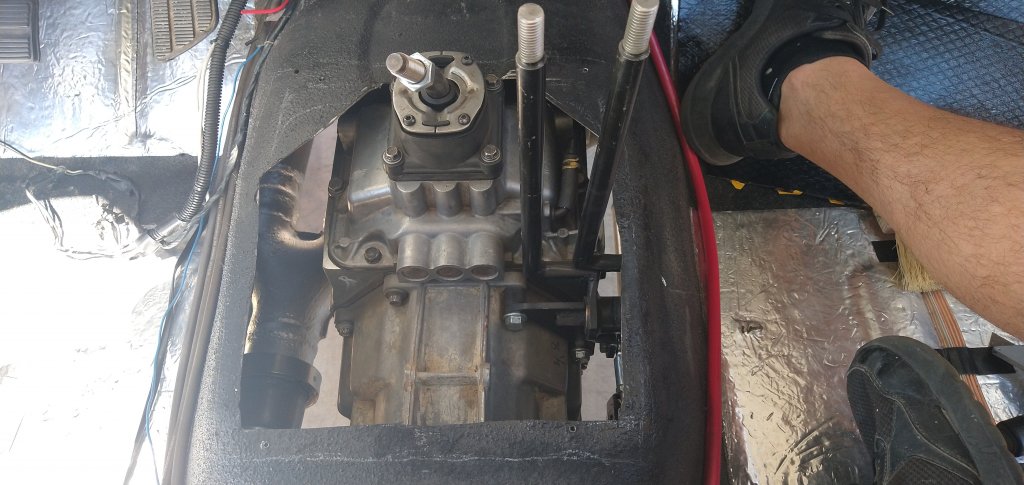

Got the trans tunnel covered with 3M sound deadening mats. Also covered the removable panel I made. Together they made a perfect seal. Got the ACC carpet in. That was a chore! It comes way oversized and you end up trimming about 4 inches off the front and sides. Why they bother to sew the edge trim on it is beyond me because you're gonna cut it off anyway. The ACC carpet is a good product, I'm very happy with it. More to come tommorow.


Attachments

  • IMG_20230609_121826299_HDR.jpg
    121.4 KB · Views: 16
  • IMG_20230609_121917158_HDR.jpg
    112 KB · Views: 18
  • IMG_20230609_121922717_HDR.jpg
    146.4 KB · Views: 20
  • IMG_20230609_121756376_HDR.jpg
    88.7 KB · Views: 22
  • IMG_20230609_121806317_HDR.jpg
    114.1 KB · Views: 11

SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,133
Reaction score
5,083
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350

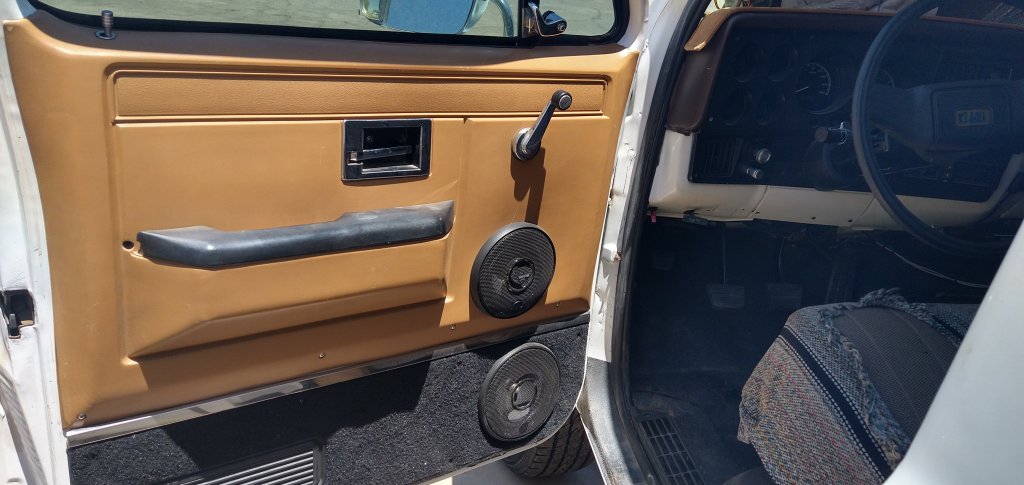

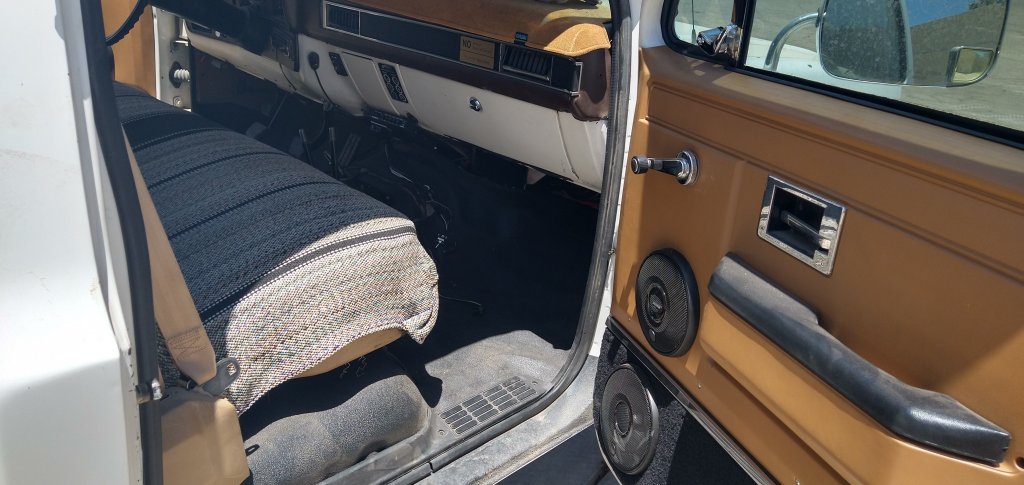

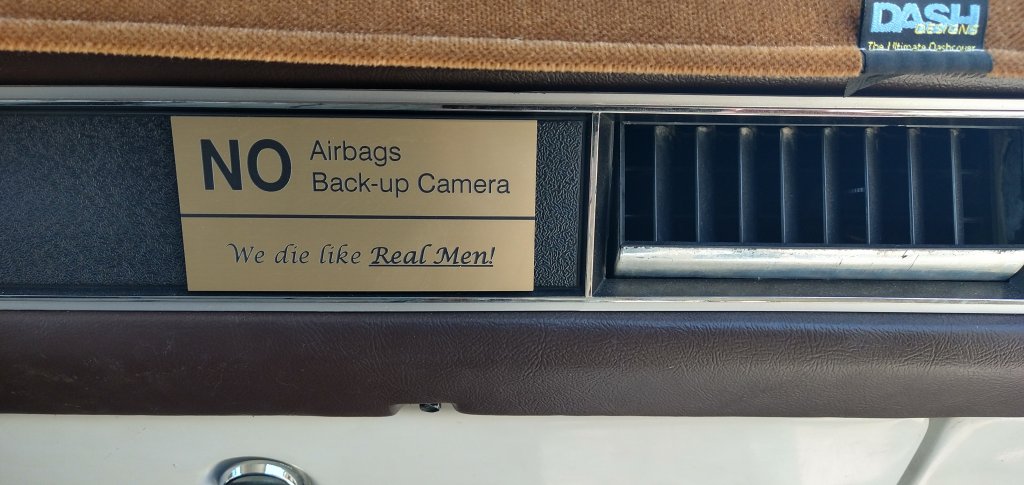

A few more..


Attachments

  • IMG_20230609_122033084_HDR.jpg
    115.5 KB · Views: 15
  • IMG_20230609_122041608_HDR.jpg
    99.9 KB · Views: 14
  • IMG_20230609_122049800_HDR.jpg
    96.5 KB · Views: 17
  • IMG_20230609_121930600_HDR.jpg
    90.1 KB · Views: 16
  • IMG_20230609_141758335.jpg
    91.6 KB · Views: 16

SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,133
Reaction score
5,083
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350

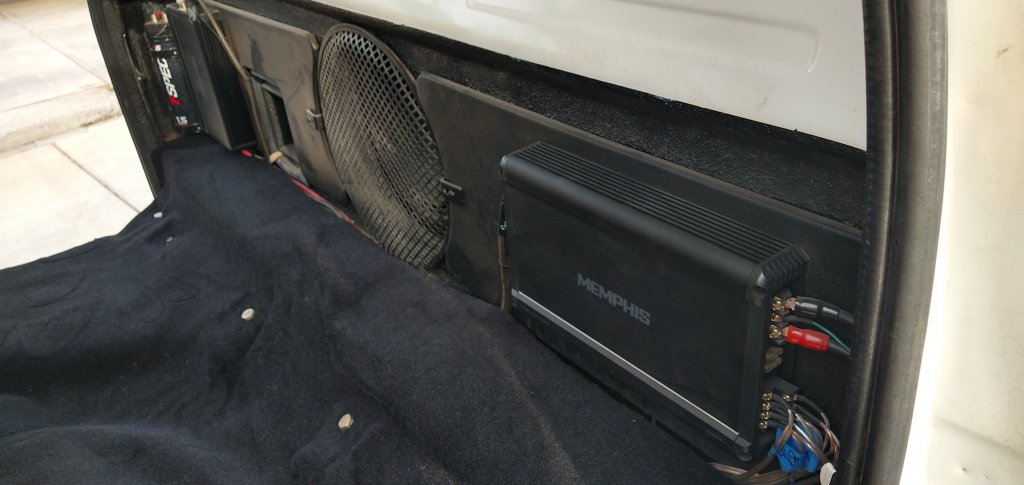

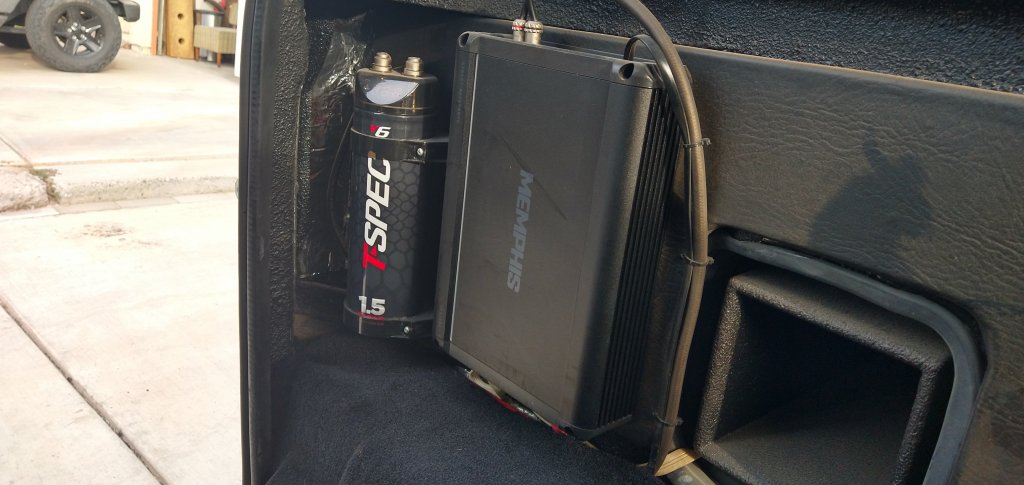

And more...


Attachments

  • IMG_20230609_181122671_HDR.jpg
    73.3 KB · Views: 16
  • IMG_20230609_181128311_HDR.jpg
    109.9 KB · Views: 14
  • IMG_20230609_181143429_HDR.jpg
    85.3 KB · Views: 14
  • IMG_20230609_141803780.jpg
    104.1 KB · Views: 13
  • IMG_20230609_181118567.jpg
    73 KB · Views: 16

SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
3,133
Reaction score
5,083
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350

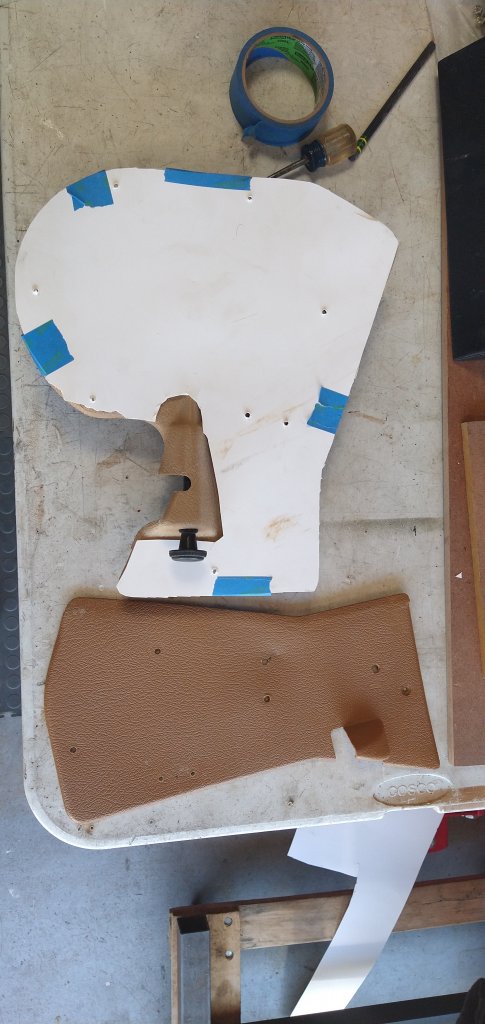

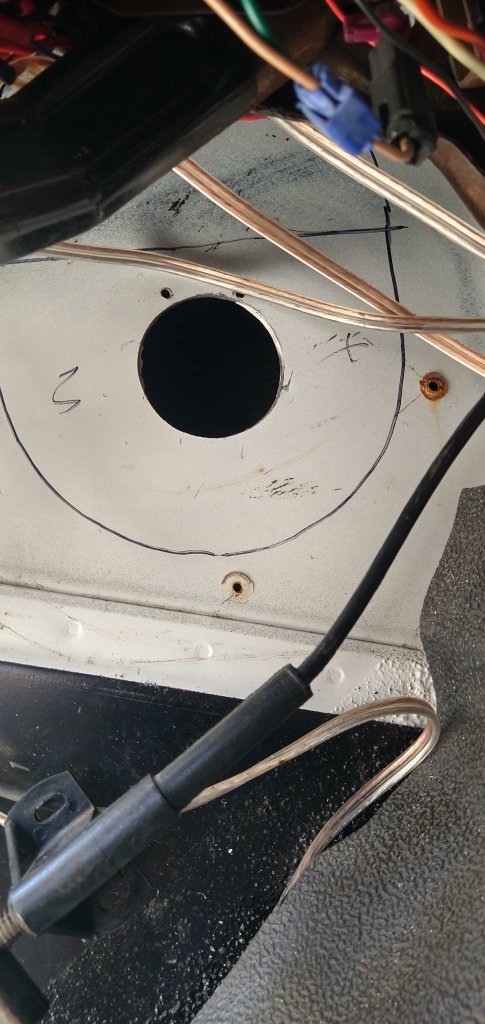

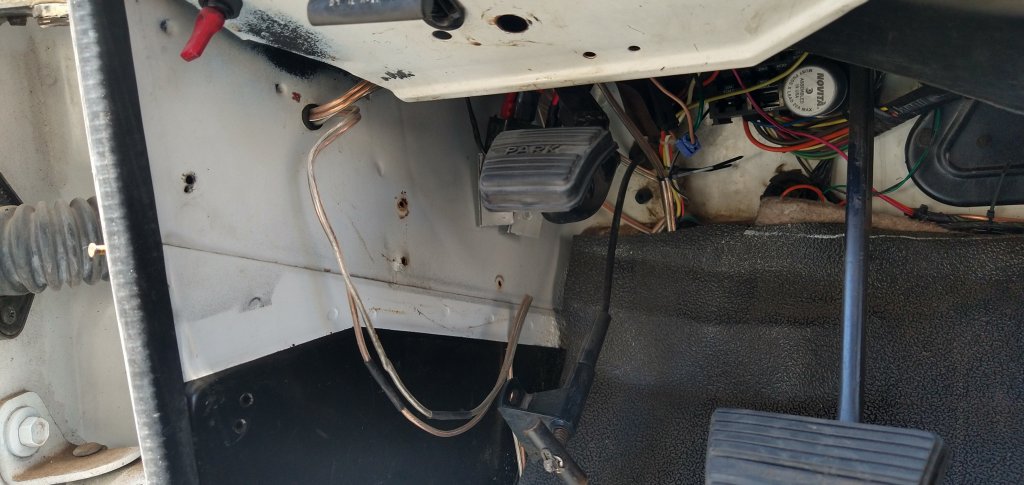

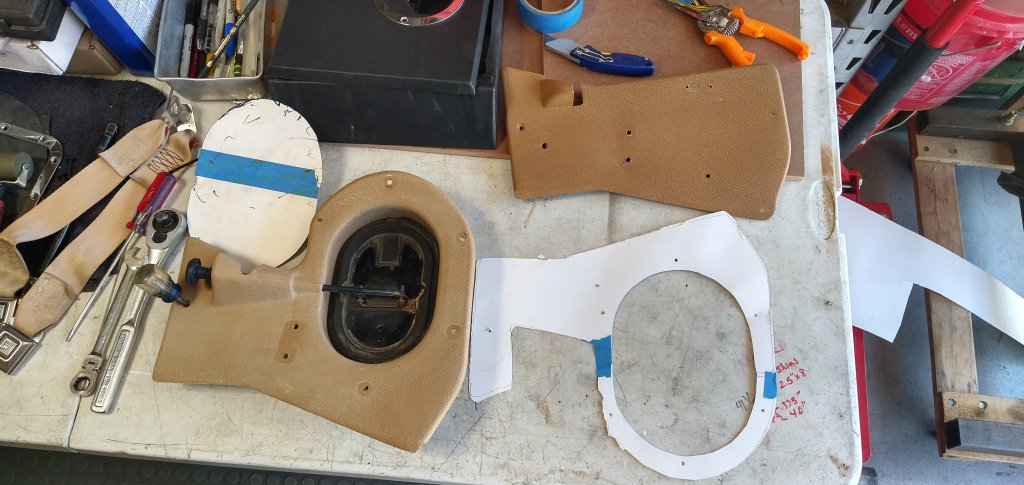

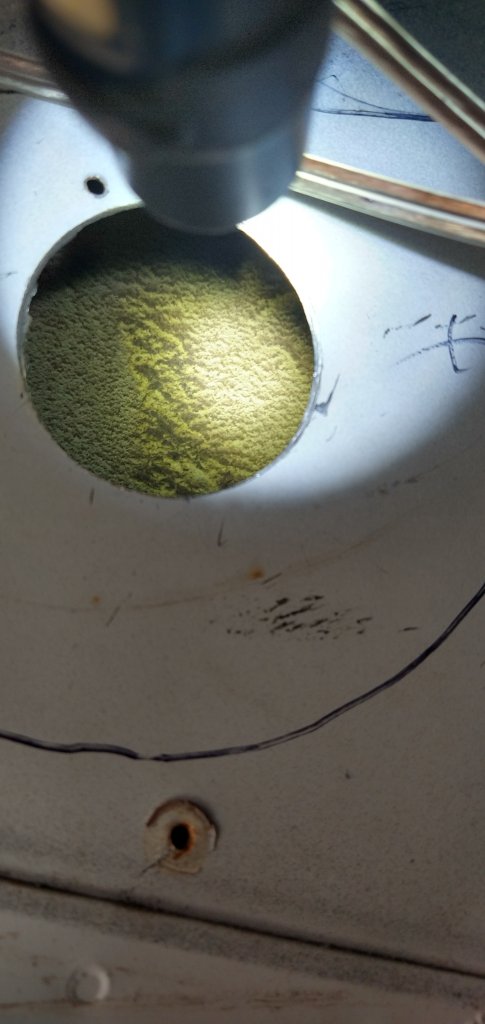

I forget about the other mod I had pending; adding the manual vent in the driver's side kick panel. Figured now was a good time while I had the carpet out. Wrong! I made a template from my existing non-vent panel. I would have to remove the E-brake mechanism and the dash cluster to get access to the upper kick panel. That will have to wait. I did however holesaw the panel to verify it's just an open cavity in there. Sure enough, it's unoccupied space. I'll revisit that project next time I pull the guage cluster


Attachments

  • IMG_20230609_132844890_HDR.jpg
    108.6 KB · Views: 16
  • IMG_20230609_134340277_HDR.jpg
    61.9 KB · Views: 12
  • IMG_20230609_134349391_HDR.jpg
    100.9 KB · Views: 10
  • IMG_20230609_130548710.jpg
    88.4 KB · Views: 11
  • IMG_20230609_130559801_HDR.jpg
    92.6 KB · Views: 13
