tranny mount/crossmember- urgent help needed

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,594
Reaction score
6,700
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
Bolts undergo plastic deformation when torqued to a value that enables them to clamp with a lot of force

Bolts short of that, loose, will not hold tight and will loosen on their own
THe bolts return to the original shape when taken apart

TTY bolts build on this by going to the limit of what a bolt can plastically deform to , but it wont return when removed. Its got the most ability to hold for its size at that value, and its also easily replicated, it makes an OEM choose those depending on what they need

A bolt that has a larger span like those vs replaced with short ones allow them to get that clamping force, which they get more of with the spacer.


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,594
Reaction score
6,700
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
CAFE stood for corporate average fuel economy, people tend to forget about this.The trucks had to average x mpg across the line. So without the hated 250s. 4.3s. and 305s to bring the average up no one would get a 350. And the 305s do just fine for everyday people doing average truck things just like thev283 2v did and save a few bucks on gas at the same time.
Yes! esp with the 4.3 and the 4.8s people whine about from the gmt400+ eras
Admittdently, the only reason you could conceivably want a 4.8 in a early 2000s pickup when spec'ed beside the equivalent in a 5.3 was you would be without AFM...

The mileage was the same.
The 4.3 got a TINY bit better for city, and otherwise same. But i suppose 4.3 would be beneficial for fleet and for insurance costs(v6 vs v8 for those idiot companies)


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
4,107
Reaction score
7,769
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350

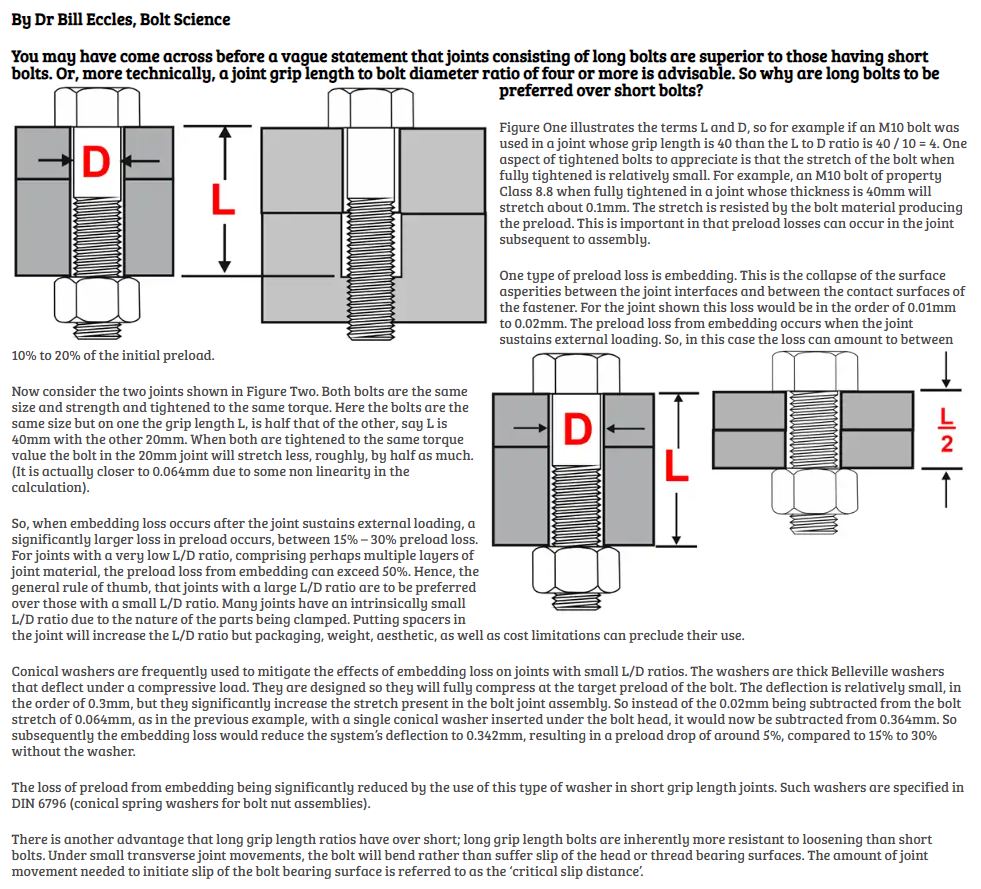

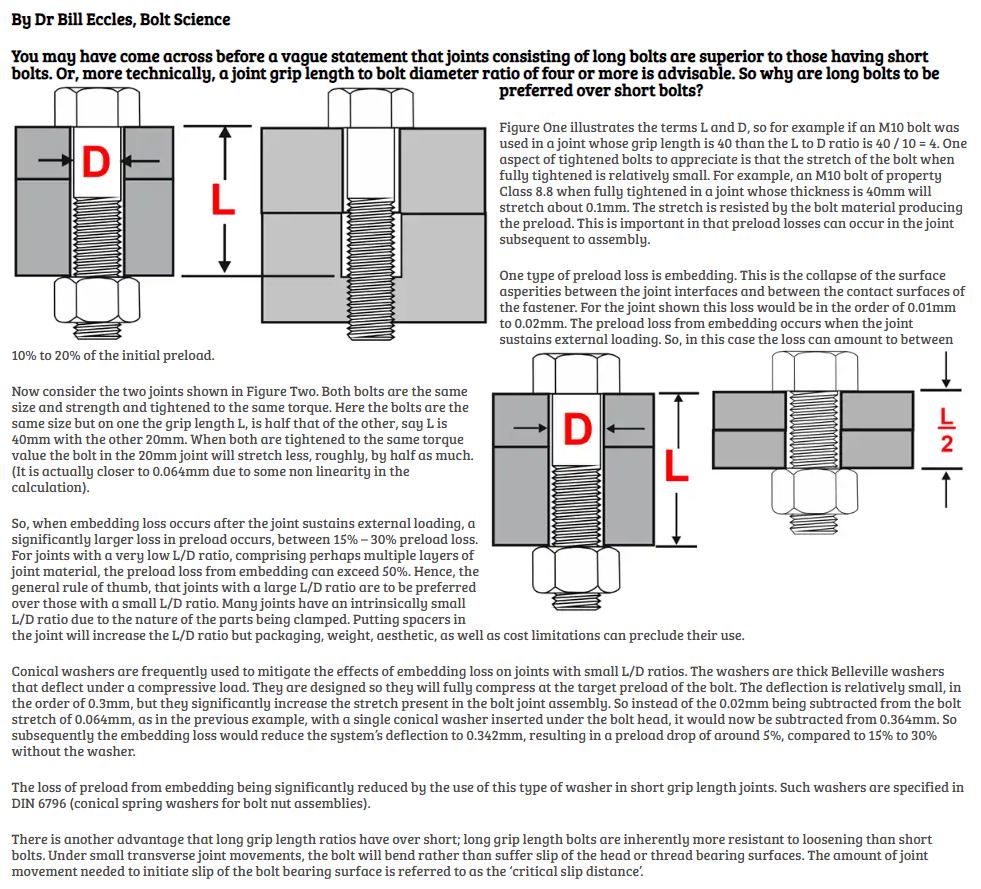

Some science to convince myself this really is a thing. :pedobear:


Attachments

  • Long Shaft vs ol stubby.JPG
    Long Shaft vs ol stubby.JPG
    229.3 KB · Views: 19

bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
30,095
Reaction score
27,231
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454

bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
30,095
Reaction score
27,231
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454

Something is amiss here. Because everyone else with a K10 or K20 has the crossmember below the frame. Well, except probably some that have been boon rigged.


Rustisbest

Full Access Member
Joined
Jul 20, 2021
Posts
167
Reaction score
442
Location
Athens, TN
First Name
Matt
Truck Year
1979
Truck Model
C10
Engine Size
377
Since there's 4 bolts, run 2 with spacers and 2 without. Bolts down on the short ones. Bolts up on the ones with spacers if it's 305 powered. All the bases should be covered.


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
4,107
Reaction score
7,769
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
Something is amiss here. Because everyone else with a K10 or K20 has the crossmember below the frame. Well, except probably some that have been boon rigged.

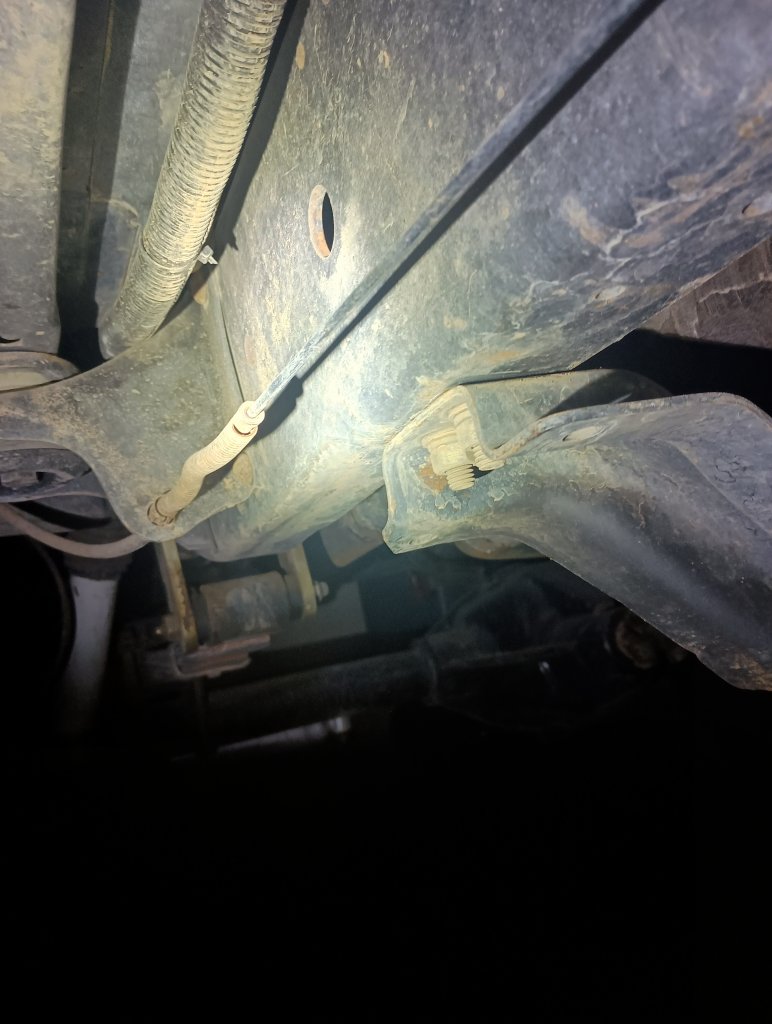

I call Uncle @bucket, my mouth got disengaged from my brain. I just went out and had a look see. My bad. Carry on. However, I stand firm on ditching the cheesy spacers. Grade 8, 7/16 bolts have served me well.


Attachments

  • IMG_20240916_190915045_HDR.jpg
    100.1 KB · Views: 21

dragstews

Full Access Member
Joined
Mar 27, 2024
Posts
200
Reaction score
616
Location
Belleview Florida US of A
First Name
Jesse
Truck Year
Body 1954, frame 1975
Truck Model
R-100
Engine Size
406 ci SBC
75 K15 Short Wheelbase Lifted 4 inches ...
Not sure what can of worms I got here ??

You must be registered for see images attach


Had a THM 400 in it using the stock crossmember with spacers between it and the frame rails ... Worked super well for 30 years like that ...

Whole new ballgame with installing the 4L85E trans now ...
Fixing to find out if this new gig will work as well .. ??
( Hoping there will be no need to call AAA to come and get my stranded bony butt !! )

Last edited:

AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,594
Reaction score
6,700
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
75 K15 Short Wheelbase Lifted 4 inches ...
Not sure what can of worms I got here ??

You must be registered for see images attach


Had a THM 400 in it using the stock crossmember with spacers between it and the frame rails ... Worked super well for 30 years like that ...

Whole new ballgame with installing the 4L85E trans now ...
Fixing to find out if this new gig will work as well .. ??
( Hoping there will be no need to call AAA to come and get my stranded butt !! )
What is that block on each side made of? and nice , whod you get that aftermarket one from?


legopnuematic

Licensed Junk Dealer
Supporting Member
Joined
Oct 27, 2016
Posts
2,303
Reaction score
5,620
Location
MO
First Name
Spencer
Truck Year
1971, 1̶9̶7̶4, 1976, 1979,1̶9̶8̶5, 2002
Truck Model
Dart Swinger, Sierra 10, C10 Cheyenne, C10 Big Ten, Silverado 10, Ram 2500
Engine Size
225/6, 350 c.i., 350 c.i., 5.9l Cummins
Looks to be a Tejas Steelworks unit, have their 2wd unit in the 76 and it’s a nice piece.


dragstews

Full Access Member
Joined
Mar 27, 2024
Posts
200
Reaction score
616
Location
Belleview Florida US of A
First Name
Jesse
Truck Year
Body 1954, frame 1975
Truck Model
R-100
Engine Size
406 ci SBC
What is that block on each side made of? and nice , whod you get that aftermarket one from?
It is made by Tejas Steelworks .... I had to modify it for my needs ..

You must be registered for see images attach


Narrowed it so it would fit between the 4L85E trans and the NP203 transfer case ...

The spacers are made out of a solid block of aluminum ...

You must be registered for see images attach


You must be registered for see images attach


Driveshaft angle is spot-on ..


dragstews

Full Access Member
Joined
Mar 27, 2024
Posts
200
Reaction score
616
Location
Belleview Florida US of A
First Name
Jesse
Truck Year
Body 1954, frame 1975
Truck Model
R-100
Engine Size
406 ci SBC
How's the front? It should be worse but you may get by because of the low lift.

Don't know yet ... Must add bout 3.5" to it ...
With having the CV joint and going longer should work pretty good without seeing much accelerated wear occurring ...

Old truck don't see much 4-wheel action .. Did convert the full time to part time so there's nothing spinning at highway speeds .. Unless the hubs are locked or the transfer case gets shifted into 4 lock ..

You must be registered for see images attach


Floor shifter works the TC, transmission is a column shift ..

You must be registered for see images attach

Last edited:

AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,594
Reaction score
6,700
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
It is made by Tejas Steelworks .... I had to modify it for my needs ..

You must be registered for see images attach


Narrowed it so it would fit between the 4L85E trans and the NP203 transfer case ...

The spacers are made out of a solid block of aluminum ...

You must be registered for see images attach


You must be registered for see images attach


Driveshaft angle is spot-on ..
Why are you using a solid block of aluminum? Aluminum is a lot weaker than steel, and its also going to cause corrosion against steel.


Latest posts

Forum statistics

Threads
43,743
Posts
941,946
Members
35,696
Latest member
iickyslicky
Top
