To Cut Or Not To Cut

R Carnella

Supporting Member
Supporting Member
Joined
Sep 21, 2017
Posts
91
Reaction score
248
Location
Long island
First Name
Ric
Truck Year
1990
Truck Model
Suburban V2500
Engine Size
5.3
the internet doesn't like this.


custodian

Full Access Member
Joined
Apr 15, 2016
Posts
775
Reaction score
405
Location
Catawba
First Name
William
Truck Year
1973, 1985
Truck Model
C10
Engine Size
5.3 LS, 350
Anyone have the pinout wire diagram for the plug that goes into the back of the gauge cluster for a 73 C10?


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
5,177
Reaction score
3,131
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350

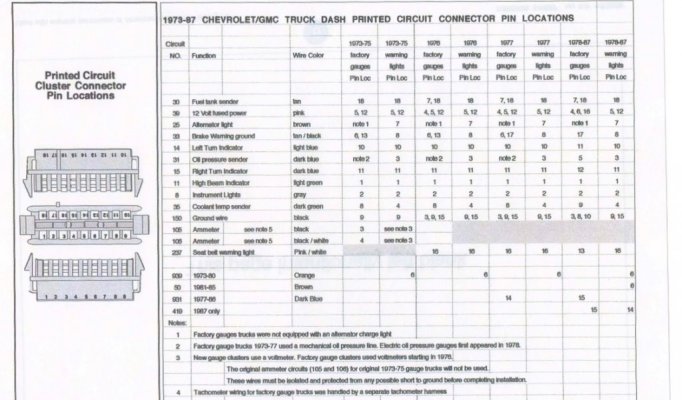

You must be registered for see images attach

i am fairly certain hes blocked me but if he didnt then here you go


custodian

Full Access Member
Joined
Apr 15, 2016
Posts
775
Reaction score
405
Location
Catawba
First Name
William
Truck Year
1973, 1985
Truck Model
C10
Engine Size
5.3 LS, 350
To all those out there that might be looking for the cluster pin out, here's what I was looking for.


Attachments

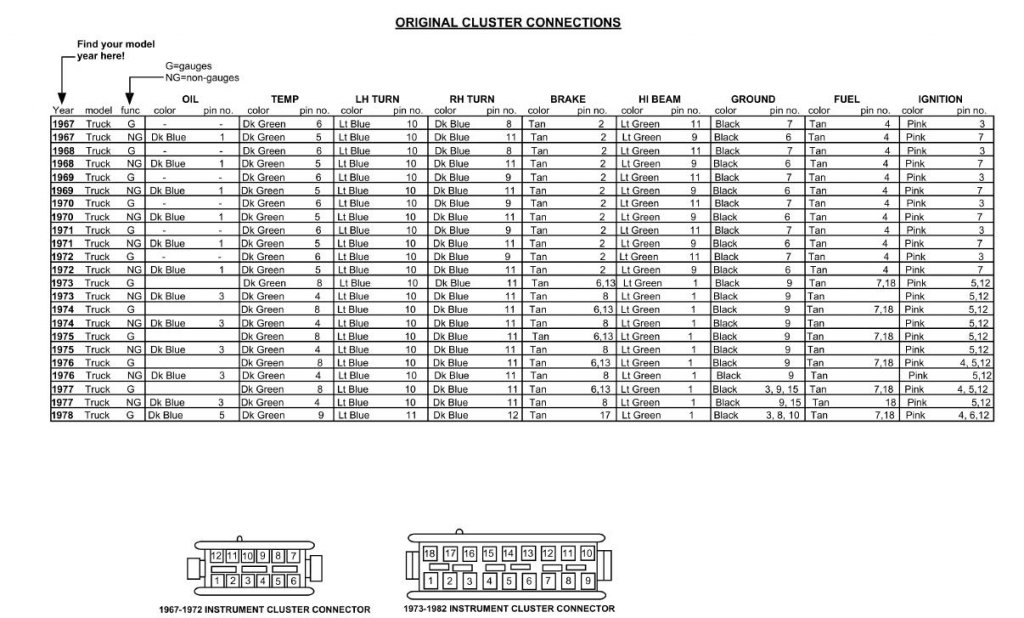

  • Pinout.jpg
    145.2 KB · Views: 11

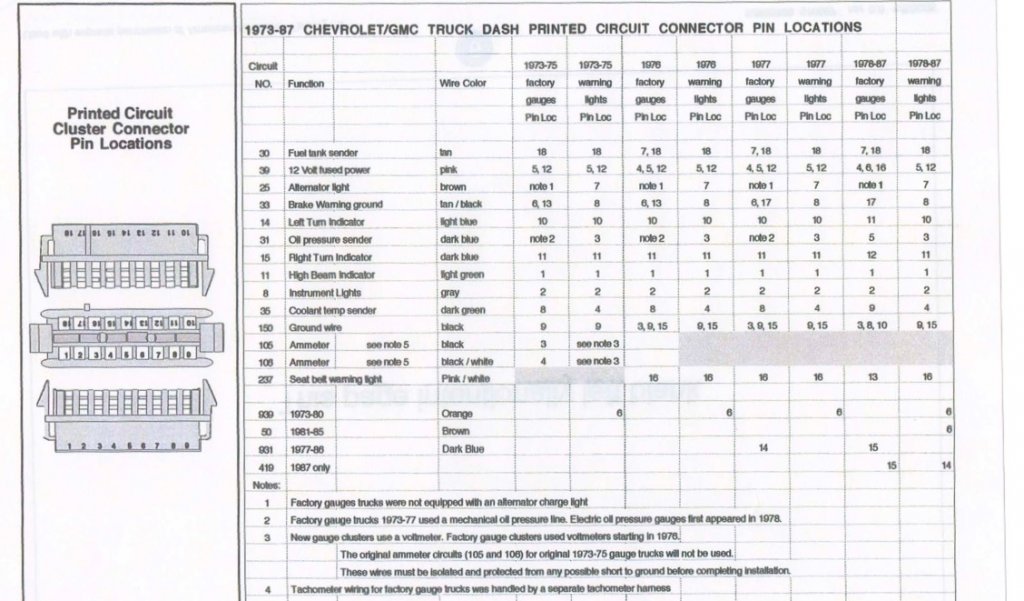

  • cluster pin out.jpg
    cluster pin out.jpg
    115.2 KB · Views: 8

dsteelejr

Full Access Member
Joined
May 25, 2020
Posts
158
Reaction score
117
Location
Hudson, WY
First Name
David
Truck Year
1973, 1980
Truck Model
Cheyenne super C20 camper special, Sierra K25
Engine Size
350, 454
Anyone have the pinout wire diagram for the plug that goes into the back of the gauge cluster for a 73 C10?
Wiring diagrams work. I’d trust a factory diagram before I’d trust something someone else made up.


75gmck25

Full Access Member
Joined
Oct 13, 2016
Posts
1,324
Reaction score
921
Location
Northern Virginia
First Name
Bruce
Truck Year
1975
Truck Model
K25 Camper Special TH350 NP203
Engine Size
5.7
Using any cluster newer than about late ‘95 is hard/impossible because that is when GM started using OBD-II, which put the computer in the center of most instrumentation.

In many cases there is no longer a direct connection between a sending unit and gauge, so measuring sending unit resistance or voltage would not work for troubleshooting a gauge. The sending unit provides input to the computer, which processes it and sends the output to the gauge. You cannot get a gauge reading unless the computer is connected.


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
5,177
Reaction score
3,131
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
Using any cluster newer than about late ‘95 is hard/impossible because that is when GM started using OBD-II, which put the computer in the center of most instrumentation.

In many cases there is no longer a direct connection between a sending unit and gauge, so measuring sending unit resistance or voltage would not work for troubleshooting a gauge. The sending unit provides input to the computer, which processes it and sends the output to the gauge. You cannot get a gauge reading unless the computer is connected.
its even nicer when the cluster IS a complex computer(has its own EEPROM and processing unit) in which some of the inputs are direct to the cluster while most engine ones are to the PCM but some are also to the BCM etc.. shared on a data bus which its apart of. I think on my park avenue, there are two direct inputs, the SECURITY telltale(but only half of it..) and the fuel gauge. The rest are provided by other modules etc. Some are logic based, if it doesnt see a certain signal or type of signal in a certain amount of time,it will illuminate a warning or a light depending on certain criteria etc so its complex for sure. GM Trucks to 2002 I think were old school but not to say it doesnt still need extra work. People who run an associated PCM for a swap wouldnt have as much trouble but certainly a custom job would be difficult indeed

In my car the IPC, BCM, and PCM are about equal in the electronic management of the car since it performs the diagnostic ability for like 3 other systems and of course tells you whats going on with the car etc. But thank god the park avenue isnt most cars until the earlier 2000s but there definitely is that phase change starting about then for sure


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
1,688
Reaction score
2,347
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
its even nicer when the cluster IS a complex computer(has its own EEPROM and processing unit) in which some of the inputs are direct to the cluster while most engine ones are to the PCM but some are also to the BCM etc.. shared on a data bus which its apart of. I think on my park avenue, there are two direct inputs, the SECURITY telltale(but only half of it..) and the fuel gauge. The rest are provided by other modules etc. Some are logic based, if it doesnt see a certain signal or type of signal in a certain amount of time,it will illuminate a warning or a light depending on certain criteria etc so its complex for sure. GM Trucks to 2002 I think were old school but not to say it doesnt still need extra work. People who run an associated PCM for a swap wouldnt have as much trouble but certainly a custom job would be difficult indeed

In my car the IPC, BCM, and PCM are about equal in the electronic management of the car since it performs the diagnostic ability for like 3 other systems and of course tells you whats going on with the car etc. But thank god the park avenue isnt most cars until the earlier 2000s but there definitely is that phase change starting about then for sure
:33::upyours:


custodian

Full Access Member
Joined
Apr 15, 2016
Posts
775
Reaction score
405
Location
Catawba
First Name
William
Truck Year
1973, 1985
Truck Model
C10
Engine Size
5.3 LS, 350
I've decide to remove only the wires that I need from the connector, turn signals, fuel gauge, temp and high beam.
