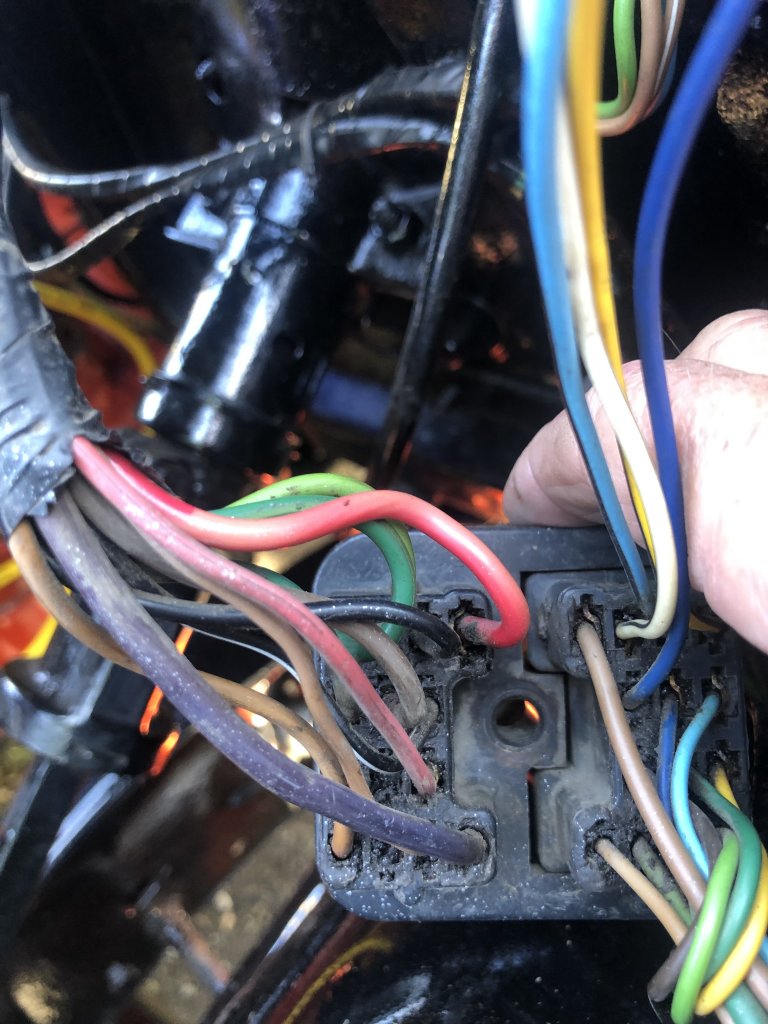

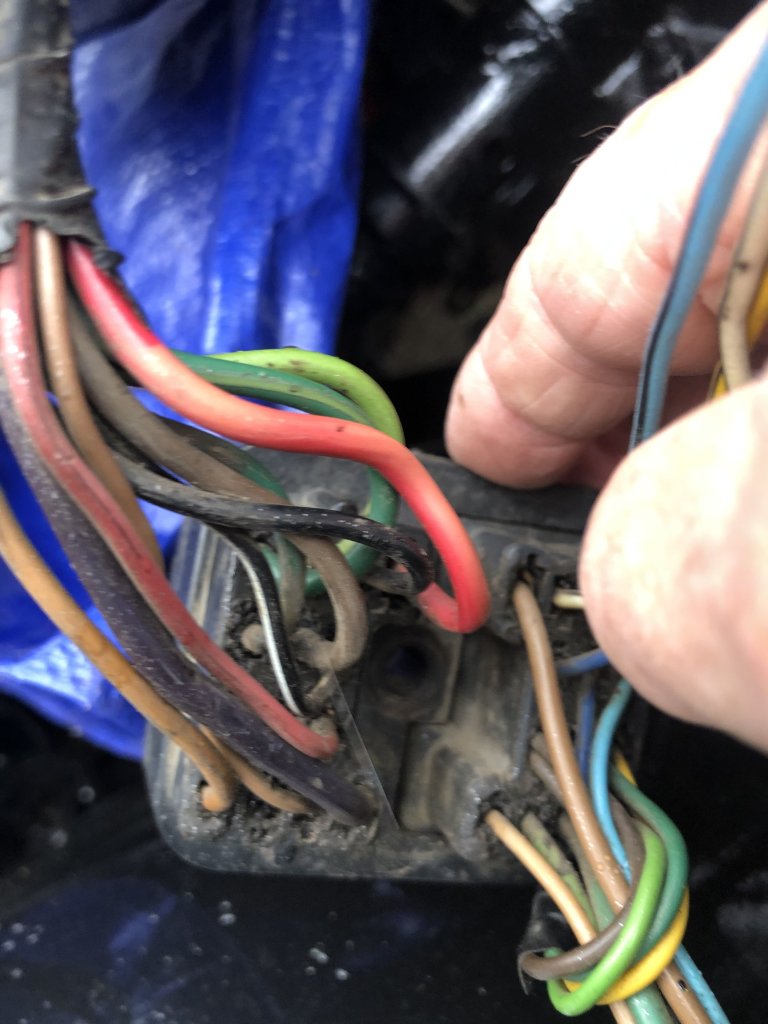

Wiring my hei trying to eliminate the resistor wire at the bulkhead stock 73 k20 all original harness. I’m trying not to have to unwind all the loom and tape back to the splice from the solanoid. See the pic which wire would you suspect?


Attachments

  • C95A3C5A-EF54-47F9-BFC4-E366878BEFA9.jpeg
    104.4 KB · Views: 56
  • 101DB4B6-58CA-4220-8D90-7B893B8189AB.jpeg
    139.7 KB · Views: 58

Gman73

Full Access Member
Joined
Aug 19, 2021
Posts
101
Reaction score
28
Location
Sacramento
First Name
Gary
Truck Year
1973
Truck Model
Ck20
Engine Size
350 v8
I have the factory wiring manual specific to the 73 but I’d doesn’t add up, trace it from the splice it says color PB and to junction 3 for the life of me I don’t see the wire and it shouldn’t be that difficult it’s 18 ga


Attachments

  • 703C359F-2225-4F9E-A085-39F0FD56FE63.jpeg
    201.9 KB · Views: 38

Gman73

Full Access Member
Joined
Aug 19, 2021
Posts
101
Reaction score
28
Location
Sacramento
First Name
Gary
Truck Year
1973
Truck Model
Ck20
Engine Size
350 v8
That’s what I thought also


Gman73

Full Access Member
Joined
Aug 19, 2021
Posts
101
Reaction score
28
Location
Sacramento
First Name
Gary
Truck Year
1973
Truck Model
Ck20
Engine Size
350 v8
Thank you I’m going that route


Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
2,338
Reaction score
3,571
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds
Don’t use tape to rewrap harnesses. The factory used friction tape, you can get it for about 8 bucks a roll from summit. It’s probably available other places.

Electrical tape doesn’t last long under hood before it’s gets gooey and starts to unravel.


WP29P4A

Full Access Member
Joined
Jul 18, 2021
Posts
866
Reaction score
1,469
Location
Nevada
First Name
Mike
Truck Year
1987
Truck Model
Sierra Classic V1500
Engine Size
350 TBI
I have been working with low voltage wiring for 44 years and never heard the term "resistor wire", is this a wire with specific resistance that is used instead of a ballast resister?


Redfish

Full Access Member
Joined
Nov 6, 2021
Posts
2,373
Reaction score
12,754
Location
Prairieville, LA
First Name
Andrew
Truck Year
1987
Truck Model
V1500
Engine Size
350/5.7
I have been working with low voltage wiring for 44 years and never heard the term "resistor wire", is this a wire with specific resistance that is used instead of a ballast resister?

I believe it is in place to prevent ignition noise.

When I re-wired the 1973 Bronco it also had a Resistor Wire and it was that same Pink with Black Stripe colored wire. When I was initially trouble shooting the electrical system in that Bronco I was confused by that wire and had to call my Dad. He was disgusted that I didn't know it was for ignition noise...


Turbo4whl

Supporting Member
Supporting Member
Joined
Oct 30, 2019
Posts
2,837
Reaction score
6,356
Location
Downingtown, PA
First Name
Wayne
Truck Year
1974
Truck Model
Jimmy
Engine Size
350
The resister wire provides the correct voltage for the coil on a point system when the engine is running.

When the engine cranks to start the battery voltage drops, from the 12.75V or so to maybe 9 or 10V. If the coil was designed to run on 13-14V as the alternator puts out when the engine runs, coil secondary voltage would be low on start up.

So the coil is set to run a lower voltage. When cranking, the coil receives current from the R terminal at the starter. This is the battery voltage while cranking, 9-10V.
When engine starts battery voltage jumps to 13-14V. Then the resister wire (or mounted resistor) lowers the voltage the coil was designed to run at from the ignition switch.

This is why you cannot use this resistor wire from the point distributor for your HEI dizzy.


75gmck25

Full Access Member
Joined
Oct 13, 2016
Posts
2,018
Reaction score
1,811
Location
Northern Virginia
First Name
Bruce
Truck Year
1975
Truck Model
K25 Camper Special TH350 NP203
Engine Size
5.7
I believe most GM starters have an R terminal (steps down the voltage to 9 volts for the points while running) and an S terminal ( provides full power for starting). Once they switched to HEI you only need to connect to the S terminal. That always made me think the resistance is built into the starter solenoid, but up I don’t really know.


WP29P4A

Full Access Member
Joined
Jul 18, 2021
Posts
866
Reaction score
1,469
Location
Nevada
First Name
Mike
Truck Year
1987
Truck Model
Sierra Classic V1500
Engine Size
350 TBI
The resister wire provides the correct voltage for the coil on a point system when the engine is running.

When the engine cranks to start the battery voltage drops, from the 12.75V or so to maybe 9 or 10V. If the coil was designed to run on 13-14V as the alternator puts out when the engine runs, coil secondary voltage would be low on start up.

So the coil is set to run a lower voltage. When cranking, the coil receives current from the R terminal at the starter. This is the battery voltage while cranking, 9-10V.
When engine starts battery voltage jumps to 13-14V. Then the resister wire (or mounted resistor) lowers the voltage the coil was designed to run at from the ignition switch.

This is why you cannot use this resistor wire from the point distributor for your HEI dizzy.
That makes sense. On Mopar stuff they use a ballast resistor to knock the voltage down to the coil after starting, but puts a full 12 volts to the coil during starting.

So, will a 1987 GMC 350ci TBI truck have a resistor wire even though it has electronic ignition? Or is this only on trucks with points?
