Strange square holes in case...

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

JamesMilk

Full Access Member
Joined
Oct 21, 2022
Posts
73
Reaction score
84
Location
Athens, Alabama
First Name
James
Truck Year
1978
Truck Model
C20
Engine Size
350

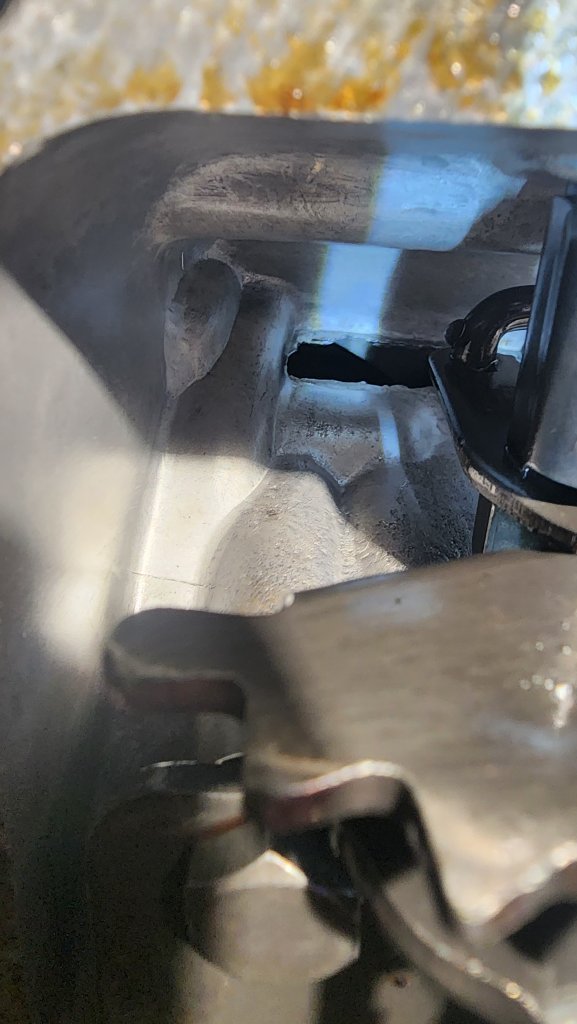

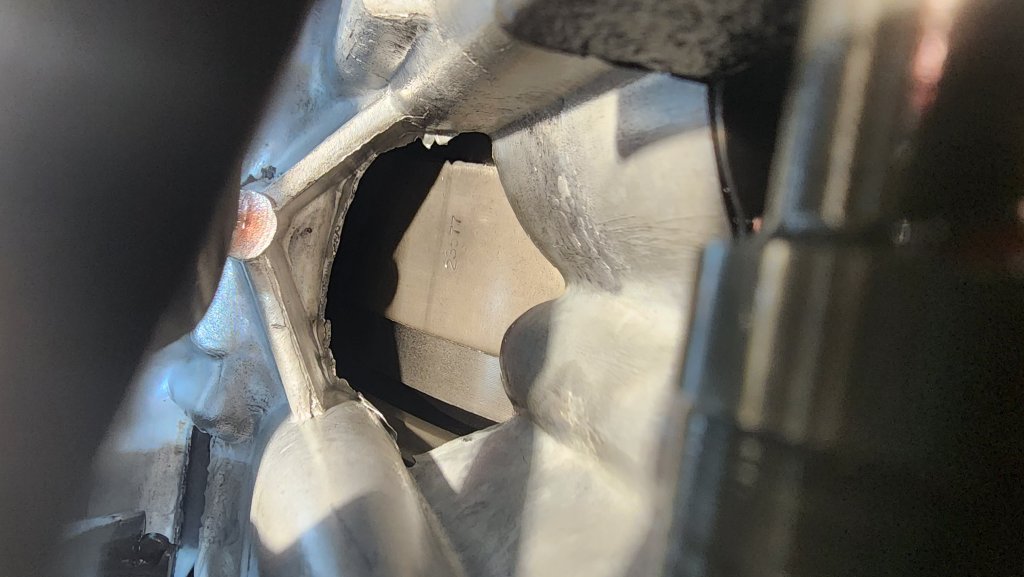

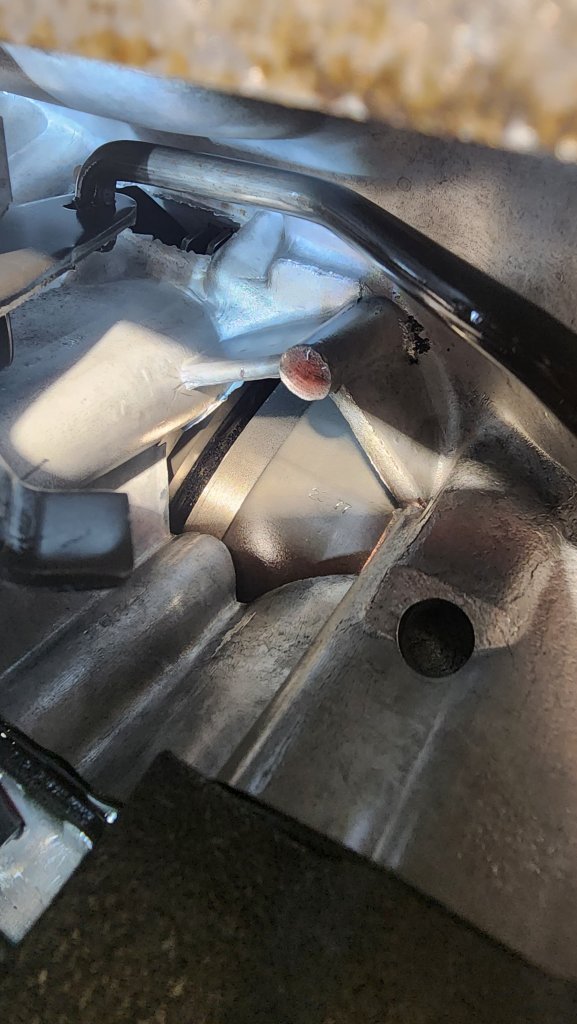

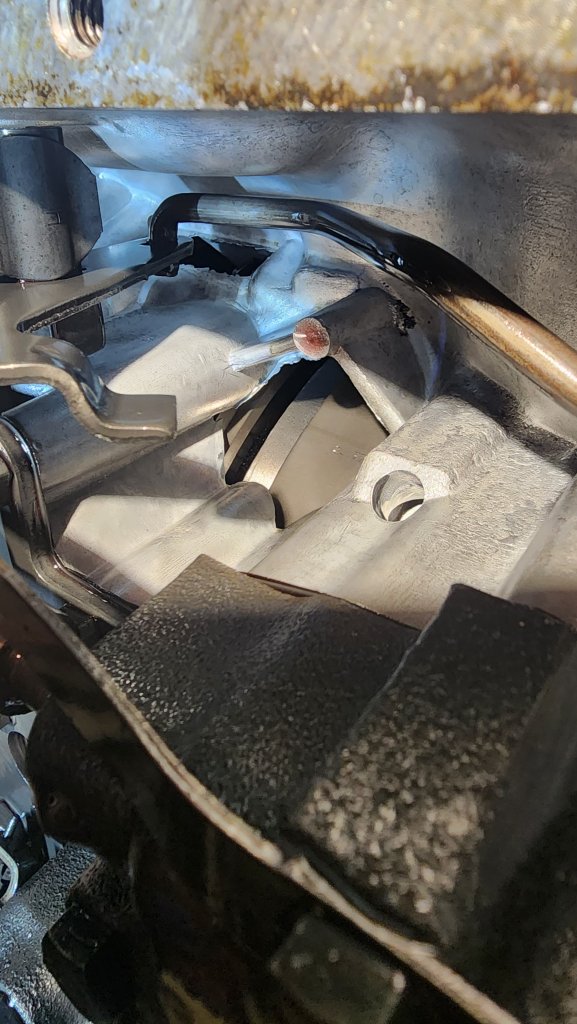

Ok, so I have discovered what looks to be a blown out case. The hole leads to the 3rd/reverse drum. It's up under the shift gear for an automatic trans. I just need to know it is can be repaired(tig weld) or has to be replaced, can't find anyone else with this problem online. But I'm guessing this is why my th350 has no 3rd gear shift. Give me your opinions please. It isn't holding the transfluid under heavy load, But reverse works with no load.


Attachments

  • 20230322_171642.jpg
    84 KB · Views: 87
  • 20230322_171632.jpg
    103.3 KB · Views: 90
  • 20230322_171618.jpg
    121.8 KB · Views: 88
  • 20230322_171623.jpg
    81.5 KB · Views: 83

Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
2,338
Reaction score
3,569
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds
That’s just a drain hole. They are cast that way. I have a th350 torn apart on my bench, I’ll take a pic when I get home from work.


JamesMilk

Full Access Member
Joined
Oct 21, 2022
Posts
73
Reaction score
84
Location
Athens, Alabama
First Name
James
Truck Year
1978
Truck Model
C20
Engine Size
350
So I should continue with the rebuild?


Blue Ox

Turning Diesel Fuel Into Fun
Joined
Mar 27, 2018
Posts
4,831
Reaction score
10,633
Location
LI-NY
First Name
Derek
Truck Year
MCMLXXXV
Truck Model
K20HD
Engine Size
6.2L
@Matt69olds would be the expert on these things, but judging by the casting flash I'd say that's how they're made.

Once you get the case clean I would deburr those. Obviously it's not too critical if it made it this far, but all that sharp, thin metal sticking out would drive me nutz.


JamesMilk

Full Access Member
Joined
Oct 21, 2022
Posts
73
Reaction score
84
Location
Athens, Alabama
First Name
James
Truck Year
1978
Truck Model
C20
Engine Size
350
Yeah, was wondering if I was losing fluid to push the truck into 3rd or not


Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
2,338
Reaction score
3,569
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds
Crap, I forgot to take the picture. If that’s the only concern, then go head with the overhaul.

Lots of cases have holes cast into them that look just like what you are seeing. Aluminum is expensive, they don’t put any more into the case than is absolutely needed.


Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
2,338
Reaction score
3,569
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds

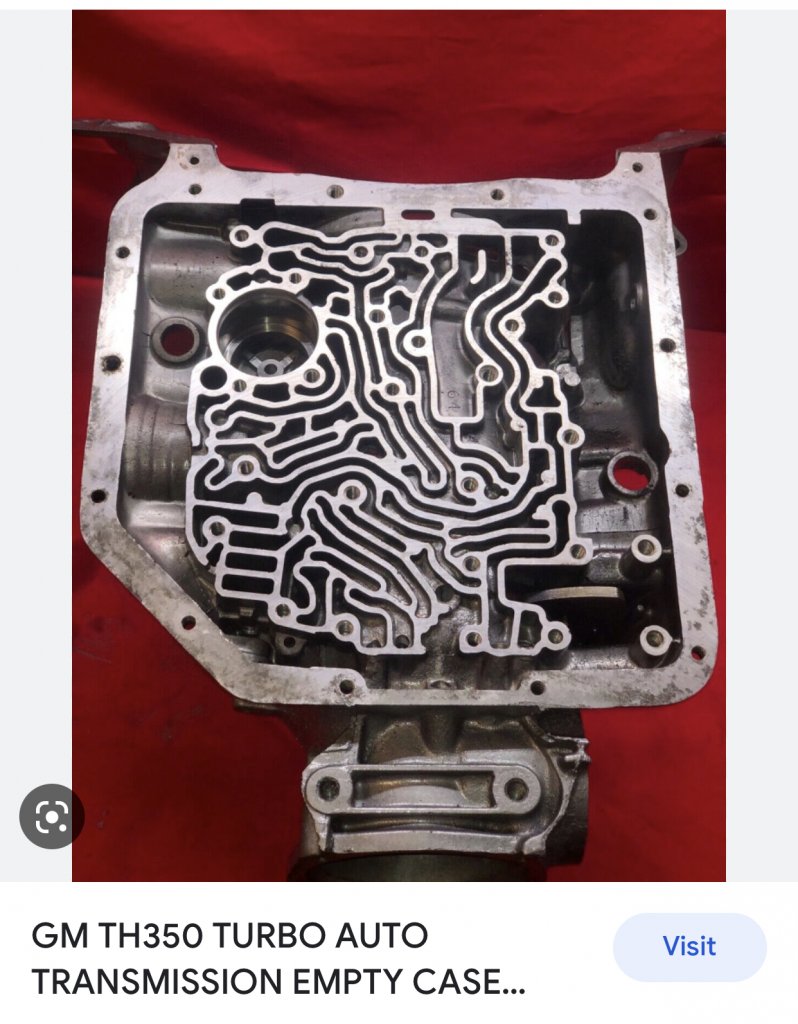

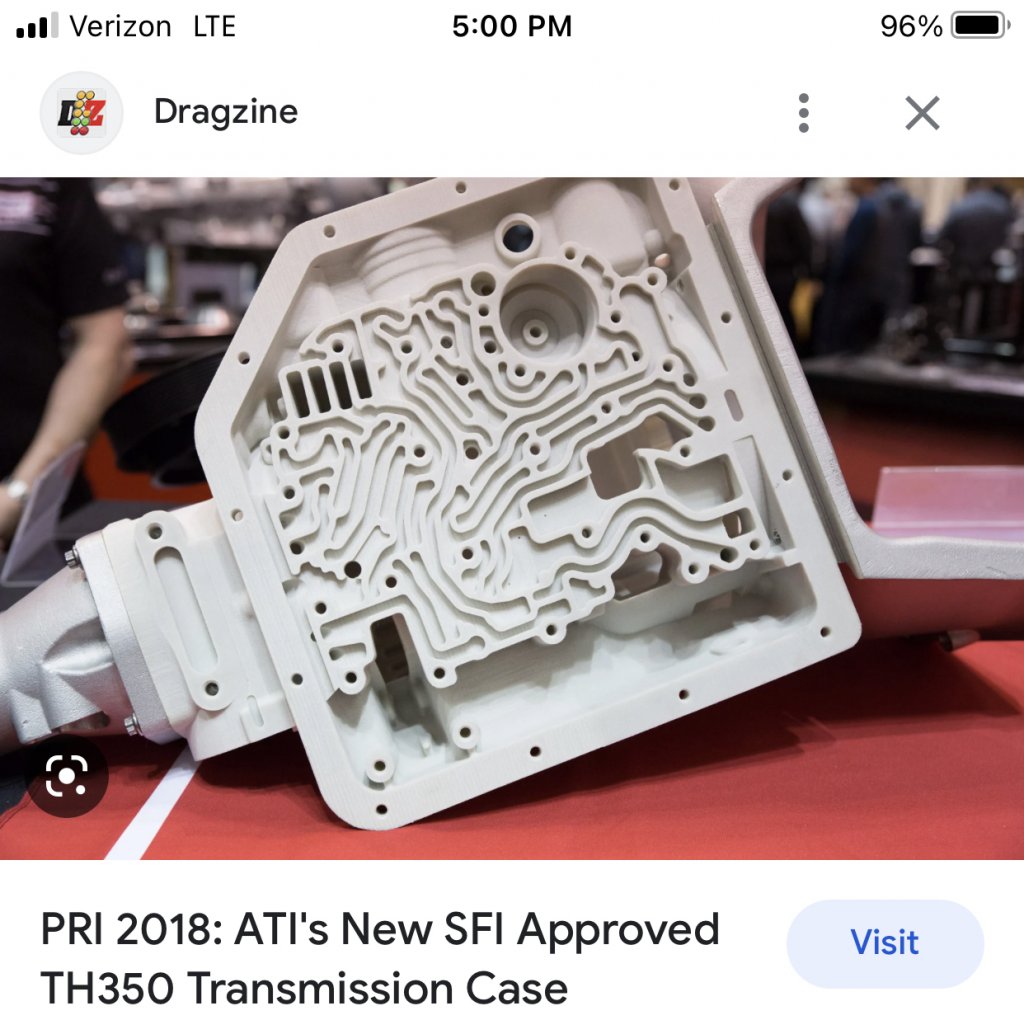

And another case for sale on EBay.

Do you have a service manual? Once you get the pump and forward/direct drums back together it’s easy to air check your work.

Stack the direct drum with bearing onto the forward clutch housing. Set the pump with the bearing or thrust washer in place onto the input shaft. Turn the entire assembly over, with the shaft dropped thru a hole in the workbench. You can apply air thru the holes in the pump and look for the clutch to apply.


Attachments

  • D3792EF4-30F0-4710-8060-297229EC05B4.jpeg
    133.5 KB · Views: 43

JamesMilk

Full Access Member
Joined
Oct 21, 2022
Posts
73
Reaction score
84
Location
Athens, Alabama
First Name
James
Truck Year
1978
Truck Model
C20
Engine Size
350
Thanks for the knowledge, I'm about ready to pull it from the truck, just a few more bolts to loosen. Was just making sure I didn't waste money on my rebuild kit. I will send pics of when she finally is free.


JamesMilk

Full Access Member
Joined
Oct 21, 2022
Posts
73
Reaction score
84
Location
Athens, Alabama
First Name
James
Truck Year
1978
Truck Model
C20
Engine Size
350

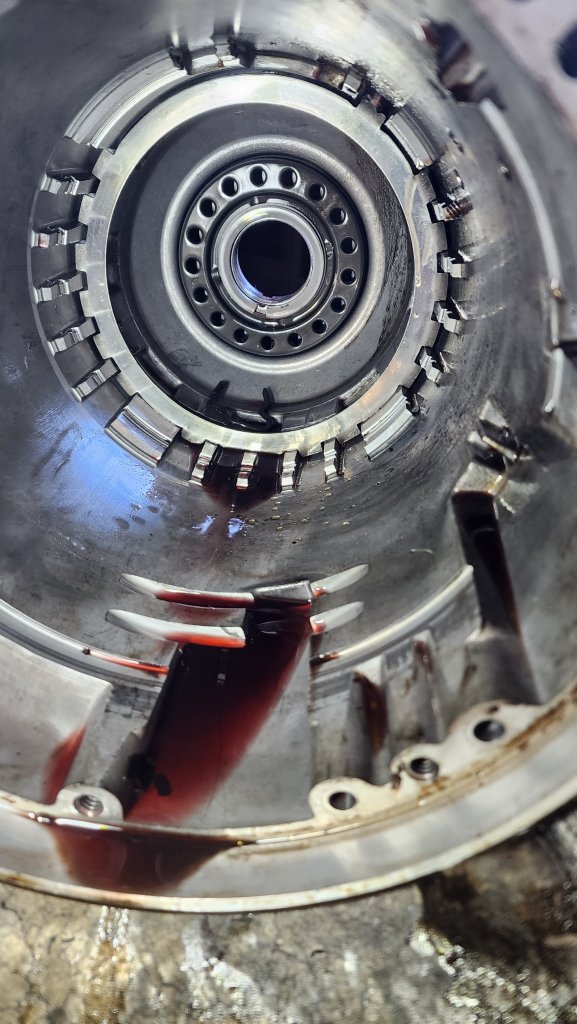

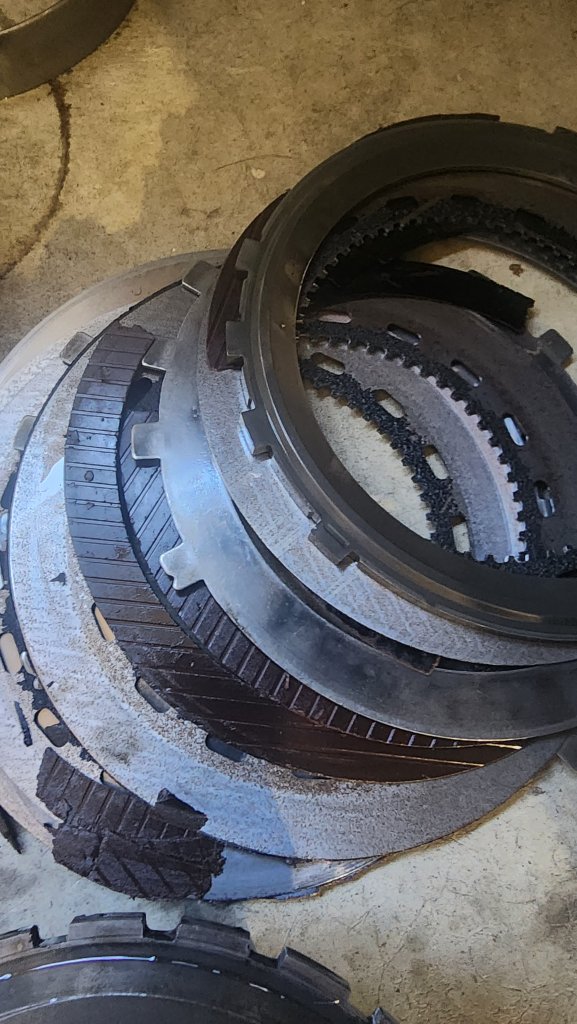

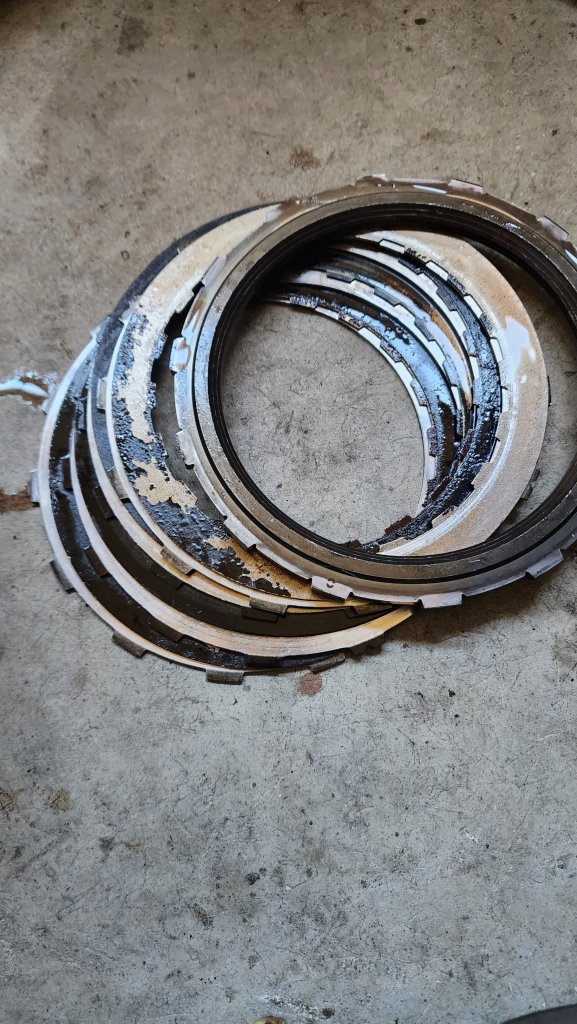

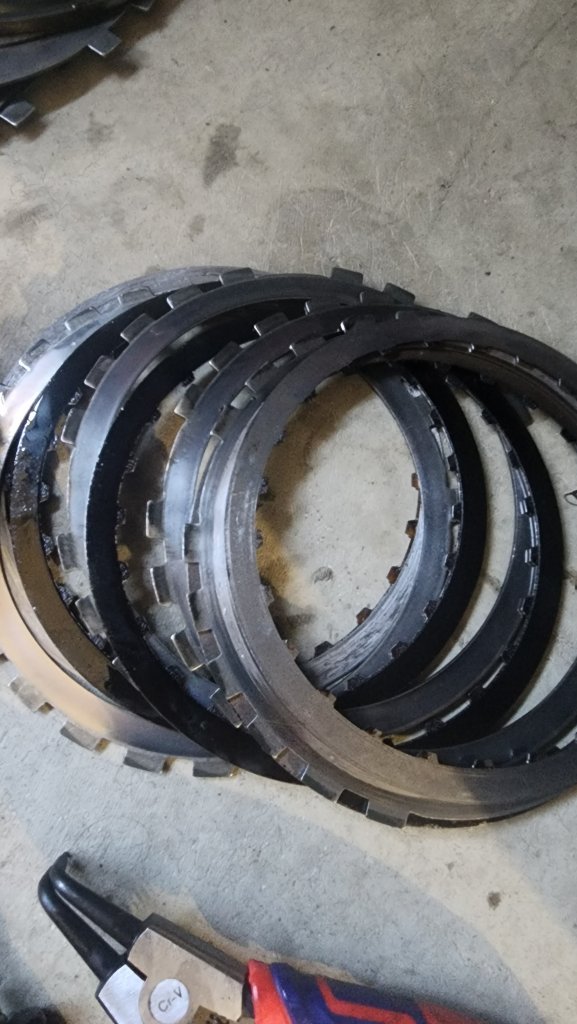

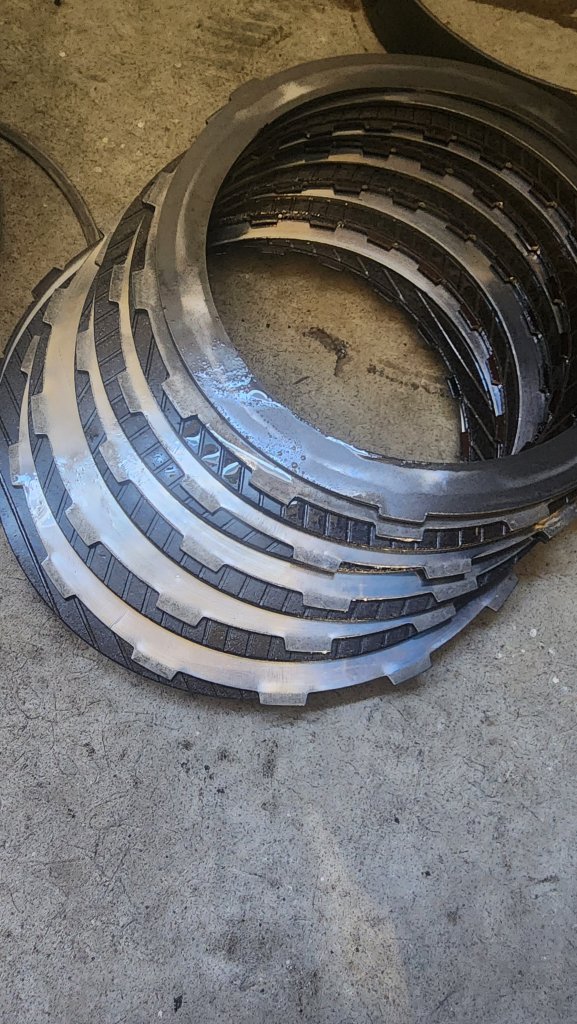

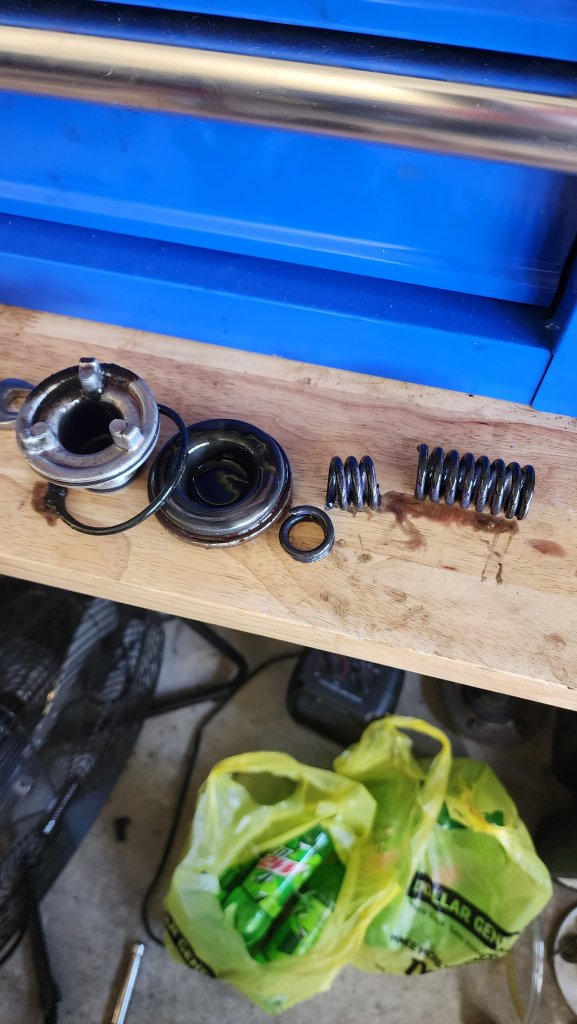

Ok here is the clutches and case body. My clutches were completely burnt up, except for 1st gear. And my accumulator spring was broke into 3 pieces.... time for the bushing removal and clean the everything up.


Attachments

  • 20230326_092827.jpg
    170.1 KB · Views: 42
  • 20230326_092829.jpg
    106.5 KB · Views: 39
  • 20230326_092832.jpg
    137.2 KB · Views: 37
  • 20230326_092835.jpg
    170.6 KB · Views: 39
  • 20230326_092901.jpg
    130.5 KB · Views: 33

JamesMilk

Full Access Member
Joined
Oct 21, 2022
Posts
73
Reaction score
84
Location
Athens, Alabama
First Name
James
Truck Year
1978
Truck Model
C20
Engine Size
350
1 more pic


Attachments

  • 20230326_081903.jpg
    104.9 KB · Views: 32

bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
28,956
Reaction score
23,466
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
So what is the trick to getting that accumulator retainer clip out of the groove? Or is there no trick, you just have to struggle?


JamesMilk

Full Access Member
Joined
Oct 21, 2022
Posts
73
Reaction score
84
Location
Athens, Alabama
First Name
James
Truck Year
1978
Truck Model
C20
Engine Size
350
So what is the trick to getting that accumulator retainer clip out of the groove? Or is there no trick, you just have to struggle?
I used a small flat head screwdriver, there's a small hole that you can use to push the retainer clip out with a few taps of the hammer.


Matt69olds

Full Access Member
Joined
Jan 8, 2018
Posts
2,338
Reaction score
3,569
Location
Central Indiana
First Name
Matt
Truck Year
81
Truck Model
GMC 1/2 ton
Engine Size
455 Olds
I used a small flat head screwdriver, there's a small hole that you can use to push the retainer clip out with a few taps of the hammer.

This^

Use a small punch thru the hole to push the snap ring out of the groove, then use a small screwdriver or pick to pull it out.


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
28,956
Reaction score
23,466
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
Awesome, thanks fellas! I never realized there was a hole there. Looks like I need to do some more cleaning on the Chevelle so I can find it.
