...so I saw that the 1406 had its own sticky, so I figure to myself "Why the hell not".

The Quadrajet has seen quite a few decades of production starting in the mid 60s and became GM's standard-issue fuel delivery system until the era of TBI engines when GM ceased production and Edelbrock was the one left to carry the stone for a bit longer.
Love 'em or hate 'em, countless millions were produced - but I found that any attempts to procure information on them was a trying experience when compared to the newer and still in production Edelbrocks, Holleys, etc.

Links and descriptions are provided below. Authors will be recognized and given credit where credit is due.


You must be registered for see images attach


Quadrajet Installation Manual
Author: Edelbrock
© 1994 Edelbrock Corp. This is a basic installation manual released for the Edelbrock #1910. This document contains the most basic information on the Quadrajet with an elementary troubleshooting chart.

Quadrajet Owner's Manual
Author: Edelbrock
© 2000 Edelbrock Corp. #1910. Affectionately known to me as: "The Gospel According to Edelbrock". If you own any other Edelbrock carb, then this manual should be extremely familiar to you - and is one of the best tools in your carburetor arsenal.
While Edelbrock discontinued the manufacture of their Q-jet line, they still offer parts that will work on both Edelbrock AND Rochester variants.

Quadrajet Jet Change Chart
Author: Unknown
This chart is raw data - an intensive list of diameter/area changes based on respective tweaks to jet size changes. This will save you from having to crunch numbers by referencing your current or prospective setup.

Common Problems and Solutions for Quadrajet Carbs
Author: Lars Grimsrud
Lars Grimsrud's document on common issues one could experience on a Q-jet. The format is cause-effect, illustrating a common issue and what behavior(s) are associated with said issue.

How to Tune a Quadrjet
Author: Lars Grimsrud
Lars Grimsrud's document on tuning a Q-jet. This is an extremely intensive document and masterfully written with any advanced information you want to know - primaries, secondaries, tuning, and carburetor identification.

Quadrajet Secondary Metering Rods
Author: Unknown
This is an all-inclusive chart on secondary rod ID numbers, technical specs, and GM part numbers.

You must be registered for see images attach


Quadrajet Tuning Notes
Author: Rick Johnson
This document seems to be a collection of notes and observations from the owner of a site called tootechracing.com on a Qjet project he was working on.

Problems With Commercially Rebuilt Quadrajets
Author: Lars Grimsrud
Lars' accounting of three scenarios on commercially-built Q-jets. Buyer beware.


More info to come in the future, I'm sure.

Last edited:

BADAZ chevy guy

Full Access Member
Joined
May 4, 2014
Posts
110
Reaction score
6
Location
Clearfield, UT
First Name
Doug
Truck Year
1977
Truck Model
C10
Engine Size
350
Bookmarked this page. The biggest question I had for months was: Which Q-Jet had the right geometry for use with a 700R4? I figured it out eventually, but it was a thorn in my side for quite a while.


Nalanthi

Full Access Member
Joined
Jun 24, 2014
Posts
60
Reaction score
0
Location
Albuquerque
First Name
Reno
Truck Year
1979
Truck Model
K10
Engine Size
350
Bookmarked this page. The biggest question I had for months was: Which Q-Jet had the right geometry for use with a 700R4? I figured it out eventually, but it was a thorn in my side for quite a while.


I do believe that I have that information in my store.
From what I understand, there was a variant that GM made for autos and one for standards - but I'll keep you posted as I sift through these documents and organize them.


BADAZ chevy guy

Full Access Member
Joined
May 4, 2014
Posts
110
Reaction score
6
Location
Clearfield, UT
First Name
Doug
Truck Year
1977
Truck Model
C10
Engine Size
350
I do believe that I have that information in my store.
From what I understand, there was a variant that GM made for autos and one for standards - but I'll keep you posted as I sift through these documents and organize them.

Thanks, Nalanthi. I already figured it out though. It's just a matter of finding the right throttle side plate. I was just commenting that it took me forever to find the right information.

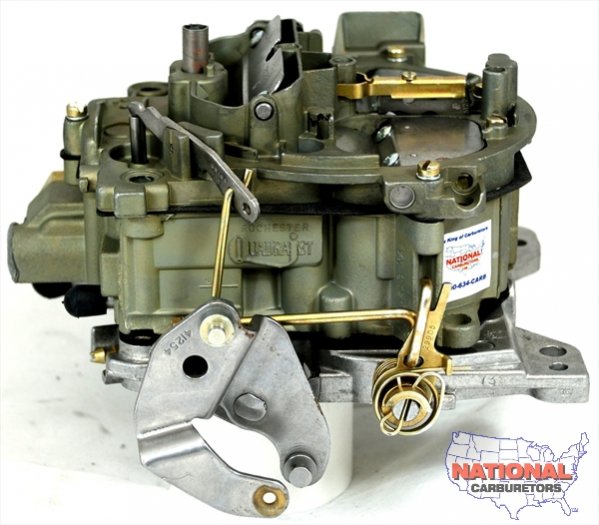

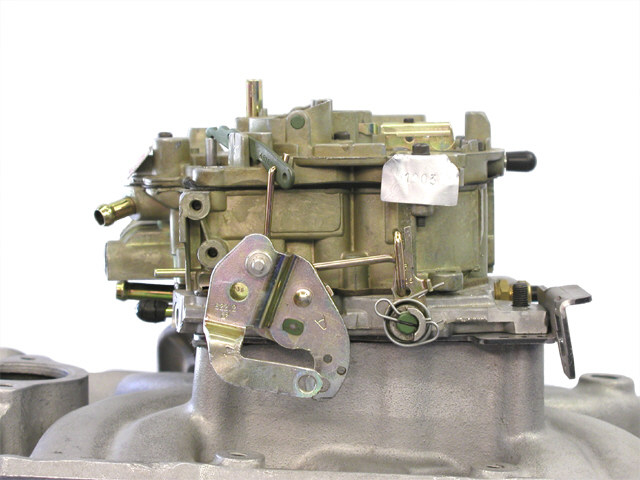

The top carb is the early model (used w/kickdown cable). The bottom carb is a later model with correct geometry for a 700R4. See the more pronounced "Hook" in the rear arm and lower throttle cable mounting stud at the top.


Attachments

  • Early q-jet ND4432.jpg
    Early q-jet ND4432.jpg
    61 KB · Views: 576
  • later q-jets ND4488.jpg
    later q-jets ND4488.jpg
    69.5 KB · Views: 227

Nalanthi

Full Access Member
Joined
Jun 24, 2014
Posts
60
Reaction score
0
Location
Albuquerque
First Name
Reno
Truck Year
1979
Truck Model
K10
Engine Size
350
Reference Lars' article "how to tune a Quadrajet". You'll find a wealth of information on what you have from that doc.


BADAZ chevy guy

Full Access Member
Joined
May 4, 2014
Posts
110
Reaction score
6
Location
Clearfield, UT
First Name
Doug
Truck Year
1977
Truck Model
C10
Engine Size
350
Reference Lars' article "how to tune a Quadrajet". You'll find a wealth of information on what you have from that doc.

I agree. He put a lot of effort into his writings and he has a great deal of knowledge.


350runner

Full Access Member
Joined
Feb 9, 2013
Posts
2,858
Reaction score
224
Location
tx
First Name
Ceasar
Truck Year
82
Truck Model
c10
Engine Size
350
Subscribed


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,972
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
I can sticky this thread, but before I do, I'd rather title it right. How is it titled Edelbrock if it's for Rochester Carbs?


MadOgre

Full Access Member
Joined
May 4, 2014
Posts
4,090
Reaction score
49
Location
NA
First Name
NA
Truck Year
NA
Truck Model
NA
Engine Size
NA
I do believe that I have that information in my store.
From what I understand, there was a variant that GM made for autos and one for standards - but I'll keep you posted as I sift through these documents and organize them.

Oh that's why the difference, Auto or Manual. Good to know.


MadOgre

Full Access Member
Joined
May 4, 2014
Posts
4,090
Reaction score
49
Location
NA
First Name
NA
Truck Year
NA
Truck Model
NA
Engine Size
NA
I can sticky this thread, but before I do, I'd rather title it right. How is it titled Edelbrock if it's for Rochester Carbs?

Im thinking he's referring to the Edelbrock made and sold Qaudjets


BADAZ chevy guy

Full Access Member
Joined
May 4, 2014
Posts
110
Reaction score
6
Location
Clearfield, UT
First Name
Doug
Truck Year
1977
Truck Model
C10
Engine Size
350
Oh that's why the difference, Auto or Manual. Good to know.

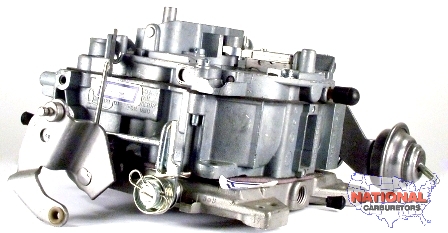

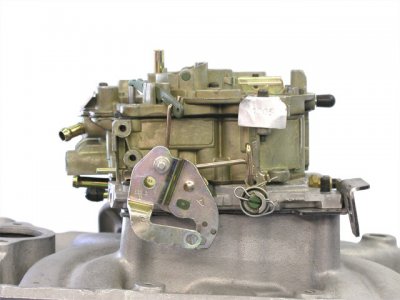

Hold up. The 2 pics I posted are for early and late configurations, but BOTH are for automatic transmissions. The Manual transmission would have likely come with only half of the throttle plate. Seen below.
