Question about stock rotors

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

1981lowrider

Full Access Member
Joined
Mar 24, 2011
Posts
96
Reaction score
0
Location
Seminole,OK
First Name
Jack
Truck Year
1981
Truck Model
Sierra
Engine Size
V-8
I am wanting to lower my ride. Can anyone tell me the stock width of my rotors on my 81 box ? I found new/used Drop Spindles and i want to make sure they fit. Any help is appreciated, I'm guessing they are 1"?


J Knight

Full Access Member
Joined
Sep 8, 2011
Posts
4,298
Reaction score
139
Location
Baytown TX
First Name
John
Truck Year
82 Chevy
Truck Model
C10
Engine Size
350ci
They came with both 1 in and 1 1/4 in. Just measure the rotor thickness, there is now way we will know by just the year given.


J Knight

Full Access Member
Joined
Sep 8, 2011
Posts
4,298
Reaction score
139
Location
Baytown TX
First Name
John
Truck Year
82 Chevy
Truck Model
C10
Engine Size
350ci
BTW if your rotors are not the size of the spindles you found all you have to do is swap the rotors and inner bearings. Outer bearings are the same and caliper fits both.


1981lowrider

Full Access Member
Joined
Mar 24, 2011
Posts
96
Reaction score
0
Location
Seminole,OK
First Name
Jack
Truck Year
1981
Truck Model
Sierra
Engine Size
V-8
Thanks John, I appreciate your help, makes things alot easier!!


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
28,966
Reaction score
23,484
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
BTW if your rotors are not the size of the spindles you found all you have to do is swap the rotors and inner bearings. Outer bearings are the same and caliper fits both.

There's no way they use the same caliper. I just did the front brakes on mine, I have the narrow rotors and there's no way those calipers would have opened up far enough to accommodate a rotor that's a 1/4 inch thicker.

Either way, rotors and calipers are dirt cheap and it wouldn't be the end of the world if you have to switch.


J Knight

Full Access Member
Joined
Sep 8, 2011
Posts
4,298
Reaction score
139
Location
Baytown TX
First Name
John
Truck Year
82 Chevy
Truck Model
C10
Engine Size
350ci
There's no way they use the same caliper. I just did the front brakes on mine, I have the narrow rotors and there's no way those calipers would have opened up far enough to accommodate a rotor that's a 1/4 inch thicker.

Either way, rotors and calipers are dirt cheap and it wouldn't be the end of the world if you have to switch.

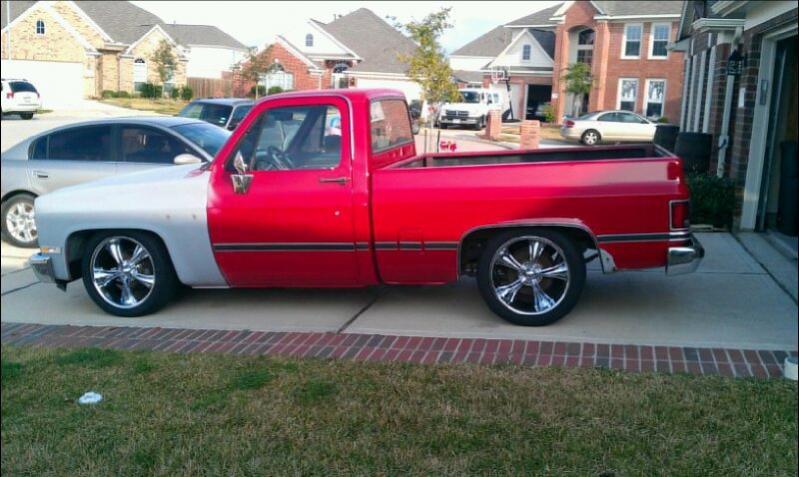

Case in point to my earlier post, this truck had 1 1/4 in rotors/spindles. I gave him a set of drop spindles that are for 1 in rotors, cross referenced the parts and the only parts that came up different were the inner bearings and the rotors. He needed a brake job anyway so he bought the parts and everything fit.
attachment.php


Attachments

  • 096.jpg
    66.8 KB · Views: 1,502

bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
28,966
Reaction score
23,484
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
I could see where it would work if the wide caliper was used on the thin rotor. But once the pads wear down, the piston is going to be out of it's bore more than it should, possibly causing it to blow and leak brake fluid.

Like I said, it would not be possible for my calipers to work on the thick rotor. My caliper's pistons were fully seated and the pad surface was flush with the caliper body, yet there still wasn't much clearance to slide them over the rotor.


Mr Clean

Super Moderator
Staff member
Super Moderator
Joined
Aug 18, 2010
Posts
9,840
Reaction score
8,457
Location
North East Texas
First Name
Shawn
Truck Year
1982 & 1985
Truck Model
K10 Extra Cab w/ Proper SWB, & 85 K5 Blazer
Engine Size
454 BBC, & 383 Stroker
I don't know John, you know I just lowered my truck, and up grades to drilled and slotted rotors that are 1.25. I had to buy new calipers, because my 1 inch calipers wouldn't open far enough. I know you have lowered a **** load of SB.

When I got my drop spindles, I got the larger 1.25 spindle, so I could up grade all the brakes on the front to the heavier 1.25. I know the calipers are wider, and it even uses different brake hoses.


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
28,966
Reaction score
23,484
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
I just checked Advance and NAPA, there are two different caliper sizes.

JB1 and JB3 is the thin caliper (manual brakes and light duty power brakes)

JB5 and a couple JD codes (hydroboost) is the thick caliper


J Knight

Full Access Member
Joined
Sep 8, 2011
Posts
4,298
Reaction score
139
Location
Baytown TX
First Name
John
Truck Year
82 Chevy
Truck Model
C10
Engine Size
350ci
Aint that some ****, I stand corrected, lyin ass parts store.

But we did have to completely colapes the piston to get the 1 1/4in caliper with new pads on to the new 1 in rotor.

EDIT: Do calipers too with regards to post #4.
