quad shock brackets

Discussion in 'Lifted & Off-Road Systems' started by PrairieDrifter, Mar 20, 2015.

  1. PrairieDrifter

    PrairieDrifter Full Access Member

    Posts:
    1,331
    Likes Received:
    471
    Joined:
    Dec 28, 2014
    Location:
    North Dakota
    First Name:
    Mason
    Truck Year:
    84,79,70
    Truck Model:
    Suburban k10, bonanza k10, c10
    Engine Size:
    350, 350, 350
    I just found out today that my suburban had factory quad shocks(never even thought to look if it did ha) Does anyone have a picture of the lower bracket on the axle, I have the upper mounts still there untouched, but it looks the lower brackets got butchered and welded. Id like to have them on there I know they don't really make a difference but I like the look of two shocks in the fender well.

  2. bucket

    bucket Super Moderator Staff Member

    Age:
    37
    Posts:
    19,630
    Likes Received:
    4,501
    Joined:
    Aug 3, 2010
    Location:
    Usually not in Ohio
    First Name:
    Andy
    Truck Year:
    '77, '78, '79, '84, '88
    Truck Model:
    K5 thru K30
    Engine Size:
    350-454
    There were no lower brackets, it was just a longer bolt and the one shock piggybacked off the other.

    Arkansas_V8 likes this.
  3. PrairieDrifter

    PrairieDrifter Full Access Member

    Posts:
    1,331
    Likes Received:
    471
    Joined:
    Dec 28, 2014
    Location:
    North Dakota
    First Name:
    Mason
    Truck Year:
    84,79,70
    Truck Model:
    Suburban k10, bonanza k10, c10
    Engine Size:
    350, 350, 350
    That's what I thought, but looking at it I wasn't sure how the second one would lineup.

    Thanks bucket!

  4. tiredtiretodd

    tiredtiretodd Full Access Member

    Posts:
    170
    Likes Received:
    13
    Joined:
    Jul 9, 2014
    Location:
    NORCAL
    First Name:
    Todd
    Truck Year:
    75
    Truck Model:
    K 25
    Engine Size:
    350
    i bought the dual shock kit and was told I don't need it? I figured if it was a option on some GM trucks then why not right? Anyway I will be welding the lower shock mounts to my front axle in a couple of days and then I'll decide if I want to use the duals or not. I'm pretty sure I'd have to move my break lines in order to drill the hole needed to install the new bracket................FUN!!!!!!!

  5. jetman

    jetman Full Access Member

    Posts:
    213
    Likes Received:
    7
    Joined:
    Dec 26, 2012
    Location:
    Minnie, AK
    First Name:
    Don
    Truck Year:
    1980
    Truck Model:
    c10
    Engine Size:
    5.0
    My K10, which I am upgrading to K20, has factory quad shocks on the front. Today I will be swapping out the original front axle assembly, in favor of an axle which has the same gear ratio as the recently installed 14 bolt rear.

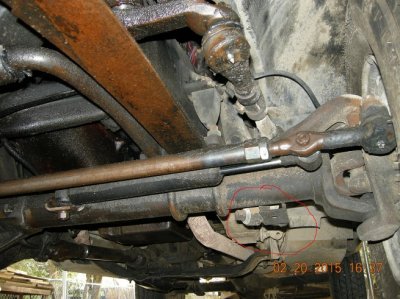

    The shock brackets (which are welded to the axle housing) are exactly the same for 2-shock and 4-shock installs. The one shock fits in the bracket as normal, the 2nd shock mounts off to the side via a long mounting bolt, as mentioned by bucket. Attached is a recon photo I took in February (front axle, drivers side, looking from the front to the rear...


    Attached Files:

    Last edited: Apr 3, 2015
  6. jetman

    jetman Full Access Member

    Posts:
    213
    Likes Received:
    7
    Joined:
    Dec 26, 2012
    Location:
    Minnie, AK
    First Name:
    Don
    Truck Year:
    1980
    Truck Model:
    c10
    Engine Size:
    5.0
    Took some more photos of the Quad Shock arrangement, as I was swapping the font axle out today... The Quad Shock fits right up to a standard axle housing, just uses a long bolt and a "1/4" Spacer thingy" between the two shocks.


    Attached Files:

  7. PrairieDrifter

    PrairieDrifter Full Access Member

    Posts:
    1,331
    Likes Received:
    471
    Joined:
    Dec 28, 2014
    Location:
    North Dakota
    First Name:
    Mason
    Truck Year:
    84,79,70
    Truck Model:
    Suburban k10, bonanza k10, c10
    Engine Size:
    350, 350, 350
    I had a feeling there had to be some kind of spacer between them.

  8. hirschdalechevy

    hirschdalechevy Full Access Member

    Posts:
    631
    Likes Received:
    155
    Joined:
    Mar 8, 2011
    Location:
    norcal
    First Name:
    rich
    Truck Year:
    1977
    Truck Model:
    k-30
    Engine Size:
    454
    Just letting you guys know I have ran a lot of dual shock setups on my square's and if you are lifted and wheel off road a lot I have destroy'ed all of the lower shock mount's when running duals. If you are mostly on the street and light off road you will be fine , (just giving you the heads up).

    I always use channel , (the same width of the skock bushing) and weld that to the housing in the stock location and gusset it on both sides , then you bolt the shocks in line of each other , never a twisted or broke mount again.

    I will try and snap a pic if you guy's are interested and its not hard to do if you can weld.

    Arkansas_V8 likes this.
  9. PrairieDrifter

    PrairieDrifter Full Access Member

    Posts:
    1,331
    Likes Received:
    471
    Joined:
    Dec 28, 2014
    Location:
    North Dakota
    First Name:
    Mason
    Truck Year:
    84,79,70
    Truck Model:
    Suburban k10, bonanza k10, c10
    Engine Size:
    350, 350, 350
    I'd like to see a picture of it:popcorn:

  10. hirschdalechevy

    hirschdalechevy Full Access Member

    Posts:
    631
    Likes Received:
    155
    Joined:
    Mar 8, 2011
    Location:
    norcal
    First Name:
    rich
    Truck Year:
    1977
    Truck Model:
    k-30
    Engine Size:
    454
    10 4 I will try to take one today

  11. highdesertrange

    highdesertrange Full Access Member

    Posts:
    981
    Likes Received:
    137
    Joined:
    Dec 19, 2013
    Location:
    kalifornia
    First Name:
    mike
    Truck Year:
    1978
    Truck Model:
    k30
    Engine Size:
    454
    that's why I don't run duals anymore. I am done with repairing the lower mounts. highdesertranger

  12. bucket

    bucket Super Moderator Staff Member

    Age:
    37
    Posts:
    19,630
    Likes Received:
    4,501
    Joined:
    Aug 3, 2010
    Location:
    Usually not in Ohio
    First Name:
    Andy
    Truck Year:
    '77, '78, '79, '84, '88
    Truck Model:
    K5 thru K30
    Engine Size:
    350-454
    Mine seem to be holding up fine, although there has been a bit of rust color coming from the lower mounts, indicating worn bolt holes.

    Oh, my aftermarket shocks for the quad shock setup came with a longer bushing sleeve to eliminate the spacer.

  13. PrairieDrifter

    PrairieDrifter Full Access Member

    Posts:
    1,331
    Likes Received:
    471
    Joined:
    Dec 28, 2014
    Location:
    North Dakota
    First Name:
    Mason
    Truck Year:
    84,79,70
    Truck Model:
    Suburban k10, bonanza k10, c10
    Engine Size:
    350, 350, 350
    longer sleeve on one of the shocks or both?

  14. bucket

    bucket Super Moderator Staff Member

    Age:
    37
    Posts:
    19,630
    Likes Received:
    4,501
    Joined:
    Aug 3, 2010
    Location:
    Usually not in Ohio
    First Name:
    Andy
    Truck Year:
    '77, '78, '79, '84, '88
    Truck Model:
    K5 thru K30
    Engine Size:
    350-454
    Just the one that needed it. I think it was the longer shock.

  15. PrairieDrifter

    PrairieDrifter Full Access Member

    Posts:
    1,331
    Likes Received:
    471
    Joined:
    Dec 28, 2014
    Location:
    North Dakota
    First Name:
    Mason
    Truck Year:
    84,79,70
    Truck Model:
    Suburban k10, bonanza k10, c10
    Engine Size:
    350, 350, 350
    One of the shocks is longer too? The one closest to the frame Im guessing
