Power Window Relay Conversion

Chris825

Junior Member
Joined
Jan 17, 2021
Posts
6
Reaction score
3
Location
Florida
First Name
Chris
Truck Year
1985
Truck Model
K10
Engine Size
Cummins 4BT
Looked around on here a bit and didn't see anything, so I'm asking if anybody knows of or has a good tutorial on relay conversions for power windows. I believe it's where you put some sort of relay or regulator in there and then wired directly to the car battery?


Ken B

Full Access Member
Joined
Sep 18, 2019
Posts
389
Reaction score
275
Location
indiana
First Name
ken
Truck Year
81
Truck Model
c10
Engine Size
250
I bought some from LMC truck, if you are looking, sorry I have not installed yet so I can not help with install assistance.


Doppleganger

Supporting Member
Supporting Member
Joined
May 24, 2019
Posts
4,198
Reaction score
14,768
Location
OH-MI: Just like it sounds
First Name
Chris
Truck Year
1985
Truck Model
K20
Engine Size
5.7
There is an issue with the LMC kit I have read about on other sites. This guy figured it out and corrected it. He offered his diagrams if you emailed him. If you cant find it, I'll post them. I PM'd him awhile ago and he emailed it to me. I'm going to just make my own harness.

xc_hide_links_from_guests_guests_error_hide_media

Here's the diagram of what he did:

You must be registered for see images attach

Last edited:

RoryH19

Full Access Member
Joined
Aug 21, 2015
Posts
1,535
Reaction score
932
Location
Texas
First Name
Rory
Truck Year
1987
Truck Model
R10 Silverado SWB
Engine Size
350 TBI
I built my own harness and relay setup for my k5. Definitely faster than my r10.
If the above doesn't work, let me know and I'll find my old notes.


Juan Cano

Full Access Member
Joined
Jun 7, 2021
Posts
73
Reaction score
32
Location
Warwick, RI
First Name
Juan
Truck Year
1986
Truck Model
C10
Engine Size
350 Goodwrench Crate
Question with these relays; can I do the power window relay conversion AND also do the same for my headlights? It won't kill my battery?


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
3,016
Reaction score
1,289
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
Question with these relays; can I do the power window relay conversion AND also do the same for my headlights? It won't kill my battery?
When you do this it will actually be less of a "load" on your battery. Old wiring tends to add "load" on the circuitry.....which you don't want. Adding a load is like adding more lights/motors. With the relays you use the old wiring to control the relay....which switches direct battery power to the light/wiper etc. Just make sure your wiring to the light/wiper is the correct size.


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
3,016
Reaction score
1,289
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
Question with these relays; can I do the power window relay conversion AND also do the same for my headlights? It won't kill my battery?
to add to the above, by eleminating old wiring, going directly to your lights, door locks, windows, etc utilizing a relay.....your decreasing the load because they are "directly" connected to the battery....eliminating old wiring, connectors, etc. Your original wiring will only have to control a pretty small load (the relay).


Raider L

Full Access Member
Joined
Sep 1, 2020
Posts
1,370
Reaction score
606
Location
Shreveport, LA
First Name
William
Truck Year
1974
Truck Model
C10
Engine Size
355
@Chris825,

I don't want to sound ignorant, but why are ya'll doing this conversion? What's wrong with the original wiring/switch? Why would you want everything going straight to the battery? Isn't it making it there anyway through the harness?


Juan Cano

Full Access Member
Joined
Jun 7, 2021
Posts
73
Reaction score
32
Location
Warwick, RI
First Name
Juan
Truck Year
1986
Truck Model
C10
Engine Size
350 Goodwrench Crate
@Chris825,

I don't want to sound ignorant, but why are ya'll doing this conversion? What's wrong with the original wiring/switch? Why would you want everything going straight to the battery? Isn't it making it there anyway through the harness?
In the forums and other people say that if you do this for the headlights for example, you get a much brighter headlight beam, and more consistent. On the windows, it says windows will go up and down faster. I am looking into this because the previous owner has done some bad hacking where one of the windows seems to be powered through the battery but also somehow connected to my headlights? So if I'm going in to start taking stuff apart I might as well replace the wiring. LMC sells the headlight harness for $22 and the window one for $44 (both windows).


Juan Cano

Full Access Member
Joined
Jun 7, 2021
Posts
73
Reaction score
32
Location
Warwick, RI
First Name
Juan
Truck Year
1986
Truck Model
C10
Engine Size
350 Goodwrench Crate

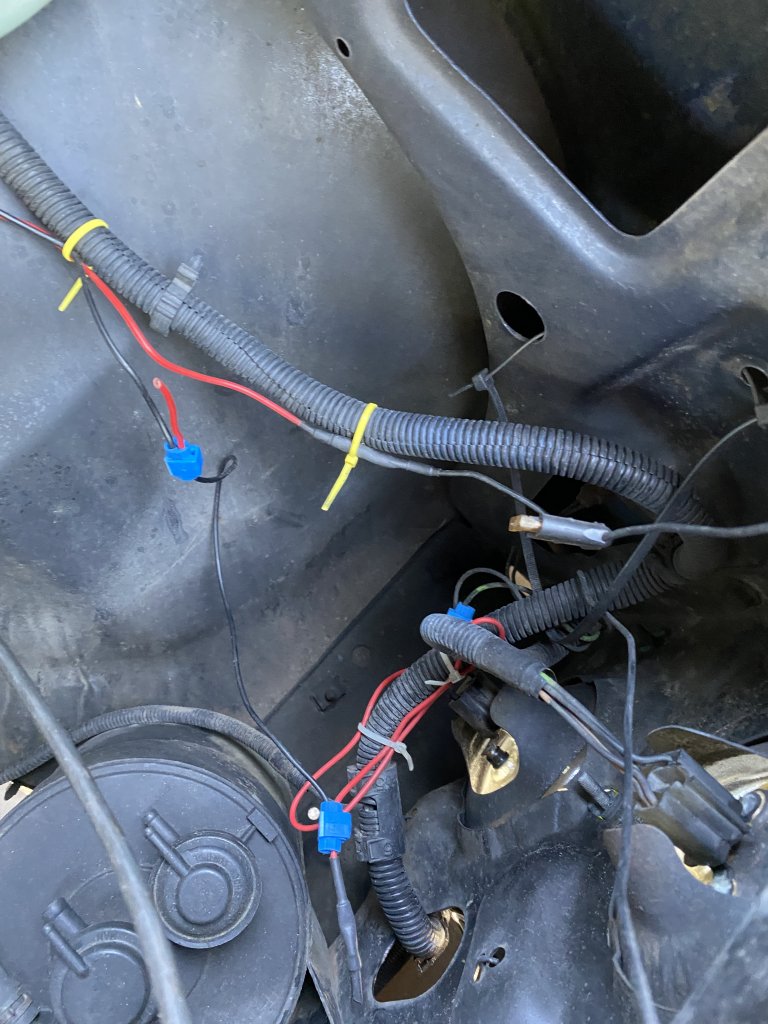

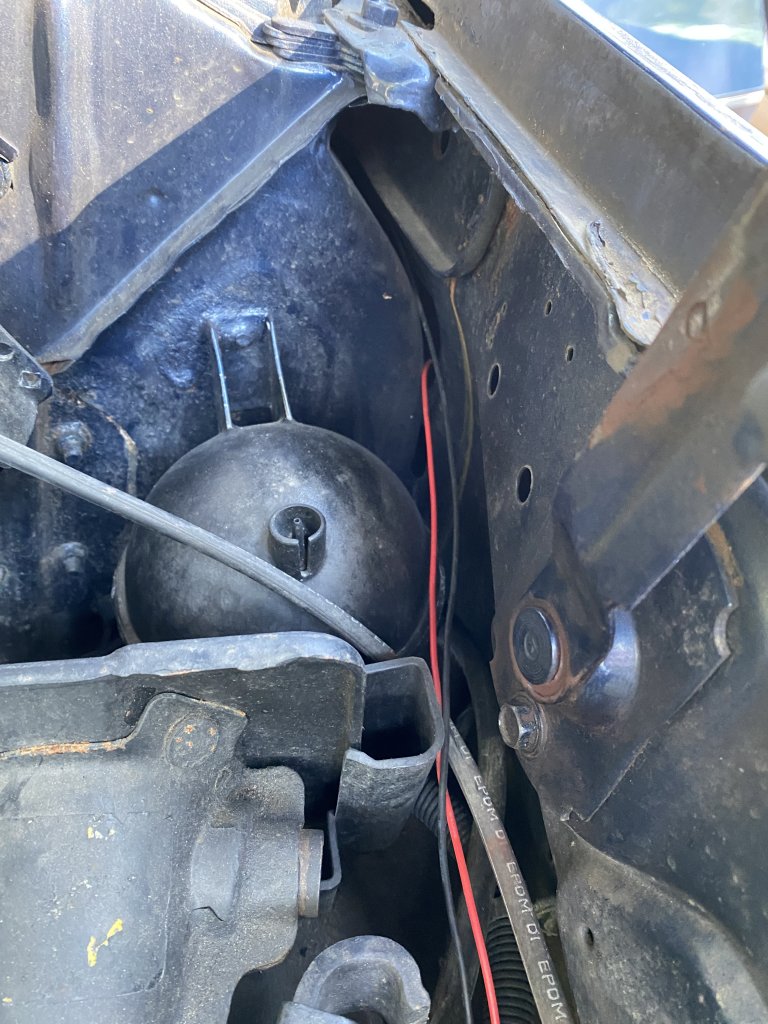

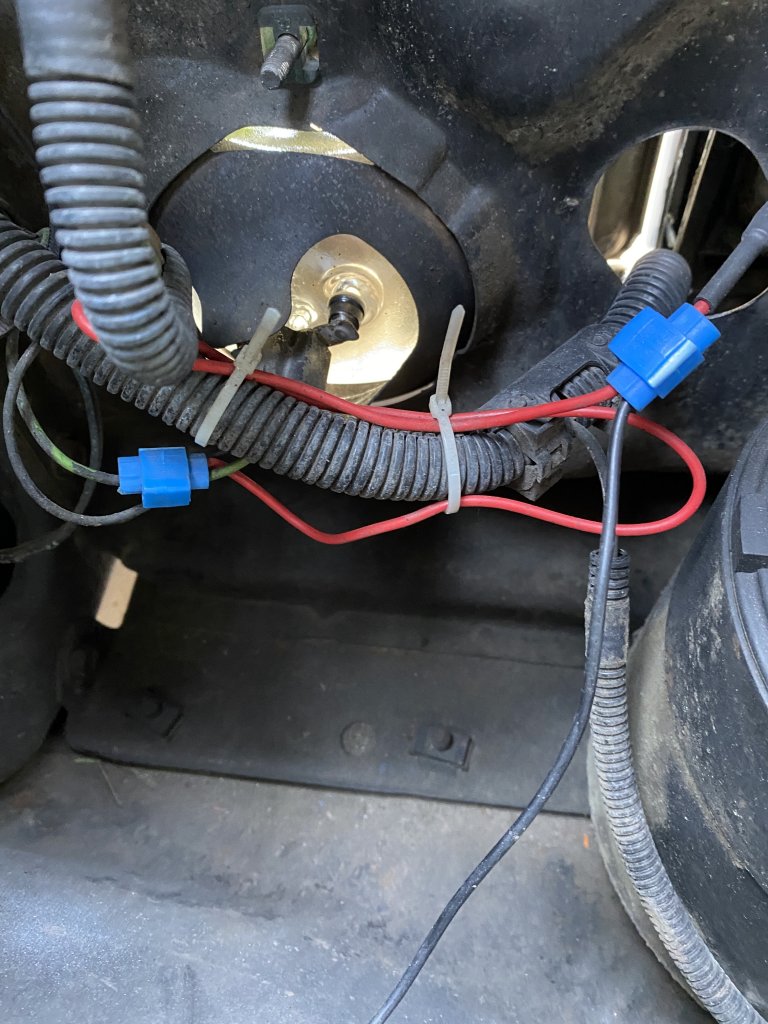

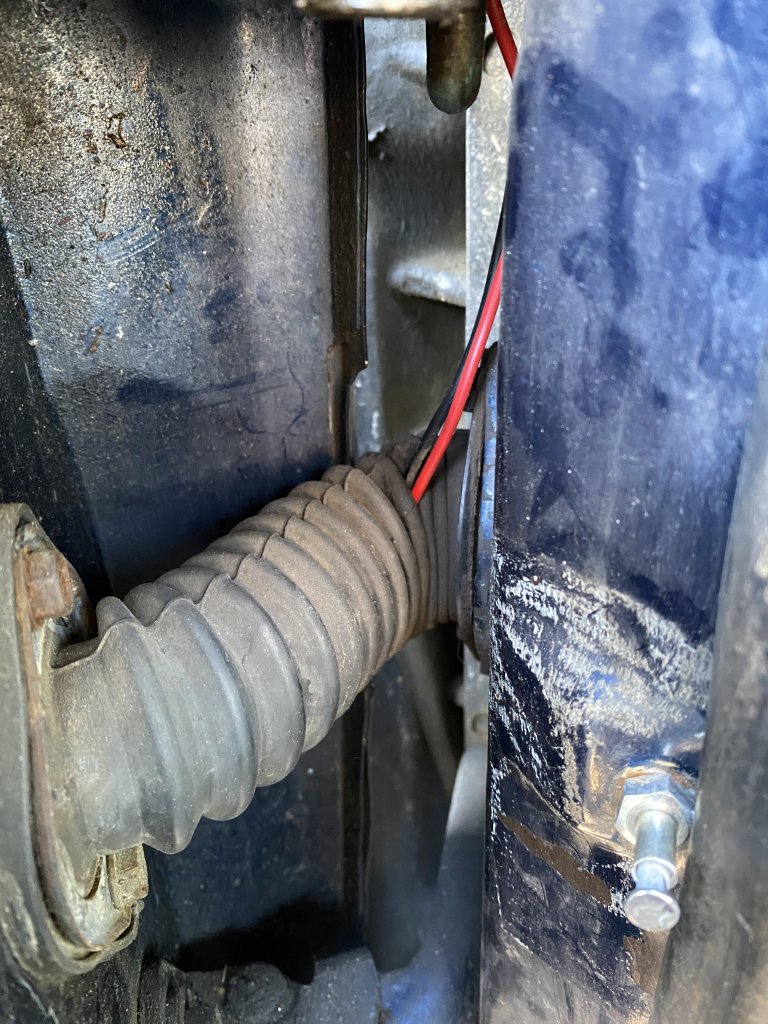

This is why I am looking into the upgraded harnesses for headlights and windows. My driver side window, which works sometimes, I noticed previous owner added power cables (probably because it stopped working) and it's hacked together with the headlight switch and goes straight into the battery. At least they put a fuse. This used to have a bumper mounted LED light that was also powered out of this. So trying to clean it up and thought might as well do the Relay upgrade.


Attachments

  • IMG_7386.JPG
    187.8 KB · Views: 7
  • IMG_7387.JPG
    163.8 KB · Views: 6
  • IMG_7388.JPG
    141.1 KB · Views: 6
  • IMG_7389.JPG
    148.2 KB · Views: 6

Bextreme04

Full Access Member
Joined
May 13, 2019
Posts
2,127
Reaction score
2,172
Location
Oregon
First Name
Eric
Truck Year
1980
Truck Model
K25
Engine Size
350-4bbl
@Chris825,

I don't want to sound ignorant, but why are ya'll doing this conversion? What's wrong with the original wiring/switch? Why would you want everything going straight to the battery? Isn't it making it there anyway through the harness?
The old wiring and switch configurations add a ton of resistance to the circuit and are damaging to the switches. When you convert to using a relay with power coming through a larger gauge wire directly from the battery, you remove resistance(that converts voltage to heat) and allow the windows to operate faster with less draw from the battery. It also prevents the large current arcing the contacts on the window switch and wearing it out prematurely. It is a much more reliable and efficient way to manage the electrical system.
