Power Steering remote reservoir hose???

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

sticman

Junior Member
Joined
Apr 20, 2013
Posts
26
Reaction score
4
Location
Langley BC Canada
First Name
Jason
Truck Year
1980 /1987
Truck Model
K10 / V10
Engine Size
350 5.7L TPI
I seem to recall there's a factory hose to connect the remote reservoir hose to hydro boost pump when the AC option was installed. I know I can build up something with heater hose, but I'm sure the factory had a cleaner solution. I'm interested to see if ppl have some pictures of the hose routing for the remote reservoir hose to hydro boost pump with AC. And or a part number for the hose i think exists.

You must be registered for see images attach


89Suburban

Supporting Member
Supporting Member
Joined
Dec 7, 2010
Posts
24,454
Reaction score
5,613
Location
Southeast PA
First Name
Paw Paw
Truck Year
2007
Truck Model
Chevrolet Tahoe LT
Engine Size
5.3, 4WD
:popcorn:


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,976
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
hmmm, :shrug: Never realized there was a difference of AC and Non AC. Guess I"ll have to popcorn this thread too. :popcorn:


NOPHO84K30

Full Access Member
Joined
Feb 28, 2013
Posts
479
Reaction score
84
Location
north phoenix
First Name
justin
Truck Year
1984 silverado k30
Truck Model
K30 dana 60 corp14 ff
Engine Size
454 sm465 np205
My line goes from the top of the ps pump over the water pump to the alt bracket where the res is. But it is discontinued, you may have to have it made. Dont use heater hose it will sweat and soften swell up it has to be oil res tubing ...not cheap per foot ...i used two 90' fittings to make the turns...... But mines a big block with coaxial compressor may not be the same


MrMarty51

Full Access Member
Joined
Oct 25, 2012
Posts
7,438
Reaction score
9,166
Location
Eastern Montana
First Name
Martin
Truck Year
1978
Truck Model
K20
Engine Size
400
I got that specialty hose just for power steering fluids/ATF from Carquest, it is some stiff stuff, does`nt loike much of a bend bit it can be slightly curved around obstacles.


sticman

Junior Member
Joined
Apr 20, 2013
Posts
26
Reaction score
4
Location
Langley BC Canada
First Name
Jason
Truck Year
1980 /1987
Truck Model
K10 / V10
Engine Size
350 5.7L TPI
From all the hunting i did, I get to answer my own question. So maybe some useful info for someone else.
There's probably some other configurations out there, but this is what i learned. Even found some big blocks to look at but no small blocks.


On a big block truck with / with out ac the remote reservoir sits atop the alternator bracket, hose running across the top of the water pump to the steering pump.
Ive also seen a big block truck with out ac and the remote reservoir sits atop the two driver side blots of the water pump, hose S-curving to the steering pump.
On a small block there does not seem to be a factory setup with remote reservoir like i thought. Most steering pumps are local reservoir with the fill cap pointing up center or to the driver side.
The diesel also has remote reservoir option but i couldn't find any mounting location info for the remote and the fat compressor.
In the case of the 1985 -1987 bracket that i have. The correct pump would have the fill cap pointing to the passenger side when ac is installed. any other pump cocking dose not fit or allow you to remove the cap or get a hose on with the fat ac compressor in place. The older long body compressor may be a different story as it sits way higher leaving more working area around the steering pump.

attachment.php

attachment.php


You must be registered for see images attach


You must be registered for see images attach


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,976
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
Great Info Jason. Nice Addition to the forum. Rep Given. :waytogo:

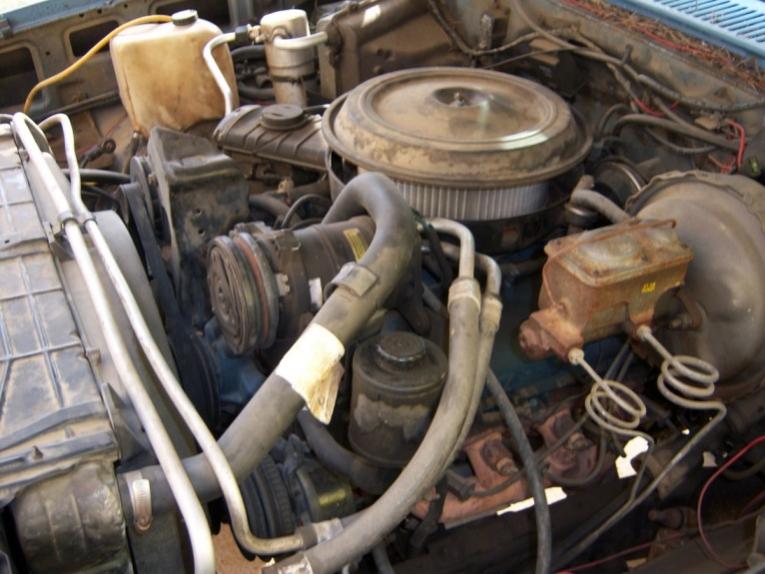

I wasn't even aware there was a difference as previously explained. For the purpose of your info, I'll add a pic of my 454 with remote reservoir WITH AC.

1986 454 PS Remote Reservoir w/ AC
attachment.php


Attachments

  • BBCPSReswAC.jpg
    65.4 KB · Views: 1,333

MrMarty51

Full Access Member
Joined
Oct 25, 2012
Posts
7,438
Reaction score
9,166
Location
Eastern Montana
First Name
Martin
Truck Year
1978
Truck Model
K20
Engine Size
400
The red hose I got from CarQuest will make those bends just fine, and, it seemd to be the same stuff that was on the 427 engined trucks from the seventies/eighties.


GTME94

Full Access Member
Joined
Jan 20, 2013
Posts
441
Reaction score
31
Location
Metro Detroit/Holland, MI
First Name
Terry
Truck Year
86
Truck Model
C2500 C6P Camper Special
Engine Size
454/TH400/14bff 3.73
Here is a more open view of a 454 front end.

1986 454, with A/C and dual AIR pumps. alternator is removed from top left, AIR pump removed from top middle.

You must be registered for see images attach


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,008
Reaction score
8,976
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
Nice !!! Well have a full round of 454 PS pics before long. :waytogo: Thanks for the addition Terry.


gymbo39

Junior Member
Joined
Dec 29, 2019
Posts
1
Reaction score
0
Location
Southern California
First Name
Don
Truck Year
1979
Truck Model
C3500
Engine Size
454
I never saw an answer to the original post other than one from MrMarty51. Is MrMaty51's the only option or is this hose available somewhere?


da_raabi

Trailer Park Supervisor
Joined
Aug 7, 2013
Posts
1,403
Reaction score
901
Location
FloriDUH
First Name
Adam
Truck Year
1986
Truck Model
c30
Engine Size
454
Yeah I'd like to know too. My 86 has the same setup as GTME94's. I just discovered my reservoir hose is leaking at the pump and leaving piddle puddles. I can't seem to find a replacement. I took this pic to see if I could get a p/n off my hose but as you can see there's not much left of it.

You must be registered for see images attach


Sgt Gus

Full Access Member
Joined
Aug 2, 2023
Posts
166
Reaction score
267
Location
Texas
First Name
Mark
Truck Year
87
Truck Model
R20 3/4 ton
Engine Size
454ci/7.4L

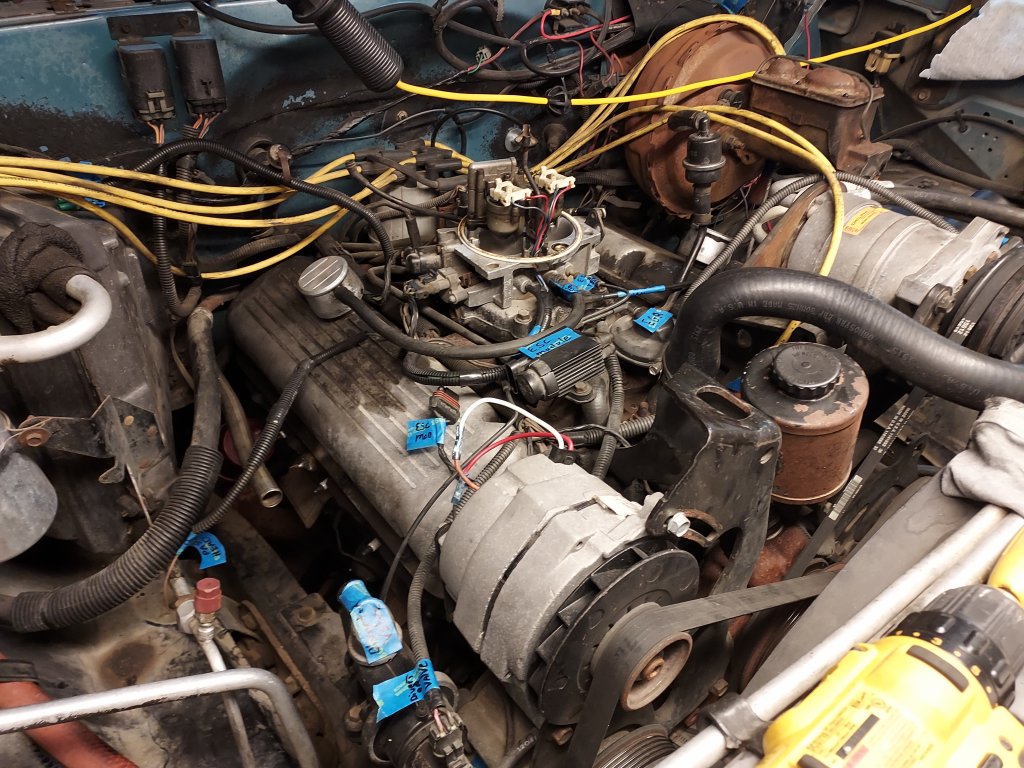

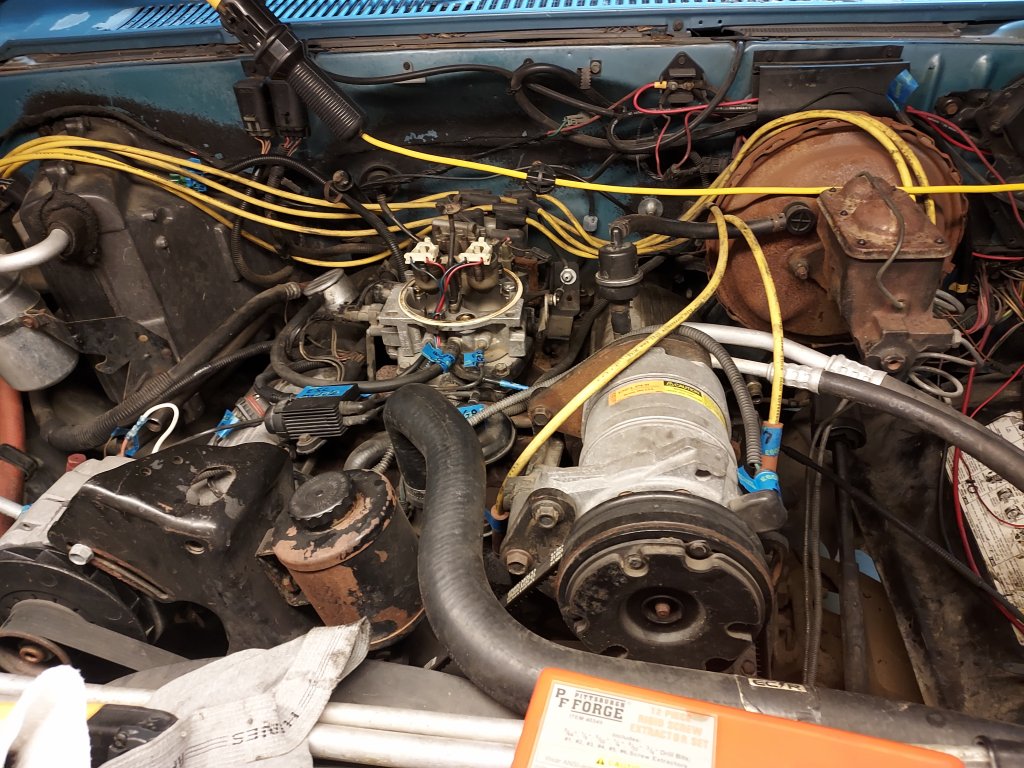

Good old thread. Our 87' 454. I like the 86 set up bracket when we remove our smog pump. Drill a couple holes and mount that secondary bracket for reservoir. The main bracket is $20 at parts store if I can find 2nd one.


Attachments

  • 20230805_112726.jpg
    199.8 KB · Views: 16
  • 20230805_112732.jpg
    205.4 KB · Views: 15

Latest posts

Forum statistics

Threads
41,853
Posts
903,540
Members
33,366
Latest member
texdave
Top
